TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
SKU: 126250

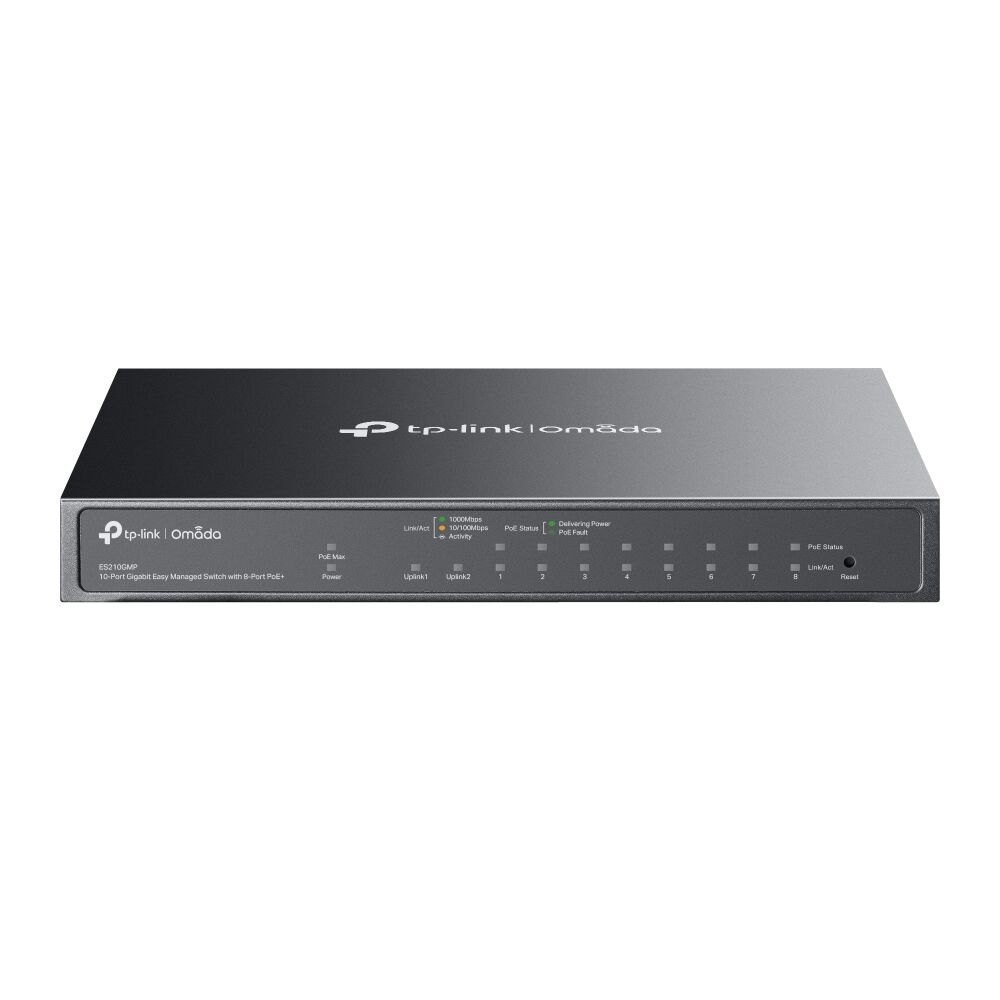

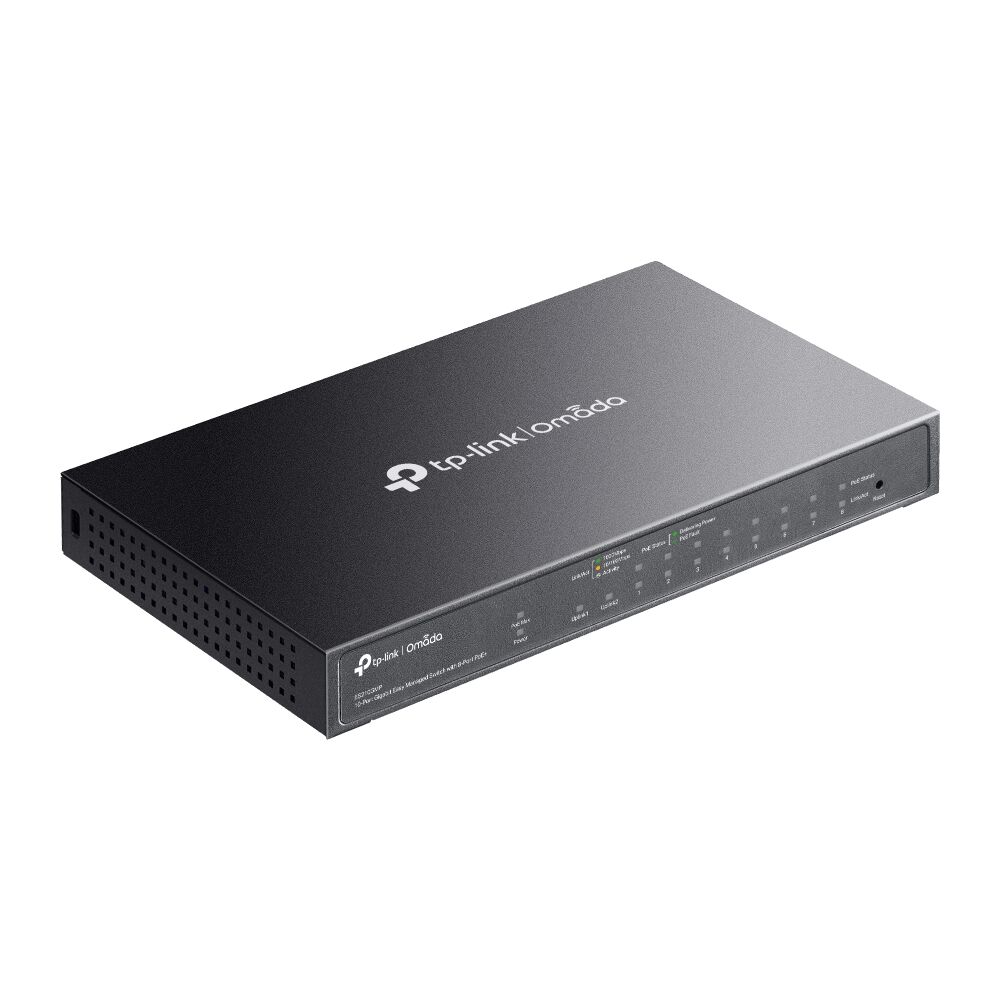

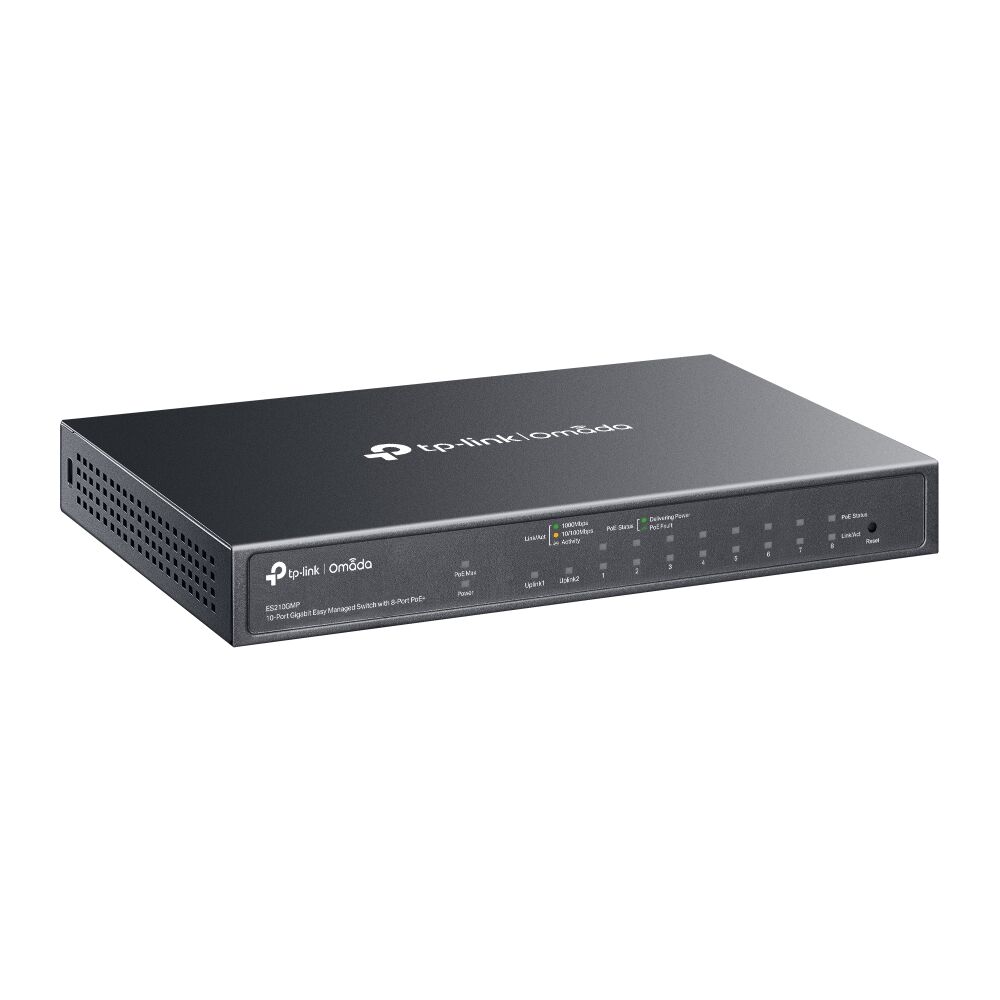

TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
SKU: 126250
$179.00
98
In Stock at store/warehouse
- 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

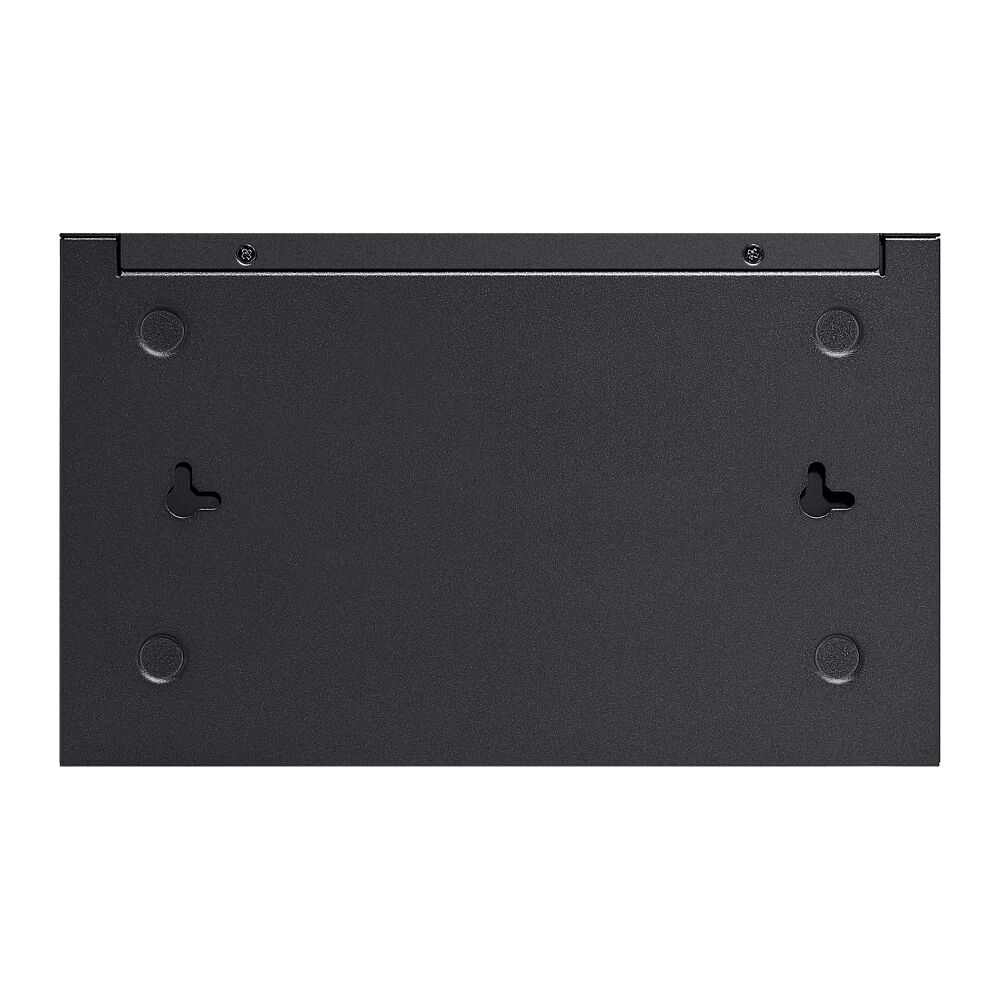

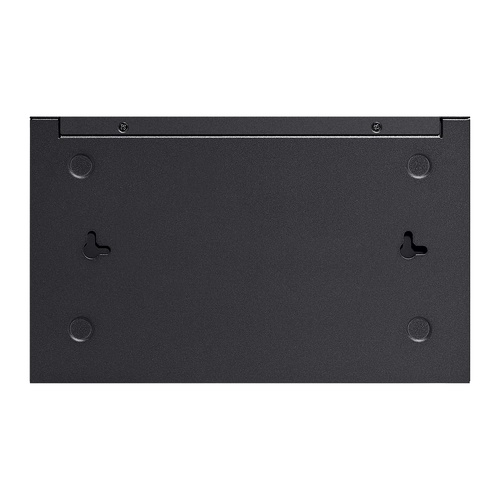

- Durable metal casing and desktop/wall mounting design
(126250)
| HARDWARE FEATURES | |
| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) |
| • 1× 10/100/1000 Mbps RJ45 Port | |
| • 1× Gigabit SFP/RJ45 Combo Port | |
| • Auto-Negotiation/Auto MDI/MDIX | |
| Fan Quantity | Fanless |
| Installation | • Desktop |
| • Wall Mount | |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5 VDC/ 2.43 A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant |
| • PoE Ports: 8 ports | |
| • PoE Budget: 123W available for all PoE+ ports, 30W max per port | |
| • PoE Auto Recovery‡ | |
| • Up to 250m PoE transmission distance** | |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Surge Protection | ±6kV |
|
PERFORMANCE
|
|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
|
SOFTWARE FEATURES
|
|
| Quality of Service | • Port-based/802.1p/DSCP QoS |
| • 8 Priority Queues | |
| • Priority Schedule Mode | |
| - WRR (Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control | |
| - Port-Based Rating Limit | |
| • Storm Control | |
| - Multiple Control Modes (kbps/pps) | |
| - Broadcast/Multicast/Unknown-Unicast Control△ | |
| L2 Features | • Static Link Aggregation |
| • Loop Prevention / Loopback Detection | |
| • Flow Control | |
| - 802.3x Flow Control | |
| • Mirroring | |
| - Port Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Ingress/Egress/Both | |
| • Port Statistics | |
| - Port Mirror Status | |
| - Traffic Statistics | |
| • 802.1ab LLDP | |
| L2 Multicast | • IGMP Snooping |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| VLAN | • MTU VLAN |
| • Port-Based VLAN | |
| • 802.1Q Tag VLAN | |
| - Max 32 VLAN Groups | |
| - 4K VID | |
| Transmission Method | Store-And-Forward |
|
MANAGEMENT
|
|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller | |
| • Omada Software Controller | |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI |
| • DHCP Client | |
| • Cable Diagnostics | |
| • Automatic Device Discovery† | |
| • Batch Configuration† | |
| • Batch Firmware Upgrading† | |
| • Unified Configuration† | |
|
OTHERS
|
|
| Certification | FCC, CE, RoHS |
| Package Contents | • ES210GMP |
| • Power Adapter | |
| • Installation Guide | |
| • Rubber Feet | |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) |
| • Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| • Operating Humidity: 10%~90% non-condensing | |
| • Storage Humidity: 5%~90% non-condensing | |
| SKU | 126250 |
| Model # | ES210GMP |
| Barcode # | 8885020620955 |
| Brand | TP-LINK |
| Shipping Weight | 1.5800kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.070m |
| Shipping Length | 0.320m |
