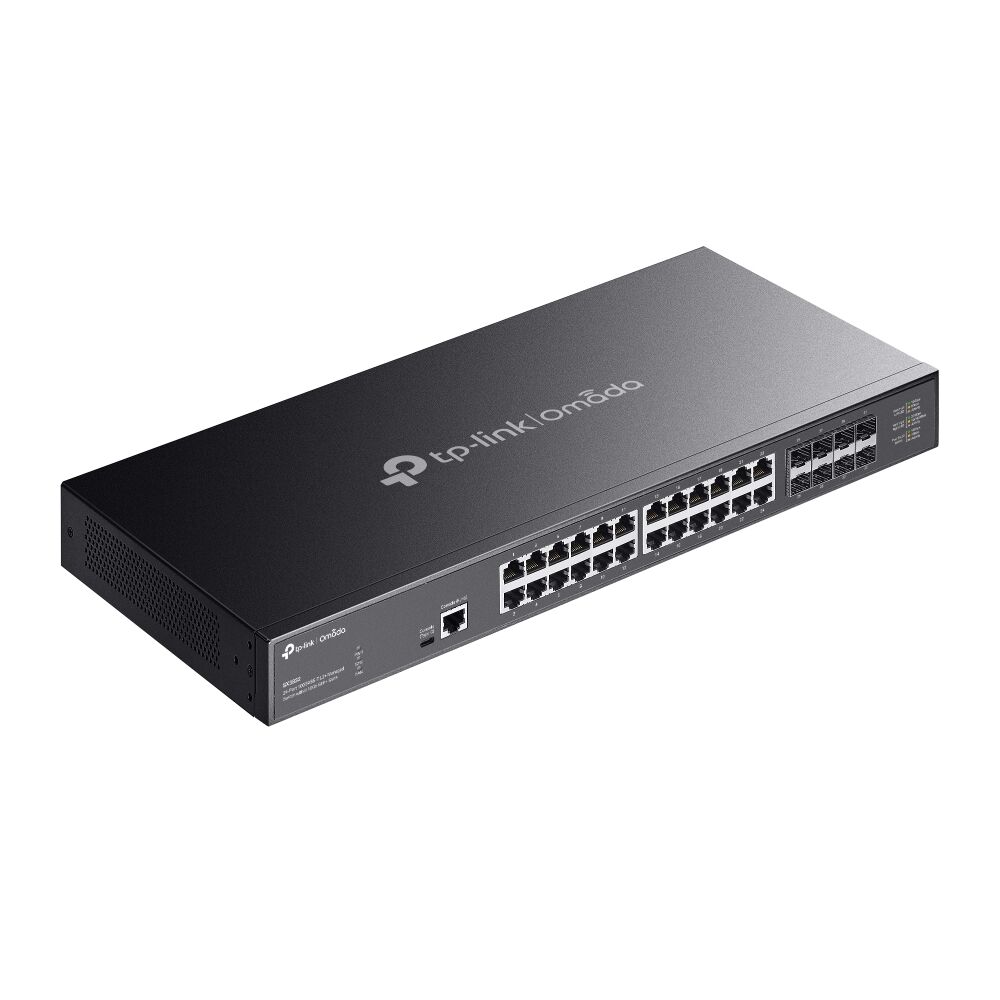

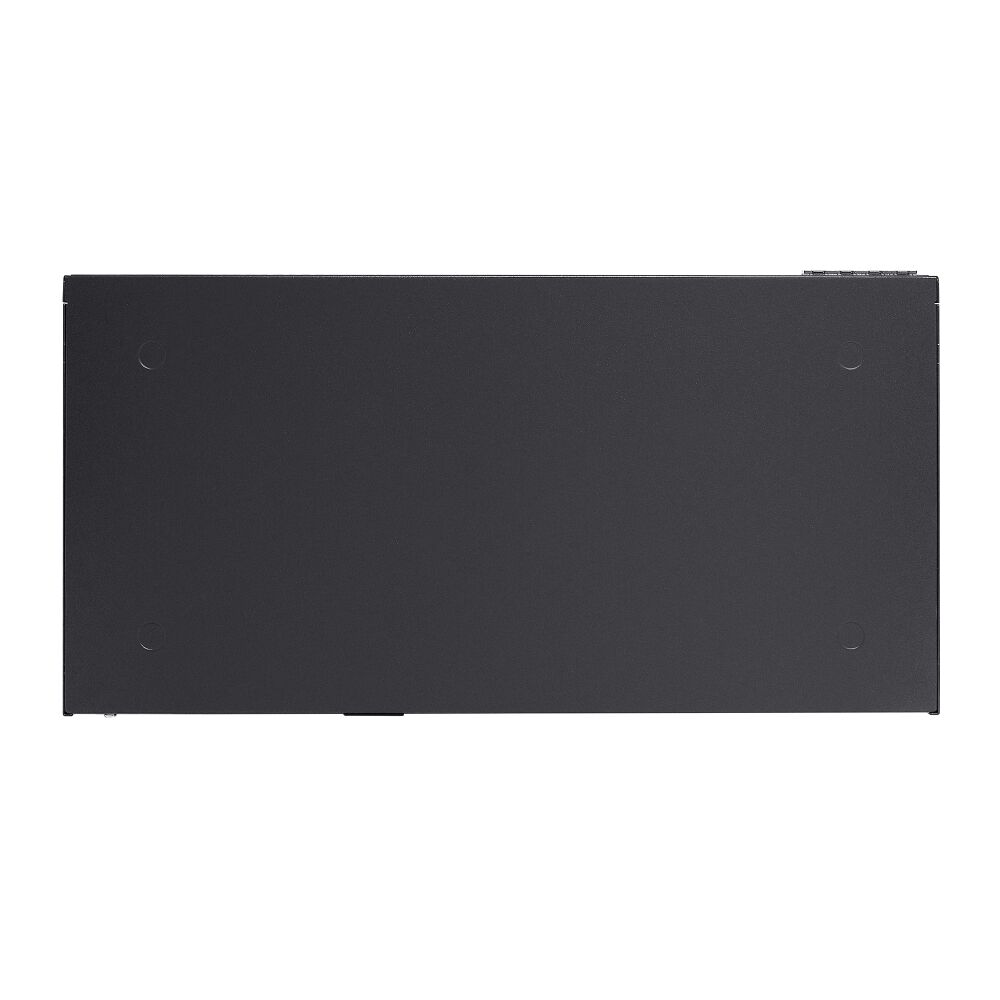

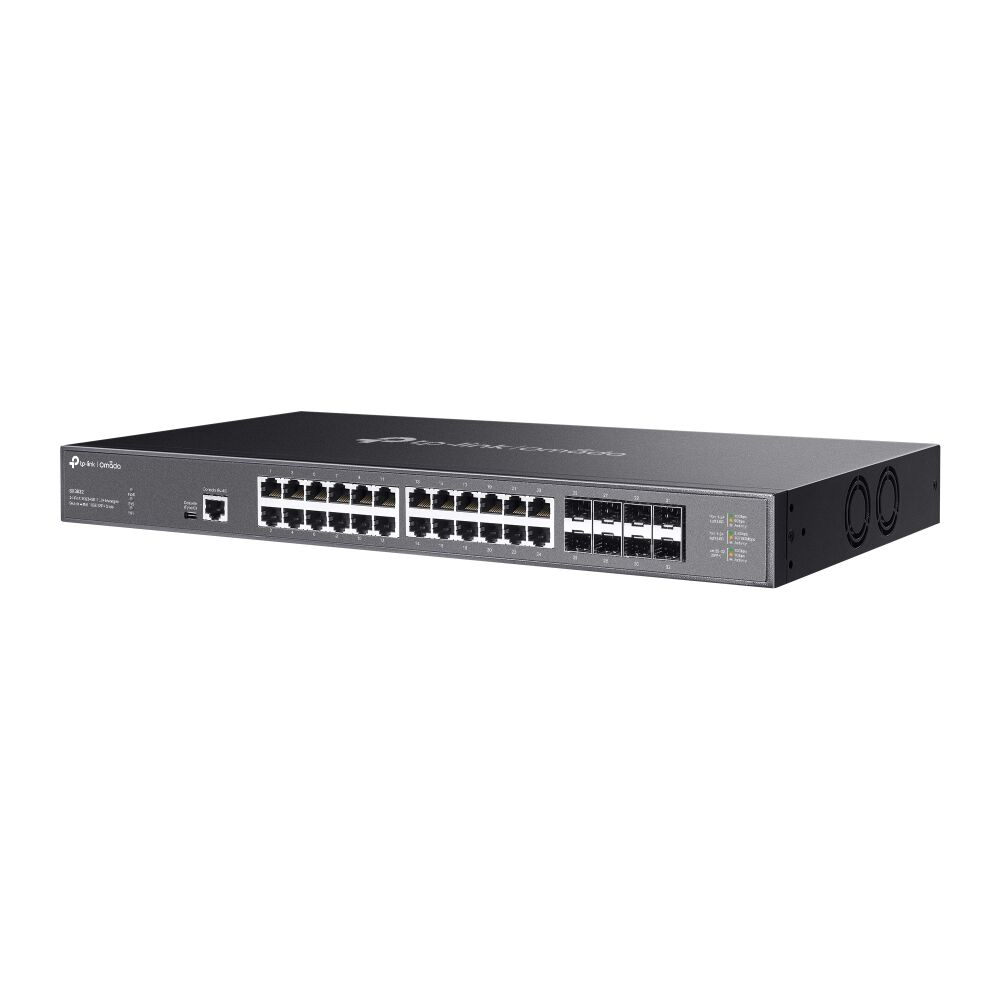

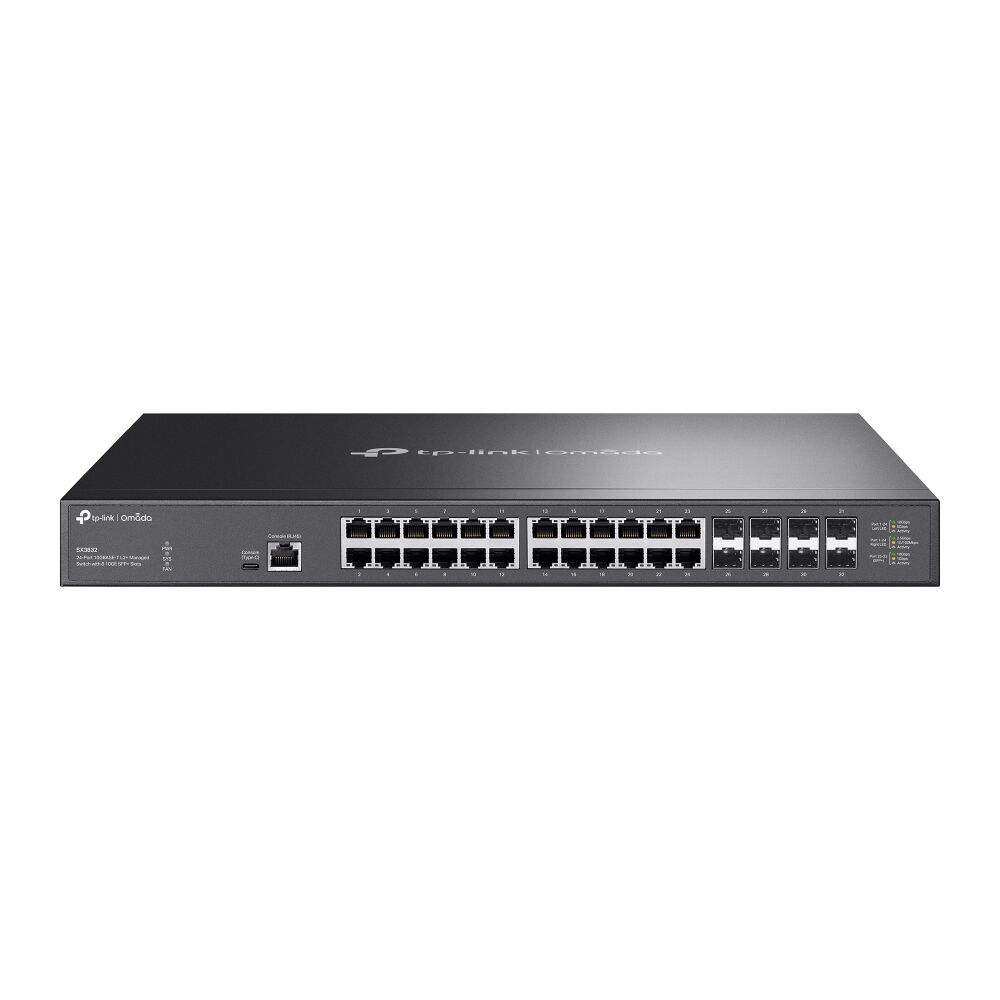

TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
SKU: 126248
TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
SKU: 126248
$2,499.00
(SAVE 17%)
was $2,999.00
Sold Out
- 4× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralised cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
**No more than 2× 10G RJ45 SFP+ modules (SM5310-T) are supported. It is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
(126248)
| HARDWARE FEATURES | |
| Interface | • 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| • 8× 1/10G SFP+ Slots** | |
| • 1× RJ45 Console Port | |
| • 1× USB Type C Console Port | |
| Fan Quantity | 2 |
| Physical Security Lock | √ |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3×8.7×1.7 in (440×220×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 104.9 W (@110V/60Hz) |
| 106.5 W (@220V/50Hz) | |
| Max Heat Dissipation | 357.81 BTU/hr (@110 V/60 Hz) |
| 363.23 BTU/hr (@220 V/50 Hz) | |
|
PERFORMANCE
|
|
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
|
SOFTWARE FEATURES
|
|
| Quality of Service | • 8 priority queues |
| • 802.1p CoS/DSCP priority | |
| • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR | |
| • Bandwidth Control: Port/Flow-based Rating Limiting | |
| • Smoother Performance | |
| • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) | |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface |
| • Static Routing: 48 IPv4/IPv6 Static Routes | |
| • Static ARP: 128 static entries | |
| • 510 ARP Entries | |
| • Proxy ARP | |
| • Gratuitous ARP | |
| • DHCP Server | |
| • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay | |
| • DHCP L2 Relay | |
| • Link Aggregation | |
| • Spanning Tree Protocol | |
| • Loopback Detection | |
| • 802.3x Flow Control | |
| • Mirroring | |
| L2 Multicast | • Supports 4,000 (IPv4, IPv6) IGMP groups |
| • IGMP Snooping | |
| • IGMP Authentication | |
| • Multicast VLAN Registration (MVR) | |
| • MLD Snooping | |
| • Multicast Filtering: 256 profiles and 16 entries per profile | |
| Advanced Features | • Automatic Device Discovery† |
| • Batch Configuration† | |
| • Batch Firmware Upgrading† | |
| • Intelligent Network Monitoring† | |
| • Abnormal Event Warnings† | |
| • Unified Configuration† | |
| • Reboot Schedule† | |
| ISP Features: | |
| • L2PT (Layer 2 Protocol Tunneling) | |
| • Device Link Detect Protocol (DLDP) | |
| • PPPoE ID Insertion | |
| • ERPS | |
| • 802.3ah Ethernet Link OAM | |
| • DDM | |
| VLAN | • VLAN Group: Max 4K VLAN Groups |
| • 802.1q Tagged VLAN | |
| • MAC VLAN: 256 Entries | |
| • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 | |
| • Private VLAN | |
| • GVRP | |
| • VLAN VPN: VLAN Mapping, VLAN Replace | |
| • Voice VLAN | |
| Access Control List | • Time-based ACL |
| • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type | |
| • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS | |
| • Combined ACL | |
| • Packet Content ACL | |
| • IPv6 ACL | |
| • Policy: Mirroring, Redirect, Rate Limit, QoS Remark | |
| • ACL applies to Port/VLAN | |
| Security | • IP-MAC-Port Binding |
| - 512 Entries | |
| - DHCP Snooping | |
| - ARP Inspection | |
| - IPv4 Source Guard: 96 Entries | |
| • IPv6-MAC-Port Binding | |
| - 512 Entries | |
| - DHCPv6 Snooping | |
| - ND Detection | |
| - ND Snooping | |
| - IPv6 Source Guard: 95 Entries | |
| • DoS Defend | |
| • DHCP Filter | |
| • Static/Dynamic Port Security: Up to 64 MAC addresses per port | |
| • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode | |
| • 802.1X | |
| - Port-based authentication | |
| - Mac-base authentication | |
| - VLAN Assignment | |
| - MAB | |
| - Guest VLAN | |
| - Radius authentication and accountability support | |
| • AAA (including TACACS+) | |
| • Port Isolation | |
| • Secure web management through HTTPS with SSLv3/TLS 1.2 | |
| • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| • IP/Port/MAC-based access control | |
| IPv6 | • IPv6 Dual IPv4/IPv6 |
| • Multicast Listener Discovery (MLD) Snooping | |
| • IPv6 ACL | |
| • IPv6 Interface | |
| • Static IPv6 Routing | |
| • IPv6 neighbor discovery (ND) | |
| • Path maximum transmission unit (MTU) discovery | |
| • Internet Control Message Protocol (ICMP) version 6 | |
| • TCPv6/UDPv6 | |
| • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP | |
| MIBs | • MIB II (RFC1213) |
| • Interface MIB (RFC2233) | |
| • Ethernet Interface MIB (RFC1643) | |
| • Bridge MIB (RFC1493) | |
| • P/Q-Bridge MIB (RFC2674) | |
| • RMON MIB (RFC2819) | |
| • RMON2 MIB (RFC2021) | |
| • Radius Accounting Client MIB (RFC2620) | |
| • Radius Authentication Client MIB (RFC2618) | |
| • Remote Ping, Traceroute MIB (RFC2925) | |
| • Support TP-Link private MIB | |
|
MANAGEMENT
|
|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller | |
| • Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI |
| • Command Line Interface (CLI) through the console port, telnet | |
| • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • 802.1ab LLDP/LLDP-MED | |
| • DHCP AutoInstall | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| • Password Recovery | |
| • SNTP | |
| • System Log | |
|
OTHERS
|
|
| Certification | CE, FCC, RoHS |
| Package Contents | • SX3832 Switch |
| • Power Cord | |
| • Console Cable | |
| • Quick Installation Guide | |
| • Rackmount Kit | |
| • Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
| SKU | 126248 |
| Model # | SX3832 |
| Brand | TP-LINK |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.500m |
