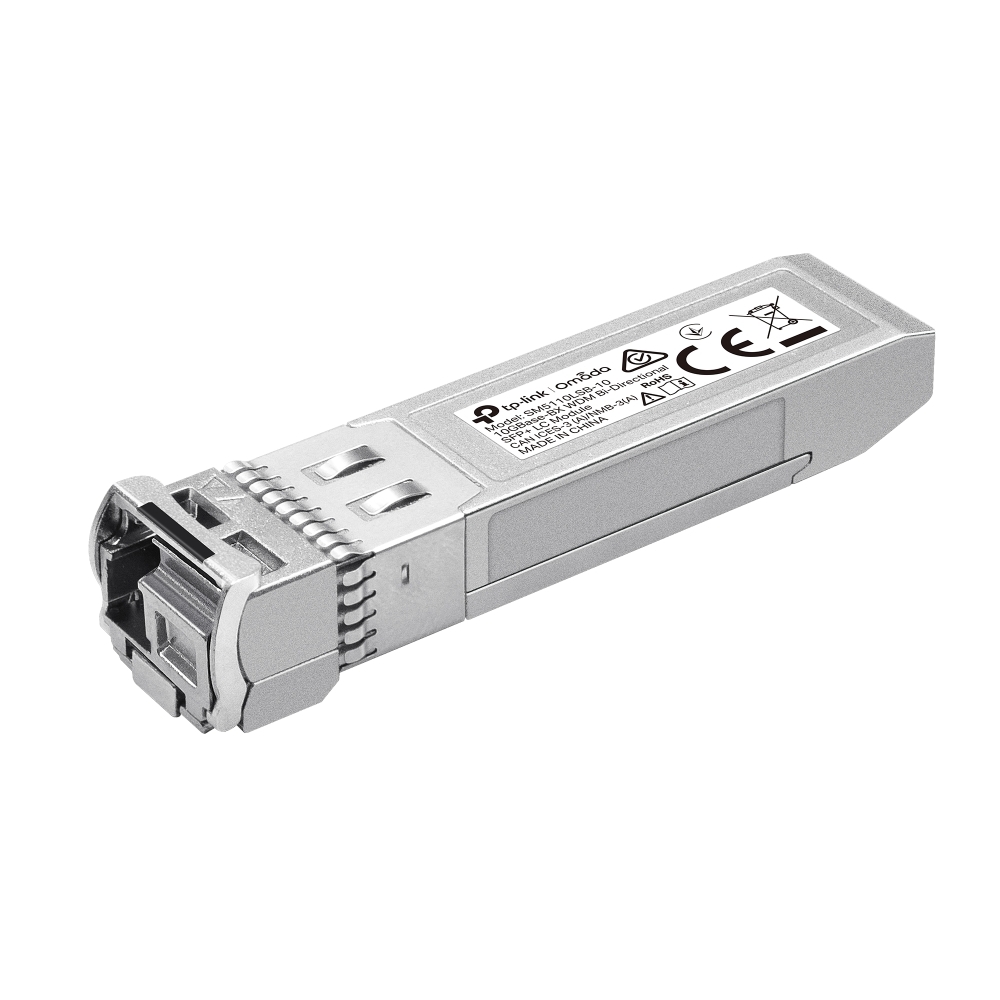

TP-Link SM5110LSB-10 Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

SKU: 125973

  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
  • Single mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
  • Compatible with switches with 10G ports like SG3428X and SG3452X

What This Product Does

The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.



*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.

(125973)

PACKAGE CONTENTS
Package Contents • SM5110LSB-10
• Installation Guide

HARDWARE FEATURES
DDM Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12.0 mm)

TRANSCEIVER
Standards and Protocols • IEEE 802.3ae
• SFF 8431, SFF 8432, SFF-8472
Wavelength •TX: 1270nm
•RX: 1330nm
Power Supply 3.3V
Fiber Type 9μm/125μm Single-Mode
Max. Cable Length 10km
Data Rate 10.3125 Gbps
Connector LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment • Operating Temperature: 0°C to 70°C (32–158 ℉)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
SKU 125973
Model # SM5110LSB-10
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
