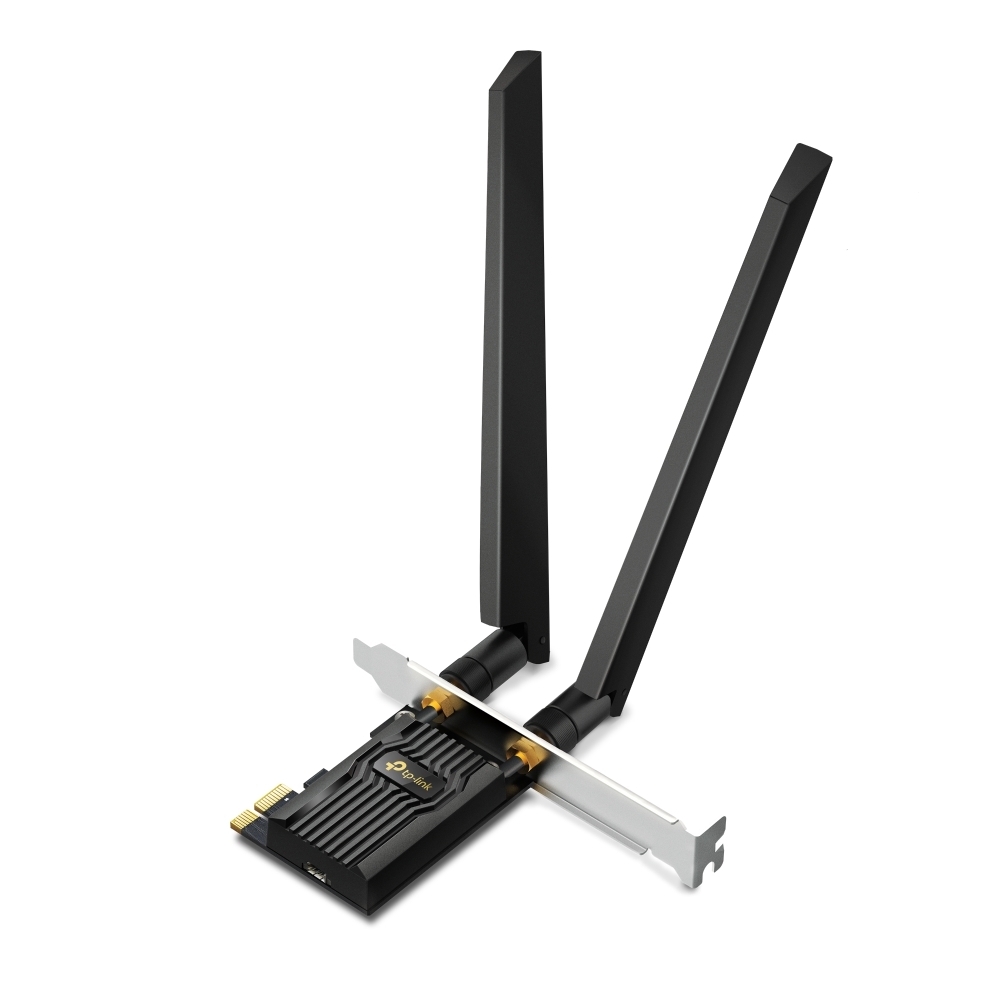

TP-Link Archer TXE72E AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

SKU: 125969

  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  •      WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.
  •      Wider Signal Coverage — Two multi-directional antennas are designed for optimal signal reception
  •      Bluetooth 5.3 — Security and reliability improvement than last-gen high-speed Bluetooth 5.2
  •      Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
  •      Reliably Engineered — The gold plating improve stability and performance even at high CPU temps
  •      Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

(125969)

HARDWARE FEATURES
Dimensions 2.2 × 1.4 × 0.4 in (55 × 36 × 11.5 mm)
Antenna Type 2× High-Gain Tri-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
WLAN Signal Rate 6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 6 GHz:
11ax HE160 MCS0:-86
11ax HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
WLAN Transmit Power 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
WLAN Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification FCC, CE, RoHS

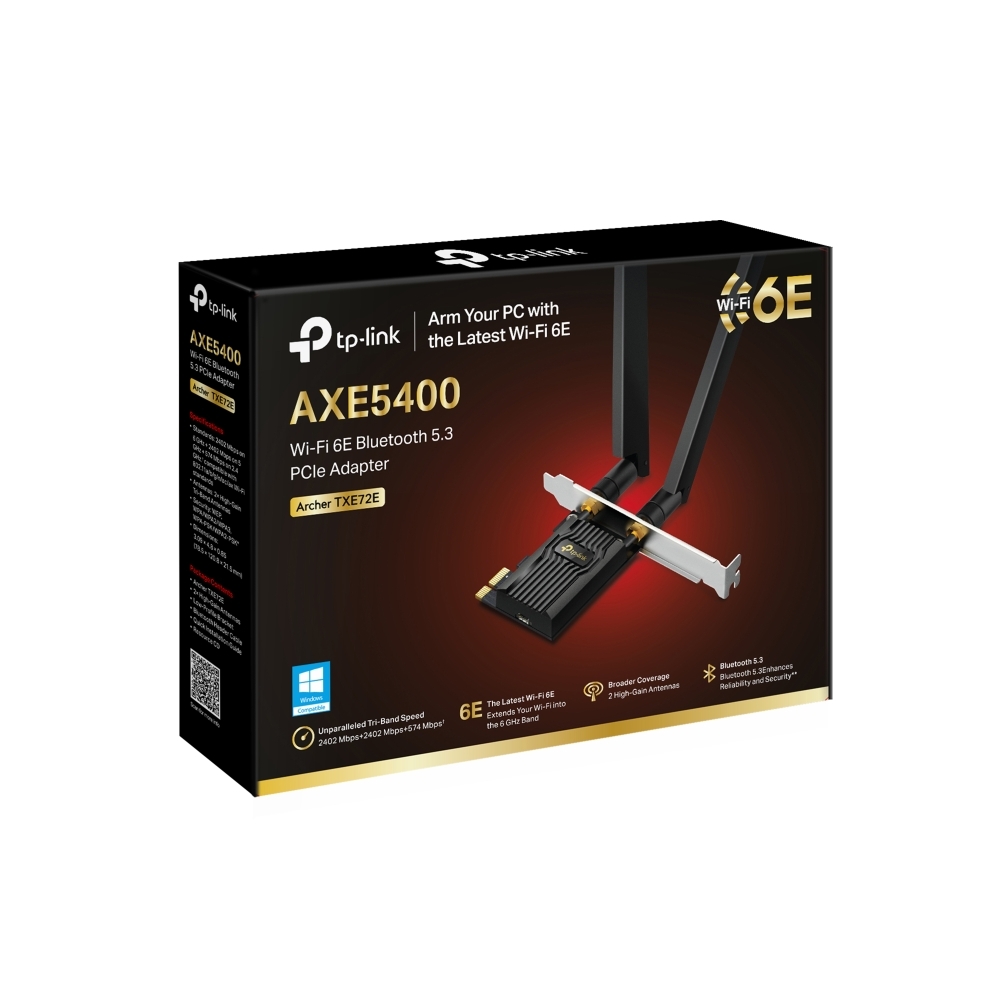

Package Contents Archer TXE72E
2× High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Supported operating systems include Windows 10, 11(64-bit).
Currently 6 GHz Band only supported on Windows 11.
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Accessories Specifications Bluetooth Header Cable Length: 0.3m
SKU 125969
Model # Archer TXE72E
Brand TP-LINK
Shipping Weight 0.5000kg
Shipping Width 0.220m
Shipping Height 0.050m
Shipping Length 0.280m
