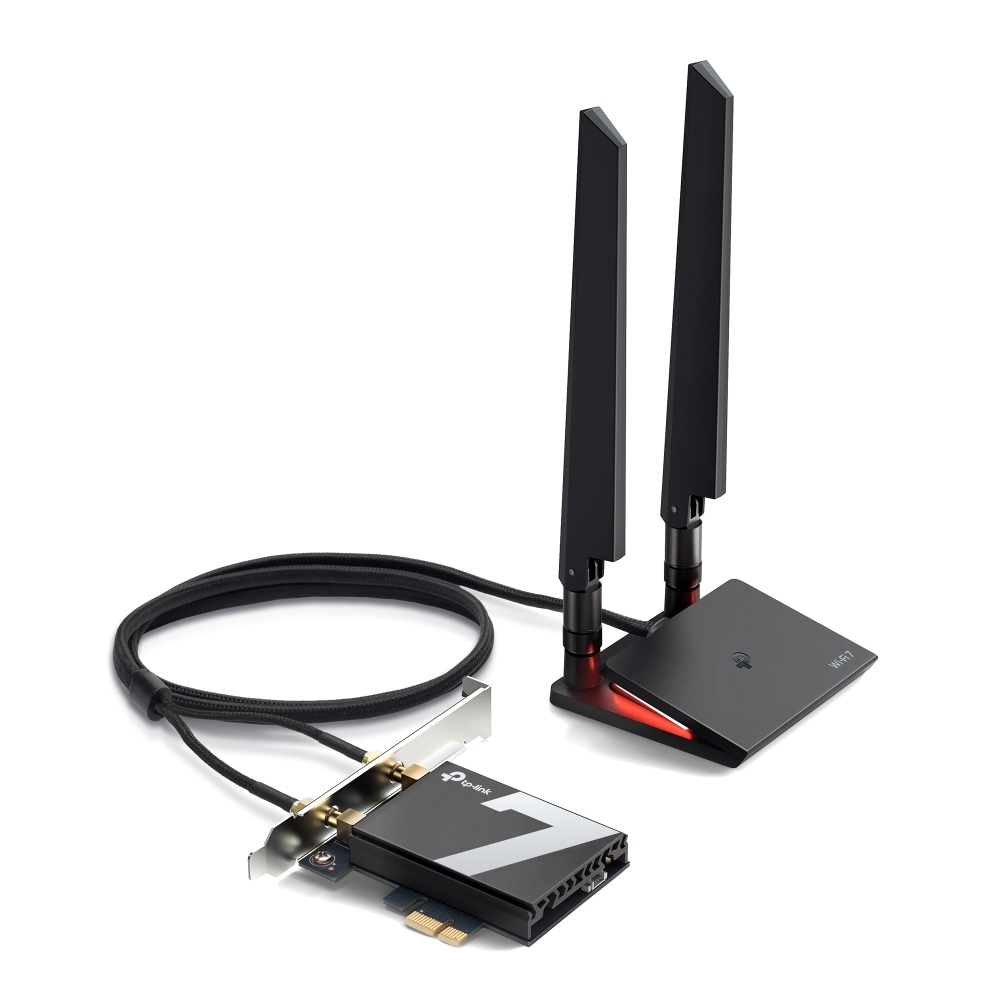

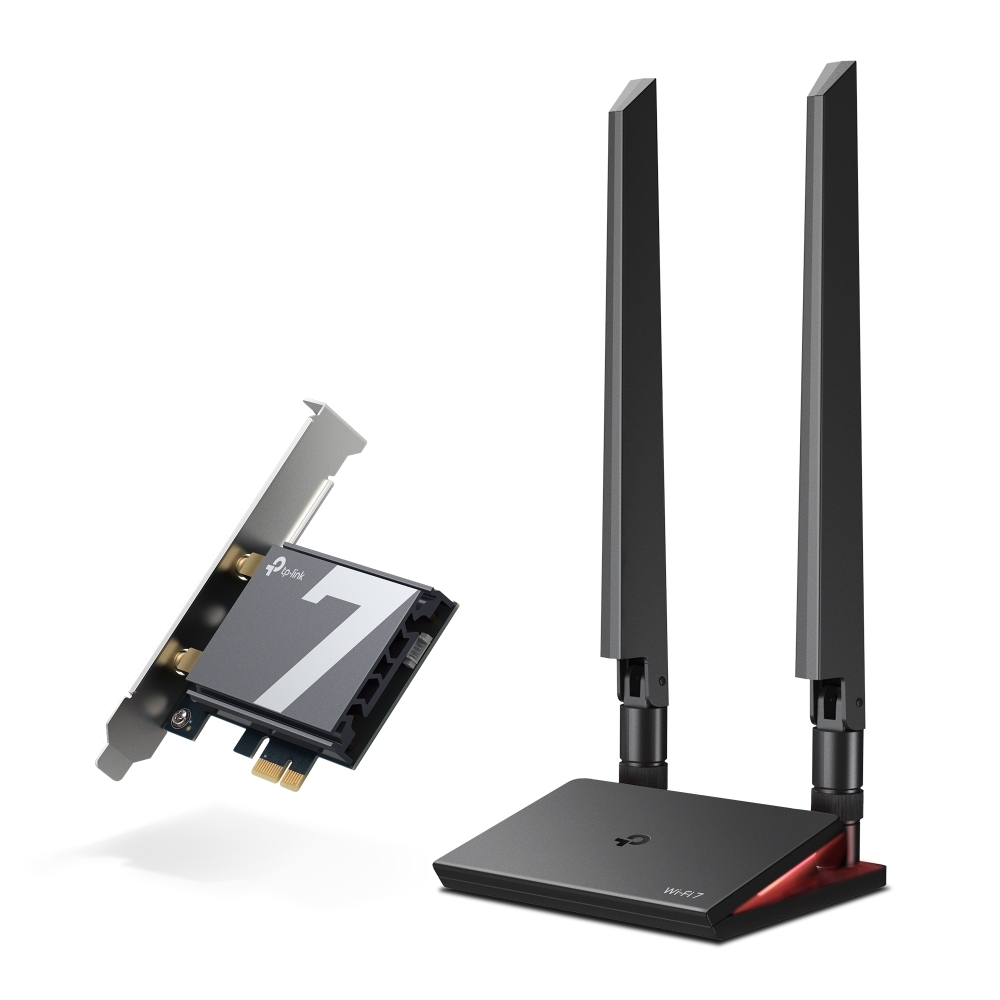

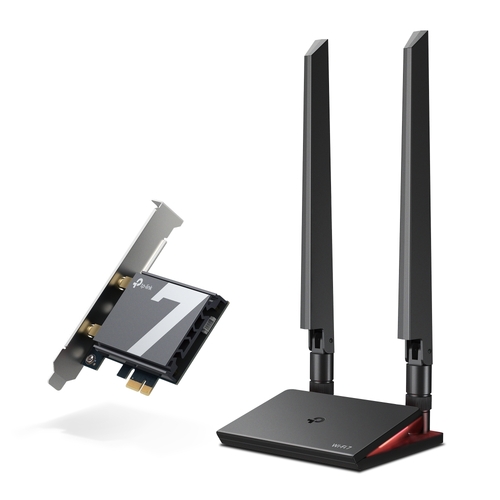

TP-Link Archer TBE550E BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

SKU: 125412

  • Unparalleled Tri-Band Speed — Boost your overall speeds up to 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
  •      Wi-Fi 7 Standard — Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation.
  •      Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception.
  •      Reliable Bluetooth 5.4 — Security and reliability improvement than last-gen high-speed Bluetooth 5.3
  •      Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
  •      Fast Installation with USB Drive — Plug in the resource USB drive provided with Archer TBE550E to quickly drive without network. Enjoy the simple and friendly adapter installation.
  •      Multicolor Wi-Fi Status Lighting — Equipped with vibrant LED lighting effects, the base provides an intuitive indication of network status, enhancing both functionality and aesthetics.
  •      Supported Operating System — Windows 11(64-bit) only

(125412)

HARDWARE FEATURES
Dimensions 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)
Antenna Type 2× High-Performance Tri-Band Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be
WLAN Signal Rate 6 GHz:
11be: Up to 5760 Mbps(dynamic)
11ax: Up t0 2402Mbps(dynamic)
5 GHz:
11be: Up to 2880 Mbps(dynamic)
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11be: Up to 688 Mbps(dynamic)
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 6 GHz:
11ax HE20 MCS0: -94 dBm
11be EHT320 MCS13: -44dBm
5 GHz:
11ac VHT20 MCS0: -94 dBm
11be EHT160 MCS13: -48dBm
2.4 GHz:
11n HT20 MSC0: -95 dBm
11be EHT40 MSC13: -56dBm
WLAN Transmit Power 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP)
5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP)
6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification FCC/CE/IC/NCC/JRF/VCCI/BSMI
Package Contents Archer TBE550E
Magnetized Antenna Base with 1m Braided RF Cable
2x High-Performance Antennas

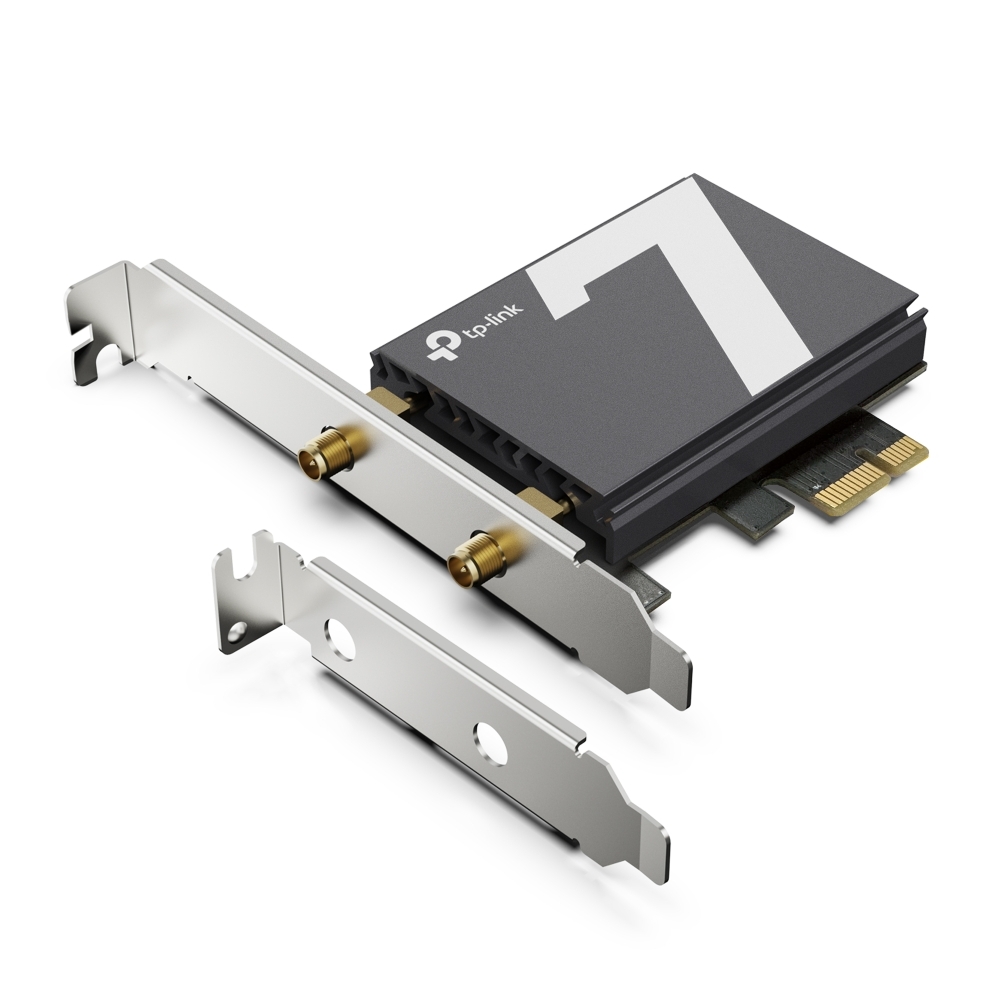

Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource USB Drive
System Requirements Supported operating system: Windows 11(64-bit) only
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Accessories Specifications Extension Cable Length: 1 m
Bluetooth Header Cable Length: 0.3 m
SKU 125412
Model # Archer TBE550E
Barcode # 4895252507836
Brand TP-LINK
Shipping Weight 0.5000kg
Shipping Width 0.220m
Shipping Height 0.040m
Shipping Length 0.250m
