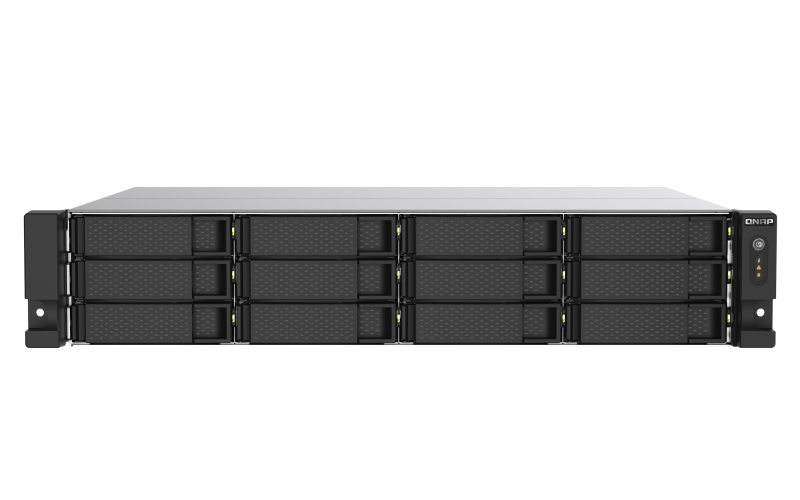

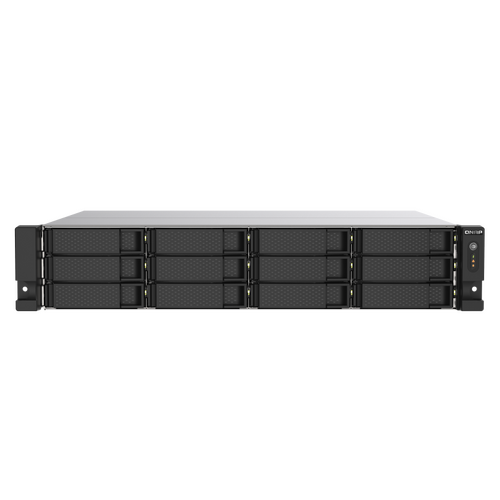

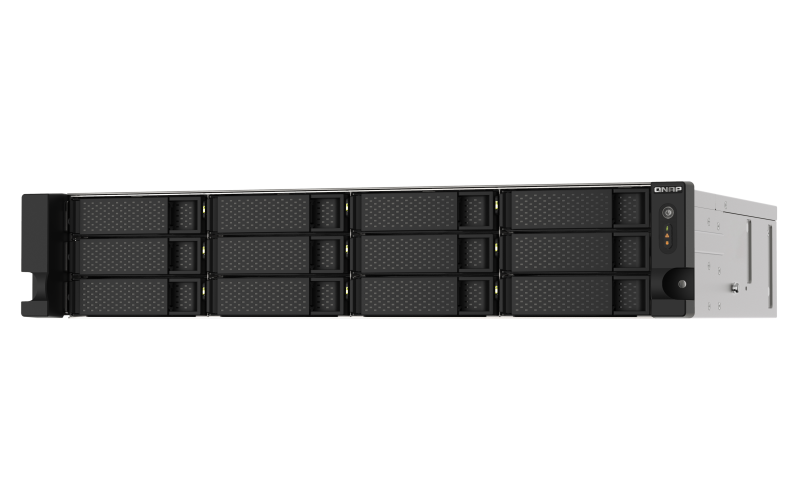

QNAP 12-BAY NAS(NO DISK) AMD QC 2.2GHz, 8GB, 2.5GbE(2), PCIe(2), 2U, RPSU, 3YR WTY

SKU: 125834

TS-1273AU-RP

High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications

Watch Video

























  • amd-ryzen-v

With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.

  • Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.

  • Add extra functionality to the TS-1273AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.

  • Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Host multiple virtual machines and containers to run a wide range of applications on the TS-1273AU-RP.

  • Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.

Available Models

  1. TS-1273AU-RP-8G

    AMD Ryzen™ V1500B quad-core 2.2 GHz processor, 8 GB RAM, Redundant power

Absolute performance with AMD Ryzen™ and up to 32GB RAM

Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1273AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.

Note: Purchase the optional RAIL-B02 rail kit to deploy the TS-1273AU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-1273AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1273AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Learn More:Storage for virtualization



Optimized performance for VMware Virtualization with iSER

The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1273AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox® NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.

All-in-one server to host virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1273AU-RP to simplify network deployment.

  • Virtualization Station

    Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). You can run multiple virtual server applications on a single TS-1273AU-RP without needing additional physical servers.

    Learn More:Virtualization Station,P2V

  • Container Station

    Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

    Learn More:Container Station,QIoT Containers

Upgrade to 2.5GbE networking

The TS-1273AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).

2.5GbE Windows File Transfer (10GB file)

Windows upload

295 MB/s

Windows download

272 MB/s

2 x 2.5GbE Windows Sequential File Transfer (1M, Iometer)

Windows upload

591 MB/s

Windows download

542 MB/s

2 x 10GbE Windows Sequential File Transfer (1M, Iometer)

Windows upload

1151 MB/s

Windows download

2140 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-1273AU-RP-8G
OS: QTS 4.4.2
Volume type: RAID 5; 4 x Samsung 850 Pro 512GB SSD
Client PC: Intel Core i7-6700 3.4 GHz; 32GB RAM; Microsoft Windows Pro
IOmeter sequential performance test: 3-min length, 2 workers, 64 outstanding, 30-sec ramp up time.

Transform your network with a wallet-friendly 2.5GbE switch

Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.

Note: The QSW-1105-5T 2.5GbE switch will be available from Q3 2020.

Learn More:2.5GbE switch,QNAP 2.5GbE solution

Abundant I/O capabilities with PCIe expansion

The TS-1273AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.

Note: Compatible with a low-profile graphics card that does not require additional power.


Wireless network cards

Install a Wi-Fi 6 card for flexible connectivity. Or install an 802.11ac Wireless Adapter and the WirelessAP Station App to turn the TS-1273AU-RP into a Wireless AP for connecting multiple edge devices.

Learn More:Wireless Adapter,WirelessAP Station

5GbE/10GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

Learn More:10GbE NAS solutions,QNAP network expansion cards

QM2 M.2 SSD cards

Adds M.2 SSD NVMe/SATA caching or 10GbE (10GBASE-T) connectivity to the TS-1273AU-RP for optimized performance and bandwidth.

Learn More:QM2

USB 3.2 Gen 2 (10Gbps) cards

Add extra USB ports to the TS-1273AU-RP.

Learn More:USB 3.2 Gen 2 (10Gbps) Expansion Card

Wireless network cards

Install a Wi-Fi 6 card for flexible connectivity. Or install an 802.11ac Wireless Adapter and the WirelessAP Station App to turn the TS-1273AU-RP into a Wireless AP for connecting multiple edge devices.

Learn More:Wireless Adapter,WirelessAP Station

5GbE/10GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

Learn More:10GbE NAS solutions,QNAP network expansion cards



GPU-accelerated computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1273AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.

NOTE:
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for virtual machines is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the TS-1273AU-RP will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List before purchasing or attempting to install a graphics card into the TS-1273AU-RP.

Accelerate IOPS performance with SSD Caching

Adding an SSD cache to the TS-1273AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.

Learn More:SSD caching

Optimum Performance and Reliability

The TS-1273AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

USB 3.2 Gen 2 Central Device Management Central NAS Management
USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. The TS-1273AU-RP comes with two USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices. QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Learn More: QRM+		 Q’center provides a central management platform to manage multiple QNAP NAS across various sites, monitor system logs, and manage NAS updates and maintenance.

Learn More: Q’center

Move business data to the cloud flexibly and economically

By deploying cloud storage gateways and enabling local caching on the TS-1273AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Learn More:QNAP cloud storage gateways

  • HybridMount
    file-based cloud gateway

    Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

    Learn More:HybridMount

  • VJBOD cloud
    block-based cloud gateway

    VJBOD Cloud supports mounting object cloud storage as a block-based volume or LUN on a NAS. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).

    Learn More:VJBOD Cloud

Complete backup planning

The TS-1273AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.

  • HBS

    Consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

    Learn More:HBS

  • Snapshots for Volume & LUN

    Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1273AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

    Learn More:Volume & LUN snapshots,Protect your data from Ransomware

  • VM backup

    With its high performance, huge storage potential, integrated virtualization solutions, and snapshot support that records system status any time, the TS-1273AU-RP is perfect for backing up virtual machines.

    Learn More:VM backup,NAKIVO backup,Backup with Archiware Pure

  • Windows® and Mac® backup

    Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers.

    Learn More:Data backup and disaster recovery

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1273AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More:QNAP NAS supports Fibre Channel SAN

Flexible and economical storage expansion

QNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-1273AU-RP to accommodate data and business growth:

  • Attach Expansion Enclosures

    Besides supporting SAS or QXP SATA expansion cards, the TS-1273AU-RP provides USB interfaces to connect a RAID Expansion Enclosure or JBOD Storage Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

    Learn More:Storage Expansion Compatibility

  • VJBOD

    Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-1273AU-RP.

    Learn More:VJBOD

  • Upgrade RAID Capacity

    Hot swap lower-capacity drives with larger-capacity drives so that your TS-1273AU-RP can grow with your business.

    Learn More:Online RAID Capacity Upgrade

  • Migrate to a New NAS

    Install your TS-1273AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.

    Learn More:Migrating from an old NAS

More productivity applications

  • QVR Pro

    2 free camera channels (expandable to 64 channels) are included for you to start using your TS-1273AU-RP as a comprehensive surveillance solution.

    Learn More:QVR Pro

  • Notification Center

    Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

    Learn More:Notification Center

  • Browser Station

    Enable remote access through NAS-hosted web browsers for accessing local LAN resources without requiring complex VPN settings.

    Learn More:Browser Station

  • Security Counselor

    Review the security settings of your TS-1273AU-RP and receive recommendations for improvements. Includes anti-virus and anti-malware scanners.

    Learn More:Security Counselor

  • Qsirch

    QNAP’s powerful, Google-like search tool for quickly finding images, music, videos, documents, and emails by keywords, color, and other search conditions.

    Learn More:Qsirch

  • Boxafe

    Back up or sync files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® to the TS-1273AU-RP to safeguard enterprise cloud data.

    Learn More:Boxafe

Extend hardware warranty up to 5 years

The TS-1273AU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension to increase warranty coverage up to 5 years.

Learn More:QNAP warranty services



(125834)

TS-1273AU-RP-8G

  • Download Datasheet
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe graphics card
System Memory 8 GB UDIMM DDR4 (1 x 8 GB)
Maximum Memory 32 GB (2 x 16 GB)
Memory Slot 2 x Long-DIMM DDR4

For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot Optional via a QNAP QM2 PCIe card
SSD Cache Acceleration Support

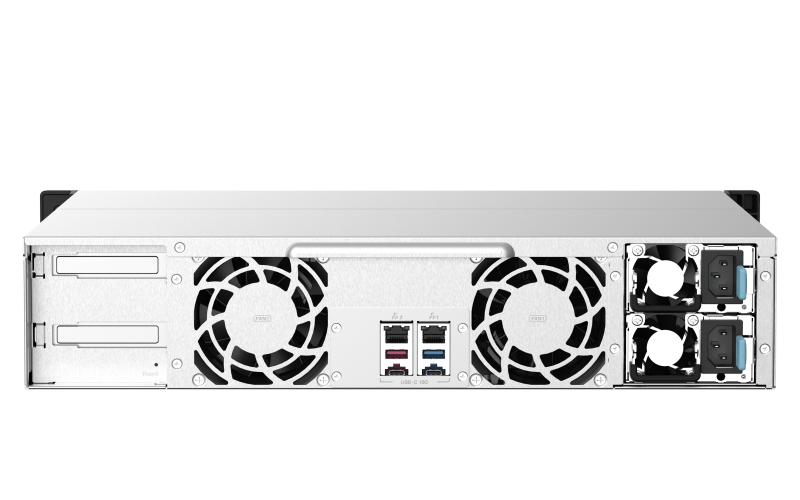

2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port Optional via a network adapter
Jumbo Frame
PCIe Slot 2 x Gen3 x4
USB 3.2 Gen 1 port 1 x Type-A
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C
1 x Type-A
HDMI Output Optional via a PCIe graphics card
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, USB, Power
Buttons Power, Reset
Dimensions (HxWxD) 89 × 432 × 372 mm
Weight (Net) 9.69 kg
Weight (Gross) 14.62 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2) PSU, 100 - 240V
Power Consumption: HDD Sleep Mode 43.67 W
Power Consumption: Operating Mode, Typical 78.92 W

Tested fully populated with WD10EFRX hard drives.
Fan 2 x 80mm, 12VDC
Sound Level 22.3~45.9 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) 1200
SKU 125834
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

TS-1273AU-RP

High-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications

Watch Video

























  • amd-ryzen-v

With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.

  • Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.

  • Add extra functionality to the TS-1273AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.

  • Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

  • Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

  • Host multiple virtual machines and containers to run a wide range of applications on the TS-1273AU-RP.

  • Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.

Available Models

  1. TS-1273AU-RP-8G

    AMD Ryzen™ V1500B quad-core 2.2 GHz processor, 8 GB RAM, Redundant power

Absolute performance with AMD Ryzen™ and up to 32GB RAM

Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1273AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.

Note: Purchase the optional RAIL-B02 rail kit to deploy the TS-1273AU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.

Block-based iSCSI LUN: Ideal choice for virtualization storage

The TS-1273AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1273AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Learn More:Storage for virtualization



Optimized performance for VMware Virtualization with iSER

The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1273AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox® ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox® NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.

All-in-one server to host virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1273AU-RP to simplify network deployment.

  • Virtualization Station

    Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). You can run multiple virtual server applications on a single TS-1273AU-RP without needing additional physical servers.

    Learn More:Virtualization Station,P2V

  • Container Station

    Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

    Learn More:Container Station,QIoT Containers

Upgrade to 2.5GbE networking

The TS-1273AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).

2.5GbE Windows File Transfer (10GB file)

Windows upload

295 MB/s

Windows download

272 MB/s

2 x 2.5GbE Windows Sequential File Transfer (1M, Iometer)

Windows upload

591 MB/s

Windows download

542 MB/s

2 x 10GbE Windows Sequential File Transfer (1M, Iometer)

Windows upload

1151 MB/s

Windows download

2140 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-1273AU-RP-8G
OS: QTS 4.4.2
Volume type: RAID 5; 4 x Samsung 850 Pro 512GB SSD
Client PC: Intel Core i7-6700 3.4 GHz; 32GB RAM; Microsoft Windows Pro
IOmeter sequential performance test: 3-min length, 2 workers, 64 outstanding, 30-sec ramp up time.

Transform your network with a wallet-friendly 2.5GbE switch

Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.

Note: The QSW-1105-5T 2.5GbE switch will be available from Q3 2020.

Learn More:2.5GbE switch,QNAP 2.5GbE solution

Abundant I/O capabilities with PCIe expansion

The TS-1273AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.

Note: Compatible with a low-profile graphics card that does not require additional power.


Wireless network cards

Install a Wi-Fi 6 card for flexible connectivity. Or install an 802.11ac Wireless Adapter and the WirelessAP Station App to turn the TS-1273AU-RP into a Wireless AP for connecting multiple edge devices.

Learn More:Wireless Adapter,WirelessAP Station

5GbE/10GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

Learn More:10GbE NAS solutions,QNAP network expansion cards

QM2 M.2 SSD cards

Adds M.2 SSD NVMe/SATA caching or 10GbE (10GBASE-T) connectivity to the TS-1273AU-RP for optimized performance and bandwidth.

Learn More:QM2

USB 3.2 Gen 2 (10Gbps) cards

Add extra USB ports to the TS-1273AU-RP.

Learn More:USB 3.2 Gen 2 (10Gbps) Expansion Card

Wireless network cards

Install a Wi-Fi 6 card for flexible connectivity. Or install an 802.11ac Wireless Adapter and the WirelessAP Station App to turn the TS-1273AU-RP into a Wireless AP for connecting multiple edge devices.

Learn More:Wireless Adapter,WirelessAP Station

5GbE/10GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

Learn More:10GbE NAS solutions,QNAP network expansion cards



GPU-accelerated computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1273AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.

NOTE:
1. Supported video formats depend on the hardware and software specifications of the devices. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for virtual machines is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the TS-1273AU-RP will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List before purchasing or attempting to install a graphics card into the TS-1273AU-RP.

Accelerate IOPS performance with SSD Caching

Adding an SSD cache to the TS-1273AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.

Learn More:SSD caching

Optimum Performance and Reliability

The TS-1273AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

USB 3.2 Gen 2 Central Device Management Central NAS Management
USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. The TS-1273AU-RP comes with two USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices. QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Learn More: QRM+		 Q’center provides a central management platform to manage multiple QNAP NAS across various sites, monitor system logs, and manage NAS updates and maintenance.

Learn More: Q’center

Move business data to the cloud flexibly and economically

By deploying cloud storage gateways and enabling local caching on the TS-1273AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Learn More:QNAP cloud storage gateways

  • HybridMount
    file-based cloud gateway

    Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

    Learn More:HybridMount

  • VJBOD cloud
    block-based cloud gateway

    VJBOD Cloud supports mounting object cloud storage as a block-based volume or LUN on a NAS. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).

    Learn More:VJBOD Cloud

Complete backup planning

The TS-1273AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.

  • HBS

    Consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

    Learn More:HBS

  • Snapshots for Volume & LUN

    Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1273AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

    Learn More:Volume & LUN snapshots,Protect your data from Ransomware

  • VM backup

    With its high performance, huge storage potential, integrated virtualization solutions, and snapshot support that records system status any time, the TS-1273AU-RP is perfect for backing up virtual machines.

    Learn More:VM backup,NAKIVO backup,Backup with Archiware Pure

  • Windows® and Mac® backup

    Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers.

    Learn More:Data backup and disaster recovery

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1273AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More:QNAP NAS supports Fibre Channel SAN

Flexible and economical storage expansion

QNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-1273AU-RP to accommodate data and business growth:

  • Attach Expansion Enclosures

    Besides supporting SAS or QXP SATA expansion cards, the TS-1273AU-RP provides USB interfaces to connect a RAID Expansion Enclosure or JBOD Storage Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

    Learn More:Storage Expansion Compatibility

  • VJBOD

    Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-1273AU-RP.

    Learn More:VJBOD

  • Upgrade RAID Capacity

    Hot swap lower-capacity drives with larger-capacity drives so that your TS-1273AU-RP can grow with your business.

    Learn More:Online RAID Capacity Upgrade

  • Migrate to a New NAS

    Install your TS-1273AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.

    Learn More:Migrating from an old NAS

More productivity applications

  • QVR Pro

    2 free camera channels (expandable to 64 channels) are included for you to start using your TS-1273AU-RP as a comprehensive surveillance solution.

    Learn More:QVR Pro

  • Notification Center

    Consolidates all QTS system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

    Learn More:Notification Center

  • Browser Station

    Enable remote access through NAS-hosted web browsers for accessing local LAN resources without requiring complex VPN settings.

    Learn More:Browser Station

  • Security Counselor

    Review the security settings of your TS-1273AU-RP and receive recommendations for improvements. Includes anti-virus and anti-malware scanners.

    Learn More:Security Counselor

  • Qsirch

    QNAP’s powerful, Google-like search tool for quickly finding images, music, videos, documents, and emails by keywords, color, and other search conditions.

    Learn More:Qsirch

  • Boxafe

    Back up or sync files, emails, calendars and contacts from Google™ G Suite and Microsoft® Office 365® to the TS-1273AU-RP to safeguard enterprise cloud data.

    Learn More:Boxafe

Extend hardware warranty up to 5 years

The TS-1273AU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension to increase warranty coverage up to 5 years.

Learn More:QNAP warranty services



TS-1273AU-RP-8G

  • Download Datasheet
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe graphics card
System Memory 8 GB UDIMM DDR4 (1 x 8 GB)
Maximum Memory 32 GB (2 x 16 GB)
Memory Slot 2 x Long-DIMM DDR4

For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 SSD Slot Optional via a QNAP QM2 PCIe card
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port Optional via a network adapter
Jumbo Frame
PCIe Slot 2 x Gen3 x4
USB 3.2 Gen 1 port 1 x Type-A
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C
1 x Type-A
HDMI Output Optional via a PCIe graphics card
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, USB, Power
Buttons Power, Reset
Dimensions (HxWxD) 89 × 432 × 372 mm
Weight (Net) 9.69 kg
Weight (Gross) 14.62 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 300W (x2) PSU, 100 - 240V
Power Consumption: HDD Sleep Mode 43.67 W
Power Consumption: Operating Mode, Typical 78.92 W

Tested fully populated with WD10EFRX hard drives.
Fan 2 x 80mm, 12VDC
Sound Level 22.3~45.9 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) 1200
SKU 125834

Be The First To Review This Product!

Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought

More From This Category
