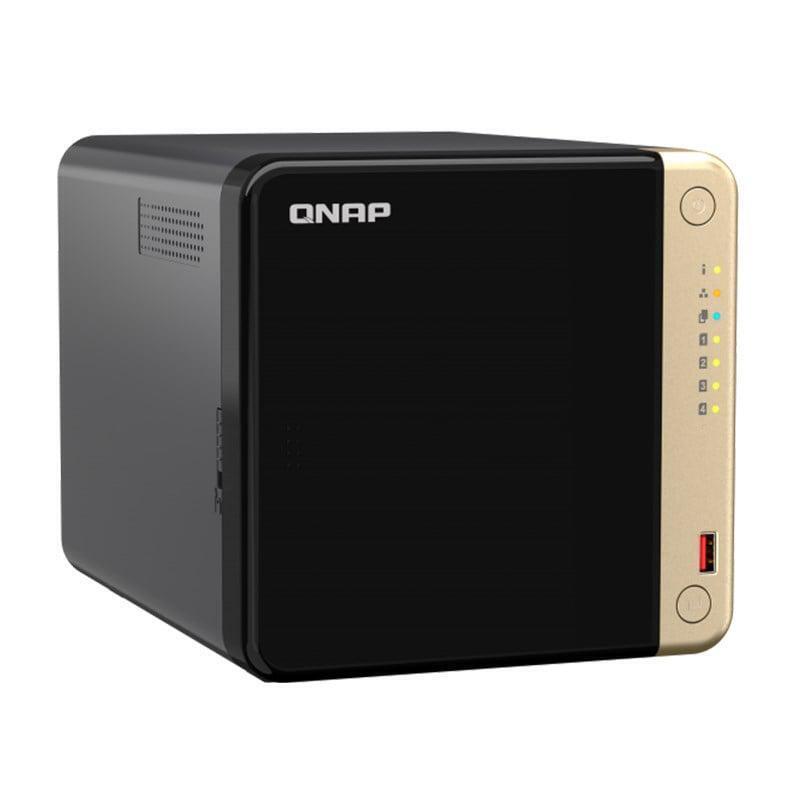

QNAP TS-464-8G

Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCle expandability for high-speed transmission and virtualization applications





Intel® Celeron® N5095 4-core/4-thread processor burst up to 2.9 GHz, 8GB RAM upgradable to 16GB
The QNAP TS-464-8G is a compact and versatile NAS that can meet your various needs for data storage and access. Whether you want to store your photos, videos, music, documents, or other files, or stream them to your devices, or share them with others, the QNAP TS-464-8G can handle it all with ease and efficiency.





Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-464 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen 3 and PCIe Gen 3 slots, the TS-464 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for Al image recognition and various 10GbE/5GbE network cards.







2.5GbE connectivity

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.



M.2 SSD caching

Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for Al image recognition.



PCle expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464, including a Multi-Gig
10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.



License-free virtualized
environment

Host multiple containerized apps to run a wide range of applications and services.



Drives Auto-Tiering

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.



4K HDMI

4K H.264 hardware decoding and real- time transcoding for smooth big screen multimedia experience.





Available Models

➤  TS-464-8G (you are currently on this product's page)

Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB RAM

➤  TS-464-4G (click here to go to the 4G model)

Intel Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz, 4 GB SO-DIMM DDR4 (1x4 GB)





Quad-core high performance and up to 16GB RAM

The TS-464 is powered by an intel Celeron N5095 quad-core processor and supports up to 8 GB DDR4 memory, two 2.5GbE ports and

SATA 6 Gb/s drivers. The integrated Intel® AES-Nl encryption engine also helps protect confidential data without impacting system performance.



Tested in QNAP Labs. Figures may vary by environment.

Test environment:

NAS: TS-464-8G
OS: QTS 5.0.0
Volume type:
4 x Samsung 860 EVO 1 TB SATA , RAID 5, thick volume
Client PC:
Windows Server 2019 Standard, Intel Xeon W1250 3.3Ghz, 32GB RAM, 10GB file transfer
IOmeter:
RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding







Accelerate AI–powered image recognition and caching with TPU and PCIe expansion

The TS-464 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.





Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage

The TS-464 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-464 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Accelerate AI–powered image recognition with TPU

By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.







SSD caching and auto-tiering enable 24/7 optimized storage efficiency

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-464 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.





SSD over-provisioning
(Over-provisioning)

You can add additional SSD over-provisioning (1% ~ 60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs.

SSD cache acceleration

Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. The TS-464 also supports write-only cache to boost write-intensive applications.

Qtier for auto-tiering

Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.







Streamline large file transfers and video editing with 2.5GbE

The TS-464 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.







Future-proof your IT infrastructure for high-speed networks

The TS-464 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

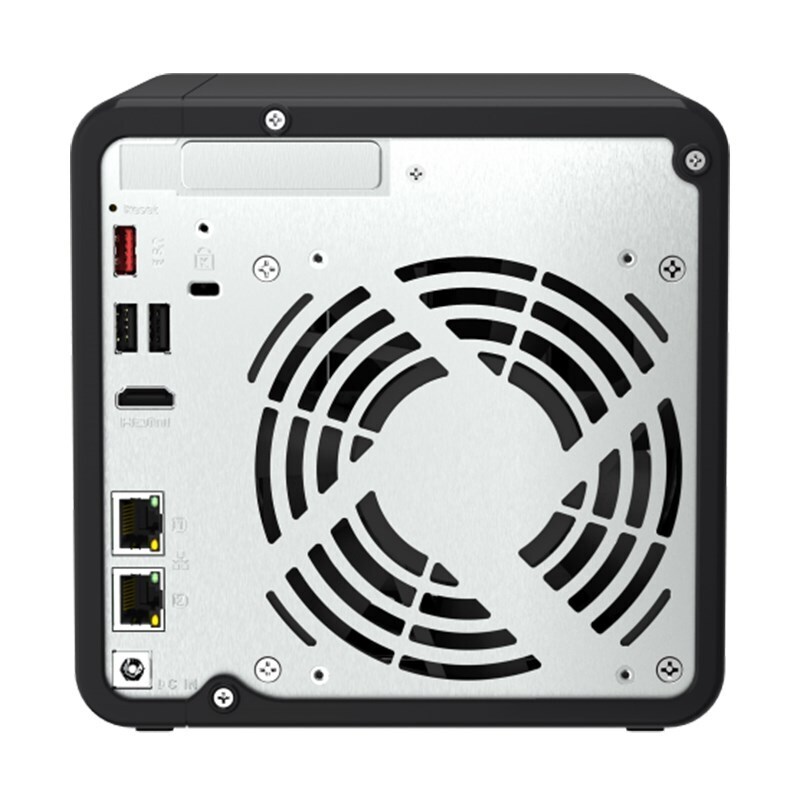

Enhance productivity with multiple USB ports

With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files
to/from the TS-464. UPS and other compatible USB devices can also be connected for
greater functionality and application potential.

Theoritical performance











Abundant I/O capabilities with PCIe expansion

The TS-464 has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.







2.5/5/10GbE network card

Enable lightning-fast throughput for bandwidth-demanding tasks

(virtualization, massive data transmission, fast backup/restore).







Direct 4K HDMI output for multimedia and virtual machine display

The TS-464 features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display.

By connecting the TS-464 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Note: The TS-464’s hardware provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.







Faster image identification with integrated Intel® OpenVINO™ AI engine

With integrated Intel® OpenVINO™ AI computing resources, the TS-464 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie photo management

Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

Note: Tested in QNAP Labs. Figures may vary by environment and NAS models. Test environment: NAS: TS-464

With GPU acceleration 41.7% Performance boost





QTS 5, Fast, smooth, and easy-to-use!

The TS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.

When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board

When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface

Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.





Comprehensive backup and disaster recovery solution

The TS-464 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop backup

For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.

Remote backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TS-464 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup

Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Cloud backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.





Multi-version snapshots mitigate ransomware threats

The TS-464 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots

Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots

Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-464 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.





QNAP TS-464-8G, 4-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8GB DDR4 SODIMM RAM (2 x DDR4 SODIMM slots, max 16GB), 4 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0

(125805)
