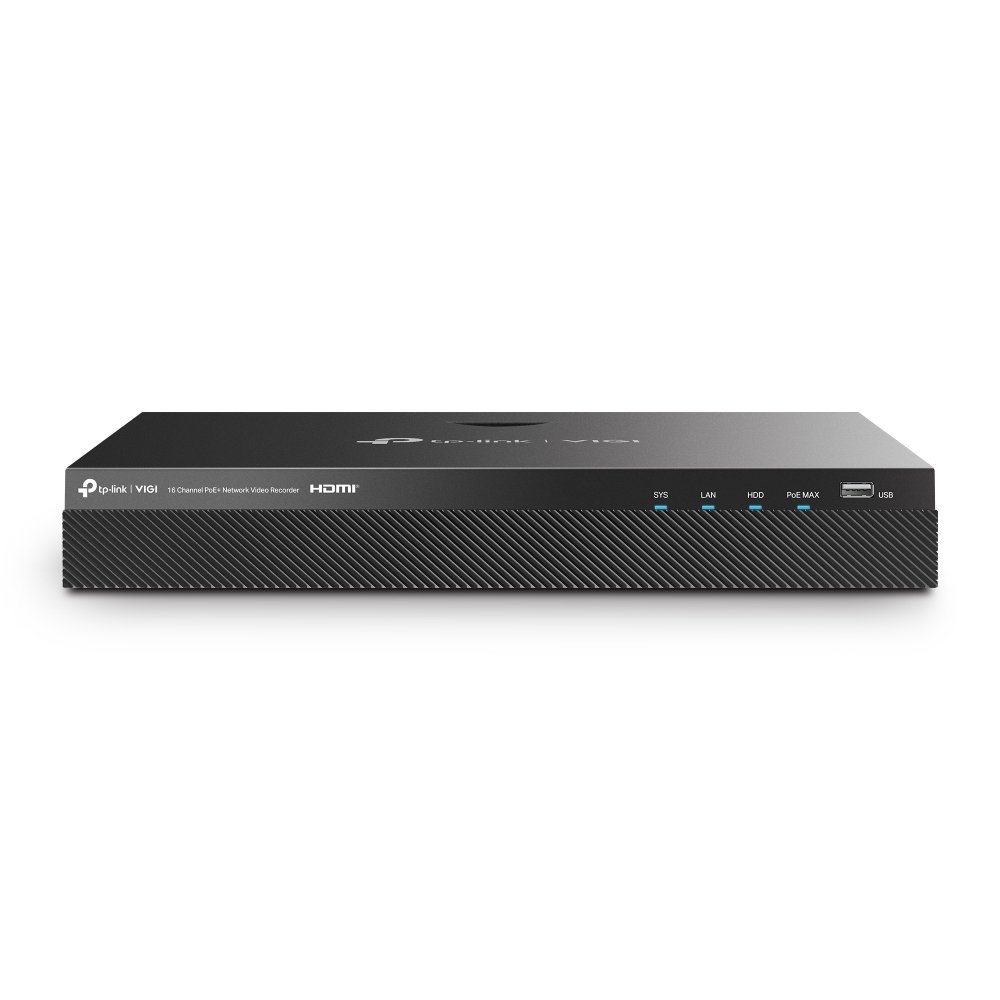

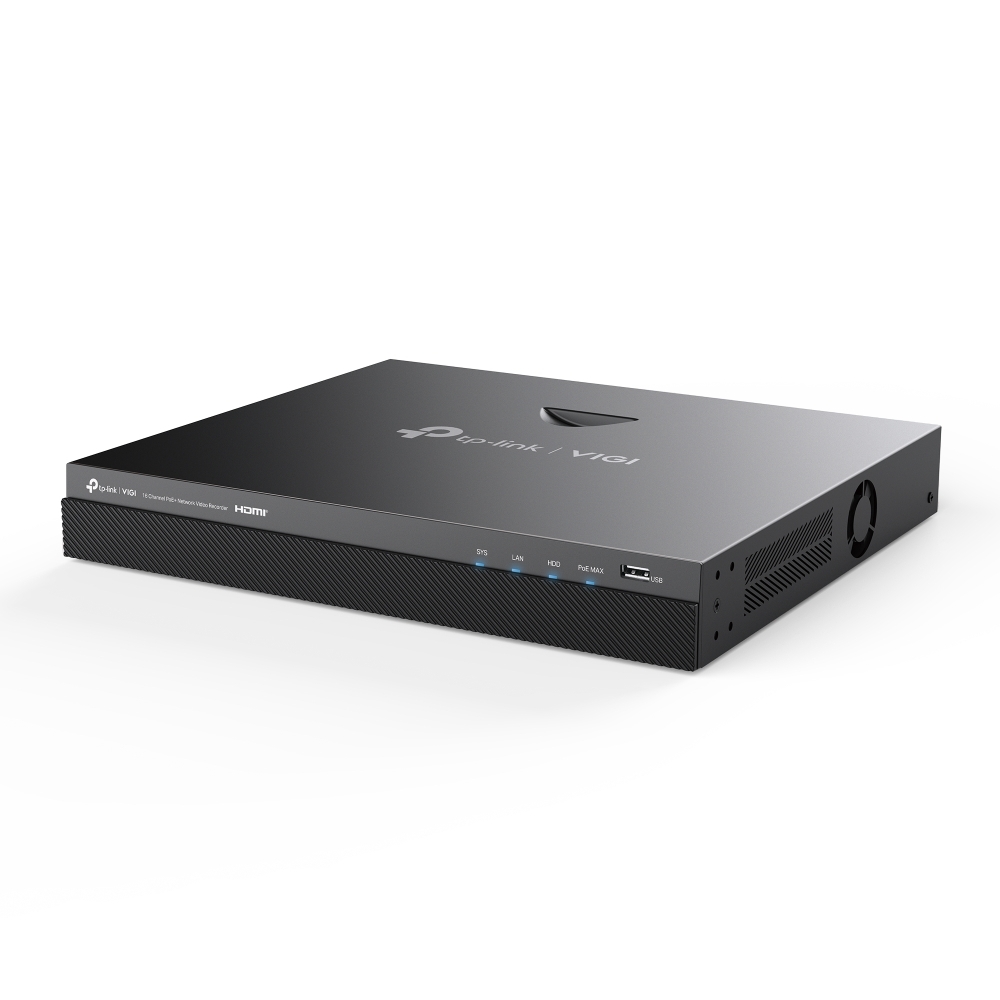

TP-Link VIGI NVR2016H-16P VIGI 16 Channel PoE+ Network Video Recorder

SKU: 125197

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡
  • 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Auto Initialise for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
  • 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

(125197)

VIDEO AND AUDIO
IP Video Input 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT
Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode Instant Playback, Rgular Playback, Tag Playback, Event Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
HARD DISK
SATA 2 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
POE
Standard 802.3at/af Compliant
Interface 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 90 W Available for All PoE+ Ports, 30 W Max per Port
ALARM
General Alarm Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents VIGI Network Video Recorder
Power Adapter
Power Cables
HDD Power Cables
HDD Data Cables
Mounting Accessories
Mouse
Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 330 × 285 × 45 mm
Net Weight 1.9 Kg
Gross Weight 3.2 Kg
Power Supply 53.5V DC/2.43A
Power Consumption 6.2 W (Without Disk)
40 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
SKU 125197
Model # VIGI NVR2016H-16P
Barcode # 4895252504040
Brand TP-LINK
Shipping Weight 3.8600kg
Shipping Width 0.410m
Shipping Height 0.110m
Shipping Length 0.510m
