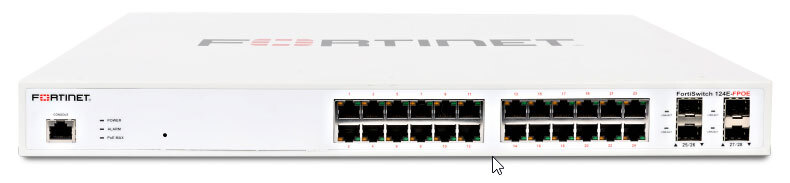

L2+ MANAGED POE SWITCH WITH 24GE +4SFP 12 PORT POE WITH MAX 185W LIMIT AND SMART FAN TEMPERATURE CONTROL
SKU: 124574
L2+ MANAGED POE SWITCH WITH 24GE +4SFP 12 PORT POE WITH MAX 185W LIMIT AND SMART FAN TEMPERATURE CONTROL
SKU: 124574
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
(124574)
| Hardware Specifications | |||
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP | 24x GE RJ45 and 4x GE SFP | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100 Port | 0 | 0 | 0 |
| RJ-45 Serial Console Port | 1 | 1 | 1 |
| Form Factor | 1 RU Rack Mount | 1 RU Rack Mount | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 | 12 (802.3af/at) | 24 (802.3af/at) |
| PoE Power Budget | 0 | 185 W | 370 W |
| Mean Time Between Failures | > 10 years | > 10 years | > 10 years |
| System Specifications | |||
| Switching Capacity (Duplex) | 56 Gbps | 56 Gbps | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps | 83 Mpps | 83 Mpps |
| MAC Address Storage | 8 K | 8 K | 8 K |
| Network Latency | 4µs | 4µs | 4µs |
| VLANs Supported | 4 K | 4 K | 4 K |
| Link Aggregation Group Size | 8 | 8 | 8 |
| Total Link Aggregation Groups | 8 | 8 | 8 |
| Packet Buffers | 512 KB | 512 KB | 512 KB |
| DRAM | 256 MB DDR3 | 256 MB DDR3 | 256 MB DDR3 |
| FLASH | 32 MB | 32 MB | 32 MB |
| Hardware Specifications | |||
| Height x Depth x Width (inches) | 1.7 x 8.2 x 13 | 1.7 x 12.2 x 17.3 | 1.7 x 12.2 x 17.3 |
| Height x Depth x Width (mm) | 44 x 209 x 330 | 44 x 309 x 440 | 44 x 309 x 440 |
| Weight | 4.7 lbs (2.13 kg) | 11.1 lbs (5.03 kg) | 11.2 lbs (5.03 kg) |
| Hardware Specifications | |||
| Power Required | 100-240V AC, 50-60 Hz | 100-240V AC, 50-60 Hz | 100-240V AC, 50-60 Hz |
| Power Supply | AC Built in | AC Built in | AC Built in |
| Redundant Power | - | - | - |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W | 202.78 W / 205.45 W | 387.78 W / 390.45 W |
| Heat Dissipation | 54 BTU/h | 60.67 BTU/h | 60.67 BTU/h |
| Operating Temperature | 32-104°F (0-40°C) | 32-104°F (0-40°C) | 32-104°F (0-40°C) |
| Storage Temperature | -40-158°F (-40-70°C) | -40-158°F (-40-70°C) | -40-158°F (-40-70°C) |
| Humidity | 10-90% non-condensing | 10-90% non-condensing | 10-90% non-condensing |
| Certification and Compliance | |||
| FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 | |||
| Warranty | |||
| Fortinet Warranty | Limited lifetime warranty on all models | ||
| SKU | 124574 |
| Barcode # | 842382130902 |
| Brand | Fortinet |
| Shipping Width | 0.410m |
| Shipping Height | 0.090m |
| Shipping Length | 0.510m |
Be The First To Review This Product!
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
| Hardware Specifications | |||
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP | 24x GE RJ45 and 4x GE SFP | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100 Port | 0 | 0 | 0 |
| RJ-45 Serial Console Port | 1 | 1 | 1 |
| Form Factor | 1 RU Rack Mount | 1 RU Rack Mount | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 | 12 (802.3af/at) | 24 (802.3af/at) |
| PoE Power Budget | 0 | 185 W | 370 W |
| Mean Time Between Failures | > 10 years | > 10 years | > 10 years |
| System Specifications | |||
| Switching Capacity (Duplex) | 56 Gbps | 56 Gbps | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps | 83 Mpps | 83 Mpps |
| MAC Address Storage | 8 K | 8 K | 8 K |
| Network Latency | 4µs | 4µs | 4µs |
| VLANs Supported | 4 K | 4 K | 4 K |
| Link Aggregation Group Size | 8 | 8 | 8 |
| Total Link Aggregation Groups | 8 | 8 | 8 |
| Packet Buffers | 512 KB | 512 KB | 512 KB |
| DRAM | 256 MB DDR3 | 256 MB DDR3 | 256 MB DDR3 |
| FLASH | 32 MB | 32 MB | 32 MB |
| Hardware Specifications | |||
| Height x Depth x Width (inches) | 1.7 x 8.2 x 13 | 1.7 x 12.2 x 17.3 | 1.7 x 12.2 x 17.3 |
| Height x Depth x Width (mm) | 44 x 209 x 330 | 44 x 309 x 440 | 44 x 309 x 440 |
| Weight | 4.7 lbs (2.13 kg) | 11.1 lbs (5.03 kg) | 11.2 lbs (5.03 kg) |
| Hardware Specifications | |||
| Power Required | 100-240V AC, 50-60 Hz | 100-240V AC, 50-60 Hz | 100-240V AC, 50-60 Hz |
| Power Supply | AC Built in | AC Built in | AC Built in |
| Redundant Power | - | - | - |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W | 202.78 W / 205.45 W | 387.78 W / 390.45 W |
| Heat Dissipation | 54 BTU/h | 60.67 BTU/h | 60.67 BTU/h |
| Operating Temperature | 32-104°F (0-40°C) | 32-104°F (0-40°C) | 32-104°F (0-40°C) |
| Storage Temperature | -40-158°F (-40-70°C) | -40-158°F (-40-70°C) | -40-158°F (-40-70°C) |
| Humidity | 10-90% non-condensing | 10-90% non-condensing | 10-90% non-condensing |
| Certification and Compliance | |||
| FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 | |||
| Warranty | |||
| Fortinet Warranty | Limited lifetime warranty on all models | ||
| SKU | 124574 |
| Barcode # | 842382130902 |
| Brand | Fortinet |
