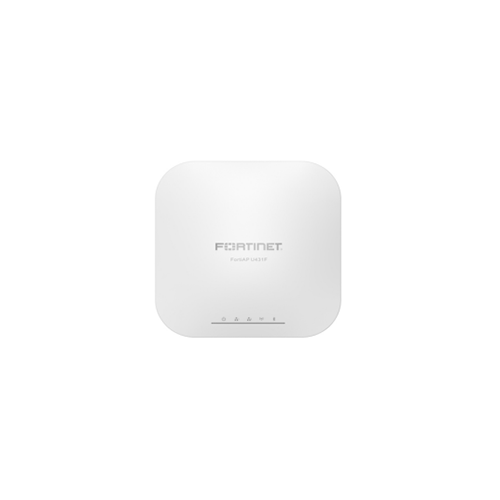

FAP-U431F-N

SKU: 124562

Managing standalone access points can be a logistical challenge. Network administrators need to deploy, monitor, troubleshoot, and optimize their wireless network on a continual basis. FortiAP management via FortiAP Cloud centralizes the lifecycle management of standalone FortiAPs with a simple, intuitive, and easy-to-use cloud interface that is accessible from anywhere.

(124562)

FortiAP U431F FortiAP U433F
Hardware
Hardware Type Indoor AP Indoor AP
Number of Radios 3 + 1 BT/BLE 3 + 1 BT/BLE
Number of Antennas 10 Internal + 1 BT/BLE Internal 10 External (RP-SMA) + 1 BT/BLE Internal
Antenna Type and Peak Gain PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz) 2.400-2.4835, 5.150-5.250, 5.250-5.350, 5.470-5.725, 5.725-5.850 2.400-2.4835, 5.150-5.250, 5.250-5.350, 5.470-5.725, 5.725-5.850
Radio 1 Capabilities 5.0 GHz a/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64 QAM and 1024 QAM)		 5.0 GHz a/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64 QAM and 1024 QAM)
Radio 2 Capabilities 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64 QAM and 1024 QAM)		 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax
(4x4:4 stream) 20/40/80/160 MHz
(64 QAM and 1024 QAM)
Radio 3 Capabilities 2.4/5.0 GHz dual band b/g/n/ac
(2x2:2 stream) 20/40 MHz
(64 QAM)		 2.4/5.0 GHz dual band b/g/n/ac
(2x2:2 stream) 20/40 MHz
(64 QAM)
Maximum Data Rate Radio 1: up to 4,804 Mbps
Radio 2: up to 4,804 Mbps
Radio 3: up to 300 Mbps		 Radio 1: up to 4,804 Mbps
Radio 2: up to 4,804 Mbps
Radio 3: up to 300 Mbps
Bluetooth Low Energy (BT/BLE) Radio Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at Dual redundant PoE power ports with support for IEEE 802.3at
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled) Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled)
Simultaneous SSIDs Up to 16 (14 if background scanning enabled) 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)*
5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)*		 Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)*
5 GHz: 24 dBm / 251 mW (4 chains combined)*
Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)*
Kensington Lock Yes Yes
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Mesh, & Tunnel Local-Bridge, Mesh, & Tunnel
Per Radio Client Capacity Up to 512 Up to 512
Cellular Co-existence** Yes Yes
LED Off Mode Yes Yes
Advanced 802.11 Features
802.11ac MU-MIMO Wave 2 Yes Yes
Transmit Beam Forming (TxBF) Yes Yes
Low-Density Parity Check (LDPC) Encoding Yes Yes
Maximum Likelihood Demodulation (MLD) Yes Yes
Maximum Ratio Combining (MRC) Yes Yes
A-MPDU and A-MSDU Packet Aggregation Yes Yes
MIMO Power Save Yes Yes
Short Guard Interval Yes Yes
OFMDA Yes Yes
Wireless Monitoring Capabilities
Rogue Scan Radio Modes Background, Dedicated Background, Dedicated
WIPS / WIDS Radio Modes Background, Dedicated (recommended) Background, Dedicated (recommended)
Packet Sniffer Mode Yes Yes
Spectrum Analyzer Yes Yes
Dimensions
Length x Width x Height 8.46 x 8.46 x 2.26 inches
(215 x 215 x 57.5 mm)		 8.46 x 8.46 x 2.26 inches
(215 x 215 x 57.5 mm)
Weight 1.0 lb (0.453 kg) 1.0 lb (0.453 kg)
Package (shipping) Weight 1.8 lbs (0.82 kg) 1.8 lbs (0.82 kg)
Mounting Options Ceiling, T-Rail and Wall Ceiling, T-Rail and Wall
Included Accessories Mount kits for Ceiling, T-Rail, and Wall Mount kits for Ceiling, T-Rail, and Wall, 10x dipole antennas
Environment
Power Supply SP-FAP200-PA-XX, or GPI-130 SP-FAP200-PA-XX, or GPI-130
Power Consumption (Maximum) 24.5 W 24.5 W
Humidity 10-90% Non-Condensed
5-90% Condensed		 10-90% Non-Condensed
5-90% Condensed
Operating / Storage Temperature 32-122°F (0-50°C) / -31-158°F (-35-70°C) 32-122°F (0-50°C) / -31-158°F (-35-70°C)
Directives Low Voltage Directive • RoHS Low Voltage Directive • RoHS
UL2043 Plenum Material Yes Yes
Mean Time Between Failures >30 Years >30 Years
IP Rating — —
Surge Protection Built In — —
Hit-less PoE Failover Yes (802.3at only) Yes (802.3at only)
Certifications
Wi-Fi Alliance Certified No No
DFS — —
Warranty
Limited Lifetime Warranty Yes Yes
SKU 124562
Barcode # 842382164044
Shipping Width 0.050m
Shipping Length 0.100m
