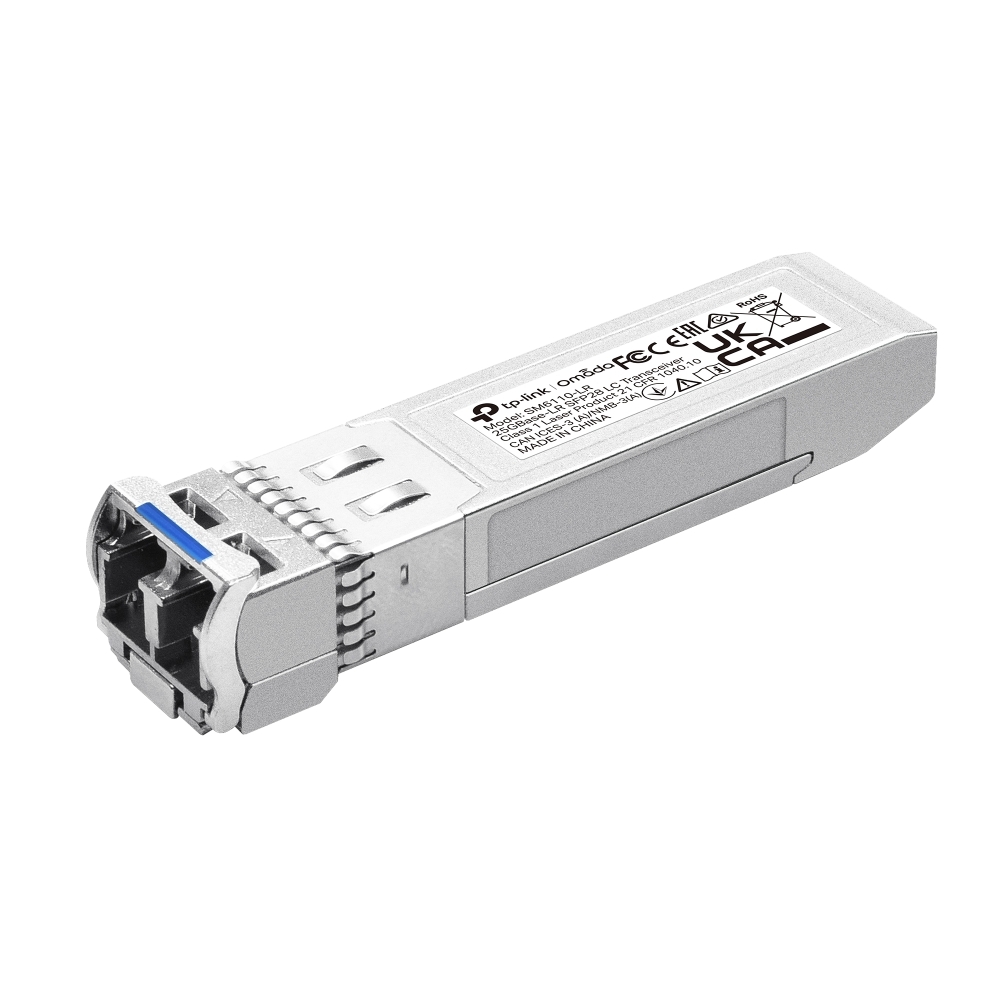

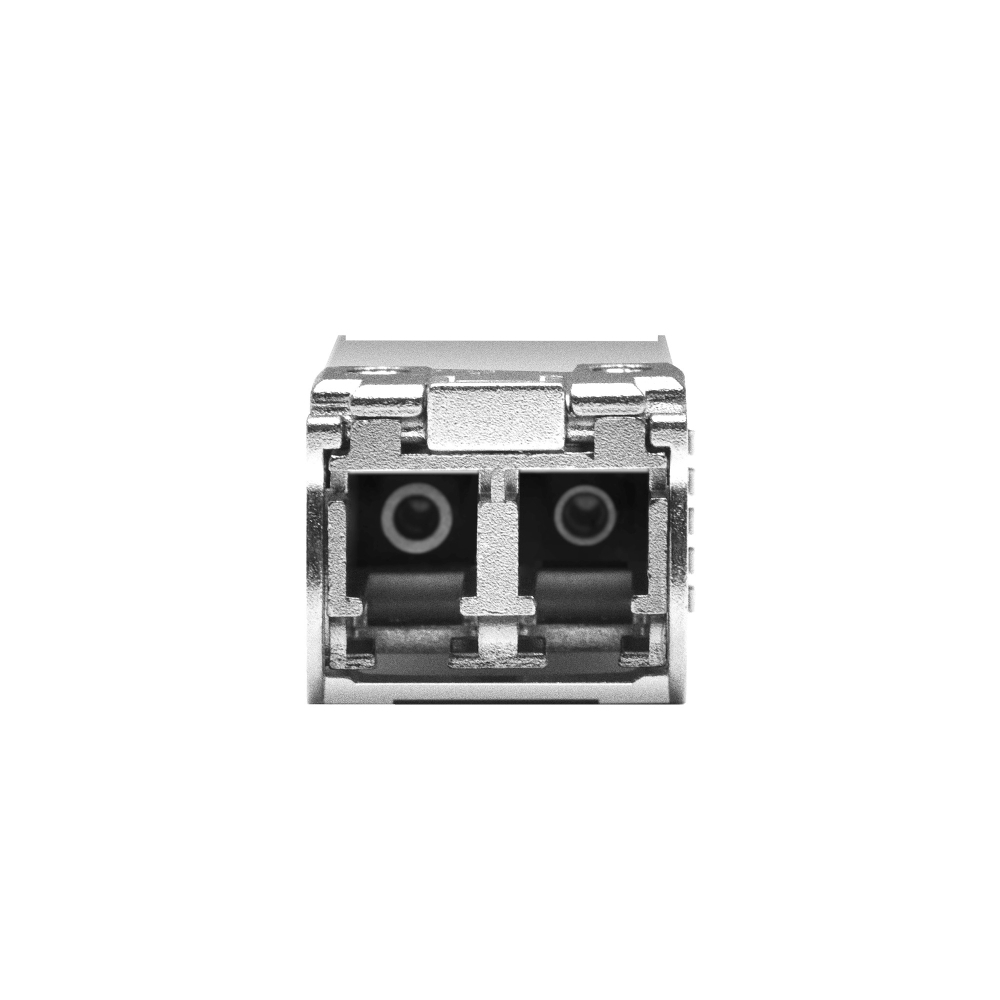

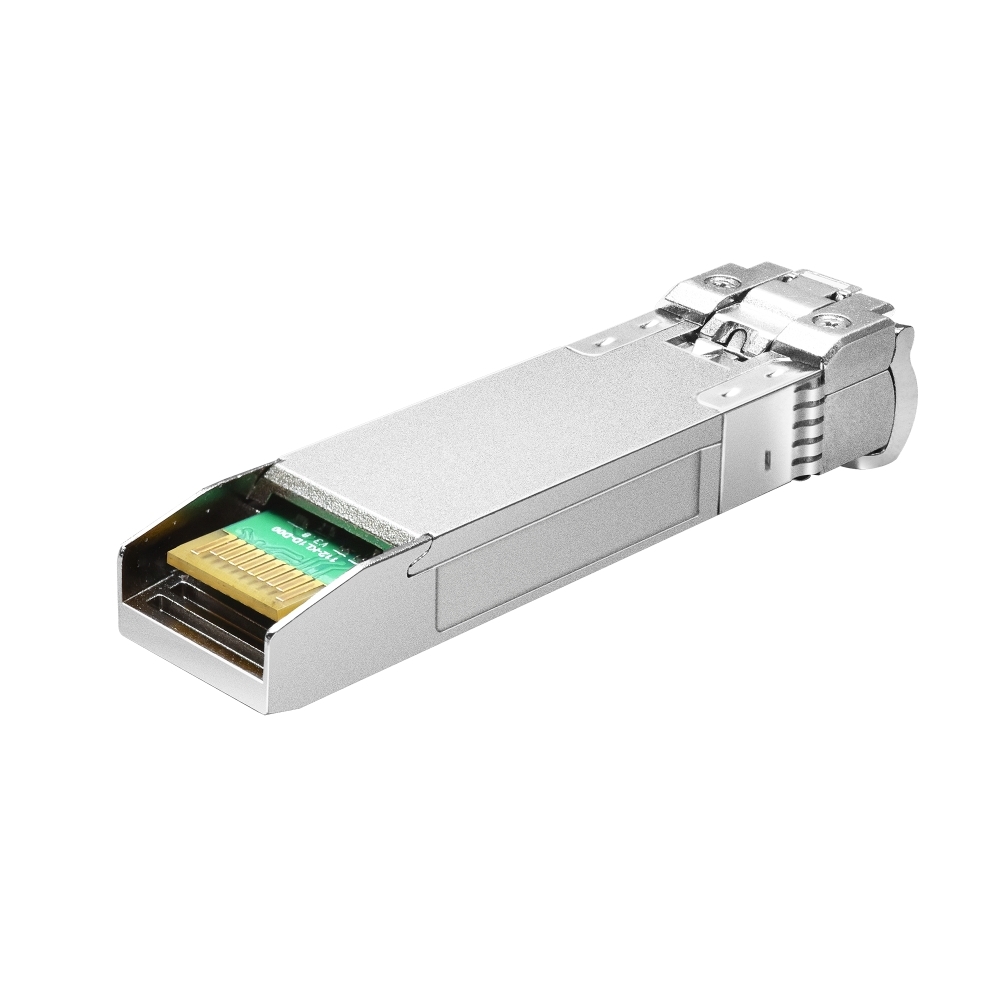

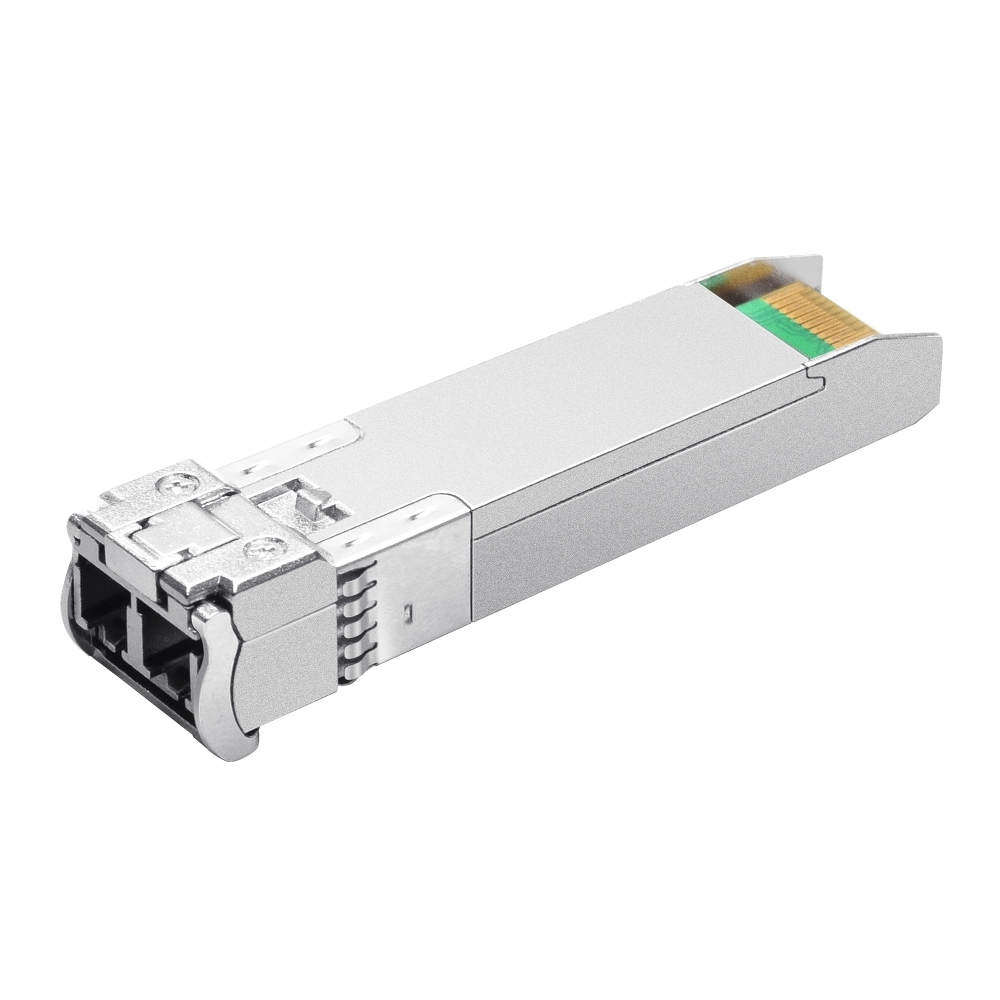

TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver

SKU: 125224

  • Single-mode SFP+/SFP28 LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Low Power Consumption no more than 1.2 W
  • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
  • Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

What This Product Does

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

(125224)

PACKAGE CONTENTS
Package Contents • SM6110-LR
• Installation Guide

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12 mm)

TRANSCEIVER
Standards and Protocols • IEEE 802.3ae, 802.3cc
• SFF-8402, SFF-8431, SFF-8432, SFF-8472
• eCPRI, CPRI
• TCP/IP
Wavelength 1310 nm
Power Supply 3.3V
Fiber Type 9/125um Single-Mode
Max. Cable Length 10 km
Support Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
Connector Duplex LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment • Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Storage Humidity: 5% to 90% RH, Non-Condensing

SKU 125224
Model # SM6110-LR
Barcode # 8885020622355
Brand TP-LINK
Shipping Weight 0.5000kg
Shipping Width 0.080m
Shipping Height 0.040m
Shipping Length 0.120m
