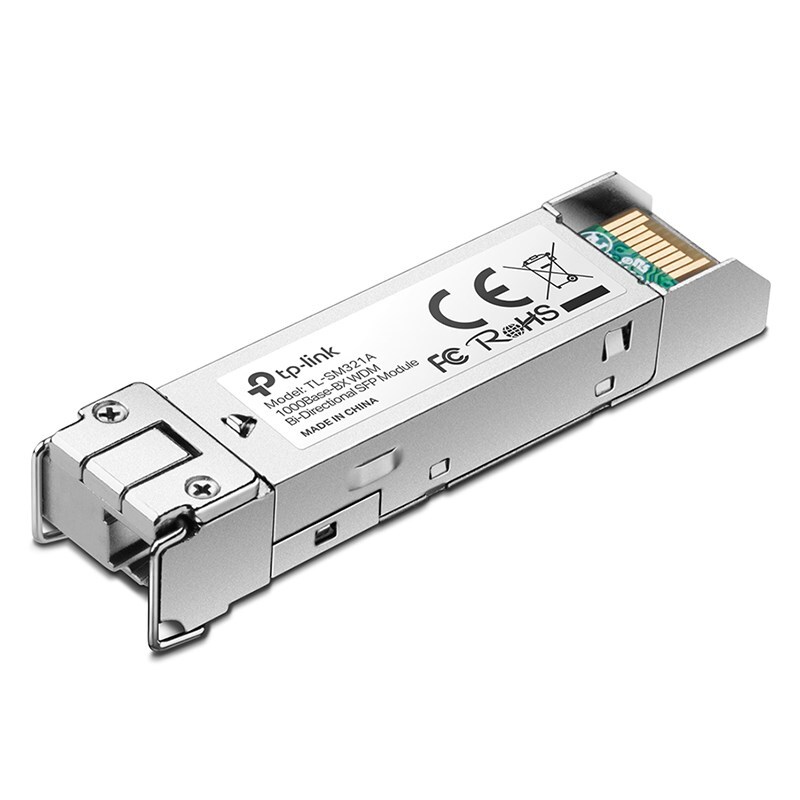

TP-Link TL-SM321A 1000Base-BX WDM Bi-Directional SFP Module

What This Product Does



TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.



Features



 - WDM Bi-Directional SFP Module

 - Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving



MEDIA CONVERTER & MODULE



Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length TX: 1550nm / RX: 1310nm

Power Supply 3.3V

Safety & Emission FCC, CE

Cabel Single-mode Fiber

Fiber Type 9/125 μm Single-mode

Max. Cable Length 10km

Data Rate 1.25Gbps

Port Type LC/UPC

Environment Operating Temperature: 0?~70? (32?~158?)

Storage Temperature: -40?~80? (-40?~176?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
