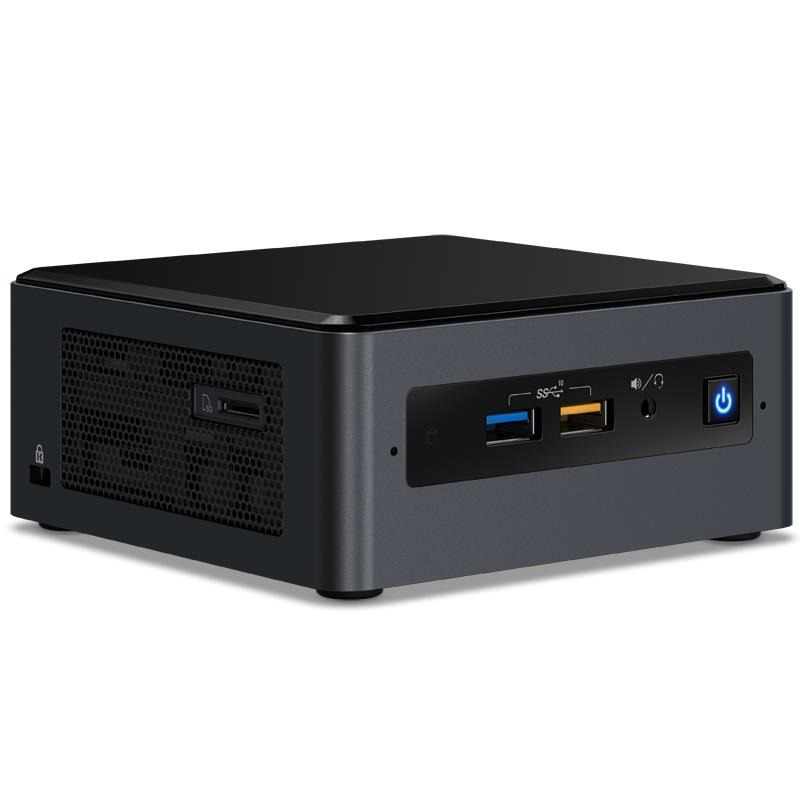

Intel NUC i3 8th Gen M.2 + 2.5" VESA BOXNUC8i3BEH4
SKU: 118866
Intel NUC i3 8th Gen M.2 + 2.5" VESA BOXNUC8i3BEH4
SKU: 118866
$415.00
(SAVE 7%)
was $445.00
0
Sold Out
Essentials
- Product CollectionIntel® NUC Kit with 8th Generation Intel® Core™ Processors
- Code NameProducts formerly BEAN CANYON
- StatusLaunched
- Launch DateQ3'18
- Supported Operating SystemsWindows 10, 64-bit*
- Board NumberNUC8BEB
- Board Form FactorUCFF (4" x 4")
- SocketSoldered-down BGA
- Internal Drive Form FactorM.2 and 2.5" Drive
- # of Internal Drives Supported2
- Off RoadmapNo
- Lithography14 nm
- TDP28 W
- DC Input Voltage Supported12-19 VDC
- Processor IncludedIntel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz)
- Warranty Period3 yrs
Supplemental Information
- Embedded Options AvailableNo
- DatasheetView now
- DescriptionOther features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
- Product BriefView now
Memory & Storage
- Max Memory Size (dependent on memory type)32 GB
- Memory TypesDDR4-2400 1.2V SO-DIMM
- Max # of Memory Channels2
- Max Memory Bandwidth38.4 GB/s
- Max # of DIMMs2
- ECC Memory Supported ‡No
Processor Graphics
- Processor Graphics ‡Intel® Iris® Plus Graphics 655
- Integrated Graphics ‡Yes
- Graphics OutputHDMI 2.0a; USB-C (DP1.2)
- # of Displays Supported ‡3
Expansion Options
- PCI Express RevisionGen3
- PCI Express Configurations ‡M.2 slot with PCIe X4 lanes
- Removable Memory Card SlotmicroSDXC with UHS-I support
- M.2 Card Slot (storage)22x42/80
I/O Specifications
- # of USB Ports6
- USB Configuration2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
- USB Revision2.0, 3.1 Gen2
- USB 2.0 Configuration (External + Internal)0 + 2
- USB 3.0 Configuration (External + Internal)2B 2F + 0
- Total # of SATA Ports2
- Max # of SATA 6.0 Gb/s Ports2
- RAID Configuration2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
- Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R mic (F)
- Integrated LANIntel® Ethernet Connection I219-V
- Integrated Wireless‡Intel® Wireless-AC 9560 + Bluetooth 5.0
- Integrated BluetoothYes
- Consumer Infrared Rx SensorYes
- Additional HeadersCEC, 2x USB2.0, FRONT_PANEL
- # of Thunderbolt™ 3 Ports1
Package Specifications
- Chassis Dimensions117 x 112 x 51mm
Security & Reliability
(118866)
| SKU | 118866 |
| Barcode # | 735858384155 |
| Brand | Intel |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
