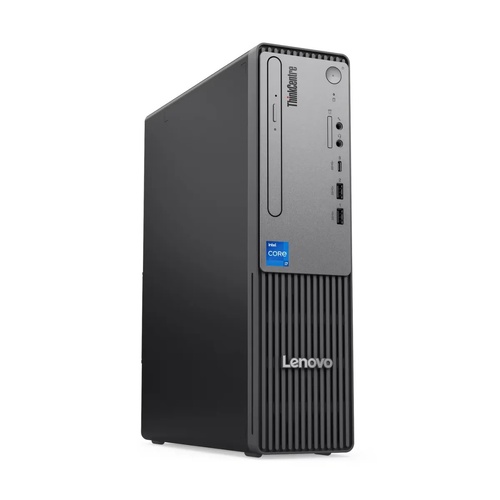

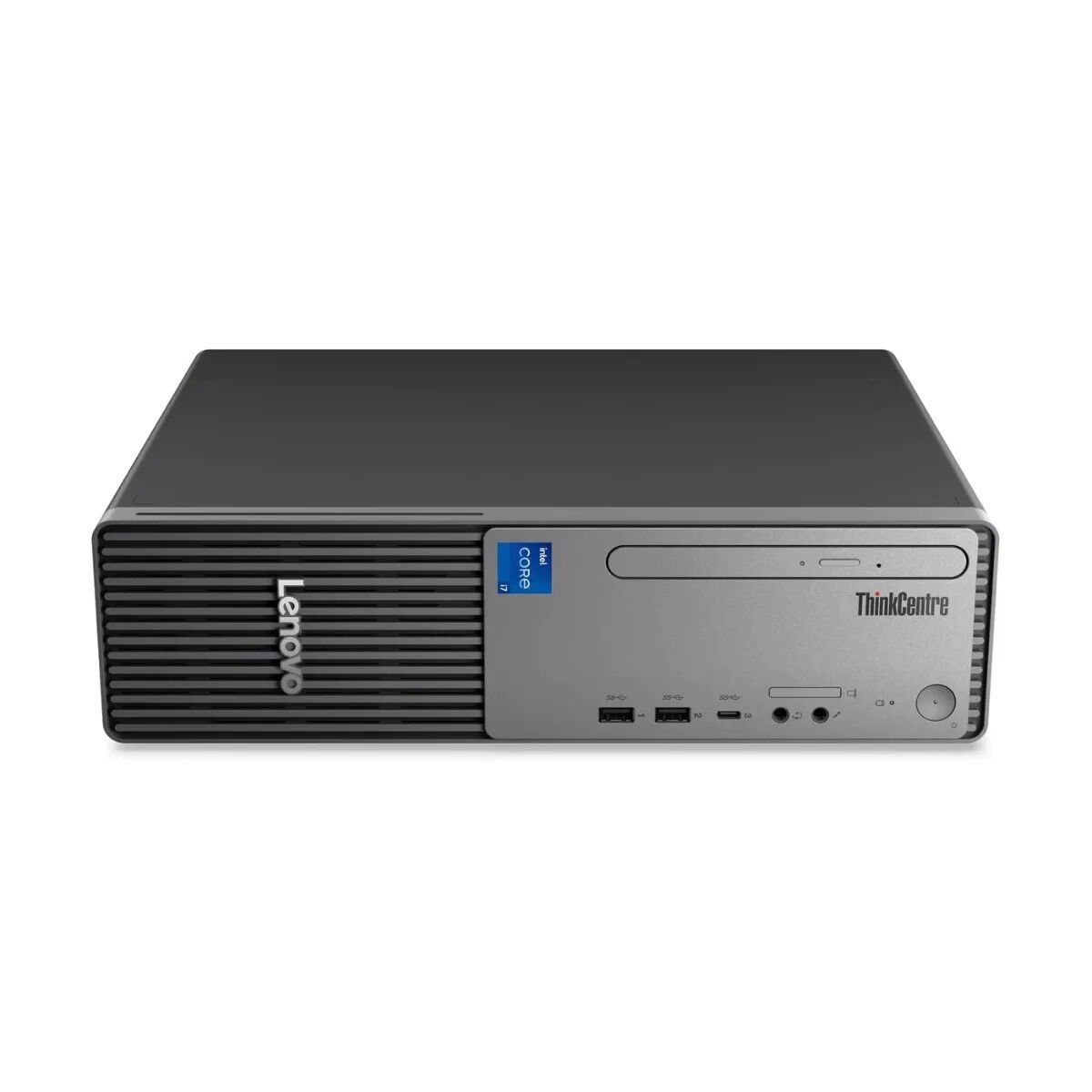

Lenovo ThinkCentre Neo 50s G4 SFF 12XF001BAU Core i7-13700 16GB 512GB SSD W11P 3YOS

SKU: 127867

PERFORMANCE
Processor
Intel Core™ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB Intel® Smart Cache
Graphics

Integrated Intel® UHD Graphics 770
Chipset
Intel® B760 Chipset
Memory

2x 8GB UDIMM DDR5-5600
Memory Slots
Two DDR5 UDIMM slots, dual-channel capable
Max Memory

Up to 64GB DDR5-5600
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support

Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB
To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers
1Wx1
Power Supply
260W 90%

DESIGN
Keyboard
USB Traditional Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Expansion Slots
One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color
Chassis: Black, Bezel: Grey
Stand
None
Pen
Pen Not Supported
Form Factor
SFF (8.2L)
Dimensions (WxDxH)

92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches)
Weight

Around 4.2 kg (9.3 lbs)
CONNECTIVITY
WLAN + Bluetooth
None
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M
Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports

4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4
1x VGA
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured)
None
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington Security Slot™, 3 x 7 mm
Smart Cable Clip
None
Chassis Intrusion Switch
None
Additional Security
None
SERVICE
Base Warranty
1-year, Onsite
Included Upgrade
3Y Onsite upgrade from 1Y Onsite
CERTIFICATIONS
Green Certifications
RoHS / WEEE / REACH
TCO Certified 9.0
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
Bufferzone Standard Plus 1-year

(127867)

SKU 127867
Model # 12XF001BAU
Barcode # 198156512611
Brand LENOVO
Shipping Weight 4.2000kg
Shipping Width 0.290m
Shipping Height 0.090m
Shipping Length 0.340m
PERFORMANCE
Processor
Intel Core™ i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB Intel® Smart Cache
Graphics

Integrated Intel® UHD Graphics 770
Chipset
Intel® B760 Chipset
Memory

2x 8GB UDIMM DDR5-5600
Memory Slots
Two DDR5 UDIMM slots, dual-channel capable
Max Memory

Up to 64GB DDR5-5600
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support

Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB
To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers
1Wx1
Power Supply
260W 90%

DESIGN
Keyboard
USB Traditional Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Expansion Slots
One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case Color
Chassis: Black, Bezel: Grey
Stand
None
Pen
Pen Not Supported
Form Factor
SFF (8.2L)
Dimensions (WxDxH)

92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches)
Weight

Around 4.2 kg (9.3 lbs)
CONNECTIVITY
WLAN + Bluetooth
None
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M
Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports

4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4
1x VGA
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured)
None
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington Security Slot™, 3 x 7 mm
Smart Cable Clip
None
Chassis Intrusion Switch
None
Additional Security
None
SERVICE
Base Warranty
1-year, Onsite
Included Upgrade
3Y Onsite upgrade from 1Y Onsite
CERTIFICATIONS
Green Certifications
RoHS / WEEE / REACH
TCO Certified 9.0
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
Bufferzone Standard Plus 1-year
SKU 127867
Model # 12XF001BAU
Barcode # 198156512611
Brand LENOVO
