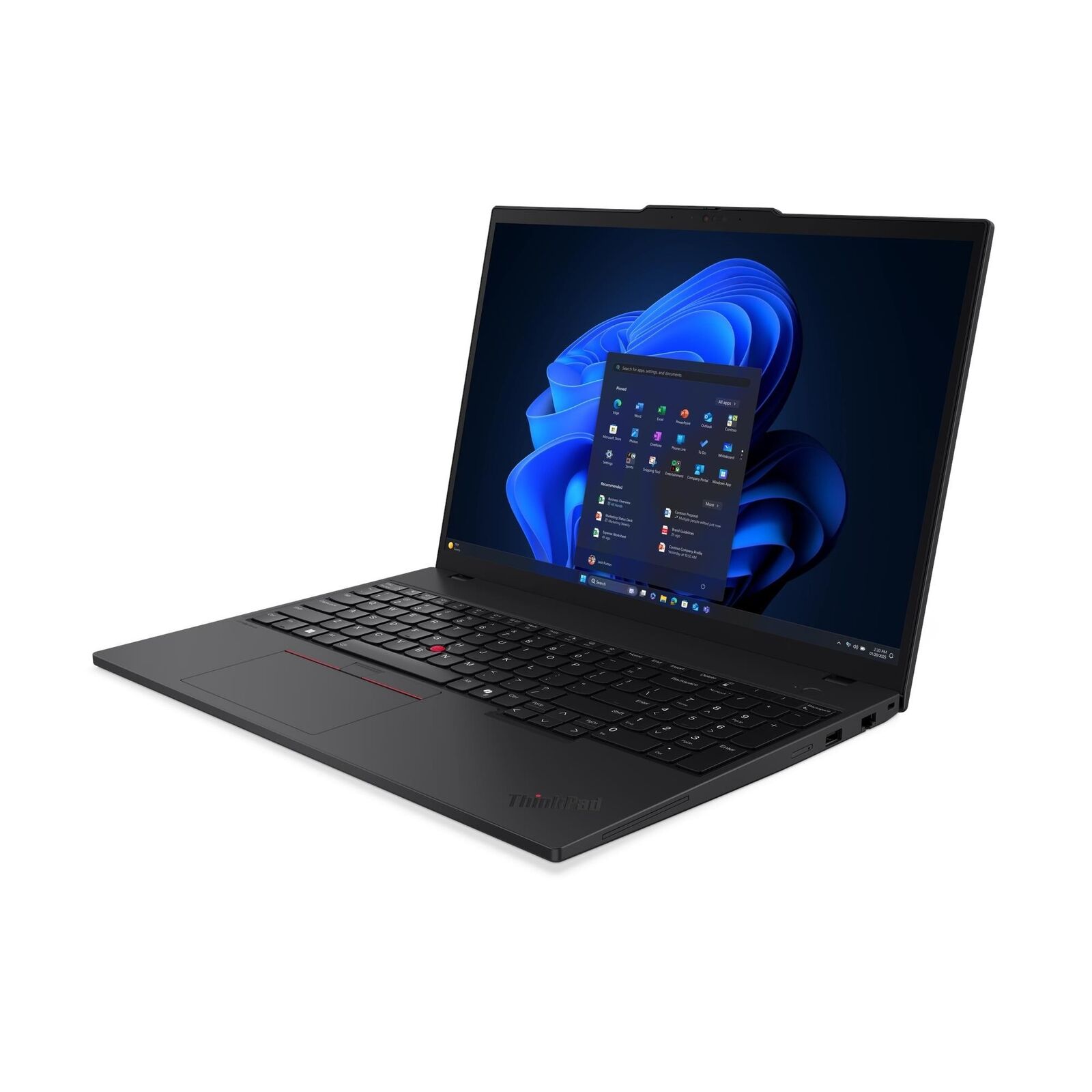

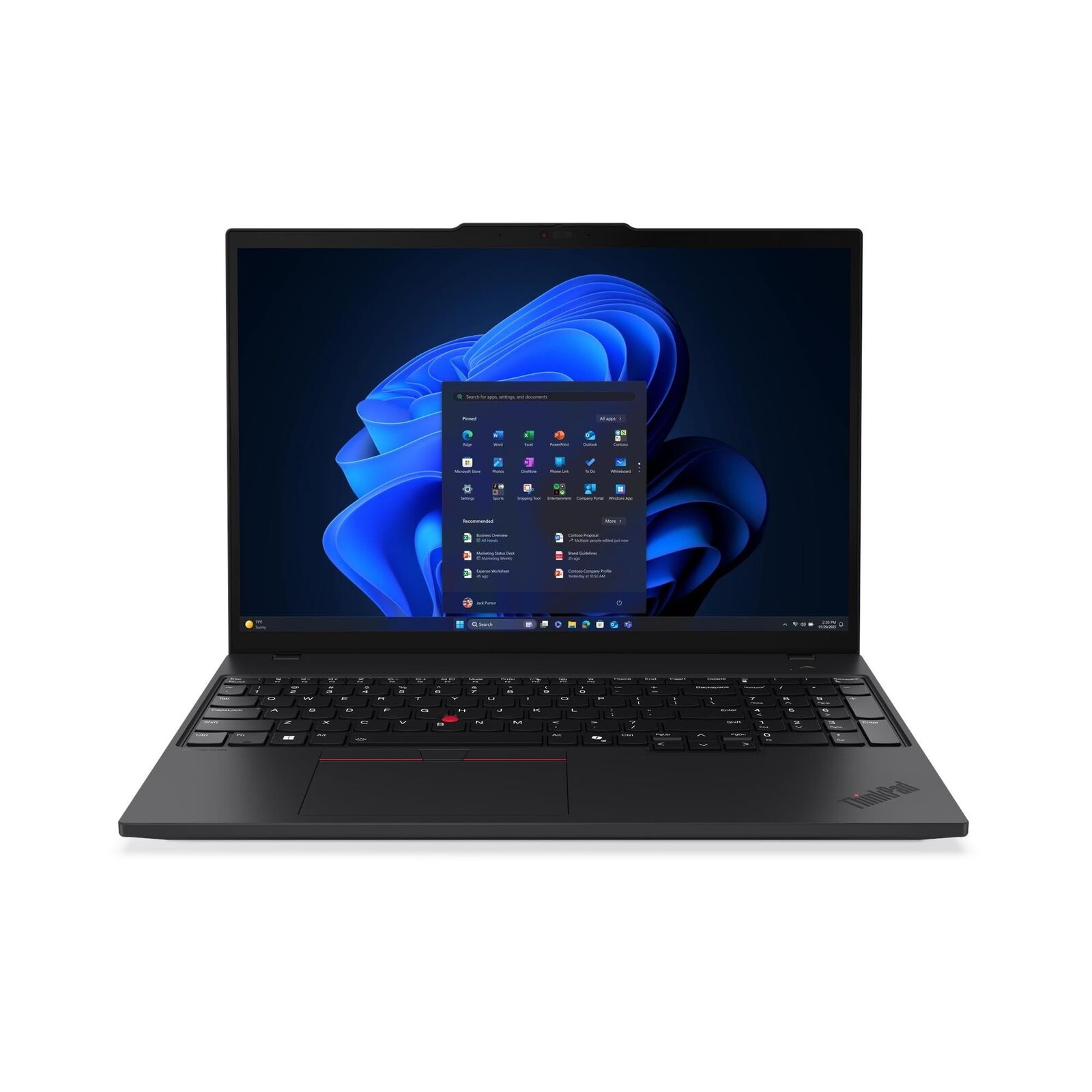

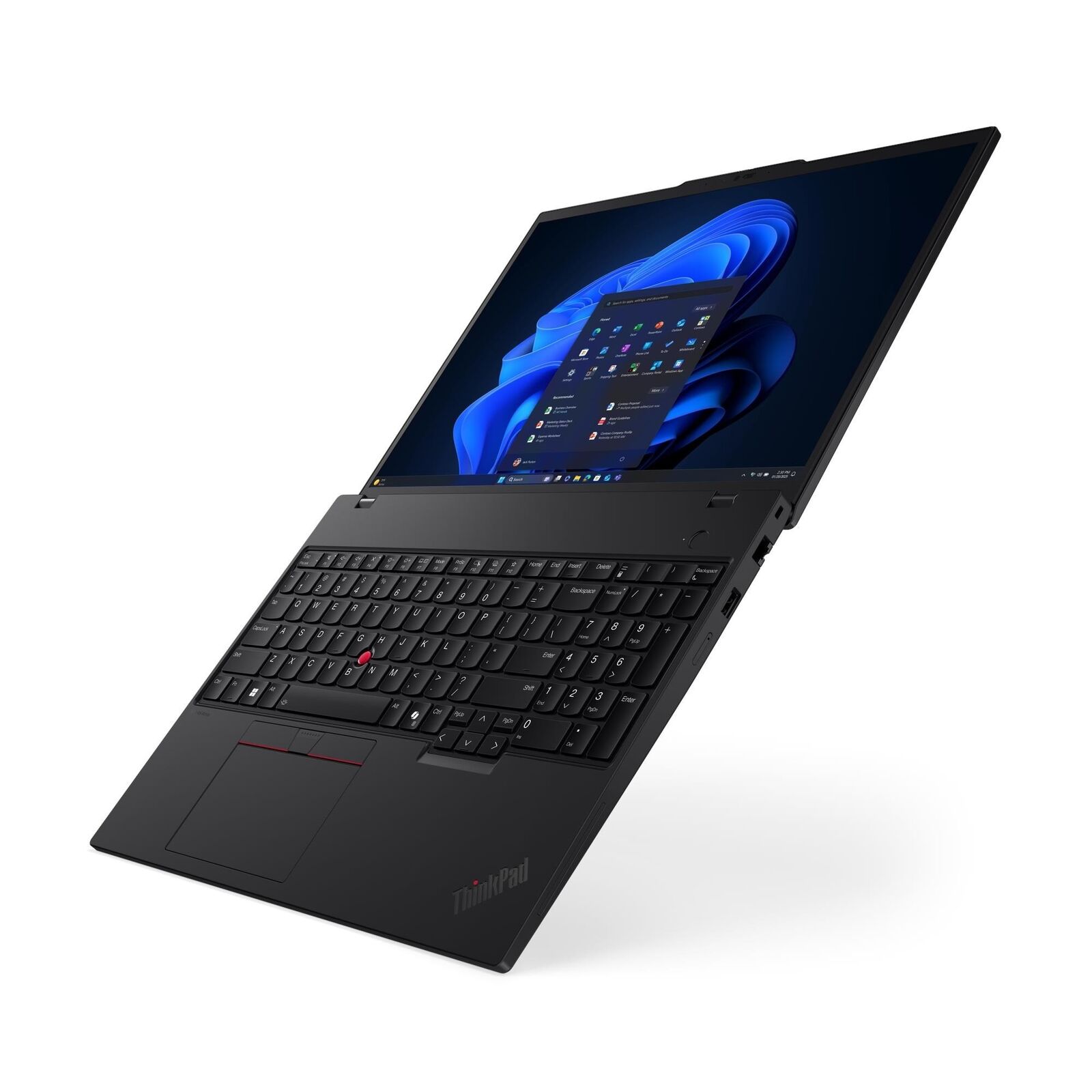

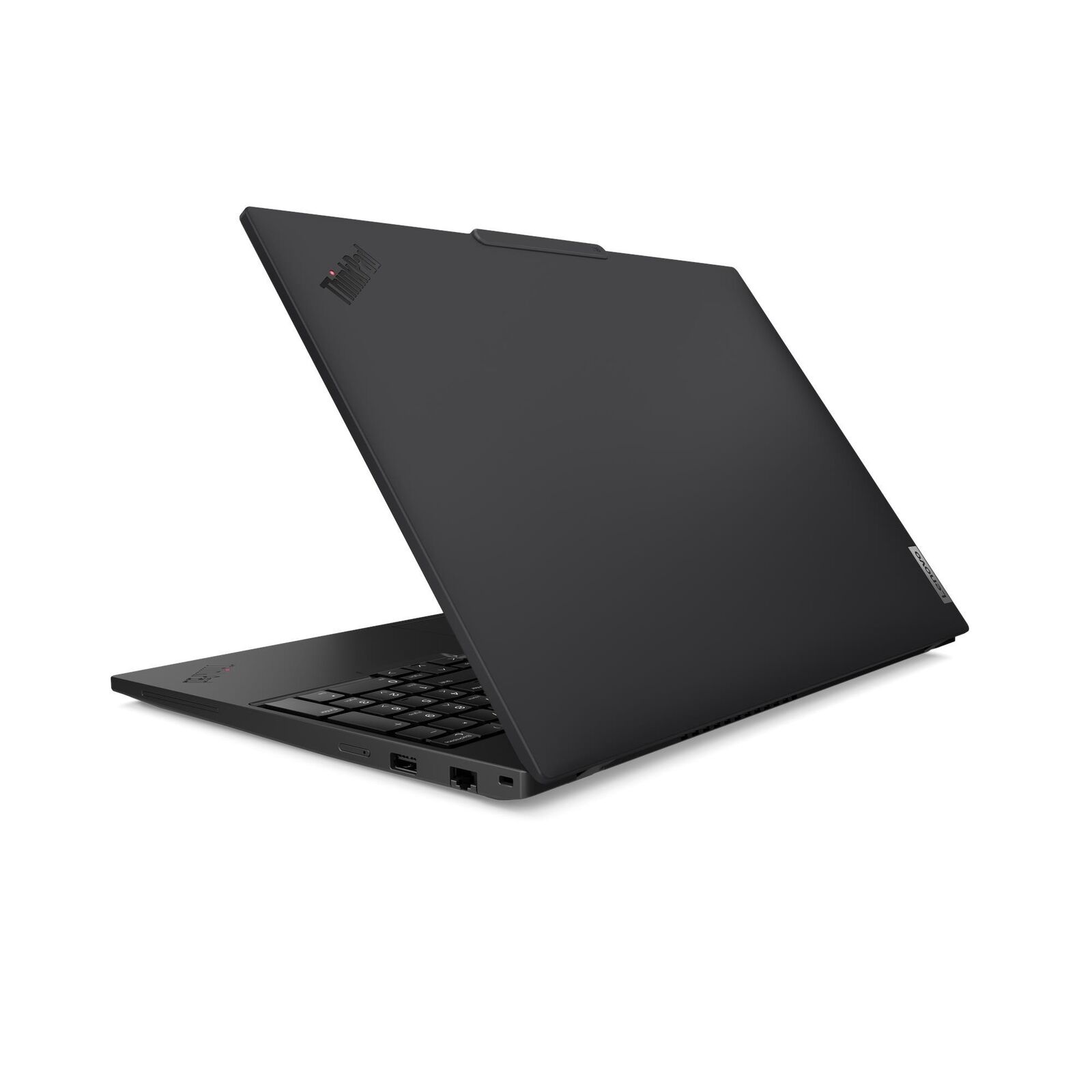

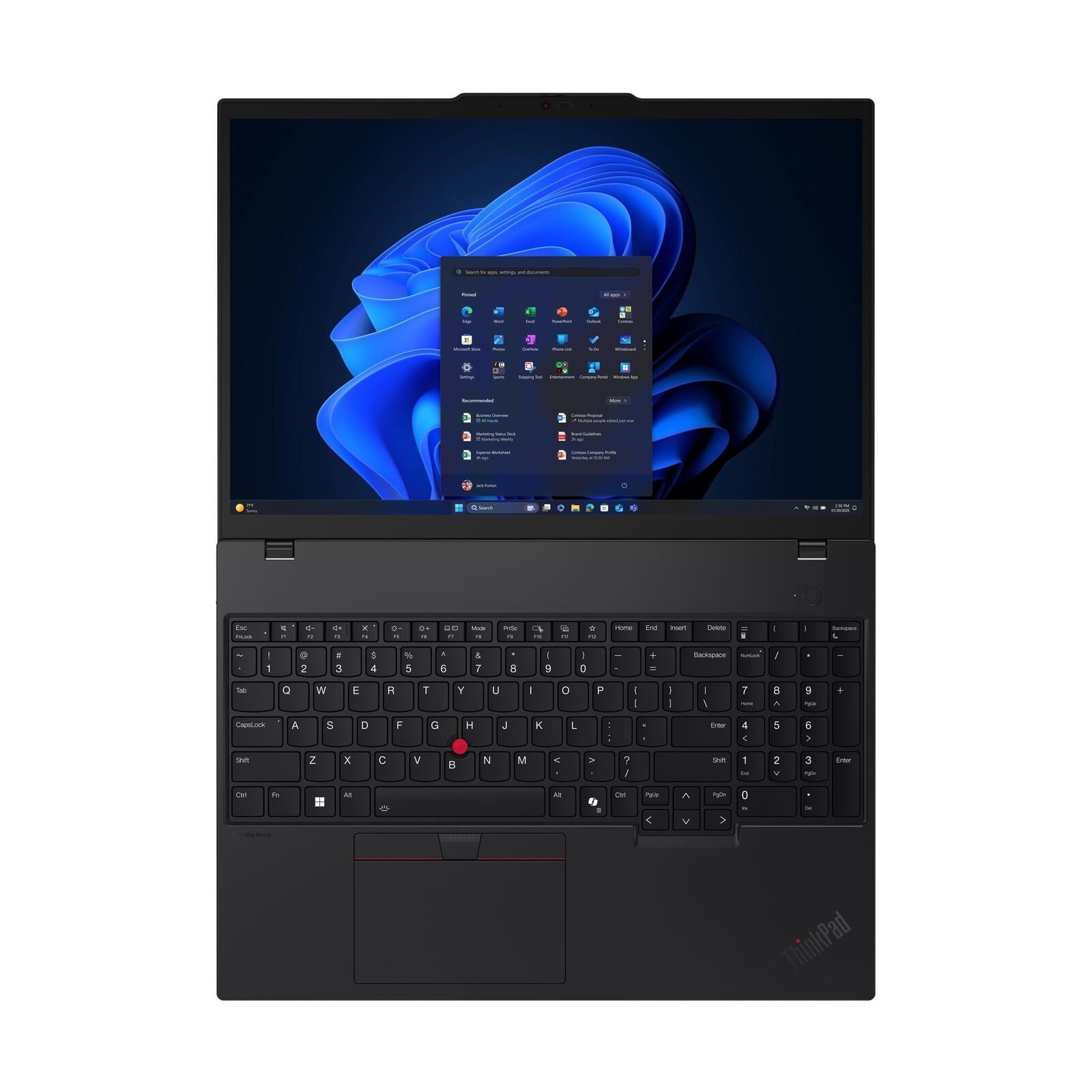

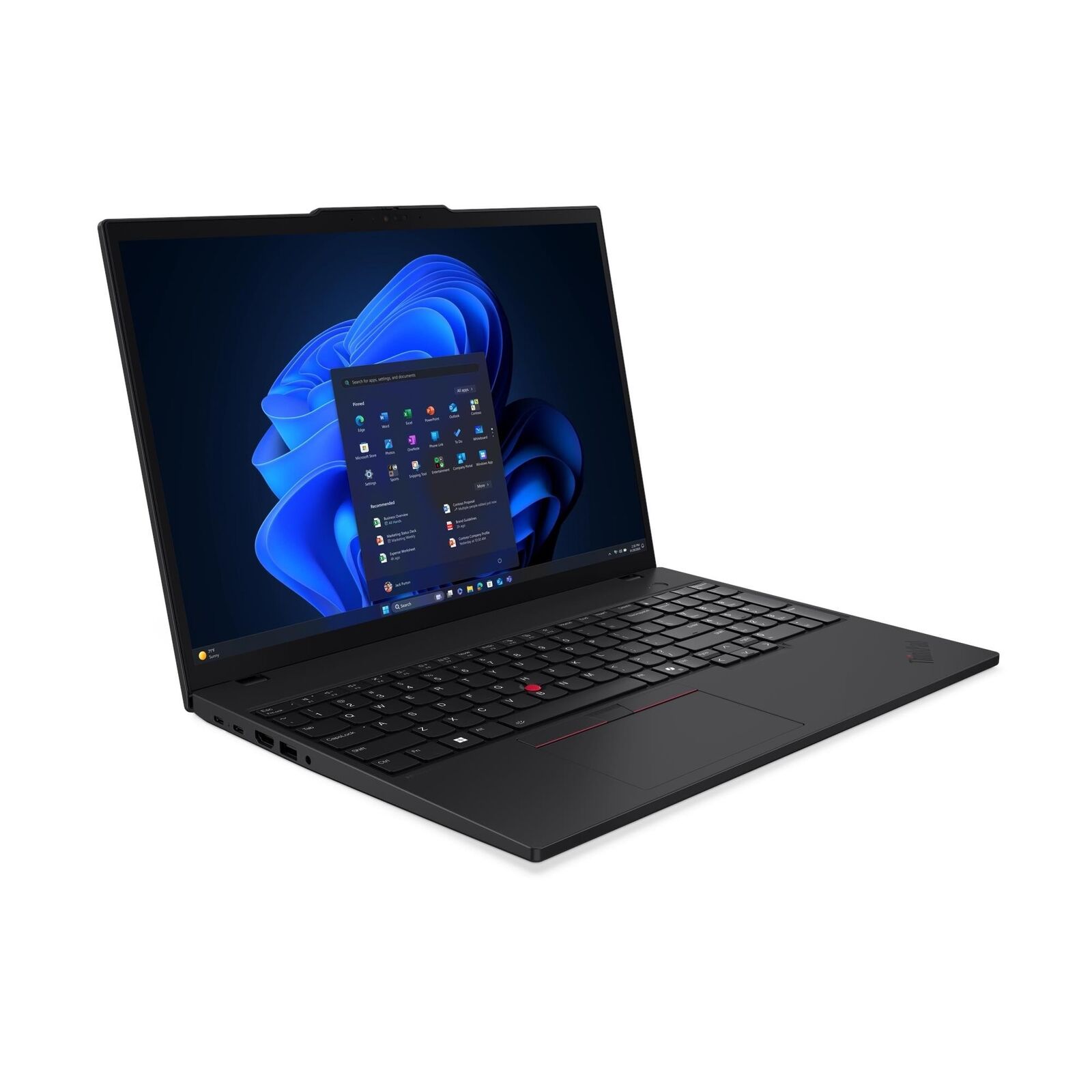

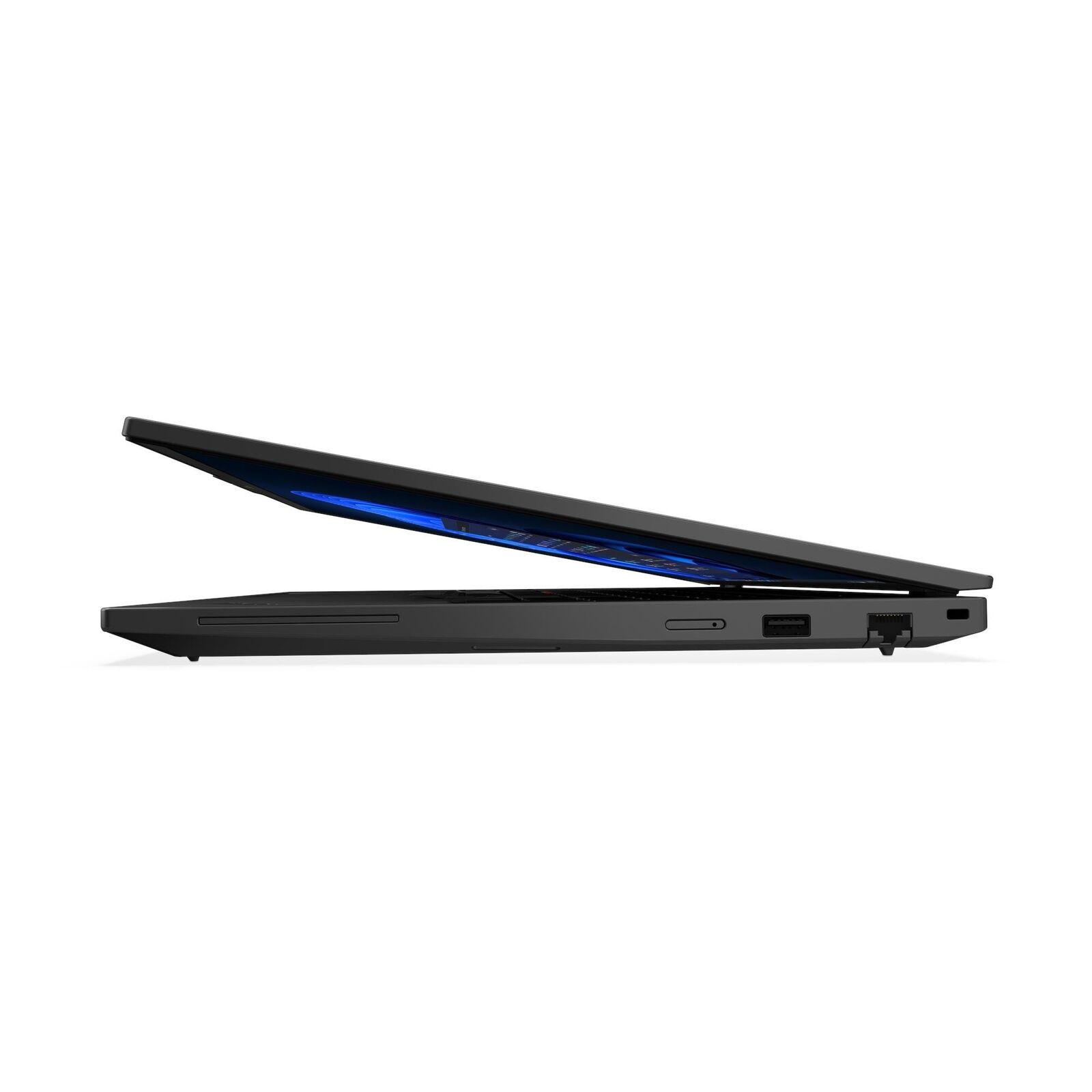

Lenovo ThinkPad T16 G4 21QE0022AU 16"WUXGA Core U5-225H 32GB 512GB SSD W1P (AI) 3Y Prem

SKU: 127529

PERFORMANCE
Processor	Intel Core™ Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB Intel® Smart Cache
AI PC Category	AI PC
NPU	Integrated Intel® AI Boost, up to 13 TOPS
Graphics	Integrated Intel® Arc™ 130T GPU
Chipset	Intel® SoC Platform
Memory	2x 16GB SODIMM DDR5-5600
Memory Slots	Arrow Lake: two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory	Arrow Lake: up to 64GB DDR5-5600
Storage	512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot	Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support	One drive, up to 2TB M.2 2280 SSD
Optical	None
Card Reader	No Card Reader
Audio Chip	High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers	Stereo speakers, 2W x2, Dolby Audio™
Microphone	2x, 360°
Camera	5.0MP + IR Discrete with Privacy Shutter
Battery	52.5Wh
Power Adapter	65W USB-C® (3-pin)
DESIGN
Display	16" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen	None
Screen-to-Body Ratio	87.22%
Pen	Pen Not Supported
Keyboard	Backlit, English
Dimensions (WxDxH)	359.7 x 250.8 x 11.8/18.14 (front/rear), 23.5 (maximum) mm; 14.16 x 9.87 x 0.46/0.71 (front/rear), 0.93 (maximum) inches
Weight	Starting at 1.76 kg (3.89 lbs)
Case Color	Black
Case Material	PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System	Windows® 11 Pro, English (US) / English (UK)
Bundled Software	Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth	Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN	WWAN Not Supported
SIM Card	No physical SIM card inbox
Ethernet	100/1000M (RJ-45)
NFC	No NFC
Standard Ports	1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
	1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
	2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
	1x HDMI® 2.1, up to 4K/60Hz
	1x Headphone / microphone combo jack (3.5mm)
	1x Ethernet (RJ-45)
Optional Ports (configured)	None
Docking	Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® T16 Gen 4 (Intel®)
SECURITY & PRIVACY
ThinkShield	ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip	Discrete TPM 2.0 Enabled
Physical Locks	Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader	No Smart Card Reader
Fingerprint Reader	Touch Style, Match-on-Chip, Integrated in Power Button
Other Security	Camera privacy shutter (camera models)
	Ultrasonic Human Presence Detection
	IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management	Non-vPro®
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories	None
CERTIFICATIONS
Green Certifications	ENERGY STAR® 9.0
	EPEAT™ Gold Registered
	ErP Lot 6/26
	RoHS compliant
	TCO Certified, generation 10
Mil-Spec Test	MIL-STD-810H military test passed

(127529)

SKU	127529
Model #	21QE0022AU
Barcode #	198157741492
Brand	LENOVO
Shipping Weight	2.8600kg
Shipping Width	0.330m
Shipping Height	0.090m
Shipping Length	0.490m
