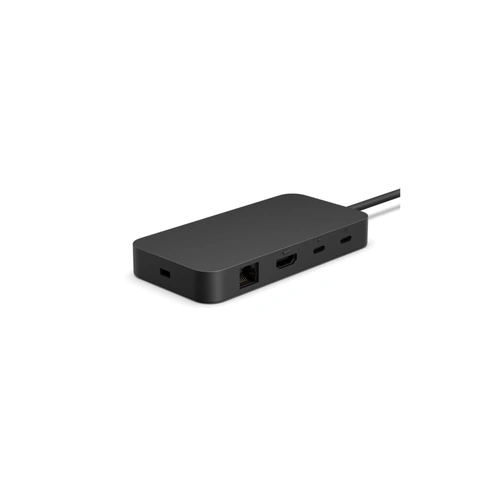

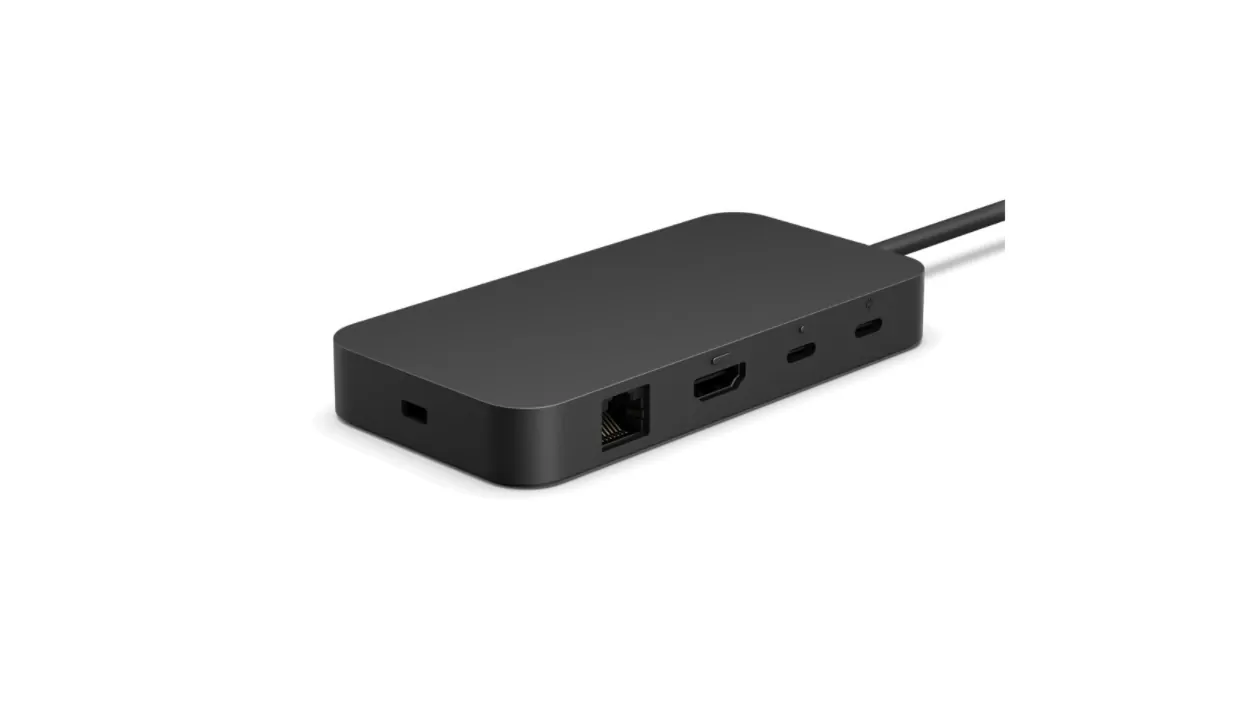

Surface USB4 Dock

SKU: 127113

The Surface USB4 Dock transforms your laptop into a full-fledged desktop hub with ultra-fast USB4 performance and comprehensive port coverage. Packed into a compact, sustainably designed enclosure, it delivers up to 40 Gb/s data transfer, dual 4K@60 Hz display support, and up to 65 W pass-through charging from its included 100 W power supply via an 80 cm USB-C/USB4 cable with LED status indicators. Enterprise-ready features include a 1 Gbit/s Ethernet port, Kensington-style lock slot, Secured-core PC support, MAC address passthrough, and Wake-on-LAN—managed through Windows Update or the Surface app. In keeping with Microsoft’s sustainability commitments, the dock housing and packaging contain at least 55.2 % recycled content—including 100 % recycled tin and gold—and its packaging is 77 % post-consumer fiber.

(127113)

Specification Detail
Model Surface USB4 Dock
Dimensions (W × D × H) 120 × 60 × 15 mm (4.72″ × 2.36″ × 0.59″)
Weight 206 g (7.3 oz)
Power Supply 100 W USB-C adapter included; up to 65 W USB-C/USB4 pass-through charging
Host Connection 80 cm USB-C/USB4 cable with dual LED indicators for dock status and charging
USB4 Port Supports USB4 at 40 Gb/s (data), power delivery, and dual DisplayPort 1.4 signals
Ethernet 1 Gbit/s RJ-45
Security Lock Kensington-style slot
Manageability Secured-core PC support; MAC address passthrough; Wake-on-LAN from Modern Standby/S4–S5; firmware updates via Windows Update or Surface app
Compatibility Surface devices with USB-C/USB4 ports (e.g. Surface Pro 7+ onward, Surface Laptop 3 onward); any USB-C/USB4/Thunderbolt 4 host
Sustainability ≥ 55.2 % recycled materials (100 % recycled tin & gold, ≥ 50 % recycled plastics); packaging ≥ 77 % post-consumer fiber
Warranty 2-year Microsoft hardware warranty
SKU 127113
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
