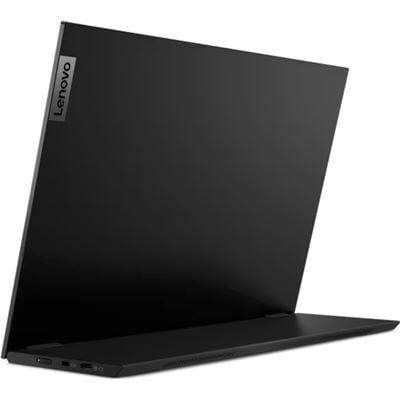

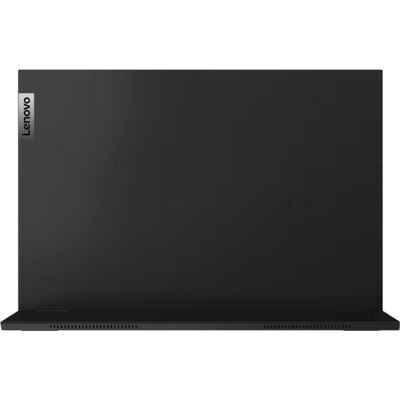

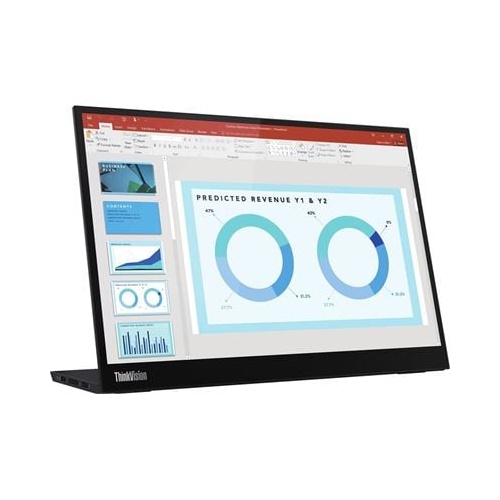

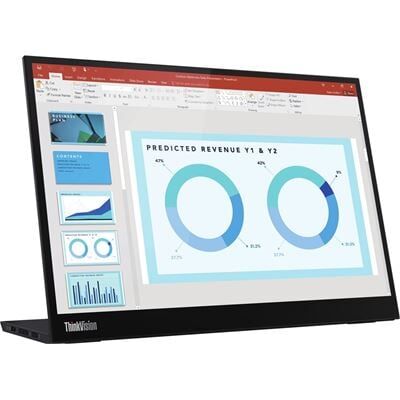

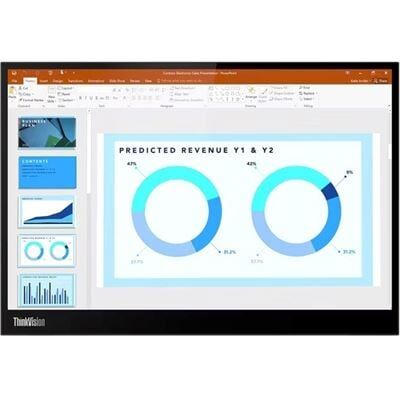

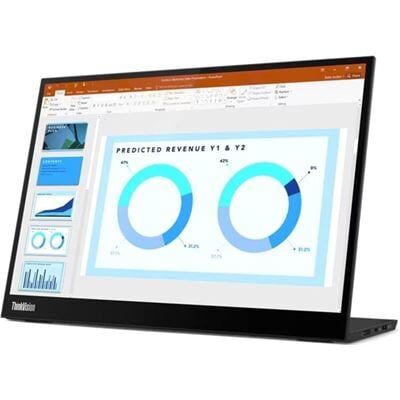

Lenovo ThinkVision M14d 14" 2.2K QHD USB-C IPS Portable Monitor

Created For Working On The Go

ThinkVision M14d

ThinkVision M14d Monitor with a 14-inch, 16:10 aspect ratio display that offers 1.5 times more pixels and a 5.64% more active area than a traditional FHD monitor. Enjoy vivid-looking visuals with the panel’s 300 nits brightness, 2240 x 1400 resolution, 1500:1 contrast ratio, and 100% sRGB color space coverage. TÜV Rheinland-certified Natural Low Blue Light technology keeps your eyes protected without distorting colors.











Comfortable & Easy on Your Eyes

Natural Low Blue Light display without affecting color performance



Lenovo Natural Low Blue Light Mode VS Conventional Blue Filter Modemance

















Comfortable & Easy on Your Eyes

Natural Low Blue Light display without affecting color performance



Lenovo Natural Low Blue Light Mode VS Conventional Blue Filter Modemance

















Comfortable & Easy on Your Eyes

Natural Low Blue Light display without affecting color performance



Lenovo Natural Low Blue Light Mode VS Conventional Blue Filter Modemance







Portable Ease Everyday

Super Thin and Lightweight

Feather-light (600 g – net weight) and slim design (4.6 mm head thickness) for effortless carrying.

Sustainable Development

Environmental-Friendly

This monitor has been made with sustainable materials including 85% recycled plastics with post-consumer plastic. And it is packed with sustainable paper pulp that is good for the environment. The monitor also meets the latest environmental standards.

Multi-Function Ergonomic Stand

Ergonomic Design

Enjoy a comfortable viewing experience with the display’s wide range of adjustability (0–90° tilt, up to 11 mm lift).

o

① Tilt : 0°~90°

② Lift : Up to 11 mm

Overview:

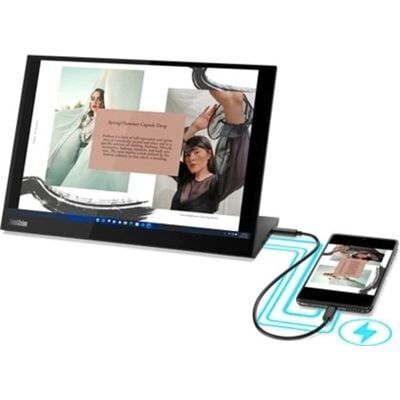

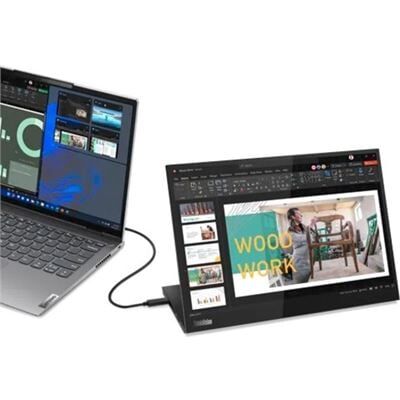

ThinkVision M14d has 14" screen, 16:10 aspect ratio, 104 PPI, 2240 x 1400 resolution screen with 100% sRGB colour gamut which ensure rich, clear imagery and true-to-life colours. M14d comes with two Type-C ports for quick upstream and downstream connectivity, allowing you to connect your notebook effortlessly. In addition, the Type-C ports have the ‘power pass-through’ feature that allows you to power the monitor and charges your notebook simultaneously. The mobile monitor also has the Natural Low Blue Light technology which reduces the harmful blue light to make viewing a comfortable and stress-free experience without colour distortion.

Key Details:

• 14" 2.2k (2240x1400) IPS display, Anti-glare 16:10

• Extreme mode 6 ms response time

• 60 Hz refresh rate

• 300nits, 1500:1, 100% sRGB, 8-bit

• -5° to +95° tilt, up to 11mm lift

• Eyesafe® Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Low Blue Light, TÜV Rheinland® Flicker Free

Part Number: 63AAUAR6AU

What's Included

• 1 x monitor
• 1 x pair of clips
• 1 x Sleeve
• 1 x Type-C cable (1.0 m)
• Quick setup guide

Tech Specs

Screen Size	14"
Brightness	300 cd/㎡ (typical), 375 cd/㎡ (peak)
Aspect Ratio	16:10
Contrast Ratio	1500:1
Backlight	WLED
Response Time	6 ms (Extreme mode) / 8 ms (Normal mode)
Panel Type	In-Plane Switching
Viewing Angle	178° / 178°
Stand	Tilt Angle (-5° / 95°), Lift Range (11 mm)
Power Requirement	5V or 9V or 15V DC 3A or 20V DC 5A Max
Energy Star	8.0
Brand	ThinkVision
Included Accessory	USB-C cable
Color Coverage	100% sRGB
Color Depth	8
Color Support	16.7 Million
Dimensions without Package	106.4 mm x 227.5 mm x 314.4 mm / 4.19" x 8.96" x 12.37"
Eye Caring	Yes
Head only Dimensions	4.5 mm x 215.3 mm x 314.4 mm / 0.17" x 8.47" x 12.37"
Height-Adjustable	Yes
Kensington Lock	Yes
Power Consumption	6W Typ, 7.5W Max
Software/Driver	Yes (Lenovo Artery 2.0)
USB Type-C	Yes
Weight Head Only	0.37 kg, 0.82 lbs
Weight with Package	1.81 kg, 3.98 lbs
Weight without Package	0.60 kg, 1.32 lbs
Maximum Resolution	2240 x 1400
Connection Type	2 x USB Type-C Gen1 (DP1.2 Alt Mode)
Warranty	Three Years limited
Resolution	2240 x 1400
Refresh Rate	60 Hz

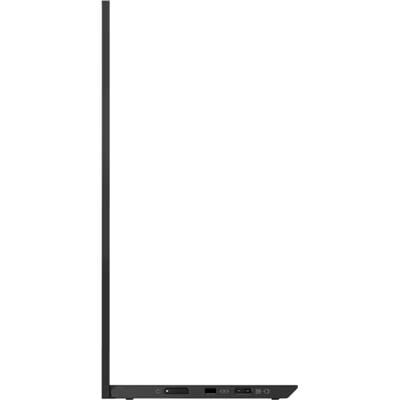

Ports & Slots

• 1

  Power Button

• 4

  USB-Type C

• 2

  Power Button

• 5

  Brightness Adjustment

• 3

  USB-Type C

• 6

  Menu
