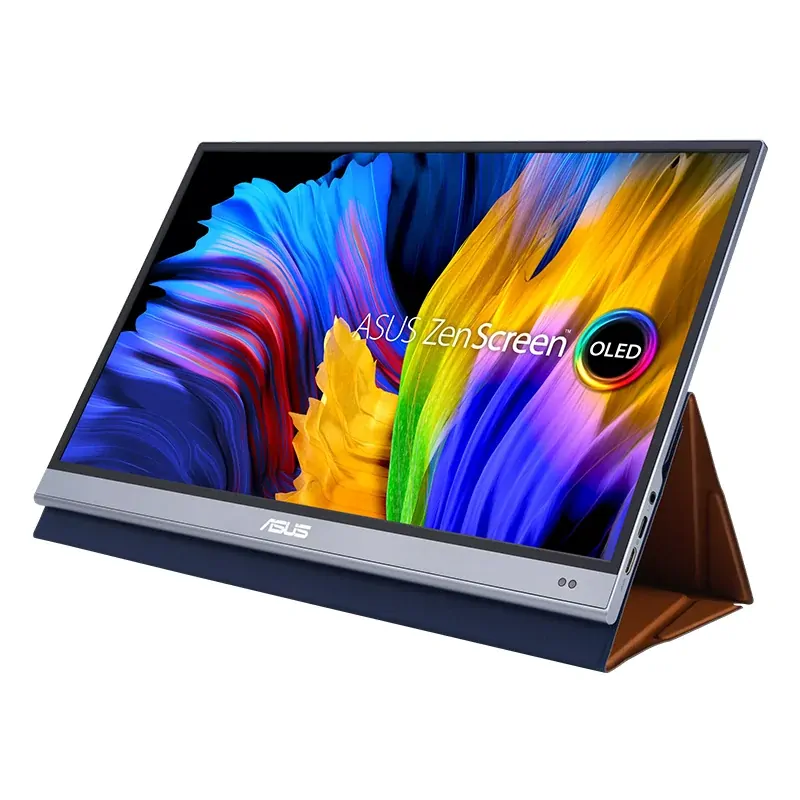

ASUS ZenScreen MQ16AH 15.6" Full HD USB-C Smart Case OLED Portable Monitor

ASUS ZenScreen™ OLED MQ16AH is a 15.6-inch portable OLED monitor that delivers exceptional color performance, with a wide 100% DCI-P3 gamut and a 100,000:1 contrast ratio to ensure darker blacks and brighter whites. With a 1-millisecond response time, ZenScreen OLED MQ16AH displays blur-free animated and fast-action content. An ultralight, super-slim design and rich connectivity make this groundbreaking OLED portable monitor your perfect on-the-go companion.

*Compared to previous ZenScreen models

The ideal portable solution

With its super-slim design, ultralight chassis, superb connectivity, and exceptional OLED visuals, ZenScreen OLED MQ16AH is the perfect companion for any mobile device. You can work more efficiently on the go with an extended display, or simply kick back and enjoy your favorite movies and videos wherever you are.

*Tripod is not included with ZenScreen OLED MQ16AH

WORK

CREATE

ENTERTAIN

Astonishing true-to-life color

ZenScreen OLED MQ16AH provides amazing viewing experiences, with its brilliant OLED panel and HDR technology that can display over 1 billion colors. Its cinema-grade 100% DCI-P3 color gamut and Delta E < 2 color accuracy make it a superbly versatile all-rounder for anyone ― including professional creators.

Extreme blacks and high perceptual brightness

The OLED technology in ZenScreen OLED MQ16AH produces the deepest blacks and ensures vivid colors at any brightness level. It also delivers extremely crisp and clear details, even in the darkest scenes.

Fast response time for smooth visuals

With a rapid response time — as low as 1 ms — ZenScreen OLED MQ16AH displays smooth fast-paced action scenes and ensures low-latency gameplay. You’ll also enjoy subtle benefits such as blur-free text scrolling.

Without fast 1 ms response time

With fast 1 ms response time

Super-slim, lightweight and portable

ZenScreen OLED MQ16AH is ideal for life on the road. It weighs just 650 grams* and measures only 5 millimeters at its thinnest part, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.

*Without Smart Case

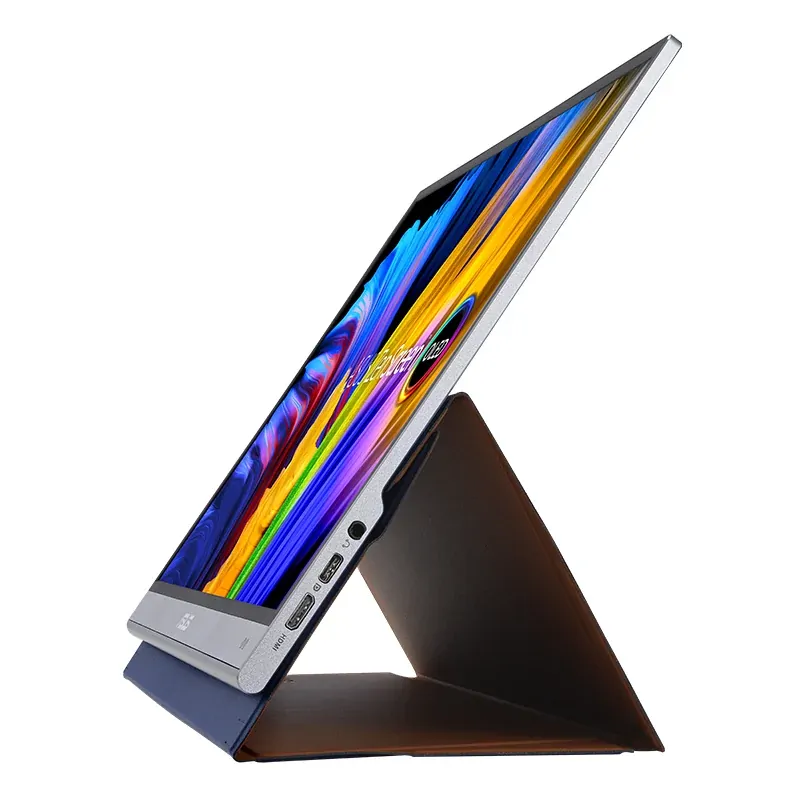

Flexible viewing positions

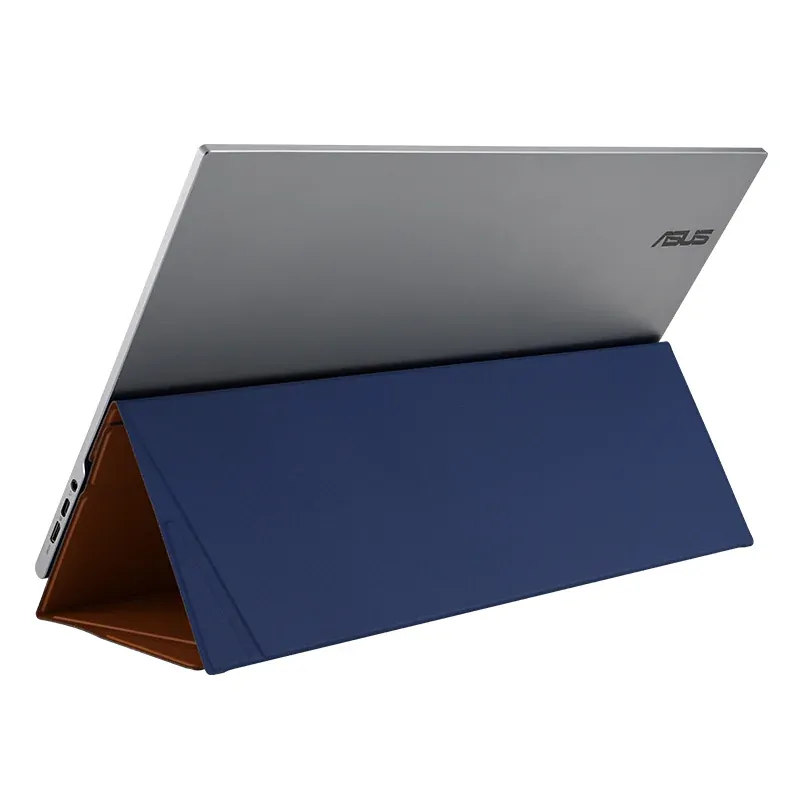

An innovative Smart Case protects ZenScreen OLED MQ16AH from dust and scratches, and the case can be folded into a stand to prop the monitor up in different positions. There's also a tripod socket built into the rear of the monitor.

Ergo Smart Case

Auto Rotate

Don't throw away the box!

We've pulled out all the stops to create unique no-waste packaging for ZenScreen OLED MQ16AH. With just a few folds and tucks, you can turn the box into a super monitor hood* that reduces glare and distraction, and also improves perceived color accuracy. Even the protective foam inserts can be recycled for use as a handy stand for your monitor!

*Packaging is made of recycled paperboard. Do note that the condition of this material will naturally deteriorate over time and is not covered by the warranty. Please check the packaging regularly and when it is no longer suitable to be used as a hood, dispose of it responsibly.

Proximity sensor

An embedded proximity sensor provides added convenience, saving energy and preventing image burn-in when ZenScreen OLED MQ16AH is not in use. The sensor switches the monitor to a power-saving mode when it detects you've moved away, and then resumes normal operation when you return.

Smart connectivity

ZenScreen OLED MQ16AH includes a mini HDMI® port and three USB-C® ports — two of which support DisplayPort™ Alt Mode and used for power input, with the remaining USB-C port solely reserved for the power adaptor. The I/O ports are side mounted, making cable management easy and offering greater setup flexibility.

Additional Features

Low Blue Light

The new hardware-based ASUS Low Blue Light technology reduces potentially harmful high-energy blue-light emissions while offering color performance that’s better than monitors with software-only filtering solutions.

Flicker Free

TÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.

Total peace of mind when you purchase any ASUS monitor

Any pixel-related defects such as bright, dark, or dead pixels are eligible for repair or replacement*. Simply contact ASUS Service Australia for Next Business Day** pick-up.

Call 1300 278 788

Next Business Day** Pick-Up

Repair or Replace*

Return Delivery

*Repair or replacement of product or defective parts as determined by ASUS. **Next Business Day pick-up available in eligible metropolitan areas only.

Specifications

Model

ASUS ZenScreen OLED MQ16AH

Display

Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.21 x 193.62 mm
Display Surface : Glare
Backlight Type : OLED
Panel Type : OLED
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (DCI-P3) : 100%
Brightness (HDR, Peak) : 400 cd/m2
Brightness (Typ.) : 360cd/m2
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 100,000:1
Display Colors : 1073.7M (10 bit)
Response Time : 1ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
Protection Glass : No
Flicker-free : Yes

Video Feature

Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
Color Accuracy : Delta E< 2
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes (Hardware Solution)

I/O Ports

USB-C x 2 (DP Alt Mode)
Mini HDMI x 1

Signal Frequency

Digital Signal Frequency : HDMI: 60HZ (V)
USB-C: 60HZ (V)

Power Consumption

Power Consumption : 4.84 W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz

Mechanical Design

1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 358.7 x 226.15 x 8.95mm
Box Dimension (W x H x D) : 55.2 x 39.4 x 12.5 cm

Weight (Esti.)

Net Weight without Stand : 0.65 Kg
Gross Weight : 3.65 Kg

Certificate

TÜV Flicker-free
TÜV Low Blue Light (Hardware Solution)
