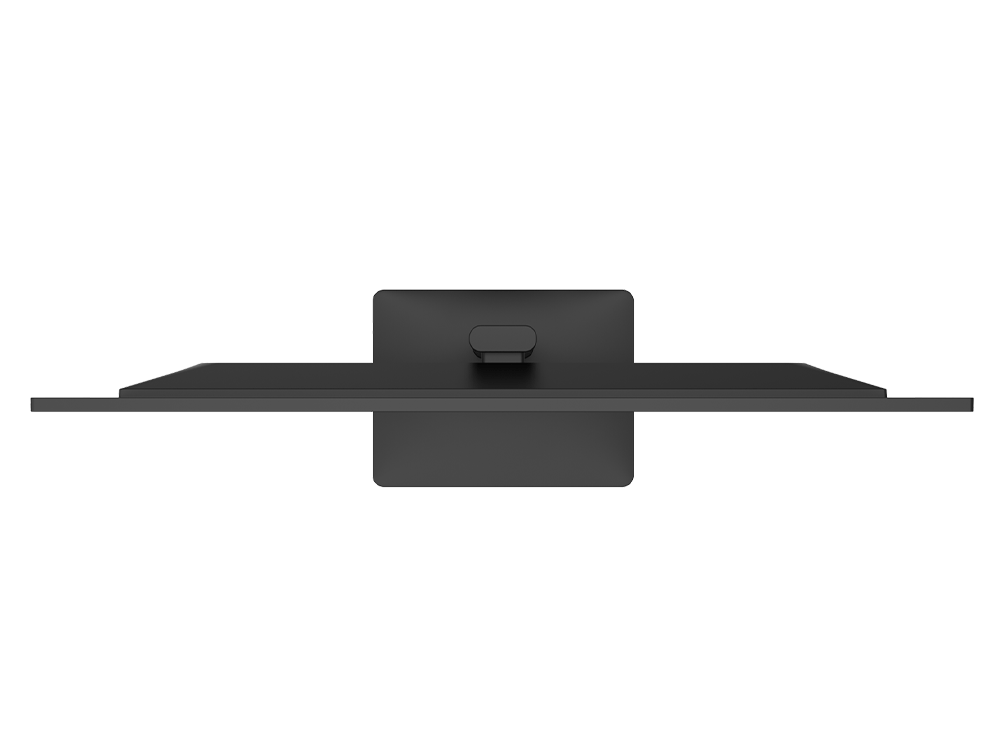

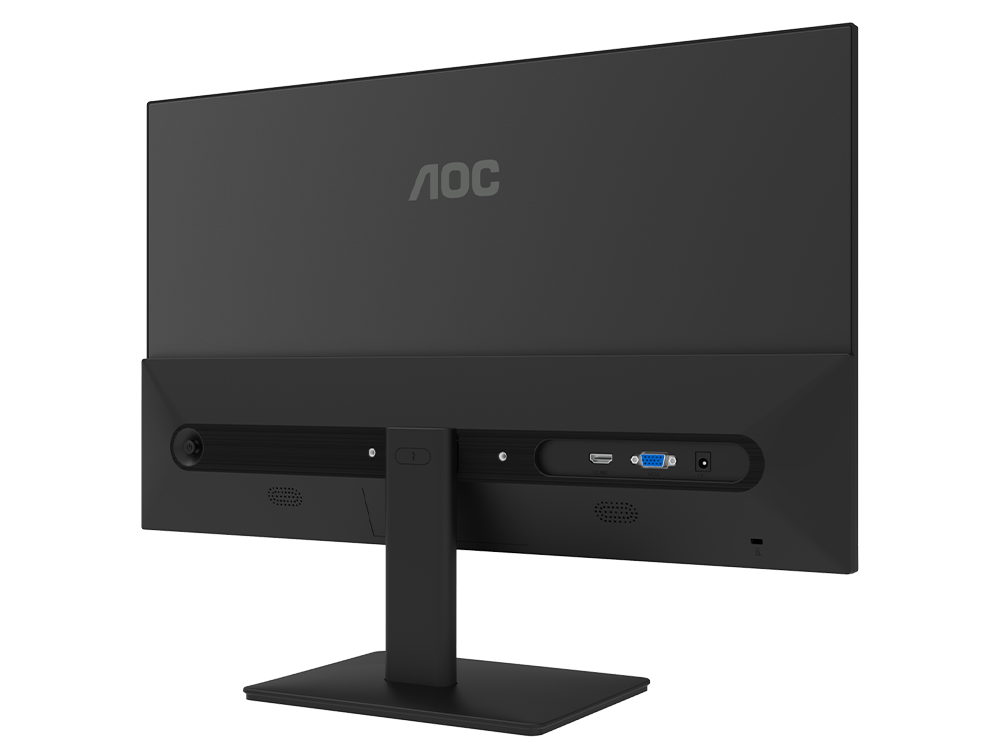

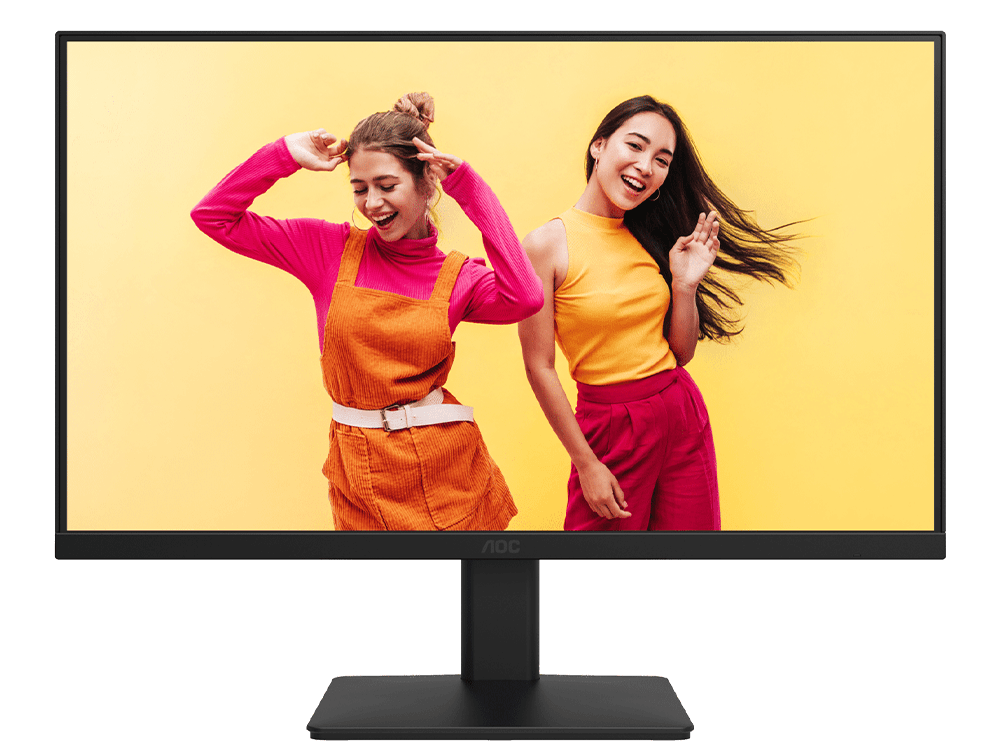

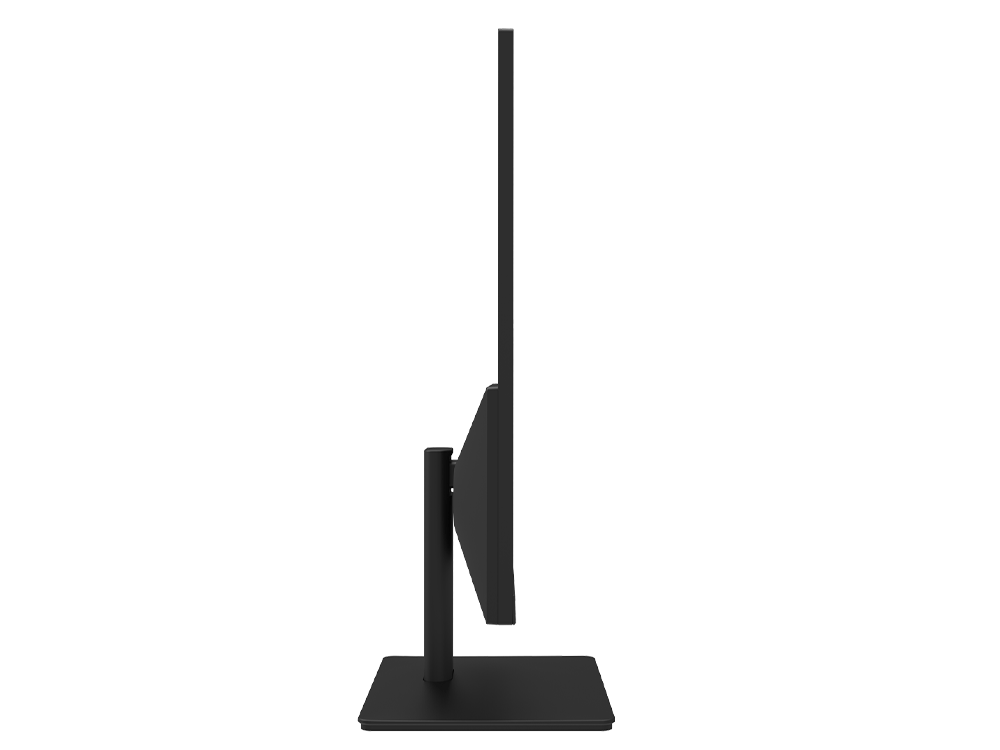

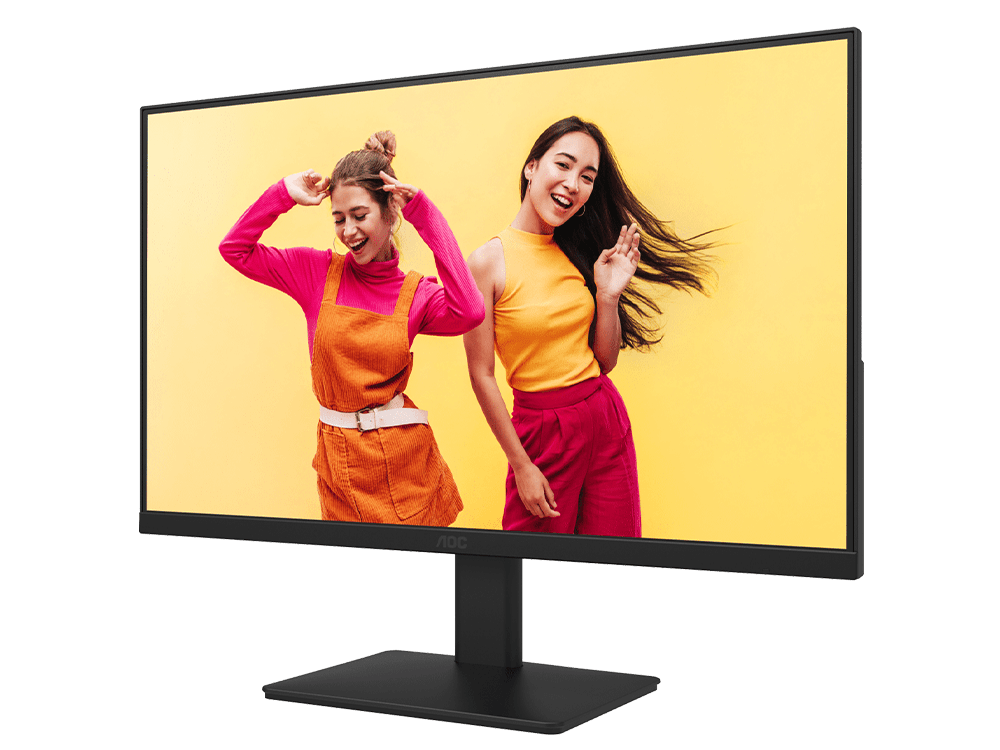

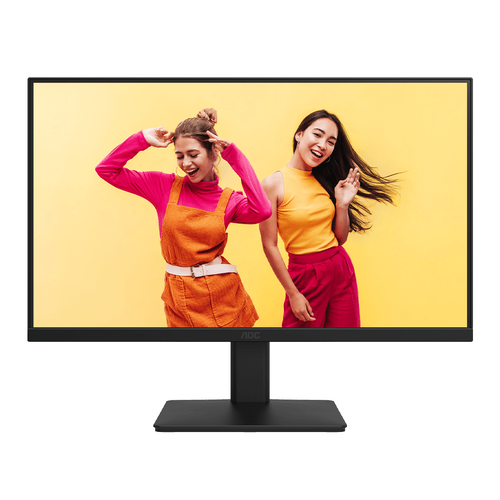

AOC 24B20JH2 24" Full HD IPS Monitor
SKU: 126406
AOC 24B20JH2 24" Full HD IPS Monitor
SKU: 126406
$119.00
Pre-order ETA on 31 July 2025
Quick Specifications
Manufacturer Specifications
| Model name | 24B20JH2 |
| EAN |
697 398523 192 6 |
| Panel | 23.8" / IPS |
| Pixel Pitch (mm) |
0.2745 (H) × 0.2745 (V) |
| Effective Viewing Area (mm) |
527.04 (H) × 296.46 (V) |
| Brightness (typical) | 250 cd/m² |
| Contrast Ratio |
1000 : 1 (typical) 20 Million : 1 (DCR) |
| Response Time | 1ms (MPRT) |
| Viewing Angle |
178° (H) / 178° (V) (CR > 10) |
| Color Gamut |
NTSC 90% (CIE1976) / sRGB 100% (CIE1931) |
| Color Accuracy | - |
| Optimum Resolution |
1920 × 1080 @ 100Hz – HDMI; 1920 × 1080 @ 75Hz – VGA |
| Display Colors | 16.7 Million |
| Signal Input |
VGA × 1, HDMI 1.4 × 1 |
| HDCP Version | HDMI : 1.4 |
| USB Hub | - |
| Power Supply |
External 12VDC, 2.5A |
| Power Consumption (typical) | 24W |
| Speakers | - |
| Line in & Earphone | - |
| Adjustable Stand | Tilt : —5° ~ 15° |
| Product without Stand (mm) |
321.3 (H) × 540.9 (W) × 35.1 (D) |
| Product with Stand (mm) |
418.2 (H) × 540.9 (W) × 168 (D) |
| Packaging (mm) |
387 (H) × 598 (W) × 100 (D) |
| Product without Stand (kg) | 2.49 |
| Product with Stand (kg) | 2.82 |
| Product with Packaging (kg) | 3.92 |
| Cabinet Color | Black |
| Regulatory Approvals |
CE / RCM / MEPS / BSMI / RoHS |
| What's in the box |
HDMI Cable 1.5m × 1 |
(126406)
| SKU | 126406 |
| Model # | 24B20JH2 |
| Barcode # | 6973985231926 |
| Brand | AOC |
| Shipping Width | 0.050m |
| Shipping Length | 0.100m |
