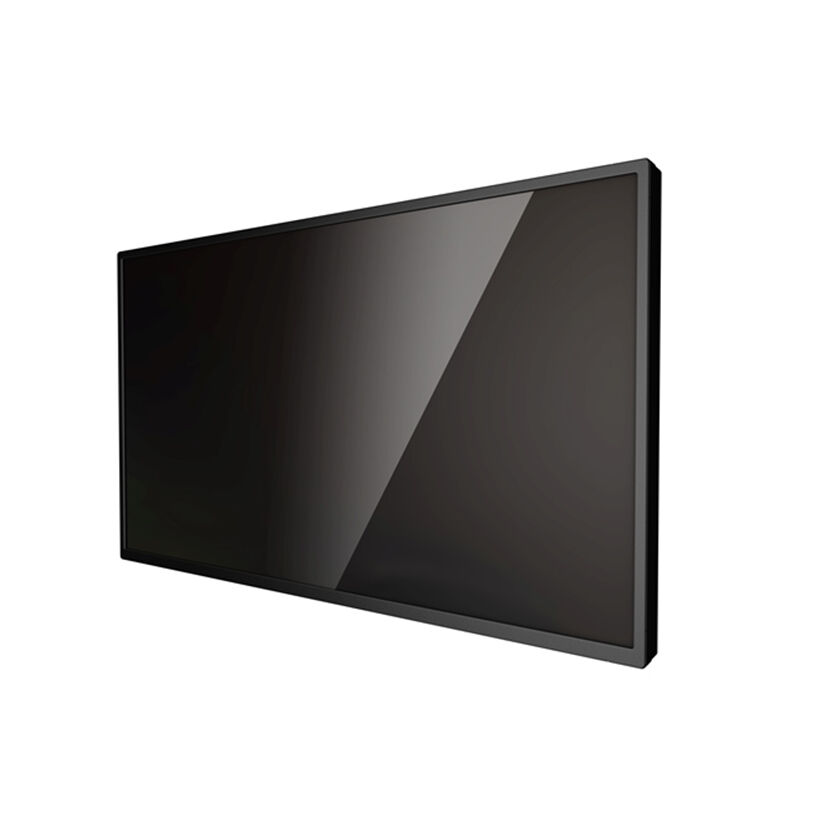

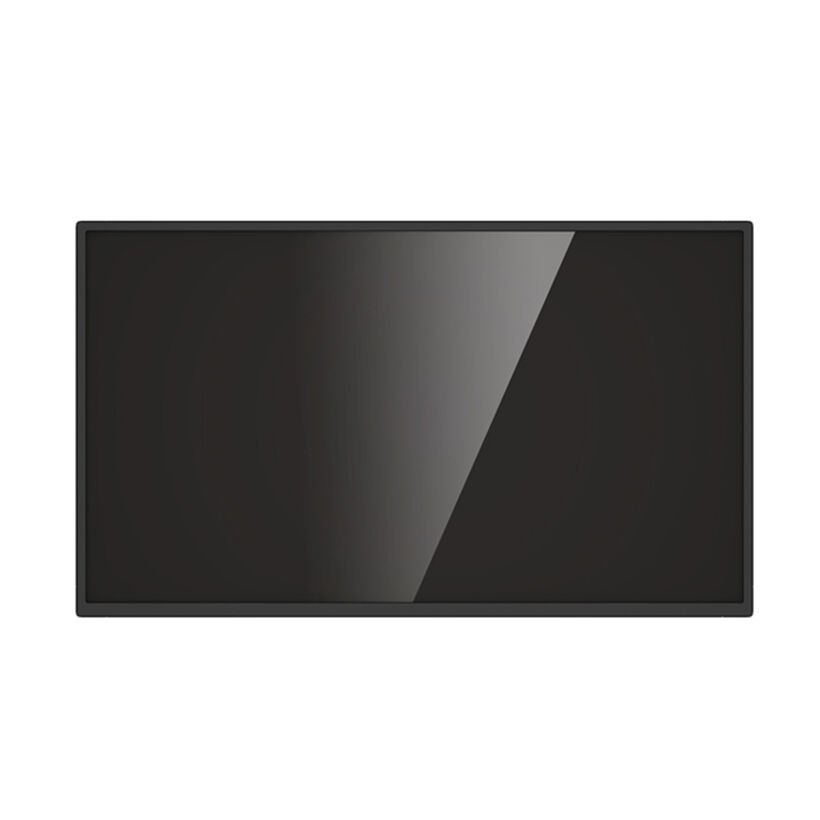

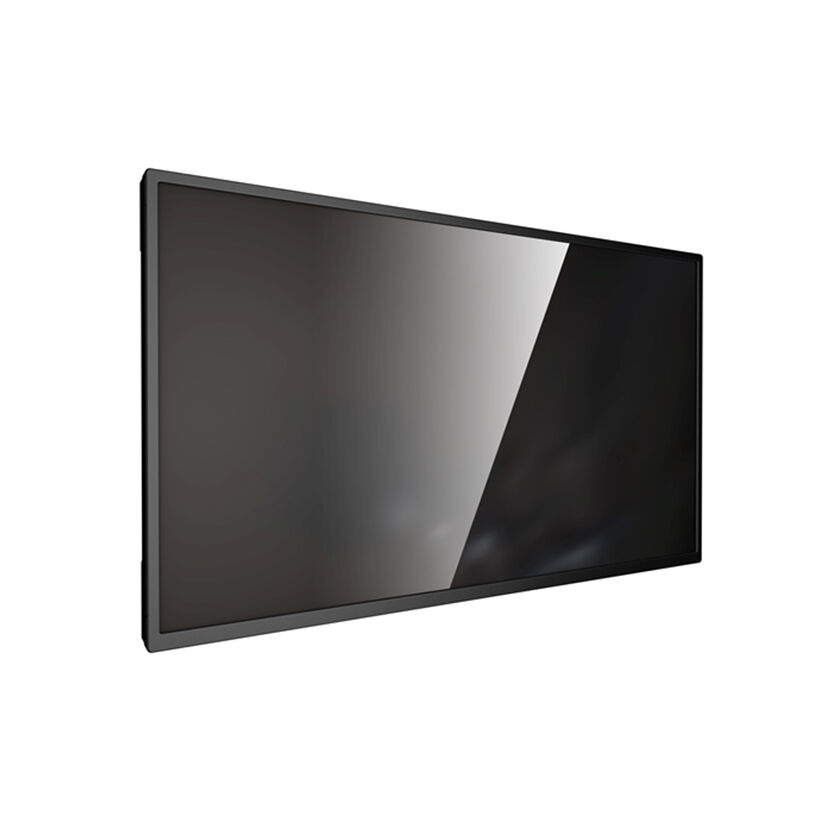

Advantech 43" VUE-5430 Digital Signage 4K UHD Touchable IP65 Water-proof Display

SKU: 126354

VUE-5430-UD40PX-L0
Display
LED backlight Yes
Display diagonal 109.2 cm (43")
Display resolution 3840 x 2160 pixels
Display brightness 400 cd/m²
HD type 4K Ultra HD
Response time 9 ms
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Touchscreen Yes
Native aspect ratio 16:9
Display technology LED
Anti-glare screen Yes
Touchscreen technology Capacitive
Native refresh rate 60 Hz
Ports & interfaces
HDMI ports quantity 2
USB port Yes
HDMI version 1.4/2.0
DVI port Yes
DVI-D ports quantity 1
Audio (L/R) in 1
Audio (L/R) out 1
USB version 2.0
USB ports quantity 1
DisplayPorts quantity 1
DC-in jack Yes
USB 2.0 Type-B ports quantity 1
Audio
Number of built-in speakers 2
RMS rated power 24 W
Built-in speaker(s) Yes
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor/outdoor
Orientation Horizontal/Vertical
Panel mounting interface 400 x 400 mm
Bezel width (top) 2 cm
Bezel width (side) 2 cm
Bezel width (bottom) 2 cm
Certification CB, UL, BSMI, CCC, CE, UKCA, FCC, CEC, ErP lot5
VESA mounting Yes
Anti-glare screen Yes
Screen shape Flat
Performance
Purpose Commercial
International Protection (IP) code IP65
On Screen Display (OSD) languages Simplified Chinese, Traditional Chinese, English, Spanish, French, Korean, Portuguese, Russian
Number of OSD languages 8
Power
Power consumption (standby) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (off) 0.3 W
Power consumption (max) 120 W
Energy efficiency scale A to G
Energy consumption (SDR) per 1000 hours 120 kWh
Computer system
Computer system No
Built-in processor No
Weight & dimensions
Display width 983.2 mm
Display depth 80.7 mm
Display height 571.4 mm
Display weight 19.5 kg
Packaging data
Package width 1170 mm
Package depth 200 mm
Package height 745 mm
Package weight 25 kg
Cables included AC, Audio, DVI, DisplayPort, HDMI, USB, VGA
Packaging content
Cables included AC, Audio, DVI, DisplayPort, HDMI, USB, VGA
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 85%
Certificates
Certification CB, UL, BSMI, CCC, CE, UKCA, FCC, CEC, ErP lot5
Technical details
VESA mounting Yes
Other features
Power consumption (max) 120 W
Display technology LED
DC-in jack Yes
Bezel width (top) 2 cm
Bezel width (side) 2 cm
Bezel width (bottom) 2 cm
Energy efficiency scale A to G
Advantech







(126354)

SKU 126354
Model # VUE-5430-UD40PX-L0
Brand Advantech
Shipping Weight 19.5000kg
Shipping Width 0.810m
Shipping Height 0.570m
