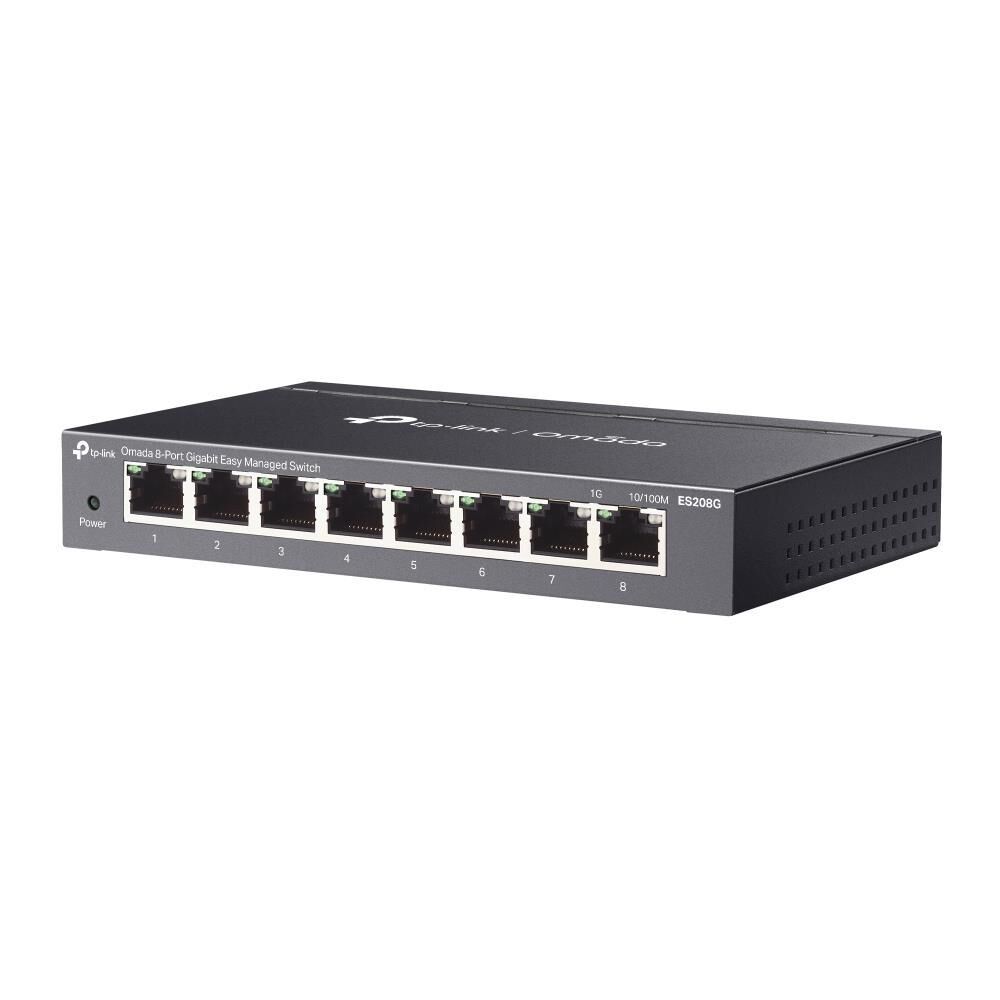

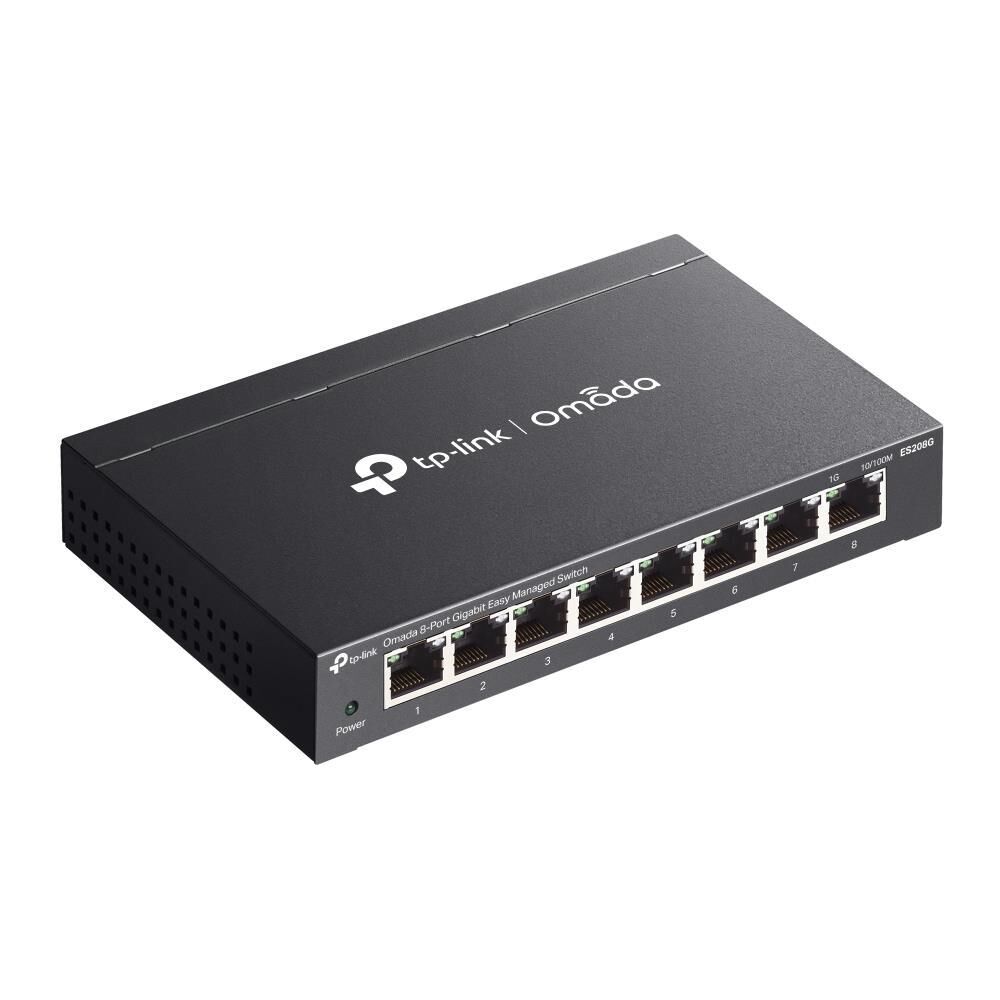

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch

SKU: 126317

  • 8× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app†
  • VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation

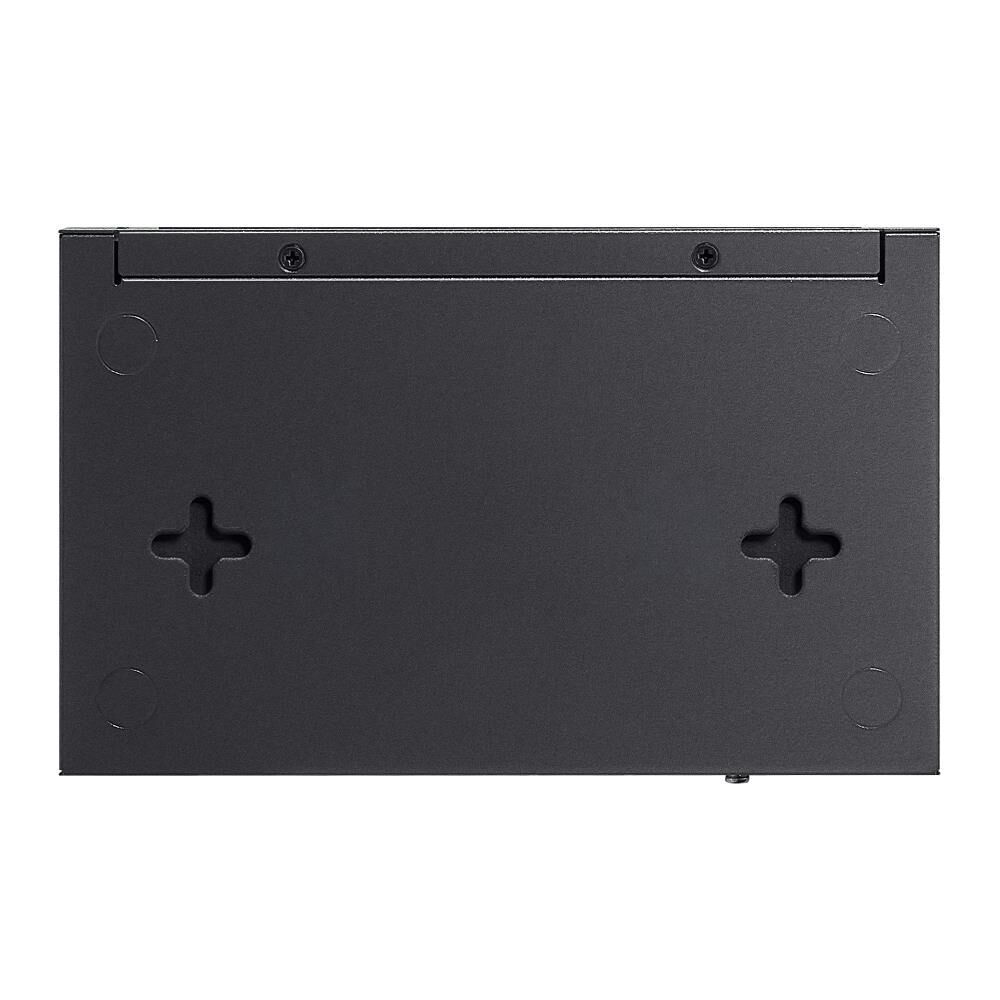

  • Durable metal casing and desktop/wall mounting design

(126317)

HARDWARE FEATURES
Interface • 8× 10/100/1000 Mbps RJ45 Ports
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop
• Wall Mount
Physical Security Lock √
Power Supply DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection ±6kV

PERFORMANCE
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB

SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward

MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†

OTHERS
Certification FCC, CE, RoHS
Package Contents • ES208G
• Power Adapter
• Rubber Feet
• Installation Guide
Environment • Operating Temperature: -5℃~45℃ (23℉~113℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
SKU 126317
Model # ES208G
Barcode # 1210002600668
Brand TP-LINK
Shipping Weight 0.6600kg
Shipping Width 0.130m
Shipping Height 0.100m
Shipping Length 0.190m
