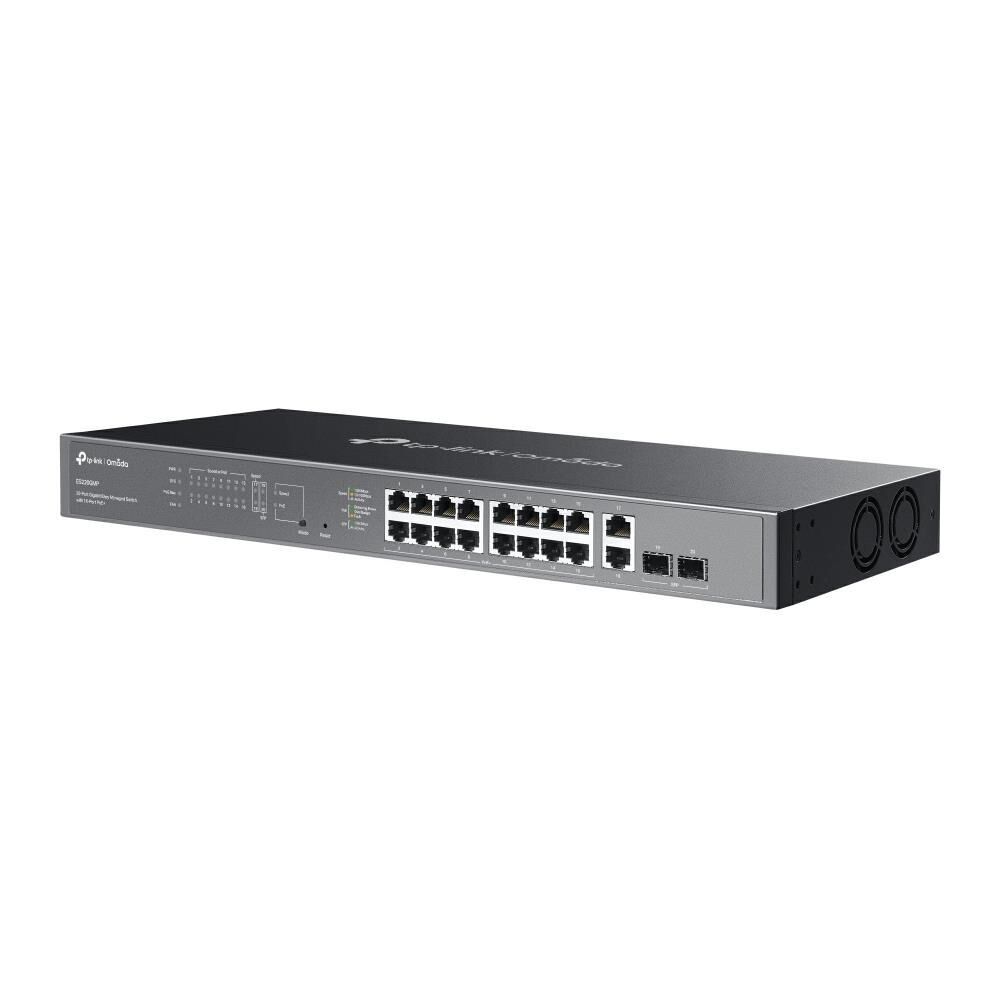

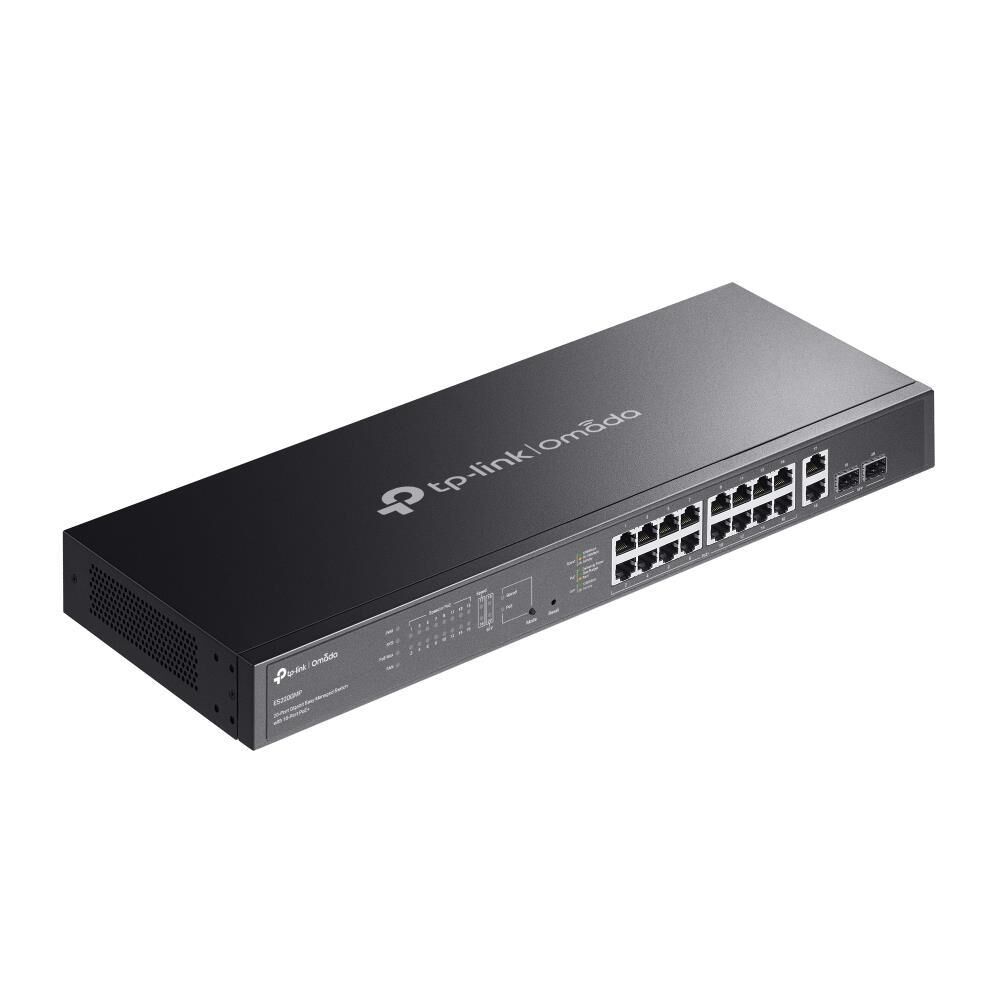

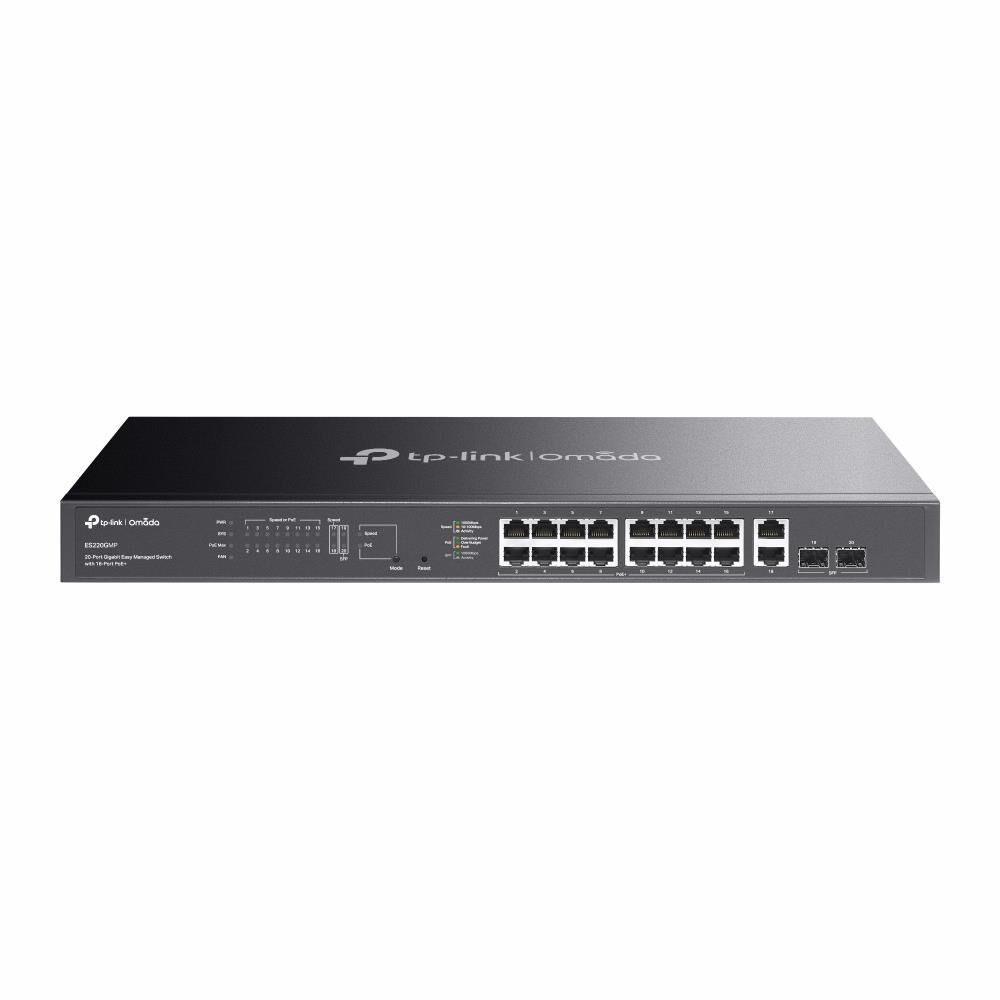

TP-Link ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

SKU: 126316

16× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
2× Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app^†
Up to 250m PoE**, QoS^△, PoE Auto Recovery^‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

(126316)

HARDWARE FEATURES
Interface	• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
	• 2× 10/100/1000 Mbps RJ45 Port
	• 2× Gigabit SFP Slot
	• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Rackmountable
Physical Security Lock	√

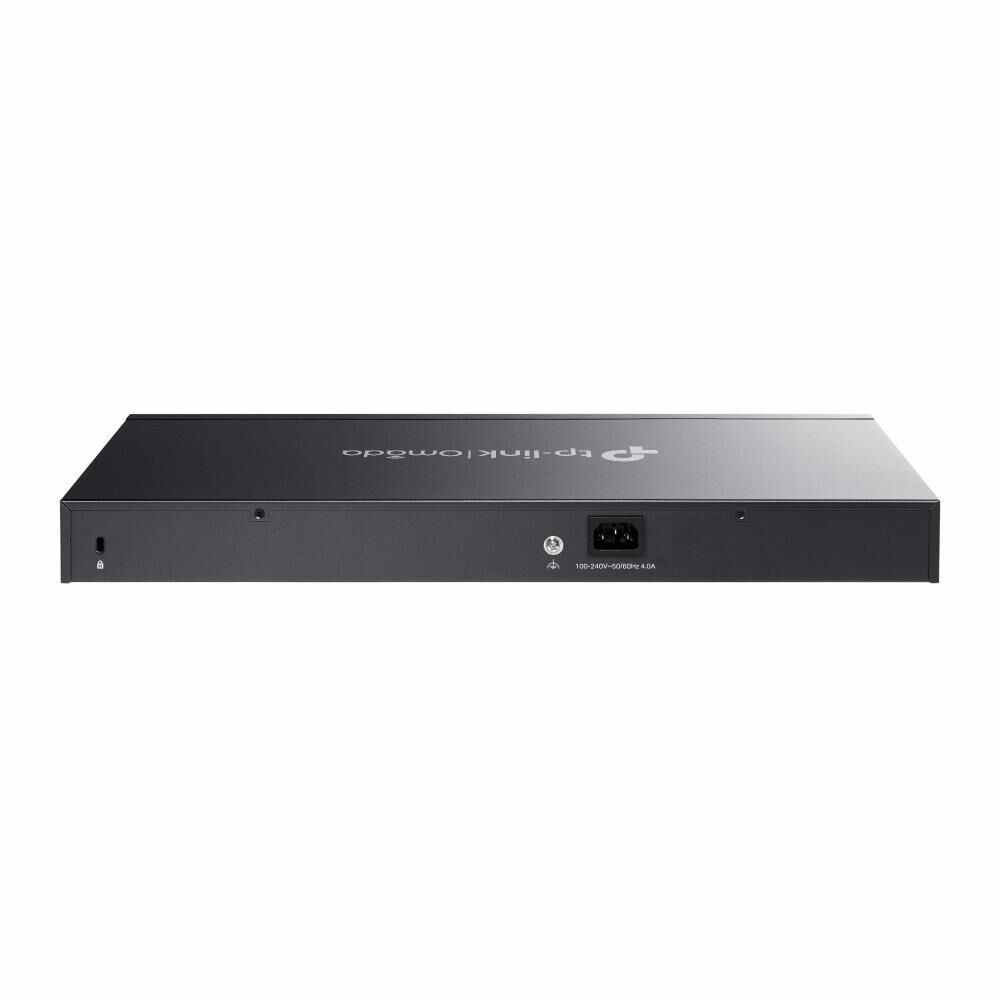

Power Supply	100–240V AC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant
	• PoE Ports: 16 ports
	• PoE Budget: 250W available for all PoE+ ports, 30W max per port
	• Fast PoE & Perpetual PoE
	• PoE Auto Recovery^‡
	• Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	40 Gbps
Packet Forwarding Rate	29.76 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS
	• 8 Priority Queues
	• Priority Schedule Mode
	- WRR (Weighted Round Robin)
	• Queue Weight Config
	• Bandwidth Control
	- Port-Based Rating Limit
	• Storm Control
	- Multiple Control Modes (kbps/pps)
	- Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation
	• Loop Prevention / Loopback Detection
	• Flow Control
	- 802.3x Flow Control
	• Mirroring
	- Port Mirroring
	- One-to-One
	- Many-to-One
	- Ingress/Egress/Both
	• Port Statistics
	- Port Mirror Status
	- Traffic Statistics
	• 802.1ab LLDP
L2 Multicast	• IGMP Snooping
	- IGMP v1/v2/v3 Snooping
	- Fast Leave
VLAN	• MTU VLAN
	• Port-Based VLAN
	• 802.1Q Tag VLAN
	- Max 32 VLAN Groups
	- 4K VID
Transmission Method	Store-And-Forward

MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller
	• Omada Hardware Controller
	• Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI
	• DHCP Client
	• Cable Diagnostics
	• Automatic Device Discovery^†
	• Batch Configuration^†
	• Batch Firmware Upgrading^†
	• Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES220GMP
	• Power Cord
	• Mounting Brackets
	• Rubber Feet
	• Screws
	• Installation Guide
Environment	• Operating Temperature: -5℃~50℃ (23℉~122℉)
	• Storage Temperature: -40℃~70℃ (-40℉~158℉)
	• Operating Humidity: 10%~90% non-condensing
	• Storage Humidity: 5%~90% non-condensing

SKU	126316
Model #	ES220GMP
Barcode #	8885020625943
Brand	TP-LINK
Shipping Weight	3.2100kg
Shipping Width	0.280m
Shipping Height	0.100m
Shipping Length	0.530m
