TP-Link VIGI NVR1108H-W 8 Channel Wi-Fi Network Video Recorder
SKU: 126261
TP-Link VIGI NVR1108H-W 8 Channel Wi-Fi Network Video Recorder
SKU: 126261
$169.00
11
In Stock at store/warehouse
- 8-Channel Live View and 4K HDMI Video Output
- Built-in Routing Module and Support Wireless Pairing*
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 8-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB) **
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
(126261)
| VIDEO AND AUDIO | |
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
|
DECODING
|
|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8-Channel† |
| Capability | • 25fps: |
| 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP | |
| • 30fps: | |
| 4-ch @ 3MP, 2-ch @ 5MP | |
|
RECORD MANAGEMENT
|
|
| Record Mode | • Manual Recording |
| • Scheduling Recording | |
| • Motion Detection Recording | |
| Playback Mode | • Instant Playback |
| • Regular Playback | |
| • Tag Playback | |
| • Event Playback | |
| Backup Mode | • Regular Backup |
| • Video Clip Backup | |
| Playback Function | • Play |
| • Pause | |
| • Stop | |
| • Fast Forward | |
| • Fast Backward | |
| • Play By Frame | |
| • Video Clip | |
| • Export Clip | |
| • Lock Recording | |
| • Audio On/Off | |
|
NETWORK
|
|
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |
|
WIRELESS
|
|
| Standards | IEEE 802.11b/g/n |
| WiFi Channels | • UN: 1-13 |
| • US: 1-11 | |
| Wireless Name | • SSID Configuration |
| • Radio | |
| Network Switch | Yes |
| Frequency | 2.4 GHz |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitoring | N/A |
| Radio Bandwidth | • Auto: Yes |
| • 20M: Yes | |
| • 40M: Yes | |
| Wireless Rate | 300Mbps(802.11n), 2 × 2 MIMO |
| Wireless Security | WPA-PSK/WPA2-PSK |
|

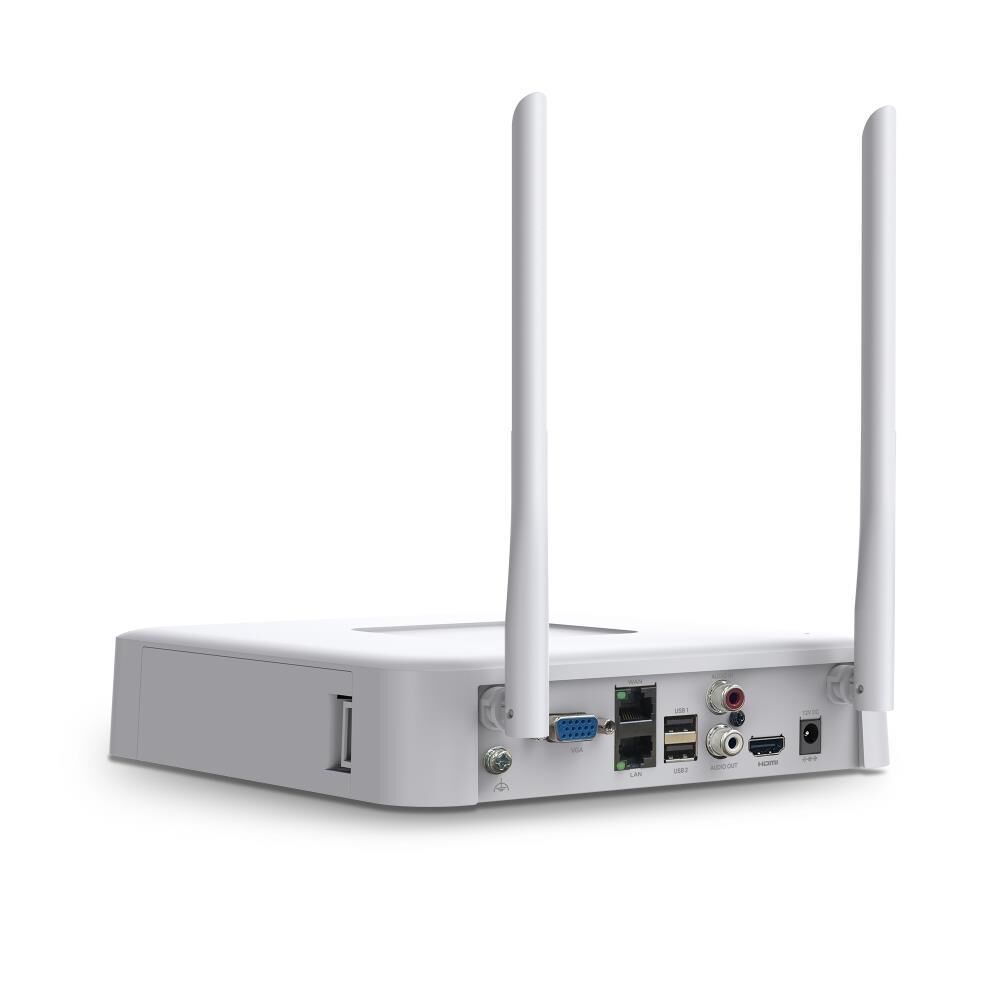

EXTERNAL INTERFACE
|
|
| Network Interface | • 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface |
| • 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface | |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | 1; Real-time Audio Output without Needing Peripherals. |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
|
HARD DISK
|
|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB Capacity for Each HDD** |
|
ALARM
|
|
| General Alarm | • Motion Detection |
| • Video Tampering | |
| • Scene Change Detection | |
| • Line-Crossing Detection | |
| • Intrusion Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Loitering Detection | |
| • Object Abandoned/Removal Detection | |
| • Vehicle Detection | |
| • Human Detection | |
| • Abnormal Sound Detection | |
| • Smart Frame | |
| Note: The alarm function requires the use of a camera. | |
| Anomaly Alarm | • Video Loss |
| • Offline and IP Conflict | |
| • Disk Exception | |
| • Login Exception | |
| Note: The alarm function requires the use of a camera. | |
| Alarm Linkage | • Recording |
| • White Light Alarm | |
| • Log | |
| • Audible Alarm | |
| Note: The alarm function requires the use of a camera. | |
|
GENERAL
|
|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder |
| • Power Adapter | |
| • HDD Screws | |
| • Mouse | |
| • Quick Installation Guide | |
| Working Temperature | • NVR: -10–55 °C |
| • Power Adapter: 0–40 °C | |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm) |
| External Power Supply | DC 12V/2A |
| Net Weight | 0.5 kg |
| Gross Weight | 1.0 kg |
| Power Consumption | • 5.7 W (Without Disk) |
| • 16.3 W (Without Disk) | |
| Antenna | • Quantity: 2 |
| • Type: 2.4GHz Welded Non-detachable Antenna | |
| • Gain: 5.3dBi | |
| • Radio Frequency Transmit Power: 16dBm | |
| • Length: 198.8 mm for Long Side and 189 mm for Short Side | |
| Certifications | BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI |
| SKU | 126261 |
| Model # | VIGI NVR1108H-W |
| Brand | TP-LINK |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
