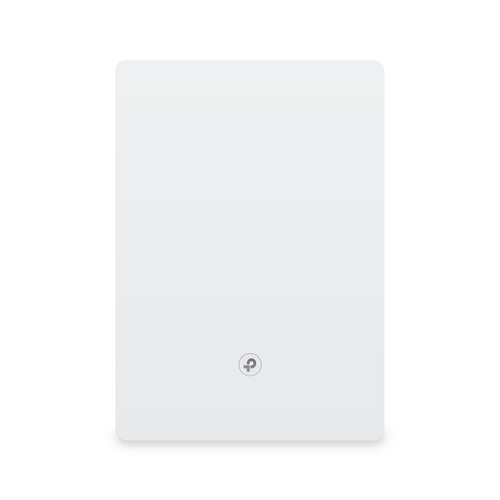

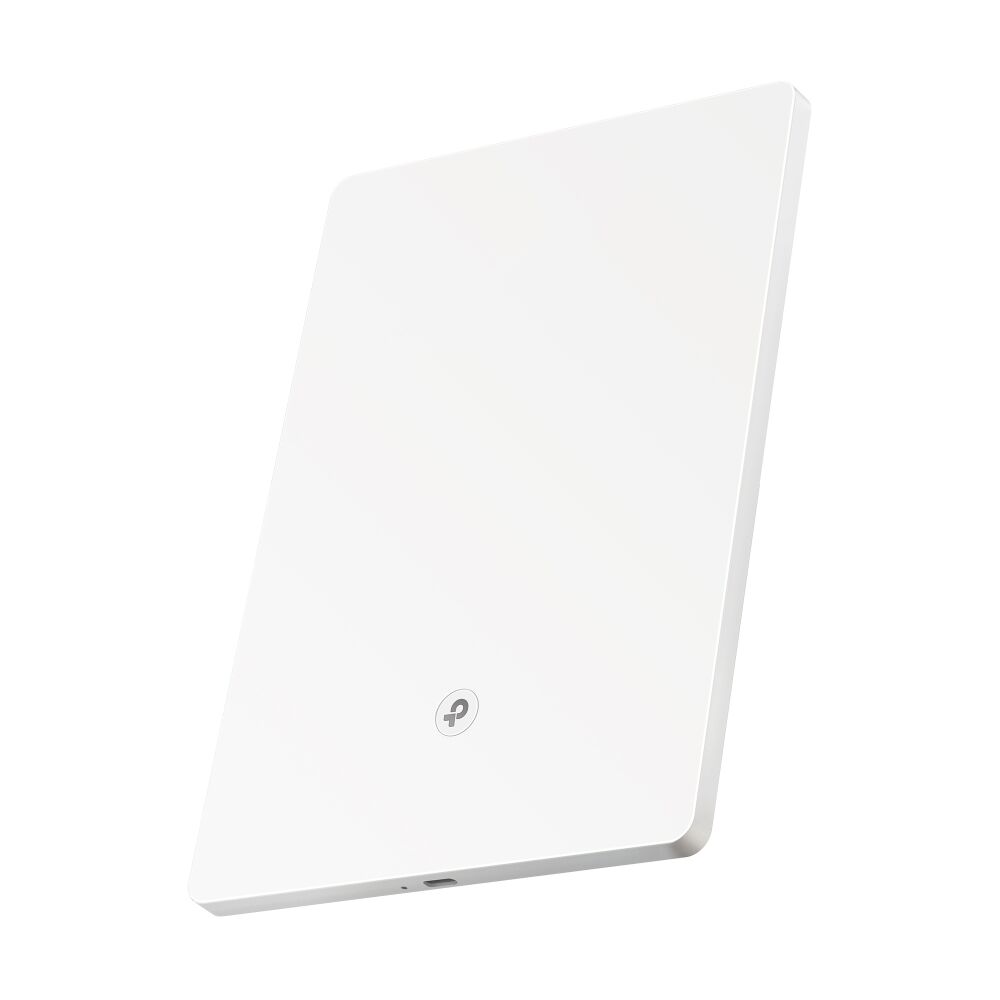

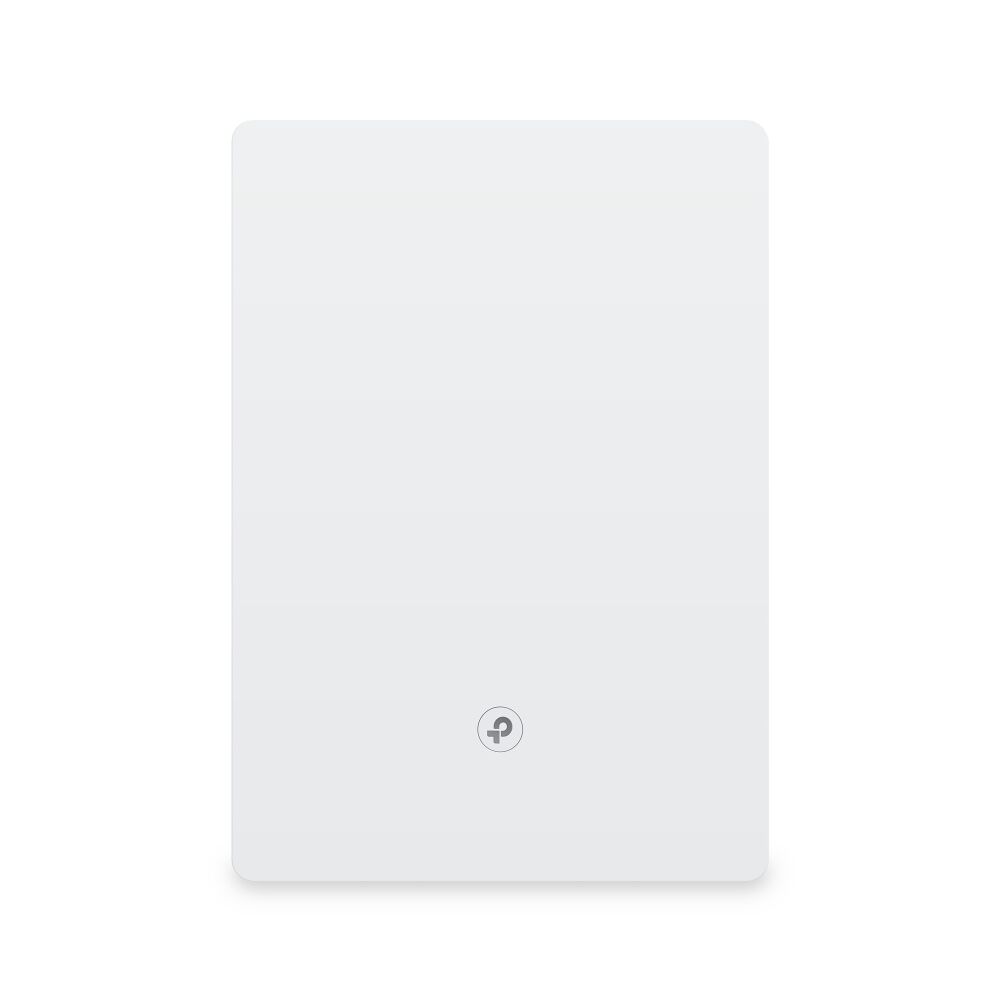

TP-Link Archer Air E5 AX3000 Dual-Band Wi-Fi 6 Air Range Extender

SKU: 126241

  • Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.†
  • Ultra-Thin and Minimalist Design: Has a compact size of 210×148×8 mm and is even thinner than a wall outlet. Better integrated with modern home interiors.

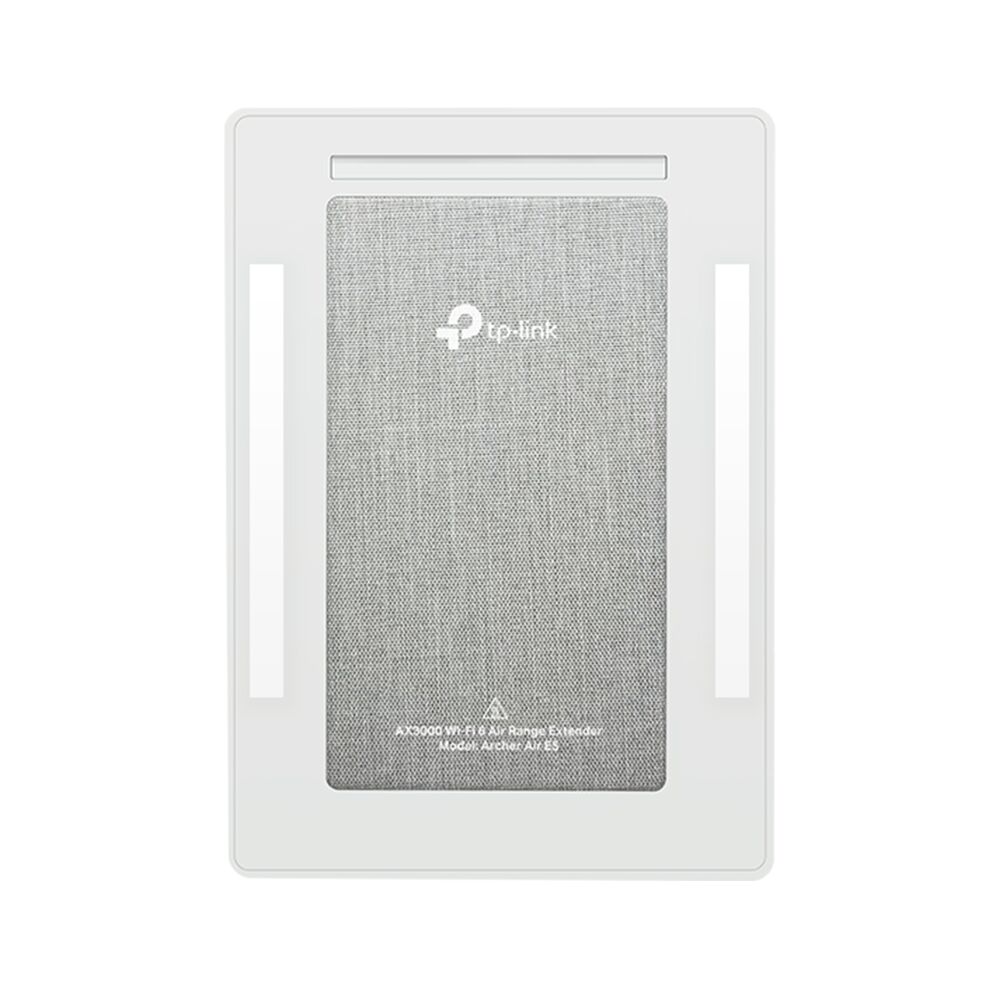

  • Multiple Wall-Mounting Options: Designed to easily mount onto walls, coming with its own installation accessories. No need to purchase additional expensive mounts any more.**
  • Smart Antennas: Use intelligent algorithms and different antenna arrays to ensure all-round stable signals even in duplex houses.
  • Smart Roaming: Easily create an EasyMesh network for whole home WiFi coverage.§
  • Easy Setup and Use: Set up and manage your Wi-Fi through the TP-Link Tether app from your phone.

(126241)

HARDWARE FEATURES
Ports -
Button LED and WPS 2-in-1 Button
Input Power 100-240V~50/60Hz
Power Consumption 17 W
Antenna Internal Antennas
WIRELESS FEATURES
Wireless Standards • IEEE 802.11a/n/ac/ax 5 GHz
• IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate • 574 Mbps at 2.4 GHz
• 2402 Mbps at 5 GHz
Working Modes Range Extender
Reception Sensitivity 5GHz:
11ax HE20 MCS0：-97 dBm, 11ax HE20 MCS11：-66 dBm
11ax HE40 MCS0：-94 dBm, 11ax HE40 MCS11：-63 dBm
11ax HE80 MCS0：-91 dBm, 11ax HE80 MCS11：-60 dBm
11ax HE160 MCS0：-88 dBm, 11ax HE160 MCS11：-58 dBm

2.4GHz:
11ax HE20 MCS0：-95 dBm, 11ax HE20 MCS11：-65 dBm
11ax HE40 MCS0：-93 dBm, 11ax HE40 MCS11：-62 dBm
Wireless Functions • Smart Antennas
• Enable/Disable Wireless Radio
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage Adjustment
Wireless Security • WPA3
• WPA2-PSK
• WPA
Transmission Power • CE:
<20 dBm (2.4 GHz)
<23 dBm (5.15 GHz~5.25 GHz)

• FCC:
<30 dBm (2.4 GHz & 5.15 GHz~5.825 GHz)
Mesh Technology EasyMesh-Compatible
OTHERS
Certification FCC, RoHS
Package Contents • Wi-Fi Range Extender Archer Air E5
• Quick Installation Guide
• Power Adapter
• Plastic Bracket
• Level
• Installation Accessories
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
SKU 126241
Model # Archer Air E5
Barcode # 4895252500677
Brand TP-LINK
Shipping Weight 0.9000kg
Shipping Width 0.180m
Shipping Height 0.070m
Shipping Length 0.240m
