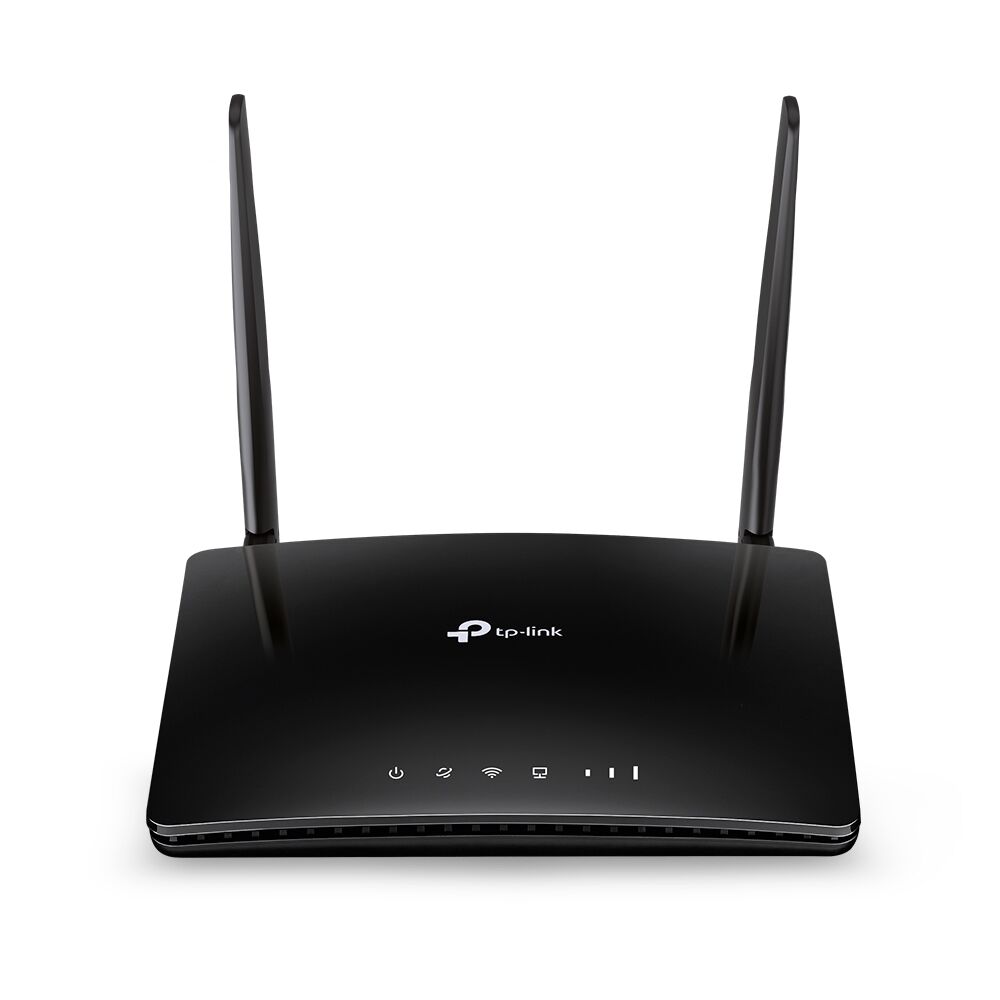

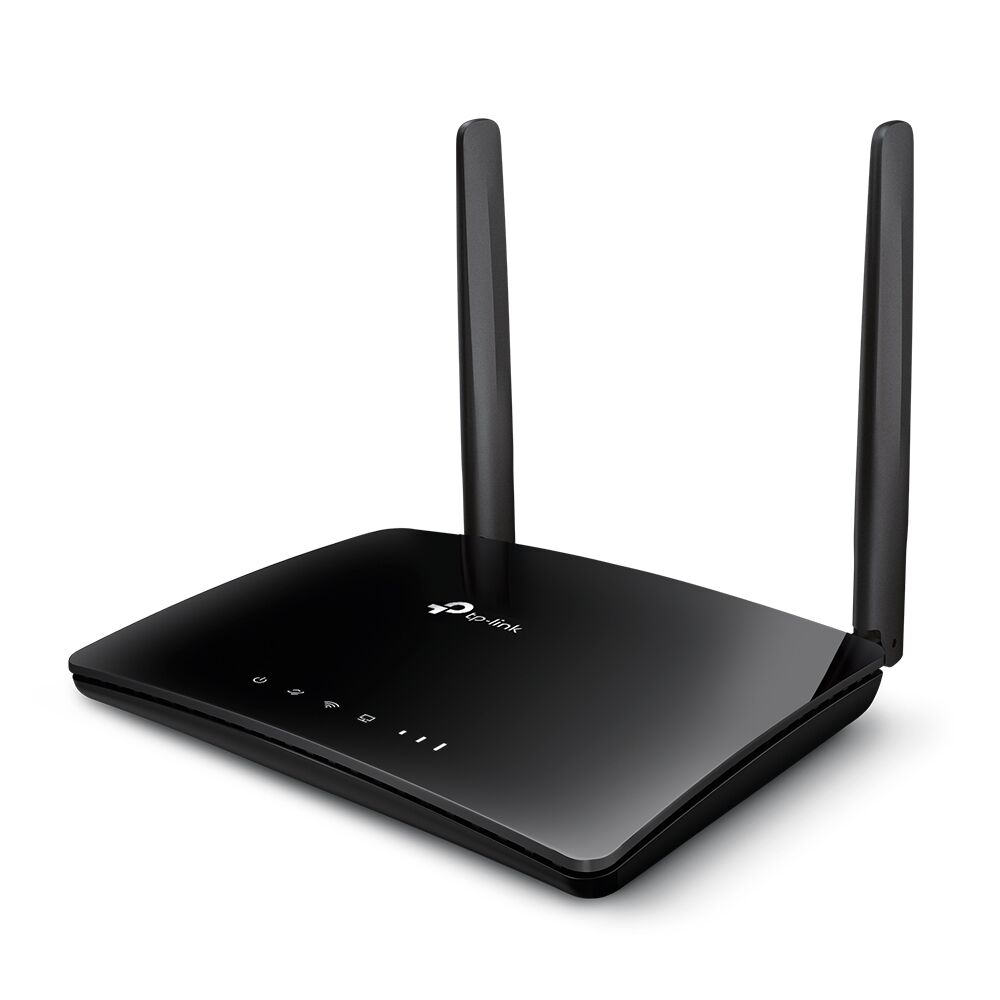

TP-Link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router
SKU: 126225
TP-Link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router
SKU: 126225
$169.00
2
In Stock at store/warehouse
- Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

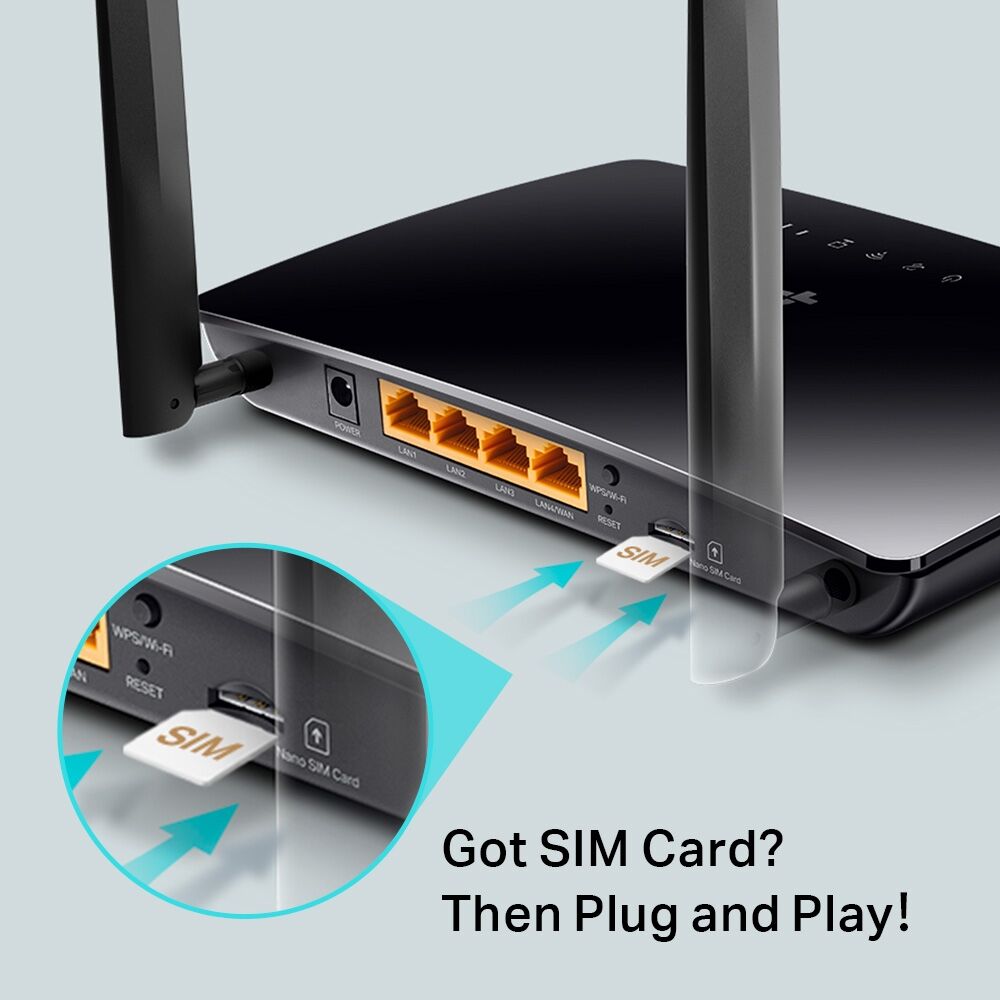

- Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
(126225)

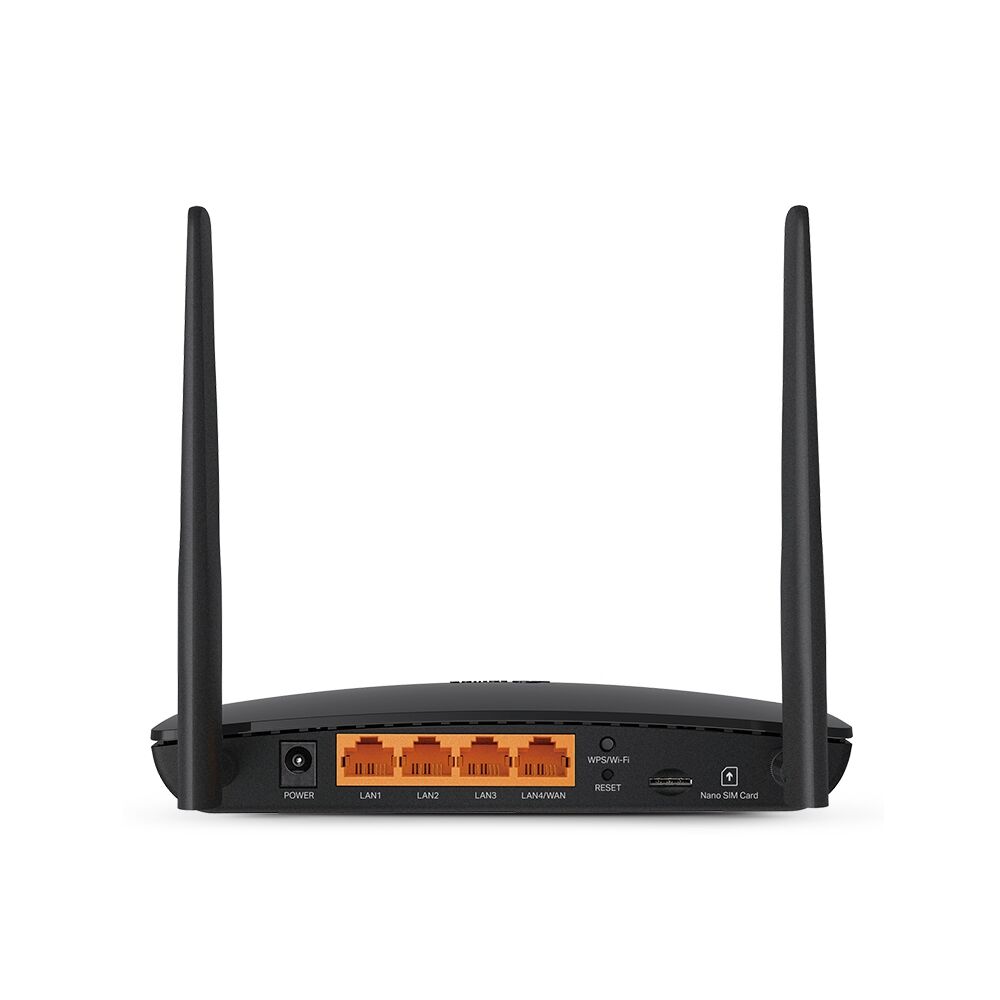

HARDWARE FEATURES | |
Interface | 3× 10/100Mbps LAN Ports |
1× 10/100Mbps LAN/WAN Port | |
1× Nano SIM Card Slot | |
2× External SMA-F Antenna Interface | |
Button | WPS/Wi-Fi Button,Reset Button |
External Power Supply | 12V/1A |
Dimensions ( W x D x H ) | 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) |
Antenna | 2× Detachable External 4G LTE Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
Reception Sensitivity | 5 GHz: |
11a 54M: -77 dBm | |
11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm | |
11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm | |
11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm | |
2.4 GHz: | |
11g 54M: -74.5 dBm | |
11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm | |
11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm | |
Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless |
Statistics | |
WAN Failover | Yes |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) |
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) | |
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) | |
SOFTWARE FEATURES | |
Quality of Service | Prioritizes network traffic by device or application |
Operating Modes | 3G/4G Router, Wireless Router |
WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management | Access Control, Local Management, Remote Management |
reboot schedule | |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN | PPTP VPN, OpenVPN |
Access Control | Parental Control, Local Management Control |
Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, |
IP and MAC Address Binding | |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
OTHERS | |
Certification | CE, RoHS |
Package Contents | AC1200 Wireless Dual Band 4G LTE Router, Archer MR402 |
RJ45 Ethernet Cable | |
1.5m Power Adapter | |
Quick Installation Guide | |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 |
MAC OS, NetWare, UNIX or Linux | |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, | |
Safari 4.0 browsers or higher, or other Java-enabled browsers | |
Nano SIM Card | |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
SKU | 126225 |
Model # | Archer MR402 |
Barcode # | 8885020625752 |
Brand | TP-LINK |
Shipping Weight | 0.6400kg |
Shipping Width | 0.220m |
Shipping Height | 0.070m |
Shipping Length | 0.310m |
