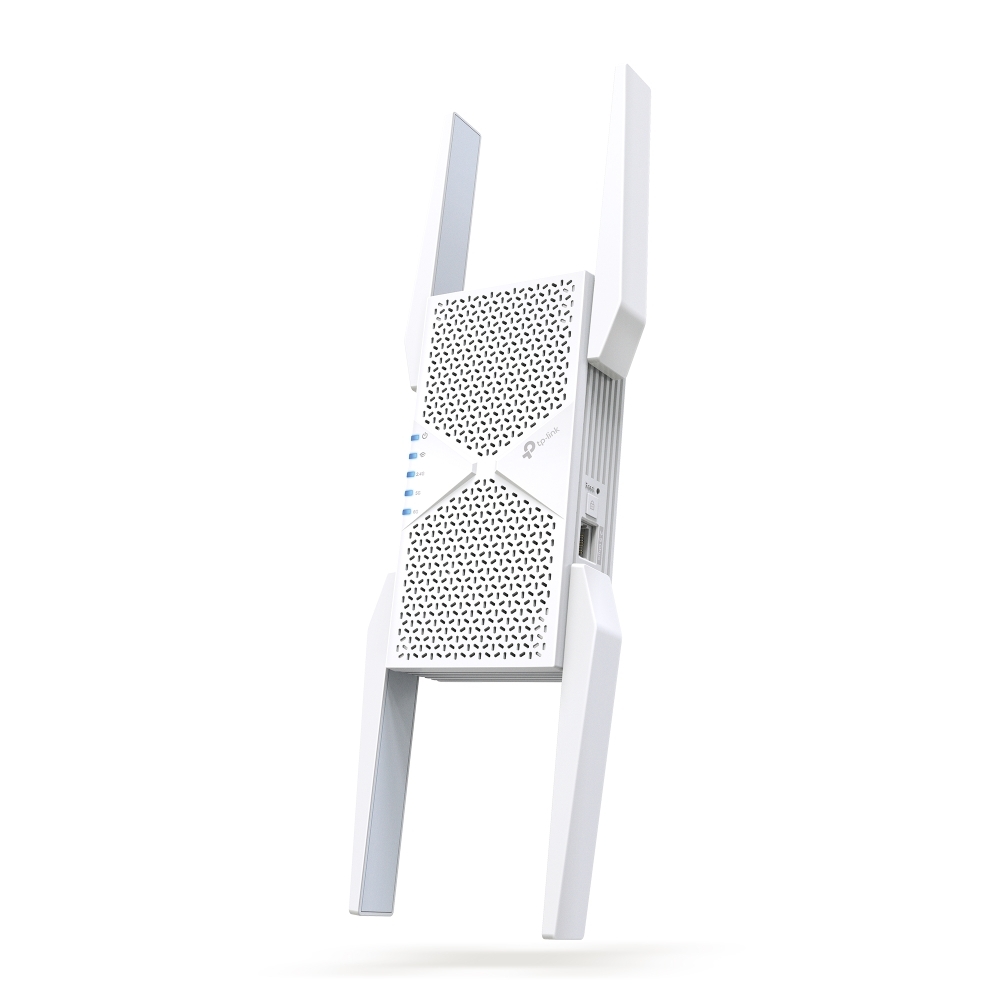

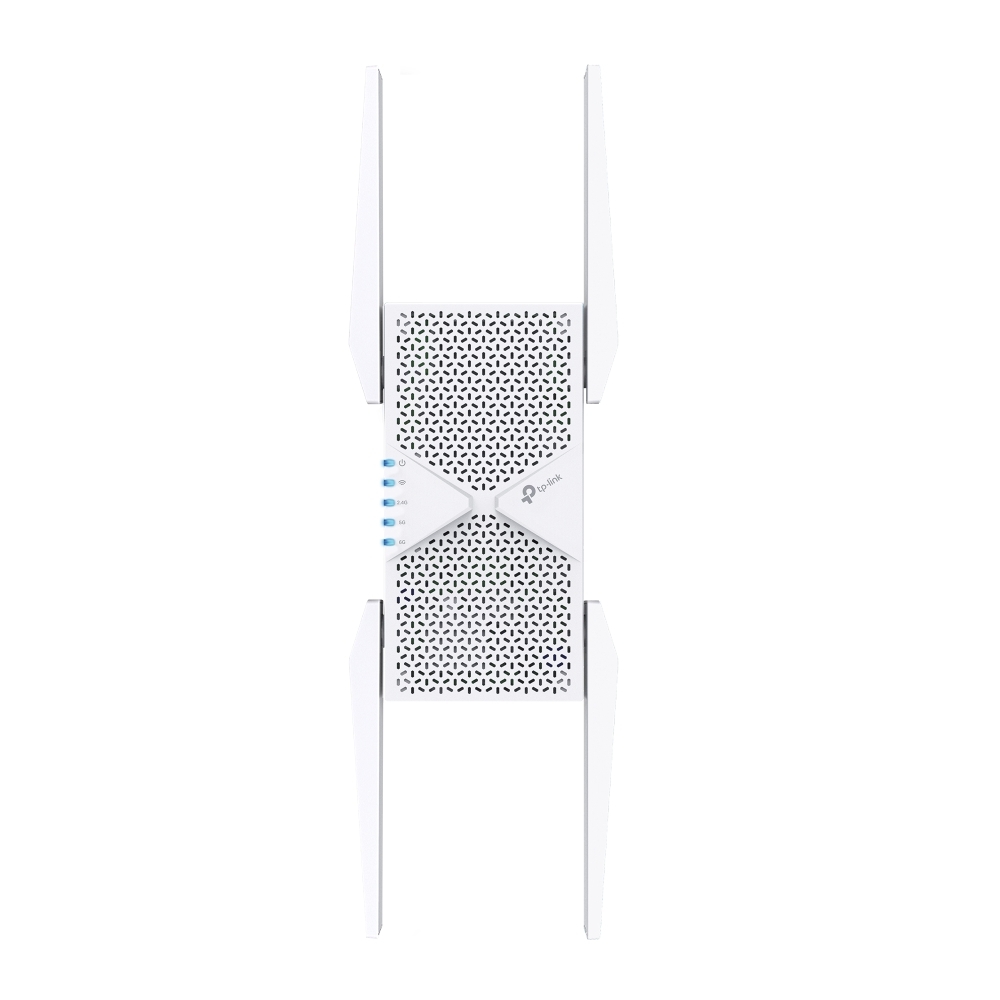

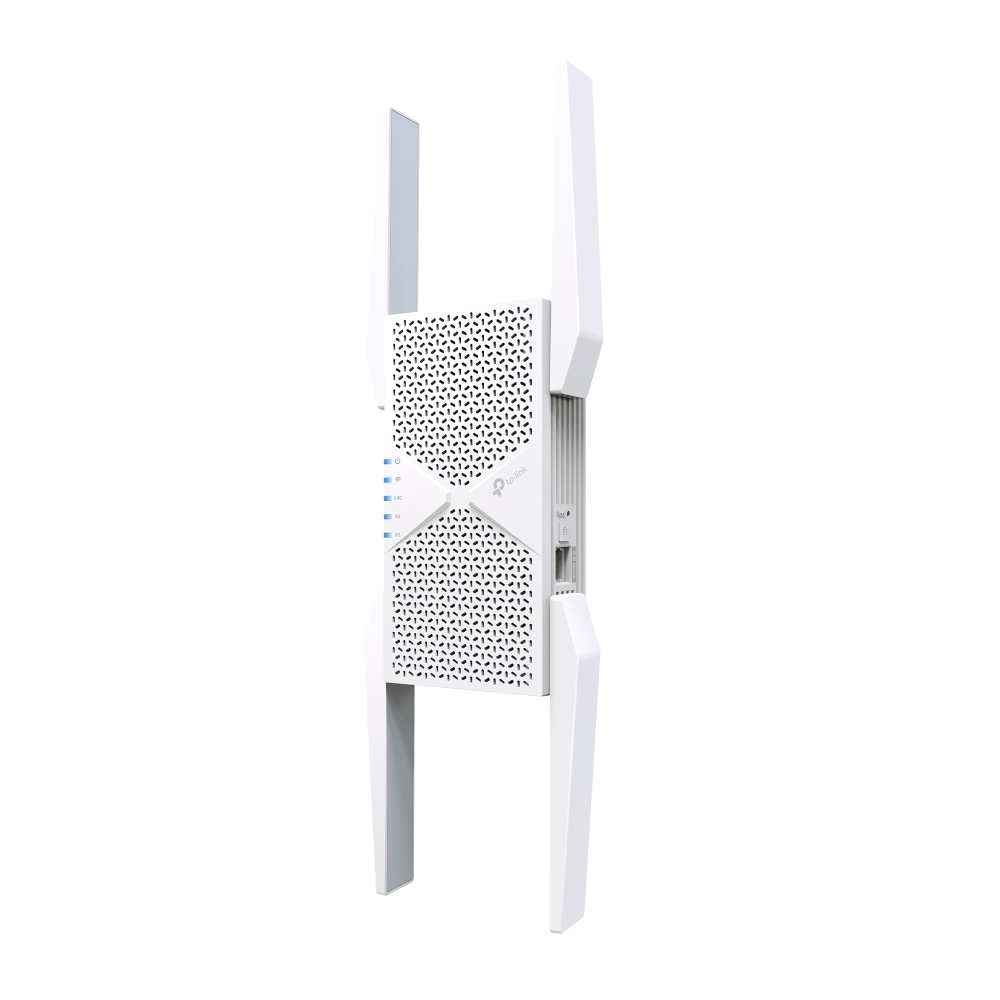

TP-Link RE815XE AXE5400 Mesh Wi-Fi 6E Range Extender
$229.00
SKU: 125970
SKU: 125970
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Higher capacity is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard orl outdated.
§Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 range extenders.
*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
**Unified management is available for TP-Link EasyMesh-compatible devices. This feature is not guaranteed for devices from other vendors.
***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This range extender may not support all the mandatory features as ratified in the IEEE 802.11be specification. Further software upgrades for feature availability may be required.
(125970)
HARDWARE FEATURES | |
Ports | 1× 2.5 Gbps LAN Port |
Button | • WPS Button |
• Reset Button | |
Input Power | 100-240V~50/60Hz 0.5A |
Power Consumption | 23.5W |
Dimensions ( W x D x H ) | 4.2 ×1.5 × 6.3 in. (107.2 × 39 × 161 mm) |
Antenna | 4 External Antennas |
WIRELESS FEATURES | |
Wireless Standards | Wi-Fi 7 |
IEEE 802.11be/ax 6 GHz | |
IEEE 802.11be/ax/ac/n/a 5 GHz | |
IEEE 802.11be/ax/n/b/g 2.4 GHz | |
Frequency | • 6 GHz |
• 5 GHz | |
• 2.4 GHz | |
Signal Rate | • 5764 Mbps at 6 GHz |
• 2880 Mbps at 5 GHz | |
• 688 Mbps at 2.4 GHz | |
Working Modes | Range Extender/Access Point |
Reception Sensitivity | 6GHz: |
11be HE20 MCS0:-95dBm, 11be HE20 MCS13:-60dBm | |
11be HE40 MCS0:-92dBm, 11be HE40 MCS13:-57dBm | |
11be HE80 MCS0:-88dBm, 11be HE80 MCS13:-53dBm | |
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-50dBm | |
11be HE320 MCS0:-81dBm, 11be HE160 MCS13:-46dBm | |
5GHz: | |
11be HE20 MCS0:-93dBm, 11be HE20 MCS13:-58dBm | |
11be HE40 MCS0:-89dBm, 11be HE40 MCS13:-54dBm | |
11be HE80 MCS0:-87dBm, 11be HE80 MCS13:-51dBm | |
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-49dBm | |
2.4GHz: | |
11be HE20 MCS0:-97dBm, 11be HE20 MCS11:-64dBm | |
11be HE40 MCS0:-95dBm, 11be HE40 MCS11:-62dBm | |
Wireless Security | • WPA/WPA2-PSK encryptions |
• WPA3 | |
Advanced Functions | • Multi-Link Operation (MLO) |
• 320 MHz Channel | |
• 4K-QAM | |
• Multi-RUs | |
Transmission Power | • 2.4GHz < 30dBm |
• 5GHz < 23dBm (Band1 - Band2), < 30dBm (Band 3 - Band 4) | |
• 6GHz < 23dBm | |
Mesh Technology | EasyMesh-Compatible |
Wireless Function | • LED Control |
• Access Control | |
• Power Schedule | |
• Wi-Fi Coverage | |
OTHERS | |
Certification | CE, RCM, RoHS |
Package Contents | • Wi-Fi 7 Range Extender RE655BE |
• Quick Installation Guide | |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or |
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux | |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari | |
4.0, or other Java-enabled browser | |
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
• Operating Humidity: 10%~90% non-condensing | |
• Storage Humidity: 5%~90% non-condensing |
SKU | 125970 |
Model # | RE655BE |
Barcode # | 8885020622591 |
Brand | TP-LINK |
Shipping Weight | 0.6600kg |
Shipping Width | 0.140m |
Shipping Height | 0.120m |
Shipping Length | 0.200m |
