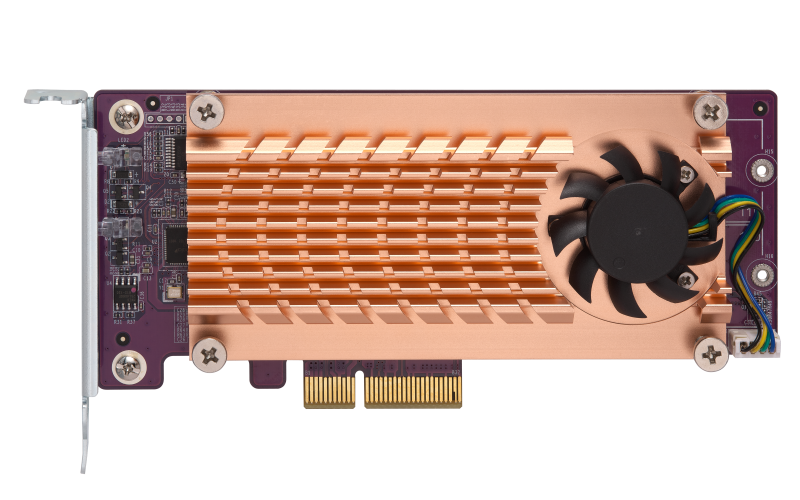

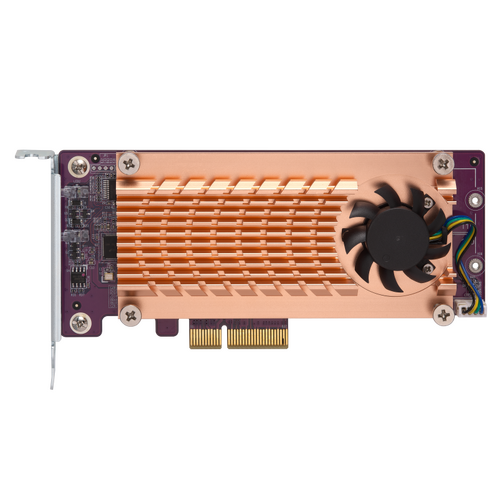

QNAP DUAL M.2 2280 PCIE NVME SSD & DUAL-PORT 2.5GBE EXPANSION CARD
SKU: 125866
QNAP DUAL M.2 2280 PCIE NVME SSD & DUAL-PORT 2.5GBE EXPANSION CARD
SKU: 125866
The QM2-2P2G2T adds support for M.2 NVMe SSDs and 2.5GbE connectivity to your QNAP NAS. Combining M.2 SSD and 2.5GbE connectivity into one solution, the QM2 PCIe expansion card improves overall NAS performance by enabling SSD caching while providing an affordable upgrade path for adopting 2.5GbE networks. As a PCIe card, the QM2-2P2G2T does not occupy any 3.5-inch drive bays, allowing you to upgrade your NAS without impacting your potential storage capacity.
(125866)
Dual M.2 2280 PCIe SSD & dual-port 2.5GbE expansion card
- Download Datasheet
| Controller | Intel Ethernet Controller I225-LM |
| Connector | 2 x M.2 2280 PCIe (Gen3 x2) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x4 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 152.65 × 20.6 × 68.9 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-5e class cable |
| Note [NAS] | Recommended models (please update your NAS to latest version) Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). Please check the M.2 SSD compatibility list and QM2 Installation Guide |
| Note [PC] | Note: Windows devices: The driver for Intel I225LM is required. Click here to download the Intel driver Linux: Supports Linux Stable Kernel 4.20/5.x. The driver for Intel I225LM is required. Click here to download the Intel driver |
| Architecture Diagram |  |
| SKU | 125866 |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
Be The First To Review This Product!
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
The QM2-2P2G2T adds support for M.2 NVMe SSDs and 2.5GbE connectivity to your QNAP NAS. Combining M.2 SSD and 2.5GbE connectivity into one solution, the QM2 PCIe expansion card improves overall NAS performance by enabling SSD caching while providing an affordable upgrade path for adopting 2.5GbE networks. As a PCIe card, the QM2-2P2G2T does not occupy any 3.5-inch drive bays, allowing you to upgrade your NAS without impacting your potential storage capacity.
Dual M.2 2280 PCIe SSD & dual-port 2.5GbE expansion card
- Download Datasheet
| Controller | Intel Ethernet Controller I225-LM |
| Connector | 2 x M.2 2280 PCIe (Gen3 x2) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x4 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 152.65 × 20.6 × 68.9 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-5e class cable |
| Note [NAS] | Recommended models (please update your NAS to latest version) Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). Please check the M.2 SSD compatibility list and QM2 Installation Guide |
| Note [PC] | Note: Windows devices: The driver for Intel I225LM is required. Click here to download the Intel driver Linux: Supports Linux Stable Kernel 4.20/5.x. The driver for Intel I225LM is required. Click here to download the Intel driver |
| Architecture Diagram | |
| SKU | 125866 |
