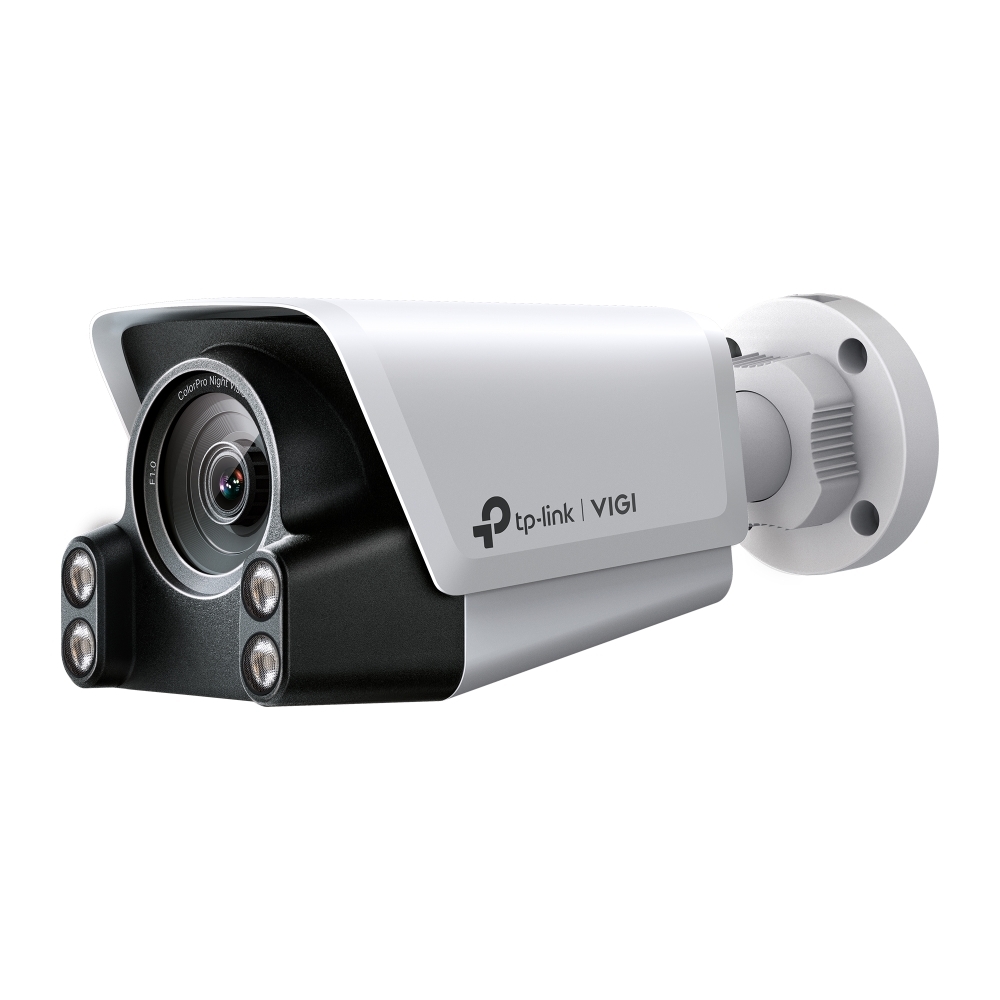

TP-Link VIGI C340S(4mm) 4MP Outdoor ColourPro Night Vision Bullet Network Camera

SKU: 125446

  • Ultra-Low Light Colour Night Vision: Capture 24-hour 4MP high-quality and colourful video even in ultra low-light conditions without any supplemental lights.
  • Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy§.
  • People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency§.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
  • True WDR‡: Enable crystal-clear images in high contrast scenes.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP67 Waterproof: Reliable IP67 for stable outdoor performance.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot† (up to 256GB).

§Face Recognition and People & Vehicle Analytics can't be turned on simultaneously. And Face Recognition requires VIGI NVR4032H for operation.

†SD card is not included in the package.

‡When Face Recognition s is enabled, only DWDR is supported.

*VIGI ColourPro Night Vision image was captured by VIGI C340S.

△This value is compared with the traditional F2.0 aperture, 1/3" target surface sensor.

**Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.





(125446)

CAMERA
Image Sensor 1/1.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.0005 Lux; 0 Lux with white light
Day/Night Mechanism NA
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.0
FOV 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
Lens Mount M16*P 0.5
DORI Distance 4 mm:
Detect: 70 m (231 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft)
ANGLE ADJUSTMENT (MANUAL)
Range Pan: -90° to 90°
Tilt: -90° to 90°
ILLUMINATOR
IR LED N/A
White LED Quantity: 4
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688 x 1520
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
705x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
Basic Event Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture Support
Face Comparison Support
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Materia Front Cover: Metal
Back Cover: Plastic
Material Front Cover: Metal
Back Cover: Plastic
Power Supply 12V DC ± 5%, Max. 10.1 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 11.5 W
Protection IP67
Product Dimensions (L x W x H) 102× 236× 99 mm
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
SKU 125446
Model # VIGI C340S(4mm)
Barcode # 4895252500790
Brand TP-LINK
Shipping Weight 0.9200kg
Shipping Width 0.140m
Shipping Height 0.130m
Shipping Length 0.290m
