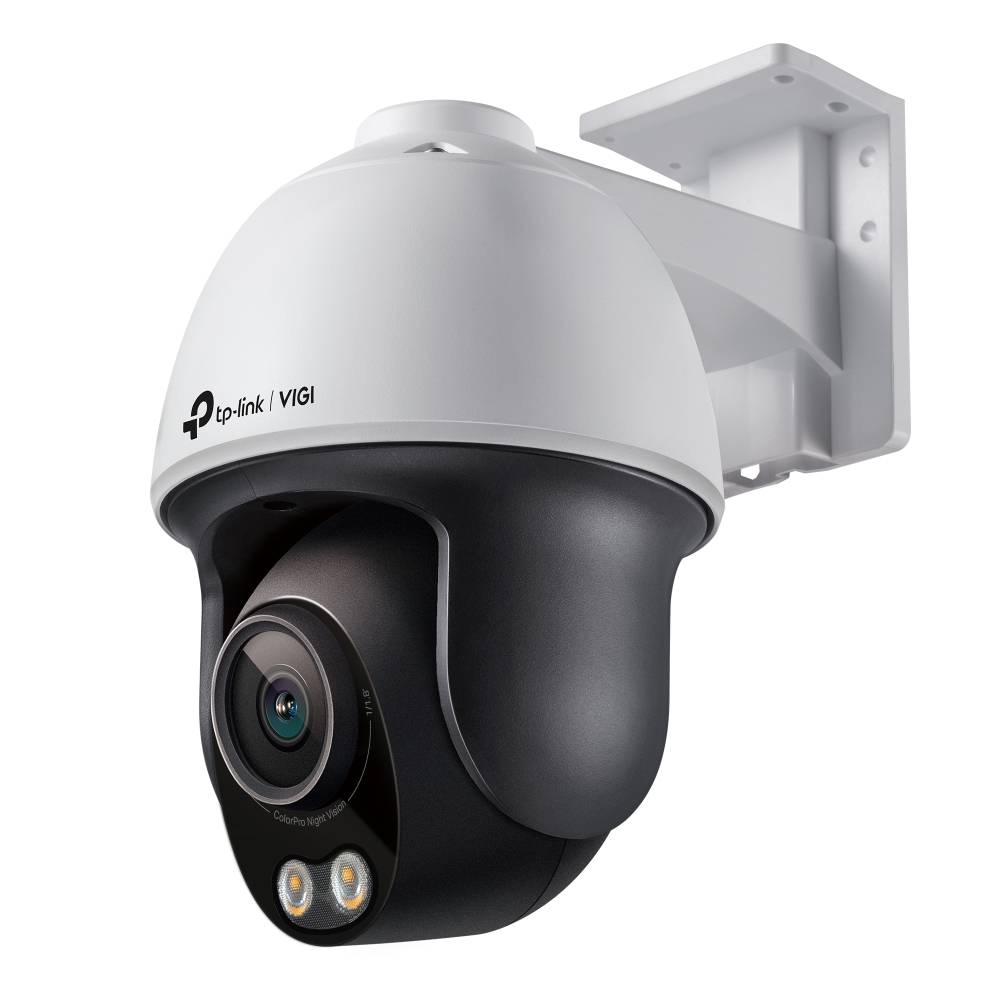

TP-Link VIGI C540S(4mm) 4MP Outdoor ColourPro Night Vision Pan Tilt Network Camera
SKU: 125445
TP-Link VIGI C540S(4mm) 4MP Outdoor ColourPro Night Vision Pan Tilt Network Camera
SKU: 125445
- Ultra-Low Light Colour Night Vision: Capture 24-hour 4MP high-quality and colourful video even in ultra low-light conditions without any supplemental lights.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Face Recognition*: Efficiently enhances access management and attendance control while better protecting privacy.*
- People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- True WDR Technology§: Enable crystal-clear images in high contrast scenes.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
*Face Recognition and People & Vehicle Analytics can't be turned on simultaneously.
§When Face Recognition s is enabled, only DWDR is supported.
†Micro SD card is not included in the package.
**VIGI ColourPro Night Vision image was captured by VIGI C340S.
△This value is compared with the traditional F2.0 aperture, 1/3" target surface sensor.
‡Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
(125445)
CAMERA | |
Image Sensor | 1/1.79” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
Day/Night Mechanism | N/A |
Day/Night Switch | Unified/Scheduled/Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Aperture | F1.0±5% |
FOV | 4mm: |
Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° | |
Lens Mount | M16*P 0.5 |
DORI Distance | 4 mm: |
Detect: 63 m (207 ft) | |
Observe: 26 m (86 ft) | |
Recognize: 13m (41 ft) | |
Identify: 6 m (21 ft) | |
PTZ | |
Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
Pan/tilt Speed | Pan Speed: |
Configurable from 8° to 44°/s; Preset Speed: 44°/s | |
Tilt Speed: | |
Configurable from 8° to 44°/s, Preset Speed: 44°/s | |
Manual Control Speed | Configurable from 8° to 35°/s |
Presets | 300 |
Patrol Scan | 8 patrols, up to 8 presets for each patrol |
Power-off Memory | Yes; |
Auto restore to previous PTZ and lens status after power failure | |
Park Action | Yes; |
Preset; Patrol Scan | |
3D Positioning | Yes |
ANGLE ADJUSTMENT (MANUAL) | |
Range | Pan: 0° to 348° |
Tilt: 0° to 105° | |
ILLUMINATOR | |
IR LED | N/A |
White LED | Quantity: 2 |
Range: 30m | |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 2688 x 1520 |
Main Stream | Frame Rate: |
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: | |
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
Sub-Stream | Frame Rate: |
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
Resolution: | |
704x576, 640x480, 352x288, 320x240 | |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
Sub-Stream: H.265/H.264 | |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps |
Sub-Stream: 64 Kbps to 512 Kbps | |
IMAGE | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, |
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software | |
Image Enhancement | BLC/3D DNR/HLC |
Wide Dynamic Range | 120dB |
Note: When Face Recognition s is enabled, only DWDR is supported. | |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
ONVIF | Yes |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI |
Web Browser | Google Chrome® 57 and above |
Firefox® 52 and above | |
Safari® 11 and above | |
Microsoft® Edge 91 and above | |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame |
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method | N/A |
Output Notification | Message Push |
DEEP LEARNING FUNCTION | |
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
Face Capture | Support |
Face Comparison | Support |
INTERFACES | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | VIGI Network Camera |
Quick Start Guide | |
Waterproof Cable Attachments | |
Mounting Accessories | |
Material | Plastic |
Power Supply | 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug |
PoE: 802.3at, class 4, Max. 16.47 W | |
Protection | IP66 |
Product Dimensions (L x W x H) | 120 × 172 × 203 mm |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
SKU | 125445 |
Model # | VIGI C540S(4mm) |
Barcode # | 4895252503098 |
Brand | TP-LINK |
Shipping Weight | 1.0000kg |
Shipping Width | 0.210m |
Shipping Height | 0.160m |
Shipping Length | 0.240m |
