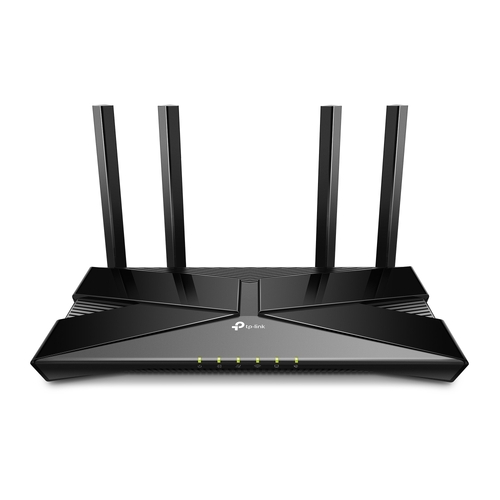

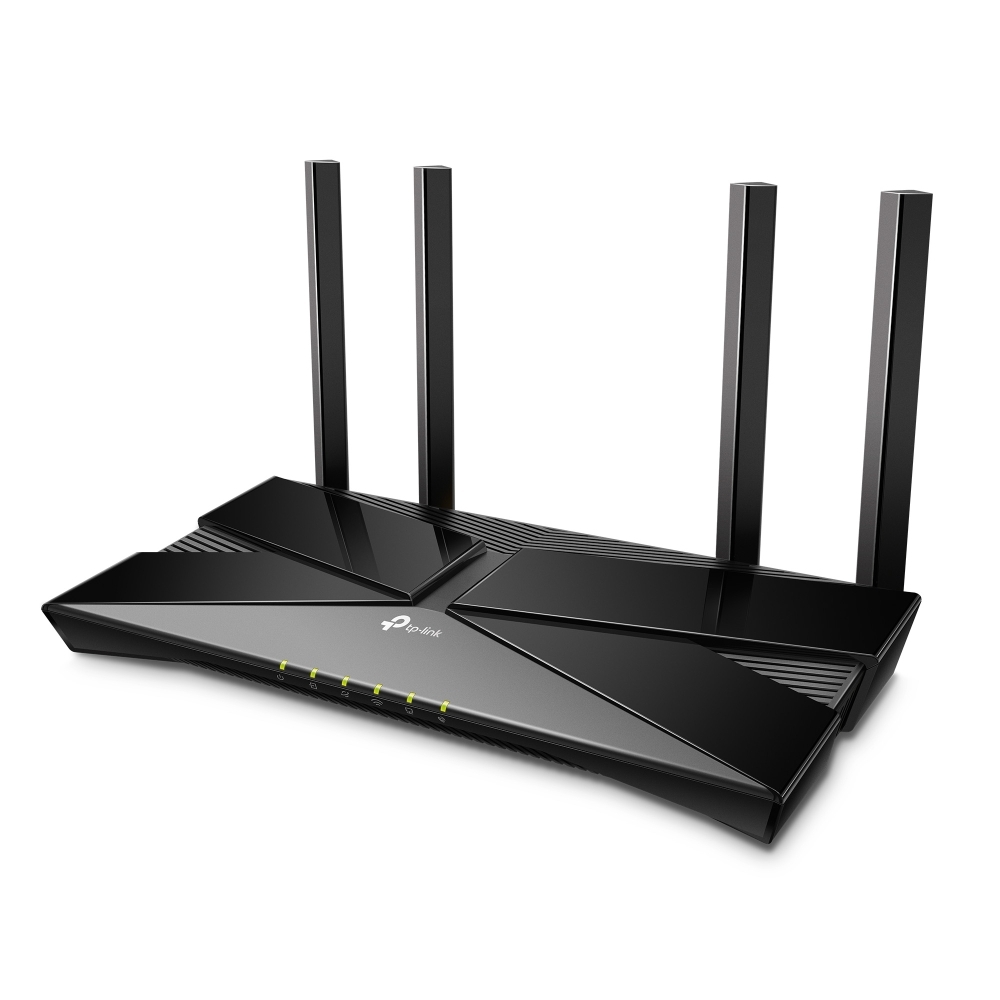

TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

SKU: 125413

  • Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
  • Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
  • 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
  • VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
  • TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
  • Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.

(125413)

HARDWARE FEATURES

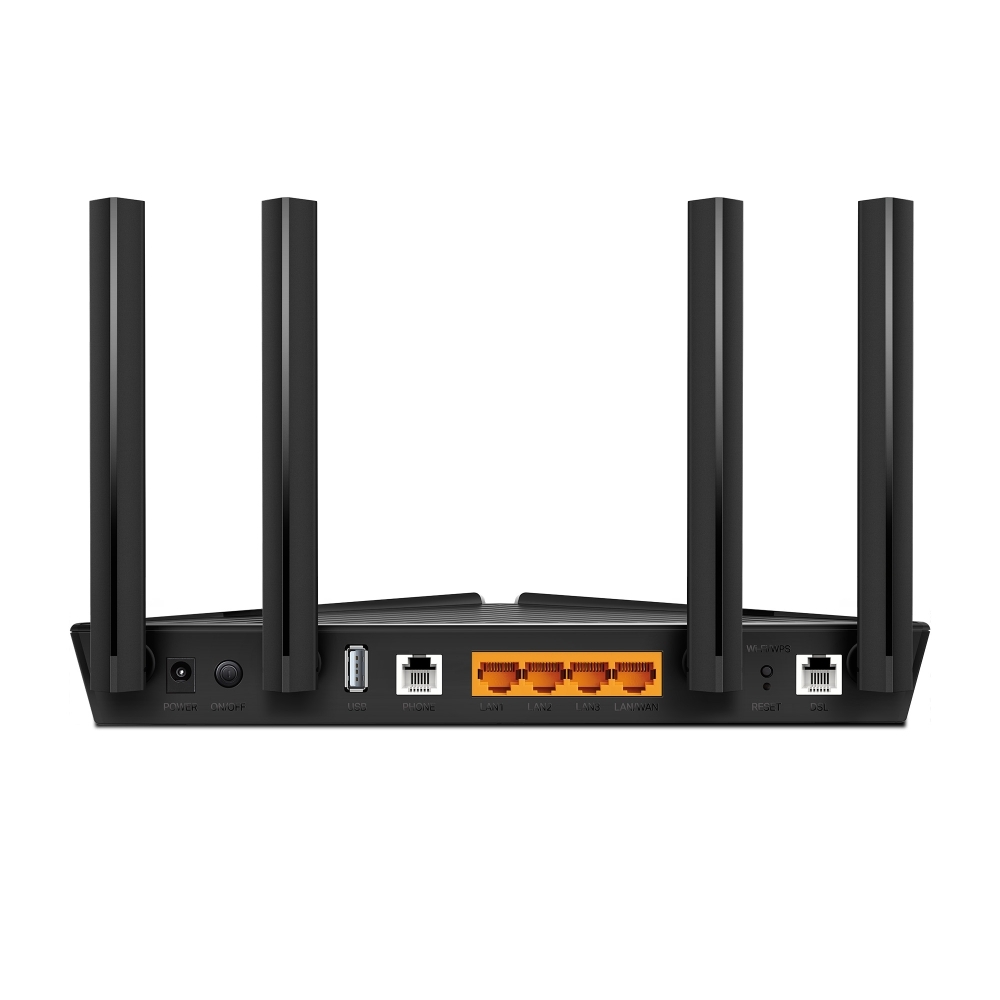

Interface 1× Gigabit WAN/LAN,
3× Gigabit LAN,
1× USB 2.0,
2× RJ11 (1× DSL + 1× FXS)
External Power Supply 12V / 1.5A
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
VDSL2 Standards ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5(Annex A/L/M)
Dimensions ( W x D x H ) 260.2 × 135.0 × 41.6 mm
Antenna 4× External Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Wireless Speeds 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Transmit Power CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
Wireless Functions Enable/Disable Wireless Radio, WMM
Wireless Security WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions
Wireless Schedule Supports 2.4 GHz and 5 GHz Wireless Schedule
VOIP FEATURES
VoIP Standards SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726
Integrated Answering Machine Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices
Advanced Telephone Functions Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number
SOFTWARE FEATURES
Advanced Features IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
Security NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, 3/4G Router, Wireless Router
Management Access Control, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Port Forwarding, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP, TP-Link
VPN OpenVPN, PPTP VPN, IPSec VPN
Protocols Support IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
USB Sharing Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage
Guest Network 2.4 GHz guest network, 5 GHz guest network
IPSec VPN Support up to 10 IPSec VPN tunnels
OTHERS
Certification CE, RoHS

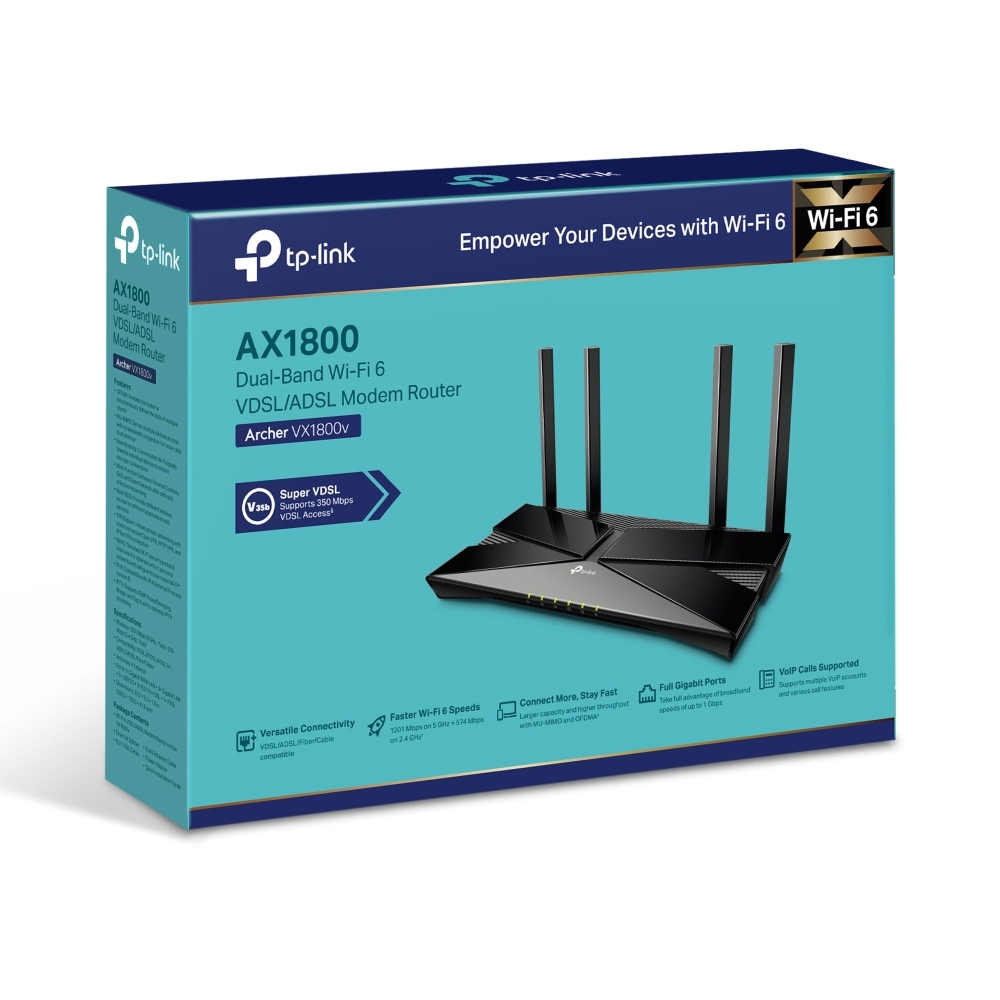

Package Contents Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU 125413
Model # Archer VX1800v
Barcode # 4895252503821
Brand TP-LINK
Shipping Weight 1.0000kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.330m
