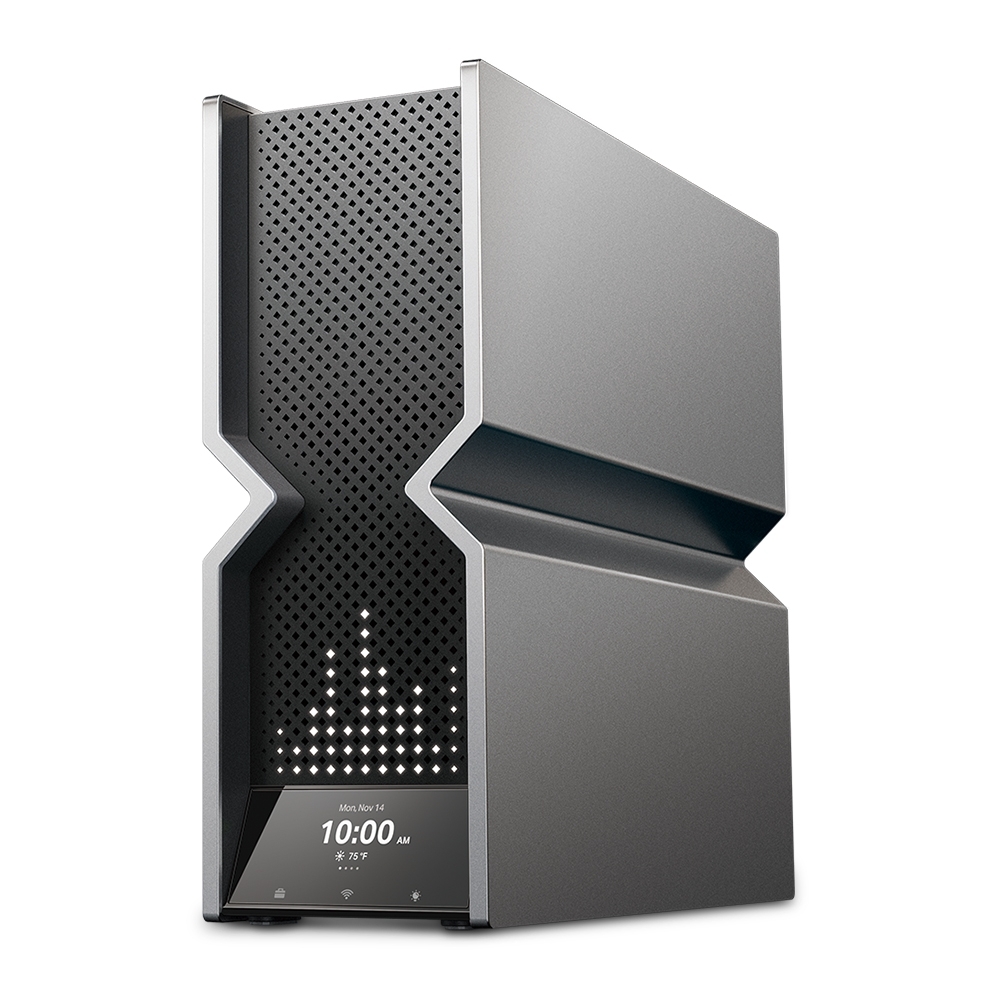

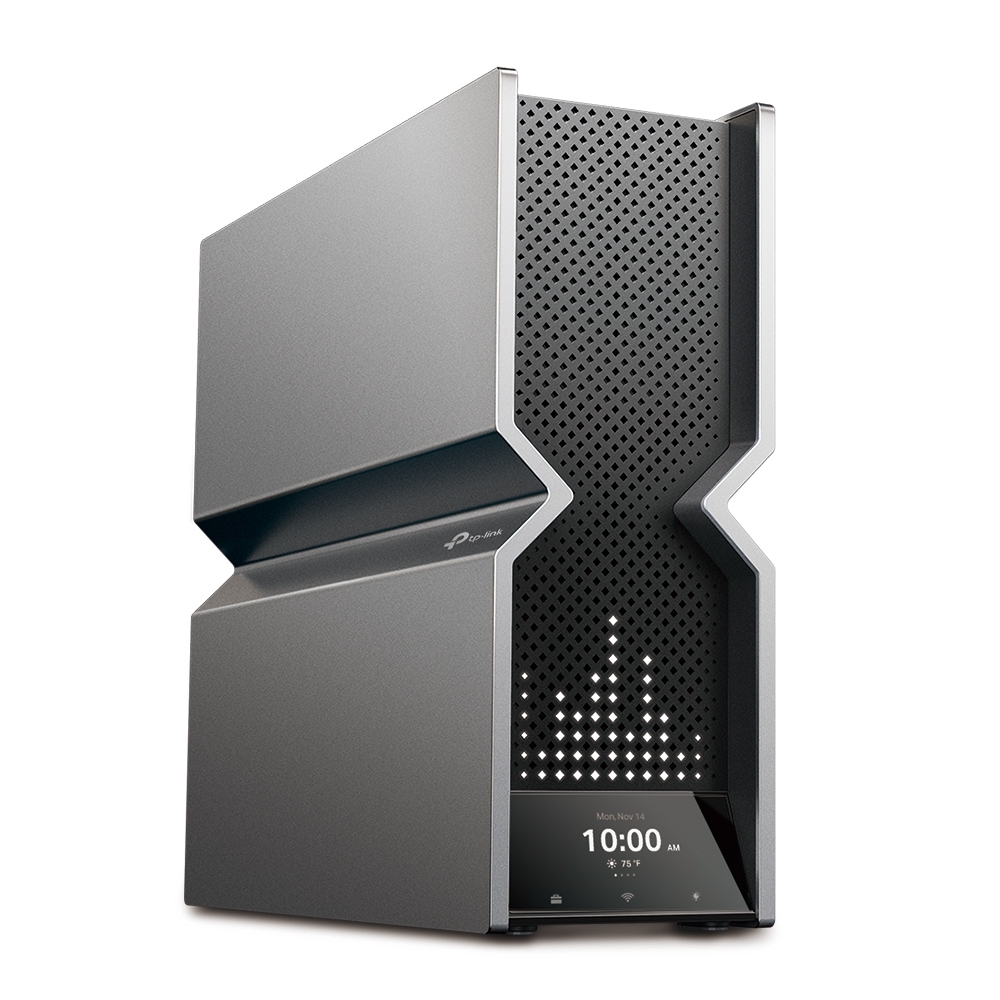

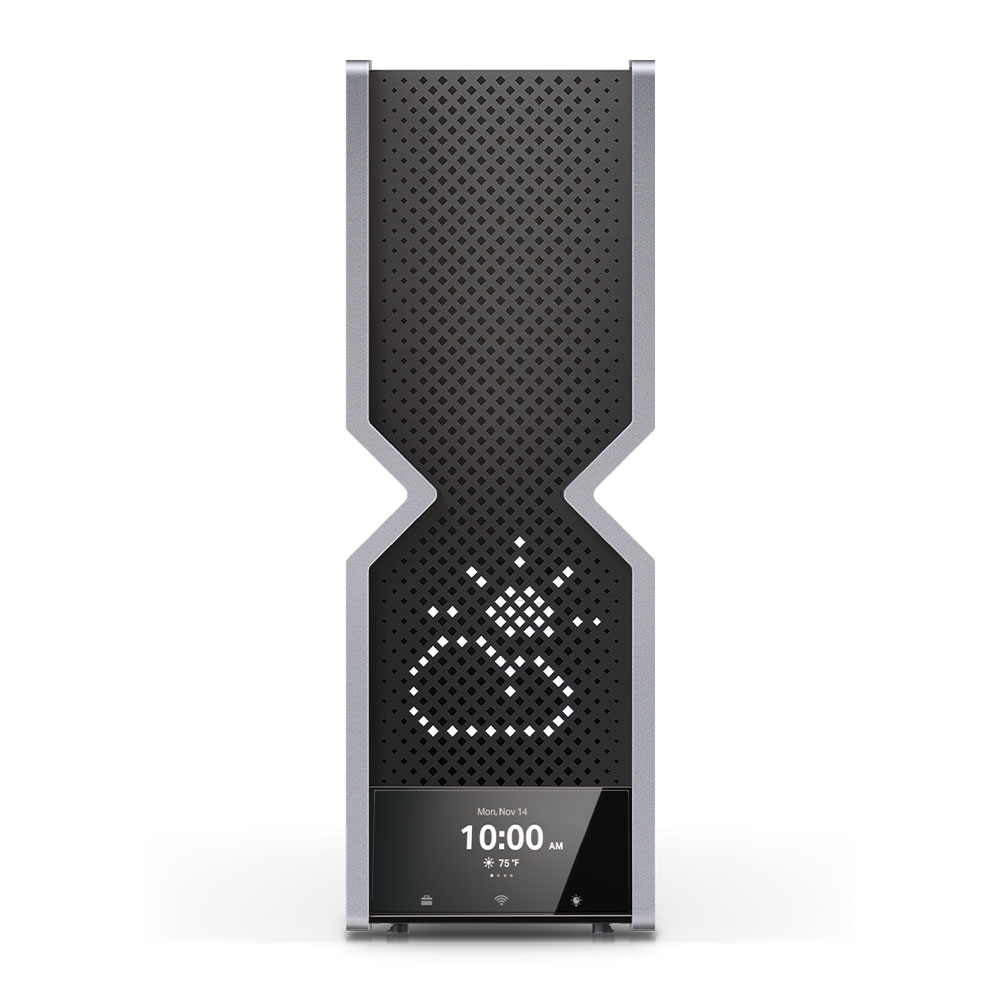

TP-Link Archer BE900 BE24000 Quad-Band Wi-Fi 7 Router

SKU: 125406

Redefining Wi-Fi Routers: With powerful Wi-Fi 7 performance, lightning-fast wired connections, brand-new design, and easy-to-use touchscreen and LED screen.
Lightning-Fast 24.4 Gbps Quad-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and unbelievably fast downloads.^†‡
Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× 1 Gbps port + 2× USB ports ensure max flexibility and boosted throughput.^§
Maximised Coverage: Proprietary Wi-Fi optimization and 12× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*****
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
Easy and Fun to Use: Conveniently manage everything with the Tether app and touchscreen. Visually display the time, weather, and playful graphics with the LED screen.

*The 160MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.

(125406)

WIRELESS
WiFi Speeds	BE24000
	• 6 GHz: 11520 Mbps (802.11be)
	• 5 GHz-1: 5760 Mbps (802.11be)
	• 5 GHz-2: 5760 Mbps (802.11be)
	• 2.4 GHz: 1376 Mbps (802.11be)

	*The 160MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
WiFi Range	4 Bedroom Houses

	12× Optimally Positioned Antennas
	Multiple antennas form a signal-boosting array to cover more directions and large areas

	Beamforming
	Concentrates wireless signal strength towards clients to expand WiFi range

	High-Power FEM
	Improves transmission power to strengthen signal coverage
WiFi Capacity	Very High

	Quad-Band
	Allocate devices to different bands for optimal performance

	4×4 MU-MIMO
	Simultaneously communicates with multiple MU-MIMO clients

	OFDMA
	Simultaneously communicates with multiple clients

	Airtime Fairness
	Improves network efficiency by limiting excessive occupation

	DFS
	Access an extra band to reduce congestion

	16 Streams
	Connect your devices to more bandwidth
Working Modes	• Router Mode
Working Modes	• Access Point Mode
Advanced Functions	• 320 MHz Channel
	• 4K-QAM
	• EasyMesh-Compatible
	• Works with Alexa and Google Assistant
	• IoT Network
SECURITY
Network Security	• SPI Firewall
	• Access Control
	• IP & MAC Binding
	• Application Layer Gateway

	• HomeShield Security

	Real-Time IoT Protection
	Malicious Site Blocker
	Intrusion Prevention System
	DDoS Attack Prevention
	Home Network Scanner
Guest Network	• 1× 6 GHz Guest Network
	• 1× 5 GHz-1 Guest Network
	• 1× 5 GHz-2 Guest Network
	• 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server
	• PPTP VPN Server
	• L2TP VPN Server
	• WireGuard VPN Server
VPN Client	• Open VPN Client
	• PPTP VPN Client
	• L2TP VPN Client
	• WireGuard VPN Client
WiFi Encryption	• WPA
	• WPA2
	• WPA3
	• WPA/WPA2-Enterprise (802.1x)
HARDWARE

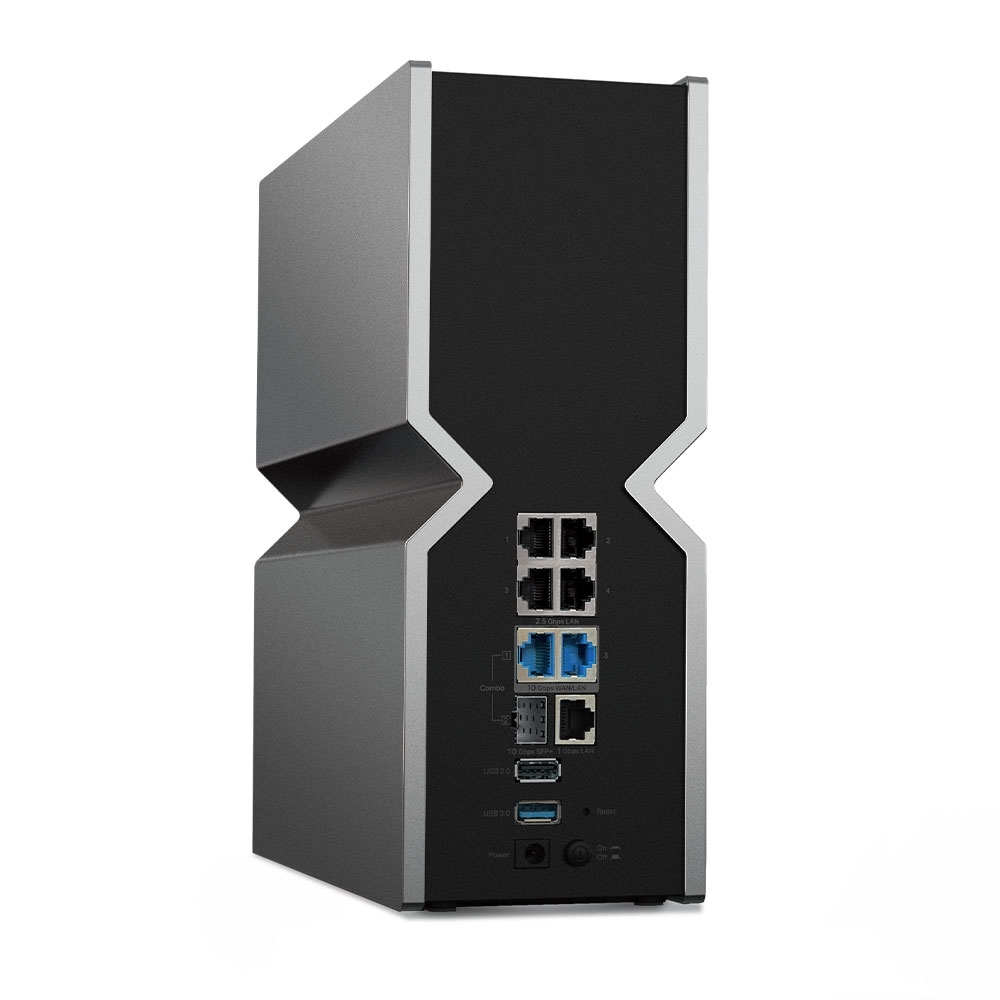

Ethernet Ports	• 1× 10 Gbps WAN/LAN
	• 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN
	• 4× 2.5 Gbps LAN
	• 1× 1 Gbps LAN
USB Support	1× USB 3.0, 1× USB 2.0

	• Supported Partition Formats:
	NTFS, exFAT, HFS+, FAT32

	• Supported Functions:
	FTP Server
	Media Server
	Samba Server
Buttons	• Power On/Off Button
	• Wi-Fi On/Off Button (Touchscreen)
	• LED On/Off Button (Touchscreen)
	• WPS Button (Touchscreen)
	• Reset Button
Power	15 V ⎓ 5 A
Touchscreen	Yes
LED Screen	Yes
SOFTWARE
Protocols	• IPv4
Protocols	• IPv6
Service Kit	HomeShield
Service Kit	Learn More>
EasyMesh	Compatible with EasyMesh
Parental Controls	HomeShield Parental Controls

	Custom Profiles
	Professional Content Filter Library
	Family Time
	Bedtime
	Off Time
	Time Rewards
	Family Online Time Ranking
	Pause the Internet
	Weekly and Monthly Reports
WAN Type	• Dynamic IP
	• Static IP
	• PPPoE
	• PPTP
	• L2TP
Quality of Service	QoS by Device
Cloud Service	• Auto Firmware Upgrade
	• TP-Link ID
	• DDNS
NAT Forwarding	• Port Forwarding
	• Port Triggering
	• DMZ
	• UPnP
IPTV	• IGMP Proxy
	• IGMP Snooping
	• Bridge
	• Tag VLAN
DHCP	• Address Reservation
	• DHCP Client List
	• Server
DDNS	• TP-Link
	• NO-IP
	• DynDNS
Management	• Tether App
Management	• Webpage
OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

	Cable or DSL Modem (if needed)

	Subscription with an internet service provider (for internet access)
Certifications	CE, FCC, RoHS
Environment	• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Environment	• Operating Humidity: 10%~90% non-condensing
PHYSICAL
Dimensions (W×D×H)	3.8 × 11.9 × 10.3 in
Dimensions (W×D×H)	(96 × 302 × 262.5 mm)
Package Contents	• Wi-Fi 7 Router Archer BE900
	• Power Adapter
	• RJ45 Ethernet Cable
	• Quick Installation Guide

SKU	125406
Model #	Archer BE900
Barcode #	4895252500561
Brand	TP-LINK
Shipping Weight	2.2500kg
Shipping Width	0.360m
Shipping Height	0.200m
Shipping Length	0.370m
