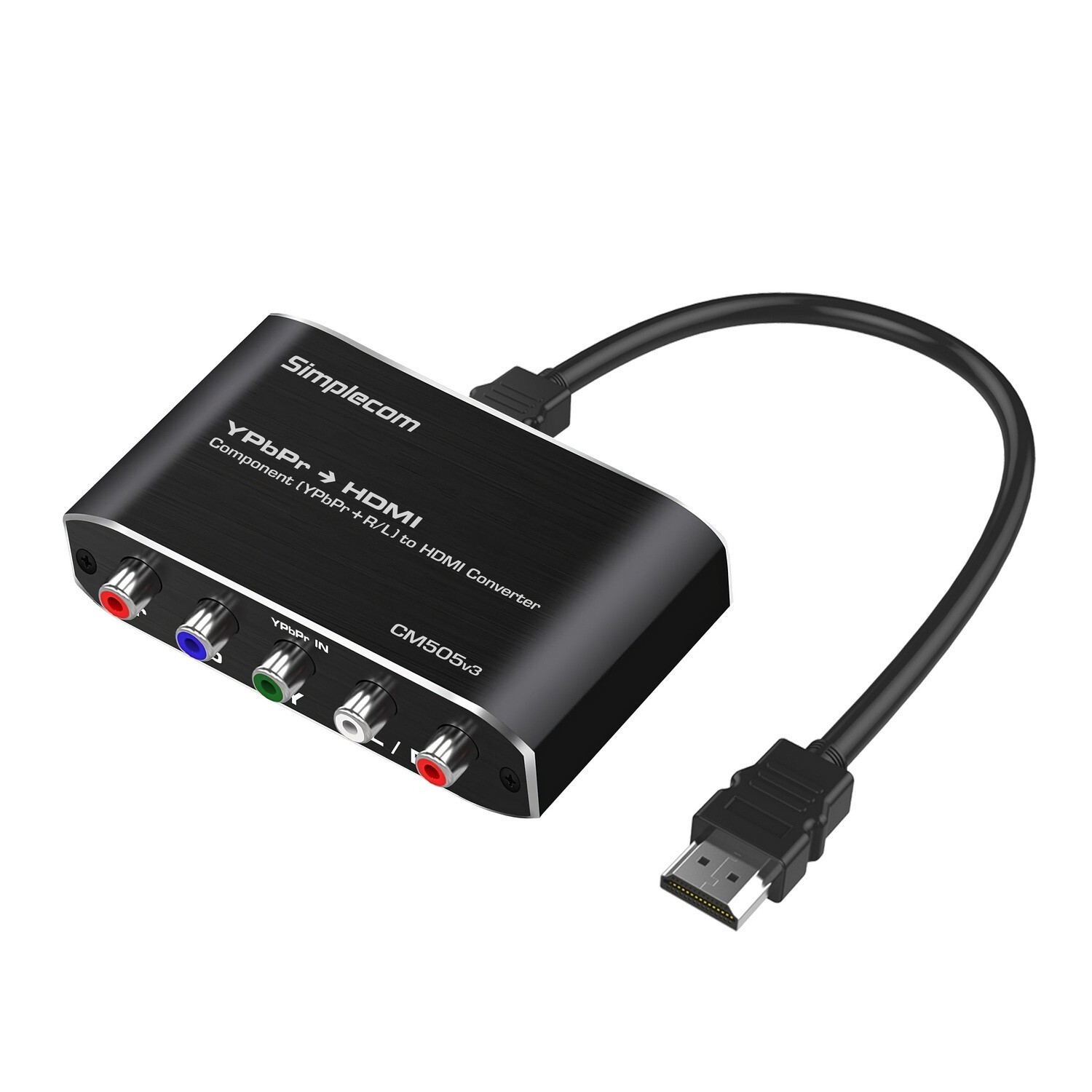

Simplecom CM505v3 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p

• Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
• Supports video resolutions up to Full HD 1080p
• Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
• Support 8bit per channel (24bit all channel) deep color
• Support uncompressed 2 channel audio such as LPCM
• Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
• Aluminium case for durability and excellent heat dissipation
• Ideal for legacy component video devices such as STB, DVD players, game consoles

This component to HDMI converter allows you to convert analog component video and audio (YPbPr + Stereo R/L) into digital HDMI output. It supports video output resolution up to Full HD 1080p, providing easy and convenient way to connect legacy component video device to modern HDMI display.

Easy to use, plug and play, it can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. It supports 165MHz/1.65Gbps per channel and 4.95Gbps bandwidth on all channels, which ensures no distortion of video or audio signals, and no lag in signal transmission.

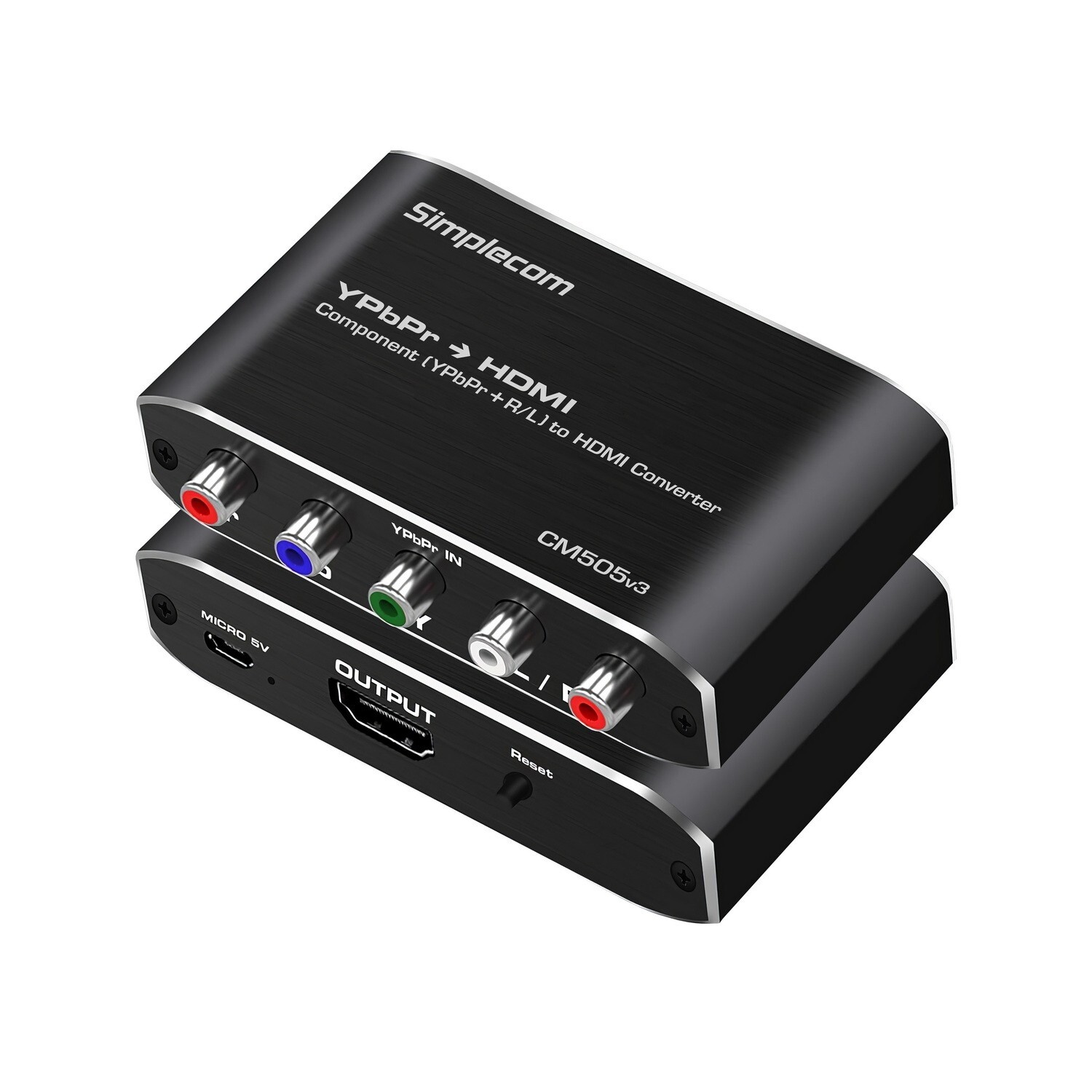

This converter comes in a durable aluminium housing, which ensures stable performance and protects the circuit, the metal shell facilitates heat dissipation when the converter is working.

Feature

• Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
• Supports video resolutions up to Full HD 1080p
• Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
• Support 8bit per channel (24bit all channel) deep color
• Support uncompressed 2 channel audio such as LPCM
• Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
• Aluminium case for durability and excellent heat dissipation
• Ideal for legacy component video devices such as STB, DVD players, game consoles

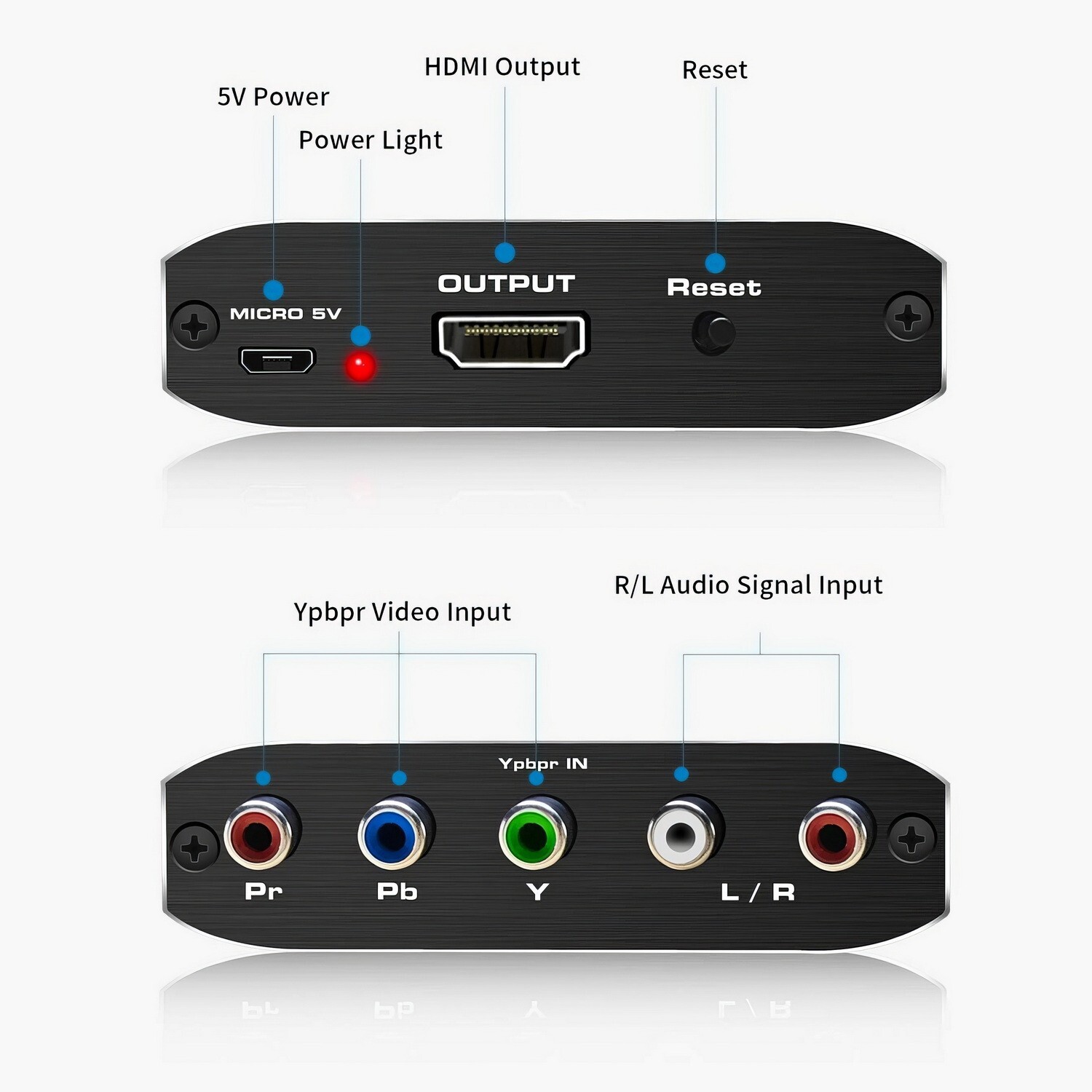

Specifications

• Model: CM505v3
• Input: Component (YPbPr) + R/L Stereo
• Output: HDMI
• Case Material: Aluminium
• Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
• Vertical Frequency Range: 50/60Hz
• Interlaced Resolutions (50&60Hz): 480i, 576i, 1080i
• Progressive Resolutions (50&60Hz): 480p, 576p, 720p, 1080p
• Operating Temperature: 0°C to 70°C
• Operating Humidity: 10% to 85% RH
• Storage Temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% RH
• Power Input: USB 5V1A
• Power consumption (MAX): 5W

Package Contents

• 1x Component to HDMI converter
• 1x HDMI Cable
• 1x USB Power cable
• 1x USB Wall Adapter

Important Note

• The converter only works in one direction, from Component to HDMI, and cannot be used in reverse
• This adapter only converts video format from component to HDMI and does not upscale the resolution. The display screen must support the same resolution as the input source. (e.g. if the component input is 1080i, the HDMI output is also 1080i)
• Supports 2 channel analog audio input, but will not only convert audio
