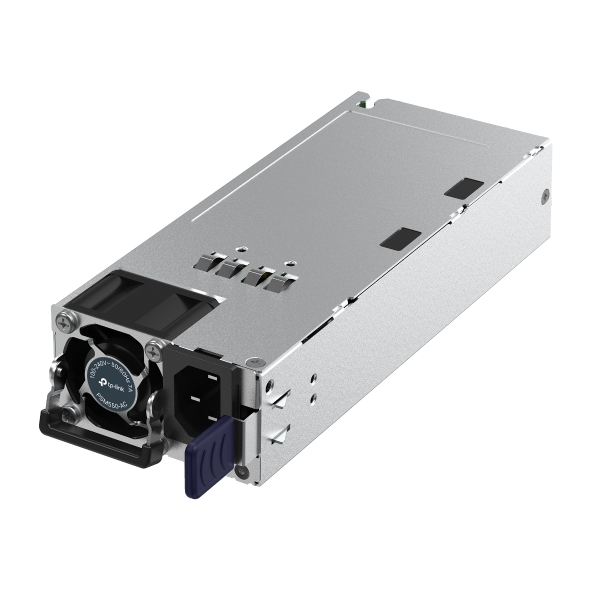

TP-Link PSM550-AC 550W AC Power Supply Module

SKU: 125226

  • Up to 550 watts output power
  • 12 V DC output voltage
  • Fully hot-swappable, ensuring no system interruption during installation or replacement
  • Output over-voltage/over-current/short circuit/over-temperature protection
  • Suitable for SX6632YF, S7500-26XF6Y

What This Product Does

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.

REDUNDANT POWER SUPPLY
AC Power Input 100-240V~ 50/60Hz 7A
DC Power Output • 12V main: 12 VDC/45 A (Maximum)
• 12Vsb: 12 VDC/2.1A (Maximum)
Surge Protection ±4 kV
Dimensions 185×73.5×40 mm
Maximum Power Output 550W
Environment • Operating Temperature (sea level to 3000 m): 0˚C–55˚C (32˚F to 131˚F)
• Operating Temperature (sea level to 5000 m): 0˚C–45˚C (32˚F to 113˚F)
• Storage Temperature: -40℃–70℃ (-40℉~158℉)
• Operating Humidity: 5%–90% RH, Non-condensing
• Storage Humidity: 5%–95% RH, Non-condensing

(125226)

SKU 125226
Model # PSM550-AC
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
