TP-Link TL-SG1008 8 Port Gigabit Switch
Was $84.00 $69.00
SKU: 125222
SKU: 125222

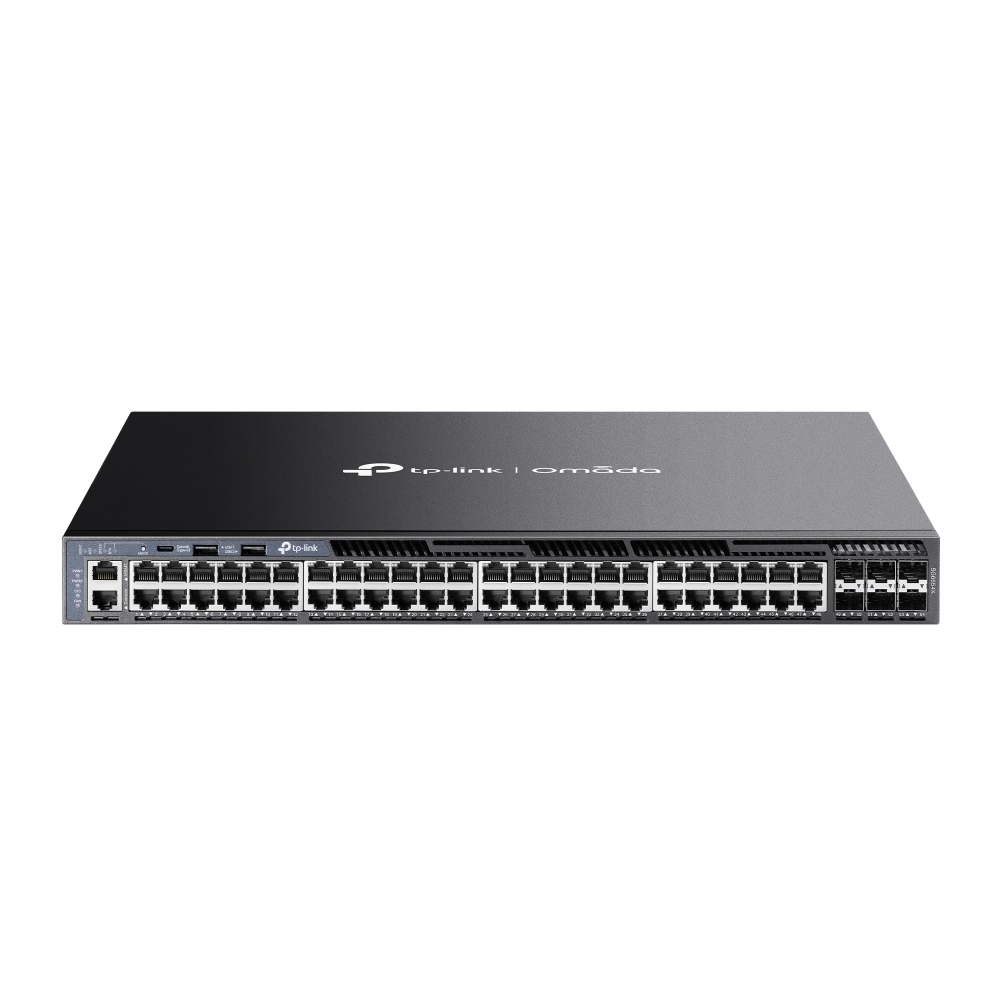

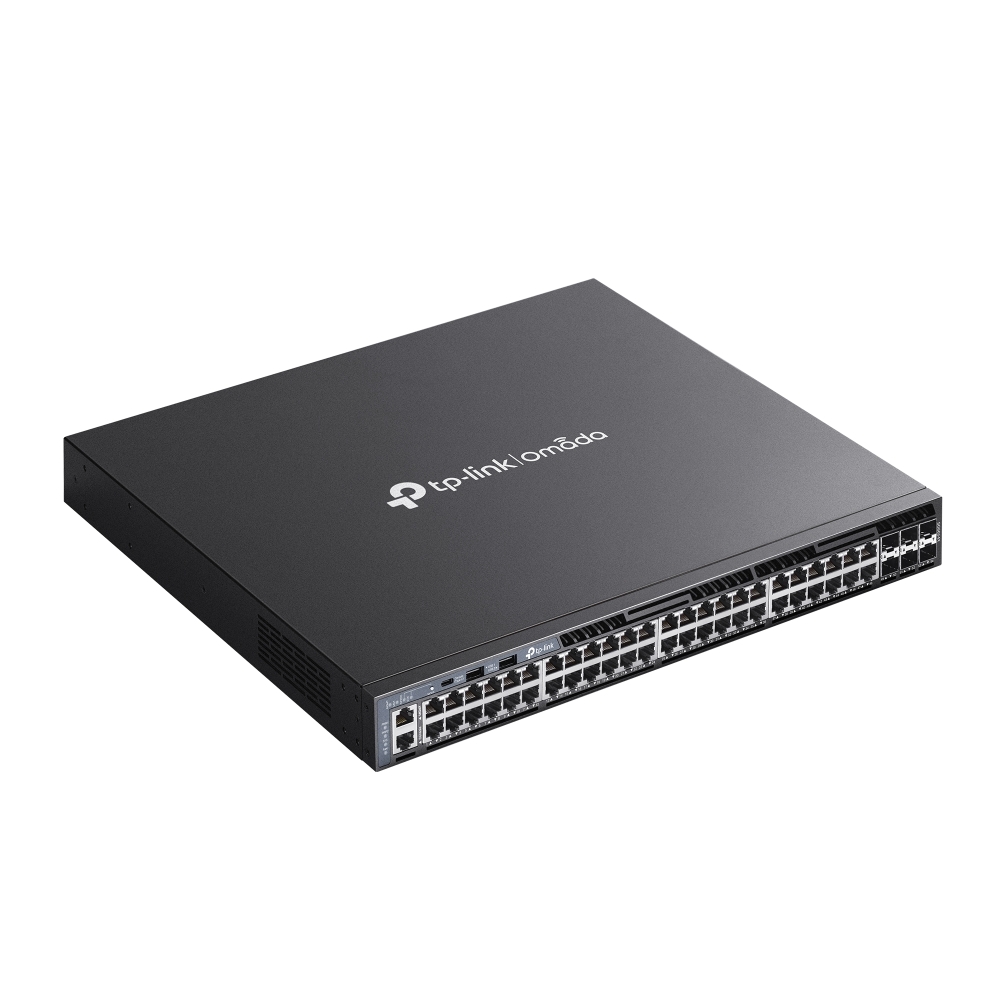

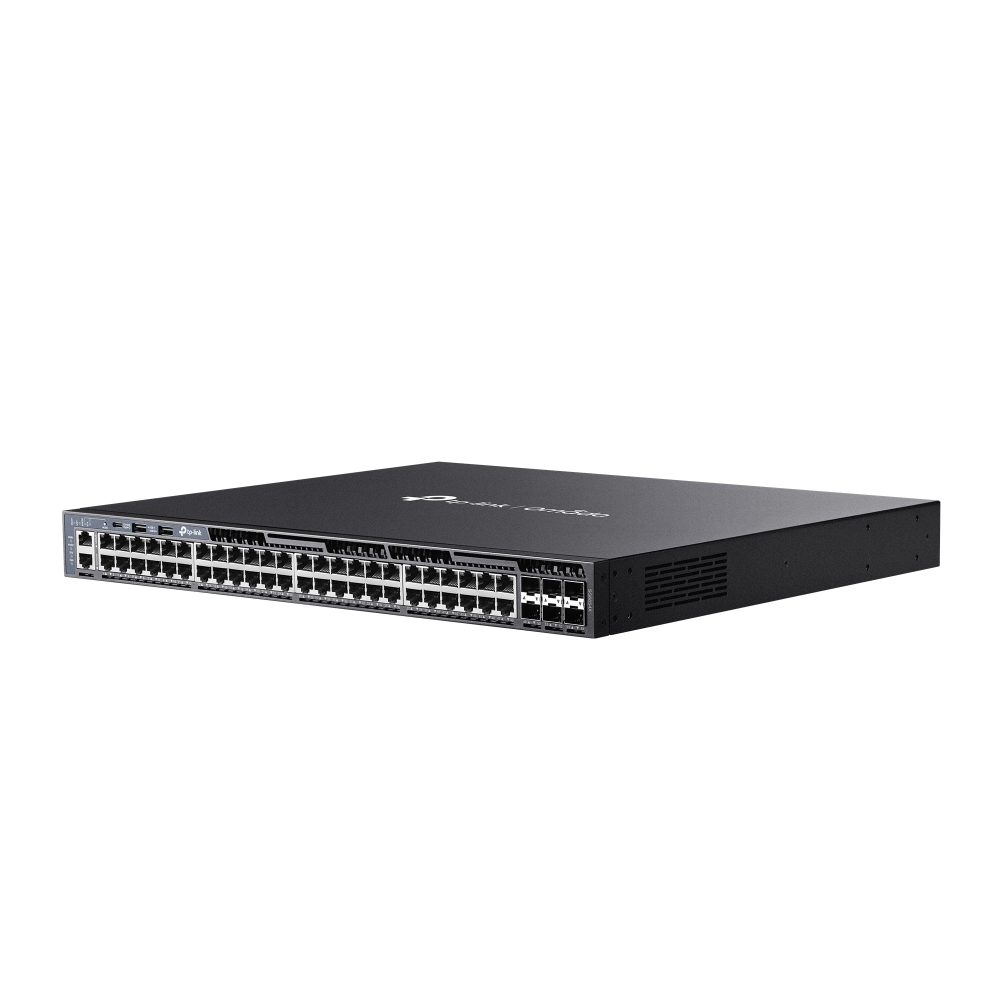

Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 8 units of physical stacking empower the networking structure with built-in redundancy and performance.
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
†These functions require the use of the Omada SDN Controller.
*Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
(125222)
HARDWARE FEATURES | |
Interface | • 48× 10/100/1000 Mbps RJ45 Ports |
• 6× 10G SFP+ Slots | |
• 2× USB 2.0 Ports | |
• 1× RJ45 Console Port | |
• 1× USB Type-C Console Port | |
• 1× RJ45 Management Port | |

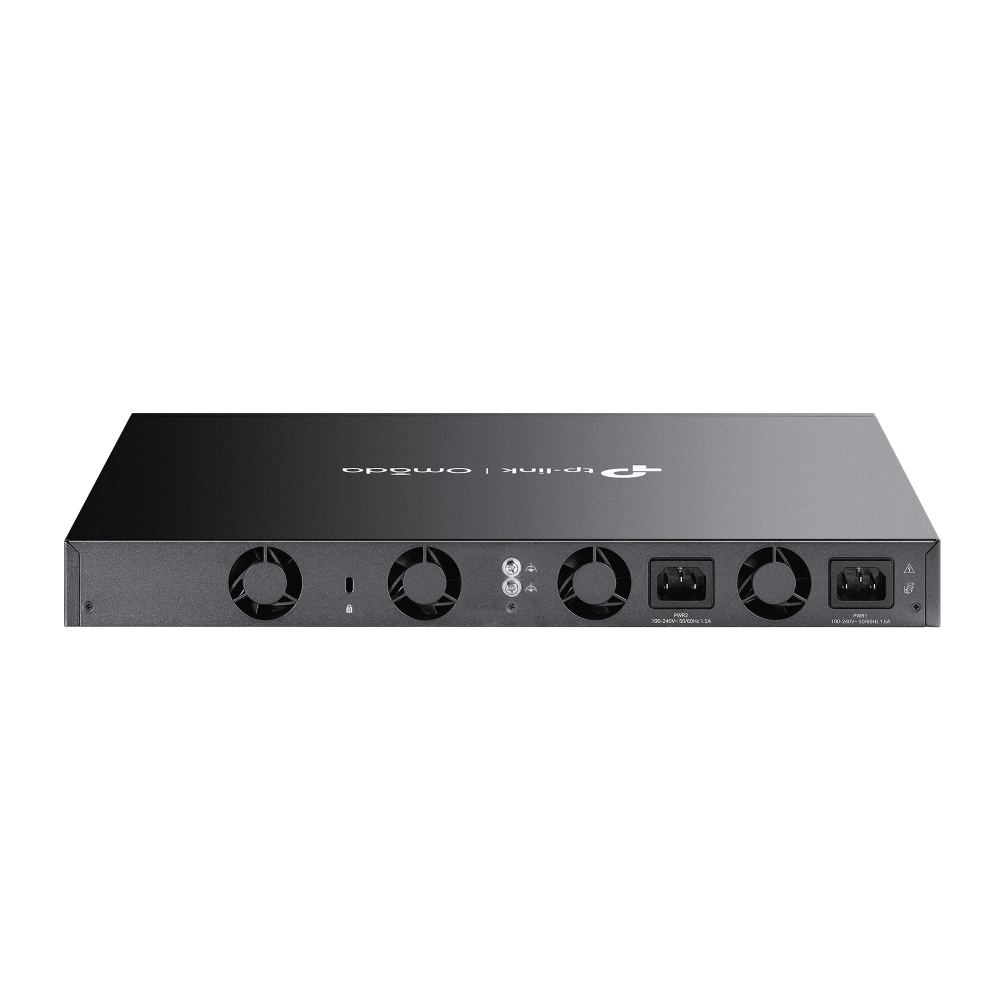

Fan Quantity | Four Internal Fixed Fans |
Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
Dimensions ( W x D x H ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
Mounting | Rackmountable |
Max Power Consumption | 39.8 W (220 V/50 Hz) |
Max Heat Dissipation | 135.81 BTU/hr (220 V/50 Hz) |
PERFORMANCE
|
|
Switching Capacity | 216 Gbps per Unit |
Stacking | • Stacking Number: 4 |
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) | |
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex) | |
Packet Forwarding Rate | 160.7 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 3 MB |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES
|
|
Quality of Service | • Class of Service |
- 8 Queues of Priority | |
- Port Priority | |
- IEEE 802.1p Priority | |
- DSCP Priority | |
- Queue Min-Bandwidth | |
- Schedule Mode (SP, WRR, SP+WRR) | |
• Bandwidth Control | |
- Rate Limit | |
- Storm Control | |
• Voice VLAN | |
• User-Defined OUI | |
• Smoother Performance | |
• Action for Flows | |
- QoS remark (802.1P Remark, DSCP Remark) | |
L3 Features | • IP Interfaces: |
- IPv4: Max 256, IPv6: Max 256 | |
• Static Routing | |
- Max 1,024, IPv6: Max 512 | |
• Host Route Table: Max 6,100 entries | |
• RIP: Version v1/v2, Max 8,190 | |
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 | |
• VRRP: Version v2/v3, Max 64 groups | |
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination | |
• Static ARP: 512 static entries | |
• Dynamic ARP: 7,680 dynamic entries | |
• Proxy ARP | |
• DHCP Server: | |
- Max 8K IP Pools | |
- Max 1,000 Manual Binding Entries | |
• DHCP Relay: | |
- Relayed Interface | |
- Relayed VLAN | |
L2 and L2+ Features | • Link Aggregation |
• Spanning Tree Protocol | |
• Port-based and VLAN-based Loopback Detection | |
• 802.3x Flow Control | |
• Supports 2,048 IGMP groups | |
• ERPS | |
• Mirroring | |
• RSPAN | |
• MAC Address Table | |
• PIM-DM (IPv4) | |
• Multicast | |
- IGMP Snooping | |
- MLD Snooping | |
- L2 Multicast Table | |
- Fast Leave | |
- Multicast VLAN Registration (MVR) | |
- Static Multicast IP | |
- Multicast Filtering | |
Advanced Features | • Automatic Device Discovery† |
• Batch Configuration† | |
• Batch Firmware Upgrading† | |
• Intelligent Network Monitoring† | |
• Abnormal Event Warnings† | |
• Unified Configuration† | |
• Reboot Schedule† | |
ISP Features: | |
• 802.3ah Ethernet Link OAM | |
• L2PT (Layer 2 Protocol Tunneling) | |
• Device Link Detect Protocol (DLDP) | |
• DDM | |
• sFlow | |
VLAN | • Max 4K VLAN Group (802.1q VLAN) |
• 802.1Q Tagged VLAN | |
• MAC VLAN Entries: 200 | |
• Multicast VLAN | |
• Management VLAN | |
• VLAN VPN (QinQ): Max 256 entries | |
• GVRP | |
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries | |
• VLAN VPN | |
• Voice VLAN | |
• Private VLAN | |
Security | • Port Isolation |
• CPU-Defend | |
• ARP Inspection (Dynamic ARP Inspection) | |
• DoS Defend | |
• IP-MAC-Port Binding | |
-1,024 Entries | |
- DHCP Snooping | |
- ARP Inspection | |
- IPv4 Source Guard | |
• IPv6-MAC | |
-Port Binding | |
-1,024 Entries | |
- DHCPv6 Snooping | |
- ND Detection | |
- ND Snooping | |
- IPv6 Source Guard | |
• DHCP Filter | |
• Static/Dynamic Port Security | |
- Up to 64 MAC addresses per port | |
• Broadcast/Multicast/Unknown-unicast Storm Control | |
- kbps/ratio control mode | |
• 802.1X | |
- Port base authentication | |
- Mac base authentication | |
- VLAN Assignment | |
- MAB | |
- Guest VLAN | |
- RADIUS authentication and accountability support | |
• AAA (including TACACS+) | |
• Secure web management through HTTPS with SSLv3/TLS 1.2 | |
• Secure Command Line Interface (CLI) management with SSHv2 | |
• IP/Port/MAC-based access control | |
MANAGEMENT
|
|
Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller |
• Omada Hardware Controller | |
• Omada Software Controller | |
Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
Management Features | • Web-based GUI |
• Command Line Interface (CLI) through console port, telnet | |
• SNMPv1/v2c/v3 | |
- Trap/Inform | |
- RMON (1, 2, 3, 9 groups) | |
• SDM Template | |
• DHCP/BOOTP Client | |
• 802.1ab LLDP/LLDP-MED | |
• DHCP Auto Install | |
• Dual Image, Dual Configuration | |
• CPU Monitoring | |
• Cable Diagnostics | |
• Password Recovery | |
• SNTP | |
• System Log | |
• EEE | |
OTHERS
|
|
Package Contents | • SG6654X Switch |
• 2× Power Cords | |
• RJ45 Console Cable | |
• Quick Installation Guide | |
• Rackmount Kit | |
• Rubber Feet | |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); |
• Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
• Operating Humidity: 10–90% RH non-condensing | |
• Storage Humidity: 5–90% RH non-condensing | |
SKU | 125222 |
Model # | SG6654X |
Barcode # | 4895252501452 |
Brand | TP-LINK |
Shipping Weight | 7.9700kg |
Shipping Width | 0.560m |
Shipping Height | 0.180m |
Shipping Length | 0.610m |
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 8 units of physical stacking empower the networking structure with built-in redundancy and performance.
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
†These functions require the use of the Omada SDN Controller.
*Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
HARDWARE FEATURES | |
Interface | • 48× 10/100/1000 Mbps RJ45 Ports |
• 6× 10G SFP+ Slots | |
• 2× USB 2.0 Ports | |
• 1× RJ45 Console Port | |
• 1× USB Type-C Console Port | |
• 1× RJ45 Management Port | |
Fan Quantity | Four Internal Fixed Fans |
Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
Dimensions ( W x D x H ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
Mounting | Rackmountable |
Max Power Consumption | 39.8 W (220 V/50 Hz) |
Max Heat Dissipation | 135.81 BTU/hr (220 V/50 Hz) |
PERFORMANCE
|
|
Switching Capacity | 216 Gbps per Unit |
Stacking | • Stacking Number: 4 |
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) | |
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex) | |
Packet Forwarding Rate | 160.7 Mpps |
MAC Address Table | 32 K |
Packet Buffer Memory | 3 MB |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES
|
|
Quality of Service | • Class of Service |
- 8 Queues of Priority | |
- Port Priority | |
- IEEE 802.1p Priority | |
- DSCP Priority | |
- Queue Min-Bandwidth | |
- Schedule Mode (SP, WRR, SP+WRR) | |
• Bandwidth Control | |
- Rate Limit | |
- Storm Control | |
• Voice VLAN | |
• User-Defined OUI | |
• Smoother Performance | |
• Action for Flows | |
- QoS remark (802.1P Remark, DSCP Remark) | |
L3 Features | • IP Interfaces: |
- IPv4: Max 256, IPv6: Max 256 | |
• Static Routing | |
- Max 1,024, IPv6: Max 512 | |
• Host Route Table: Max 6,100 entries | |
• RIP: Version v1/v2, Max 8,190 | |
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 | |
• VRRP: Version v2/v3, Max 64 groups | |
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination | |
• Static ARP: 512 static entries | |
• Dynamic ARP: 7,680 dynamic entries | |
• Proxy ARP | |
• DHCP Server: | |
- Max 8K IP Pools | |
- Max 1,000 Manual Binding Entries | |
• DHCP Relay: | |
- Relayed Interface | |
- Relayed VLAN | |
L2 and L2+ Features | • Link Aggregation |
• Spanning Tree Protocol | |
• Port-based and VLAN-based Loopback Detection | |
• 802.3x Flow Control | |
• Supports 2,048 IGMP groups | |
• ERPS | |
• Mirroring | |
• RSPAN | |
• MAC Address Table | |
• PIM-DM (IPv4) | |
• Multicast | |
- IGMP Snooping | |
- MLD Snooping | |
- L2 Multicast Table | |
- Fast Leave | |
- Multicast VLAN Registration (MVR) | |
- Static Multicast IP | |
- Multicast Filtering | |
Advanced Features | • Automatic Device Discovery† |
• Batch Configuration† | |
• Batch Firmware Upgrading† | |
• Intelligent Network Monitoring† | |
• Abnormal Event Warnings† | |
• Unified Configuration† | |
• Reboot Schedule† | |
ISP Features: | |
• 802.3ah Ethernet Link OAM | |
• L2PT (Layer 2 Protocol Tunneling) | |
• Device Link Detect Protocol (DLDP) | |
• DDM | |
• sFlow | |
VLAN | • Max 4K VLAN Group (802.1q VLAN) |
• 802.1Q Tagged VLAN | |
• MAC VLAN Entries: 200 | |
• Multicast VLAN | |
• Management VLAN | |
• VLAN VPN (QinQ): Max 256 entries | |
• GVRP | |
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries | |
• VLAN VPN | |
• Voice VLAN | |
• Private VLAN | |
Security | • Port Isolation |
• CPU-Defend | |
• ARP Inspection (Dynamic ARP Inspection) | |
• DoS Defend | |
• IP-MAC-Port Binding | |
-1,024 Entries | |
- DHCP Snooping | |
- ARP Inspection | |
- IPv4 Source Guard | |
• IPv6-MAC | |
-Port Binding | |
-1,024 Entries | |
- DHCPv6 Snooping | |
- ND Detection | |
- ND Snooping | |
- IPv6 Source Guard | |
• DHCP Filter | |
• Static/Dynamic Port Security | |
- Up to 64 MAC addresses per port | |
• Broadcast/Multicast/Unknown-unicast Storm Control | |
- kbps/ratio control mode | |
• 802.1X | |
- Port base authentication | |
- Mac base authentication | |
- VLAN Assignment | |
- MAB | |
- Guest VLAN | |
- RADIUS authentication and accountability support | |
• AAA (including TACACS+) | |
• Secure web management through HTTPS with SSLv3/TLS 1.2 | |
• Secure Command Line Interface (CLI) management with SSHv2 | |
• IP/Port/MAC-based access control | |
MANAGEMENT
|
|
Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller |
• Omada Hardware Controller | |
• Omada Software Controller | |
Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
Management Features | • Web-based GUI |
• Command Line Interface (CLI) through console port, telnet | |
• SNMPv1/v2c/v3 | |
- Trap/Inform | |
- RMON (1, 2, 3, 9 groups) | |
• SDM Template | |
• DHCP/BOOTP Client | |
• 802.1ab LLDP/LLDP-MED | |
• DHCP Auto Install | |
• Dual Image, Dual Configuration | |
• CPU Monitoring | |
• Cable Diagnostics | |
• Password Recovery | |
• SNTP | |
• System Log | |
• EEE | |
OTHERS
|
|
Package Contents | • SG6654X Switch |
• 2× Power Cords | |
• RJ45 Console Cable | |
• Quick Installation Guide | |
• Rackmount Kit | |
• Rubber Feet | |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); |
• Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
• Operating Humidity: 10–90% RH non-condensing | |
• Storage Humidity: 5–90% RH non-condensing | |
SKU | 125222 |

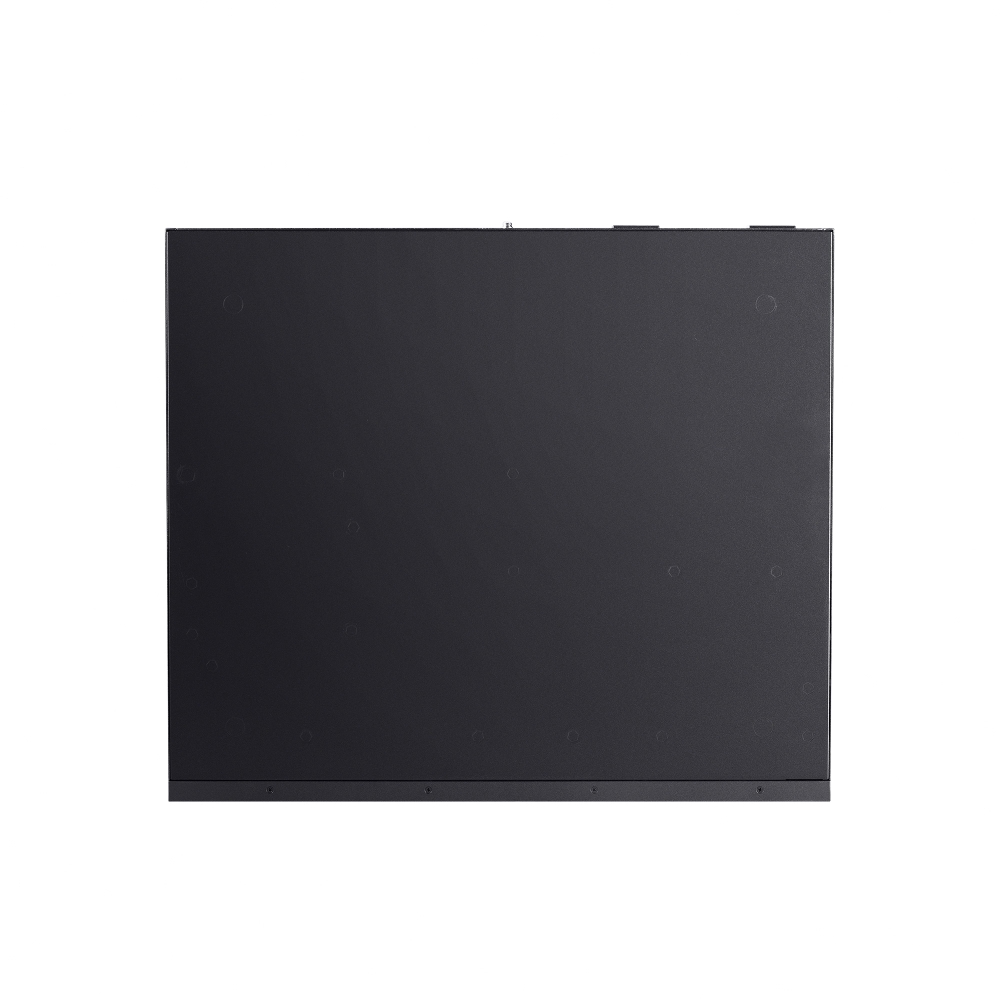

Model # | SG6654X |
Barcode # | 4895252501452 |
Brand | TP-LINK |
Help other OnLine Centre Pty Ltd users shop smarter by writing reviews for products you have purchased.
TP-Link TL-SG1008 8 Port Gigabit Switch
Was $84.00 $69.00
Copyright © 2024 OnLine Centre Pty Ltd.
ABN: 61087124892
