HARDWARE FEATURES |

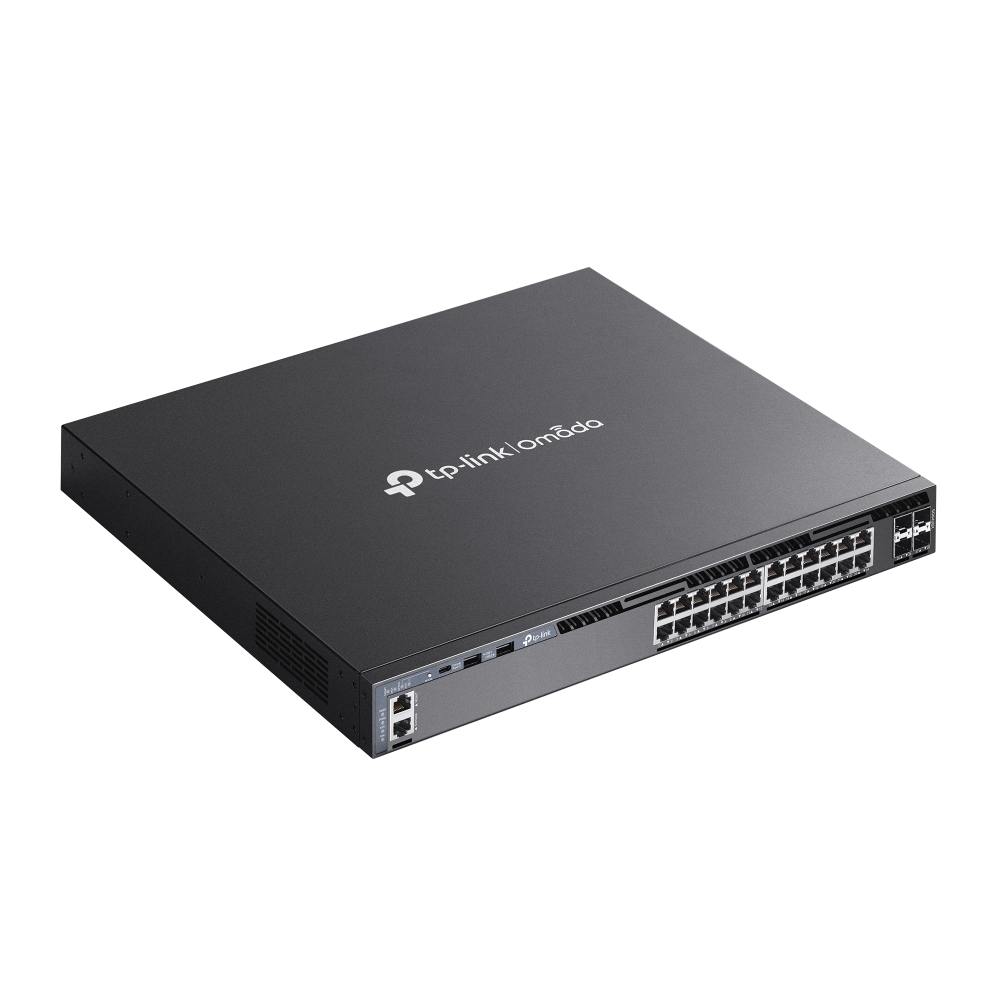

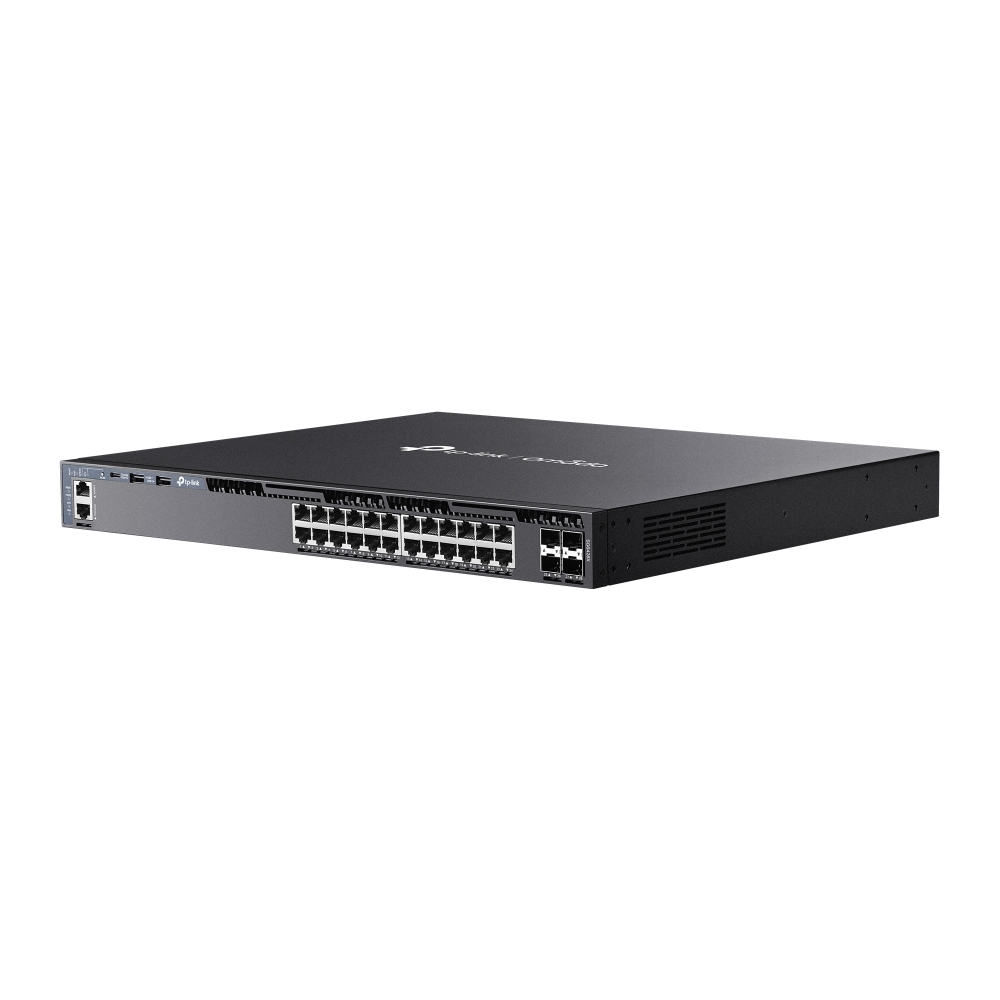

Interface |
• 24× 10/100/1000 Mbps RJ45 Ports |
• 4× 10G SFP+ Slots |
• 2× USB 2.0 Ports |
• 1× RJ45 Console Port |
• 1× USB Type-C Console Port |
• 1× RJ45 Management Port |

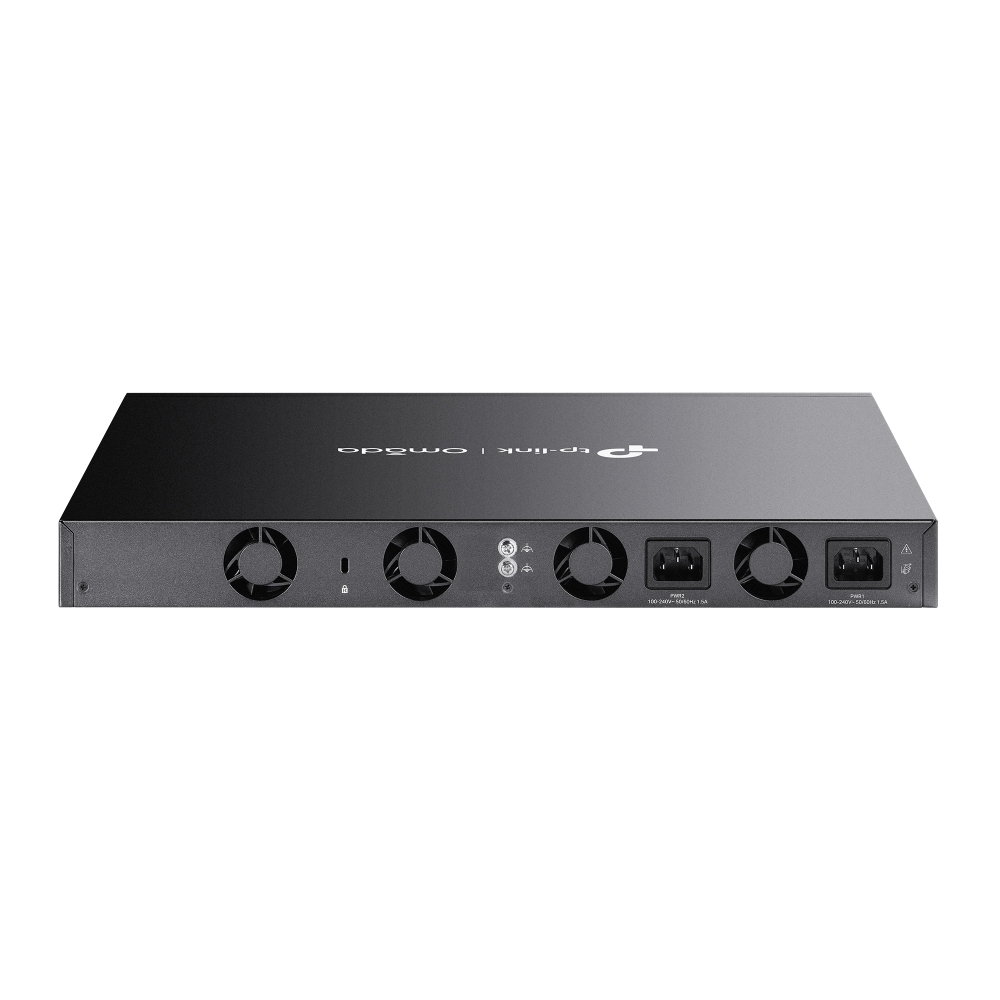

Fan Quantity |
Four Internal Fixed Fans |
Power Supply |
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
Dimensions ( W x D x H ) |
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
Mounting |
Rackmountable |
Max Power Consumption |
28.4 W (220 V/50 Hz) |
Max Heat Dissipation |
96.91 BTU/hr (220 V/50 Hz) |
|
|
PERFORMANCE
|
Switching Capacity |
128 Gbps per Unit |
Stacking |
• Stacking Number: 4 |
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) |
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex) |
Packet Forwarding Rate |
95.2 Mpps |
MAC Address Table |
32 K |
Packet Buffer Memory |
3 MB |
Jumbo Frame |
9 KB |
|
|
SOFTWARE FEATURES
|
Quality of Service |
• Class of Service |
- 8 Queues of Priority |
- Port Priority |
- IEEE 802.1p Priority |
- DSCP Priority |
- Queue Min-Bandwidth |
- Schedule Mode (SP, WRR, SP+WRR) |
• Bandwidth Control |
- Rate Limit |
- Storm Control |
• Voice VLAN |
• User-Defined OUI |
• Smoother Performance |
• Action for Flows |
- QoS remark (802.1P Remark, DSCP Remark) |
L3 Features |
• IP Interfaces: |
- IPv4: Max 256, IPv6: Max 256 |
• Static Routing |
- Max 1,024, IPv6: Max 512 |
• Host Route Table: Max 6,100 entries |
• RIP: Version v1/v2, Max 8,190 |
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 |
• VRRP: Version v2/v3, Max 64 groups |
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination |
• Static ARP: 512 static entries |
• Dynamic ARP: 7,680 dynamic entries |
• Proxy ARP |
• DHCP Server: |
- Max 8K IP Pools |
- Max 1,000 Manual Binding Entries |
• DHCP Relay: |
- Relayed Interface |
- Relayed VLAN |
L2 and L2+ Features |
• Link Aggregation |
• Spanning Tree Protocol |
• Port-based and VLAN-based Loopback Detection |
• 802.3x Flow Control |
• Supports 2,048 IGMP groups |
• ERPS |
• Mirroring |
• RSPAN |
• MAC Address Table |
• PIM-DM (IPv4) |
• Multicast |
- IGMP Snooping |
- MLD Snooping |
- L2 Multicast Table |
- Fast Leave |
- Multicast VLAN Registration (MVR) |
- Static Multicast IP |
- Multicast Filtering |
Advanced Features |
• Automatic Device Discovery† |
• Batch Configuration† |
• Batch Firmware Upgrading† |
• Intelligent Network Monitoring† |
• Abnormal Event Warnings† |
• Unified Configuration† |
• Reboot Schedule† |
|
ISP Features: |
• 802.3ah Ethernet Link OAM |
• L2PT (Layer 2 Protocol Tunneling) |
• Device Link Detect Protocol (DLDP) |
• DDM |
• sFlow |
VLAN |
• Max 4K VLAN Group (802.1q VLAN) |
• 802.1Q Tagged VLAN |
• MAC VLAN Entries: 200 |
• Multicast VLAN |
• Management VLAN |
• VLAN VPN (QinQ): Max 256 entries |
• GVRP |
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries |
• VLAN VPN |
• Voice VLAN |
• Private VLAN |
Security |
• Port Isolation |
• CPU-Defend |
• ARP Inspection (Dynamic ARP Inspection) |
• DoS Defend |
• IP-MAC-Port Binding |
-1,024 Entries |
- DHCP Snooping |
- ARP Inspection |
- IPv4 Source Guard |
• IPv6-MAC |
-Port Binding |
-1,024 Entries |
- DHCPv6 Snooping |
- ND Detection |
- ND Snooping |
- IPv6 Source Guard |
• DHCP Filter |
• Static/Dynamic Port Security |
- Up to 64 MAC addresses per port |
• Broadcast/Multicast/Unknown-unicast Storm Control |
- kbps/ratio control mode |
• 802.1X |
- Port base authentication |
- Mac base authentication |
- VLAN Assignment |
- MAB |
- Guest VLAN |
- RADIUS authentication and accountability support |
• AAA (including TACACS+) |
• Secure web management through HTTPS with SSLv3/TLS 1.2 |
• Secure Command Line Interface (CLI) management with SSHv2 |
• IP/Port/MAC-based access control |
|
|
MANAGEMENT
|
Omada App |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
• Omada Cloud-Based Controller |
• Omada Hardware Controller |
• Omada Software Controller |
Cloud Access |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning |
Yes. Requiring the use of the Omada Cloud-Based Controller. |
Management Features |
• Web-based GUI |
• Command Line Interface (CLI) through console port, telnet |
• SNMPv1/v2c/v3 |
- Trap/Inform |
- RMON (1, 2, 3, 9 groups) |
• SDM Template |
• DHCP/BOOTP Client |
• 802.1ab LLDP/LLDP-MED |
• DHCP Auto Install |
• Dual Image, Dual Configuration |
• CPU Monitoring |
• Cable Diagnostics |
• Password Recovery |
• SNTP |
• System Log |
• EEE |
|
|
OTHERS
|
Package Contents |
• SG6428X Switch |
• 2× Power Cords |
• RJ45 Console Cable |
• Quick Installation Guide |
• Rackmount Kit |
• Rubber Feet |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
• Operating Temperature: 0–45 ℃ (32–113 ℉); |
• Storage Temperature: -40–70 ℃ (-40–158 ℉) |
• Operating Humidity: 10–90% RH non-condensing |
• Storage Humidity: 5–90% RH non-condensing |
|
|
