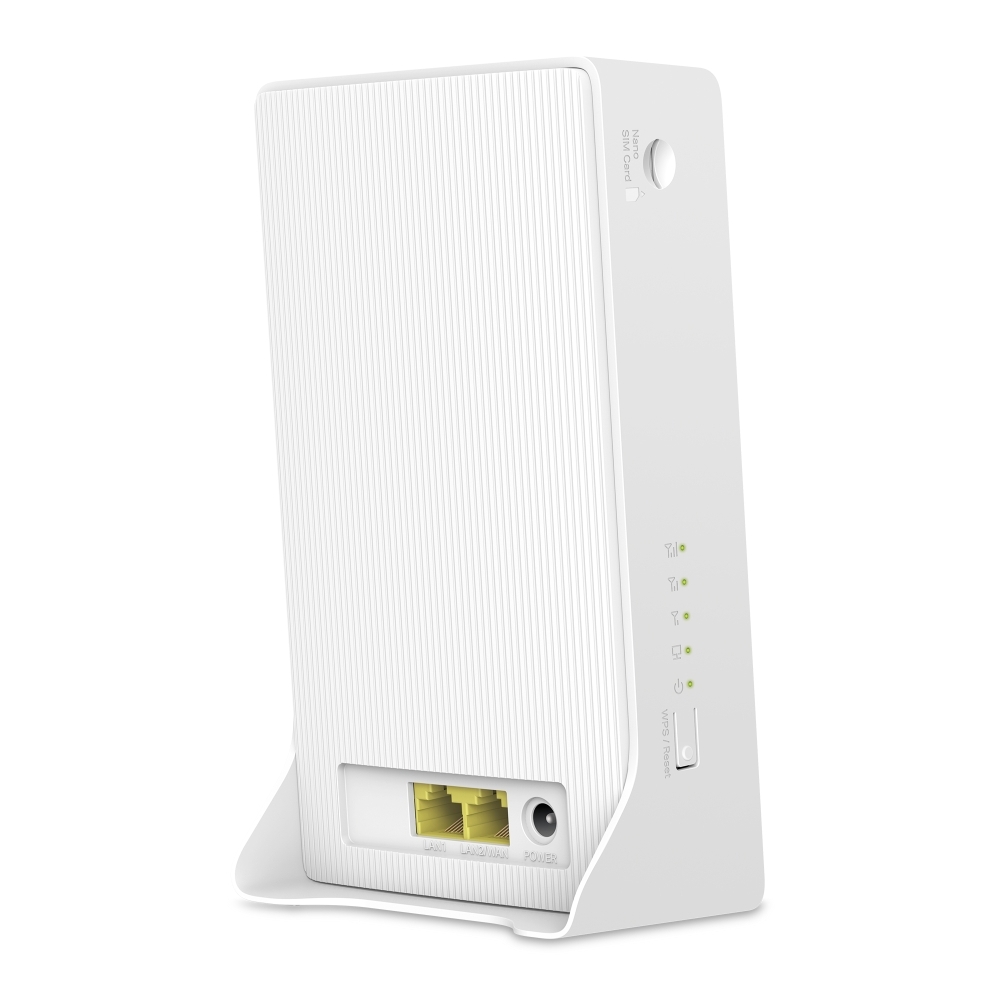

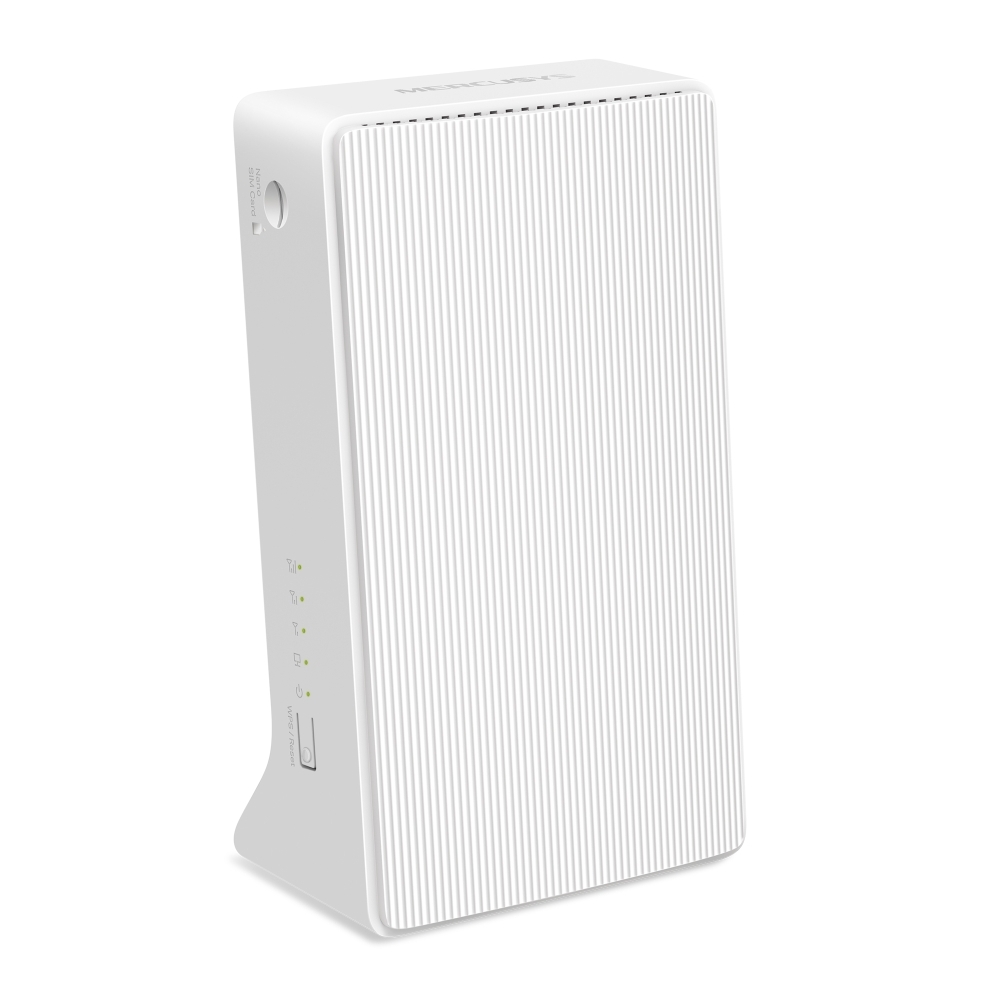

Mercusys MB230-4G 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

SKU: 125217

  • 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
  • Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
  • Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.
  • Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

(125217)

Wireless Wireless Standards IEEE 802.11ac/a/b/g/n
Frequency 5 GHz, 2.4 GHz
Signal Rate 867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
Reception Sensitivity 11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
Transmission Power 2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security WPA-PSK / WPA2-PSK / WPA3-SAE
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
Software DHCP Server
Hardware Dimensions (W X D X H) 95×61.05×165.97 mm
Interfaces 1× Gigabit LAN/WAN Port
1× Gigabit LAN Port
1× Nano SIM Card Slot
Button WPS/Reset Button
Network Type EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Others Package Contents 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
SKU 125217
Model # MB230-4G
Barcode # 6957939001827
Brand Mercusys
Shipping Weight 0.5000kg
Shipping Width 0.130m
Shipping Height 0.110m
Shipping Length 0.210m
  • 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
  • Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
  • Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices.
  • Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

Wireless Wireless Standards IEEE 802.11ac/a/b/g/n
Frequency 5 GHz, 2.4 GHz
Signal Rate 867 Mbps at 5 GHz
300 Mbps at 2.4 GHz
Reception Sensitivity 11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
Transmission Power 2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security WPA-PSK / WPA2-PSK / WPA3-SAE
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
Software DHCP Server
Hardware Dimensions (W X D X H) 95×61.05×165.97 mm
Interfaces 1× Gigabit LAN/WAN Port
1× Gigabit LAN Port
1× Nano SIM Card Slot
Button WPS/Reset Button
Network Type EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Others Package Contents 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
SKU 125217
Model # MB230-4G
Barcode # 6957939001827
Brand Mercusys
