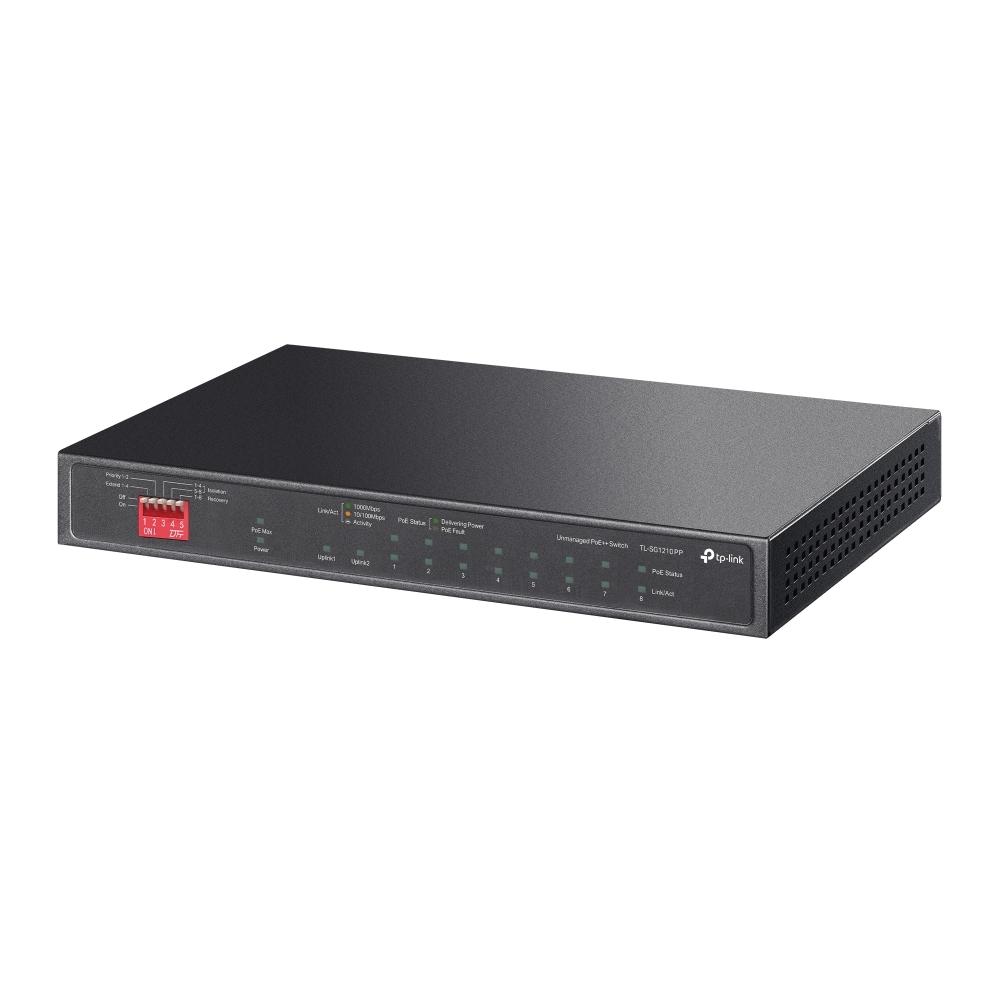

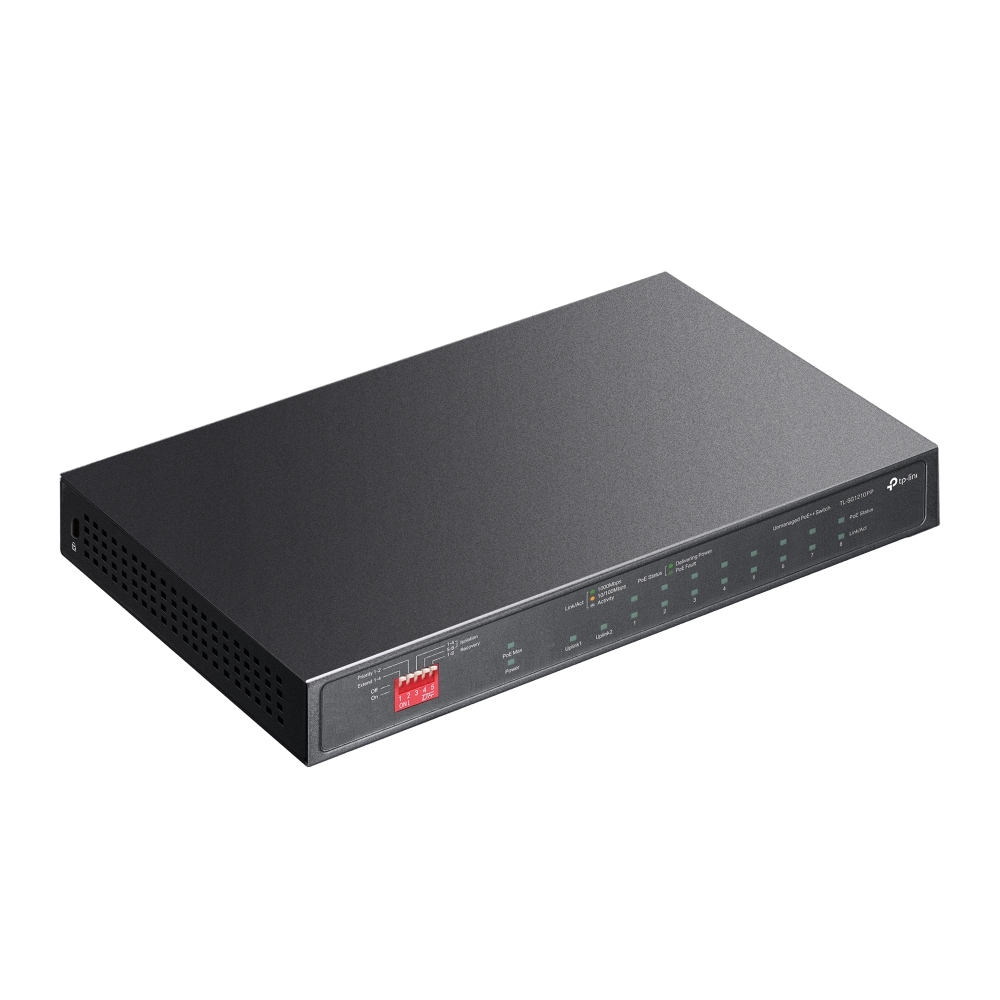

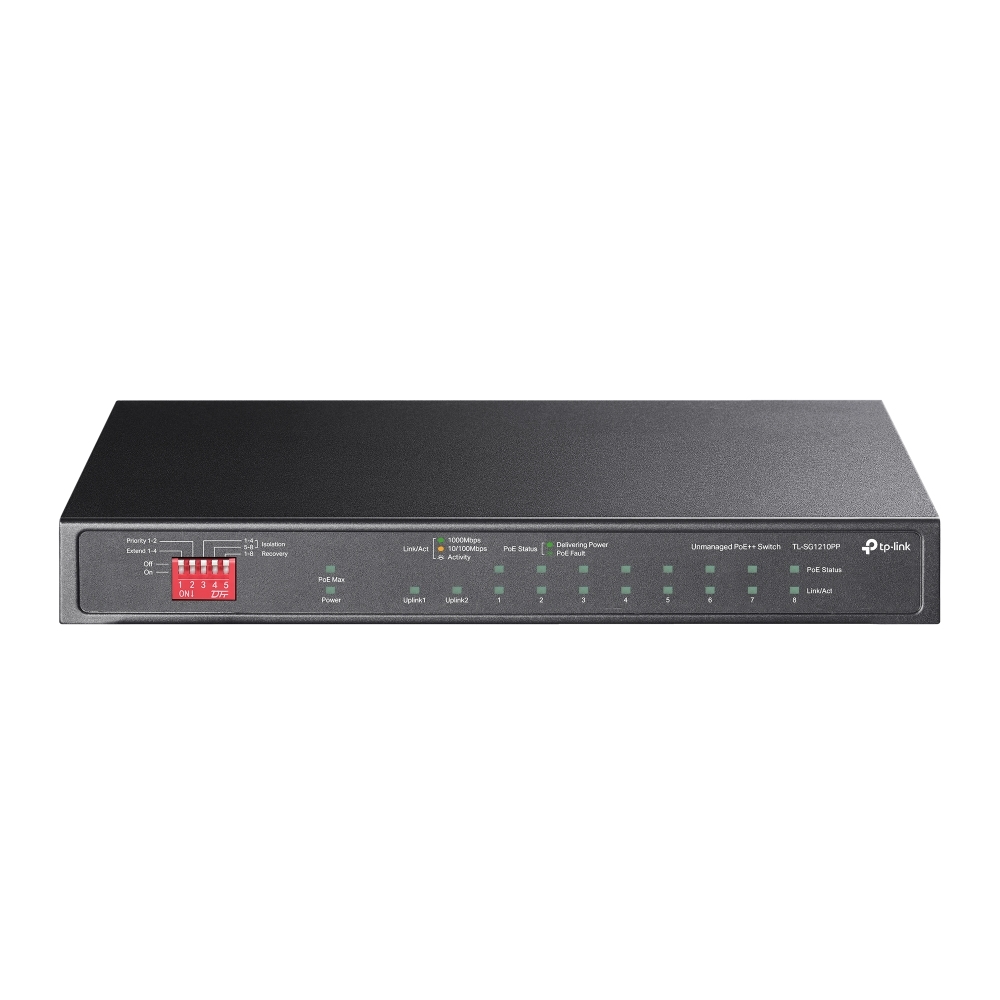

TP-Link TL-SG1210PP 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

SKU: 125194

  • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
  • With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*
  • Plug and Play, no configuration and installation required
  • Up to 250m data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
HARDWARE FEATURES
Interface • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) • Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at
• Power Supply: 123 W
Mac Address Table 4K
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm)
Max Power Consumption • 8.7 W (220/50 Hz. no PD connected)
• 144.1 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation • 29.67 BTU/h (220/50 Hz. no PD connected)
• 491.38 BTU/h (220/50 Hz. with 123 W PD connected)

SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)
• Isolation Mode (Ports 1-4/5-8)
• Priority Mode (Ports 1-2)
Transfer Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1210PP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing


(125194)

SKU 125194
Model # TL-SG1210PP
Barcode # 4895252500349
Brand TP-LINK
Shipping Weight 1.6000kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.320m
