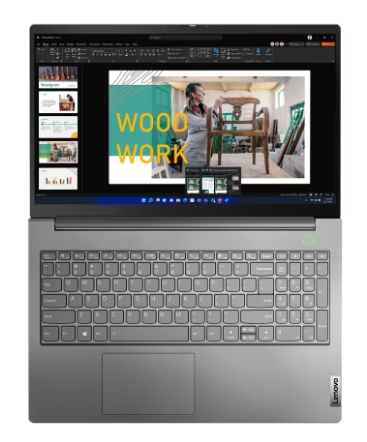

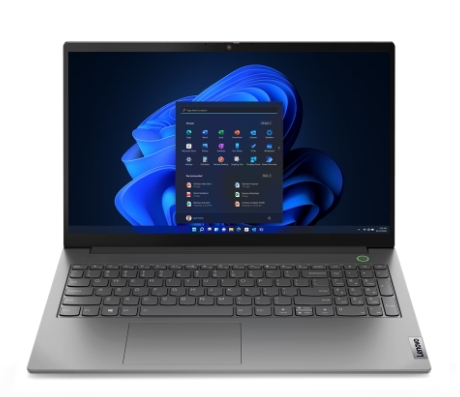

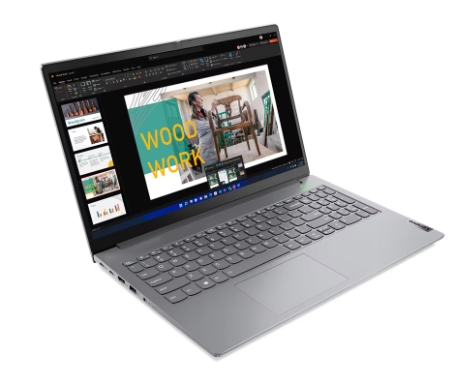

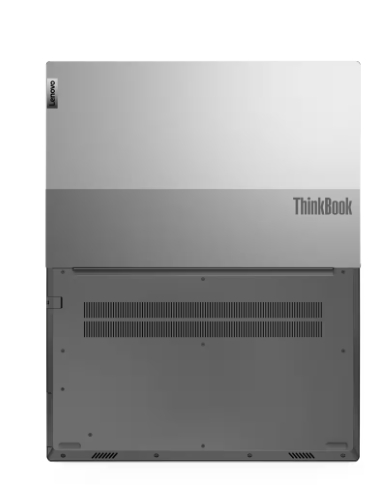

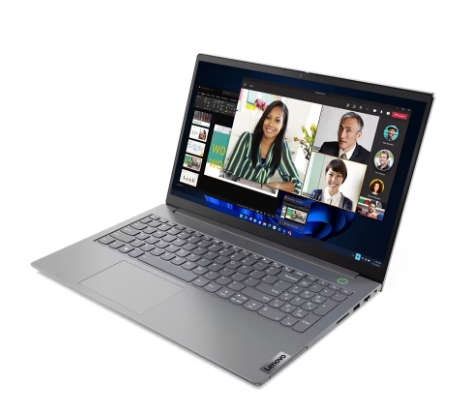

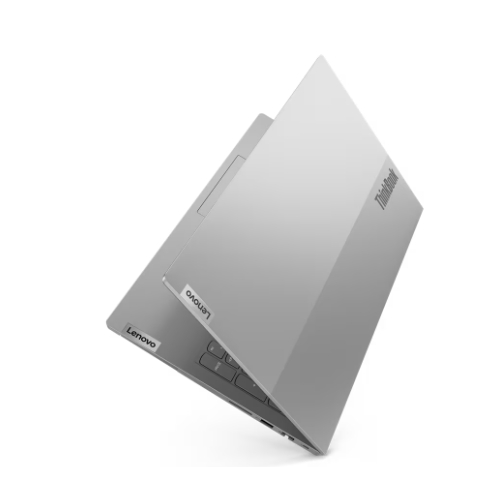

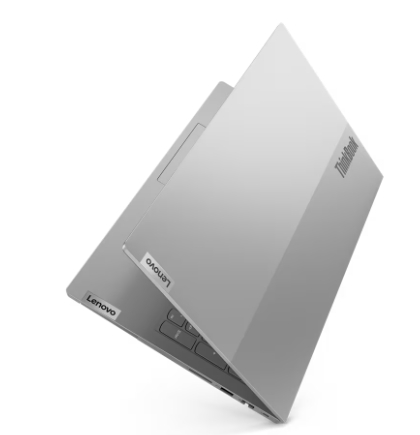

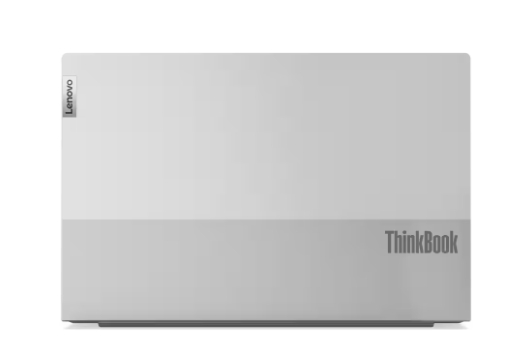

Lenovo ThinkBook 15 G5 21JD006MAU 15.6"FHD Core i7-1355U 16G 1TB SSD W11P 1YOS

SKU: 125060

PERFORMANCE
Processor
Intel® Core™ i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB
Graphics

Integrated Intel® Iris® Xe Graphics
Chipset
Intel® SoC Platform
Memory
8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200
Memory Slots
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory

Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-3200 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader
SD Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby® Audio™
Camera
FHD 1080p with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 45Wh
Power Adapter
65W USB-C® (3-pin)
DESIGN

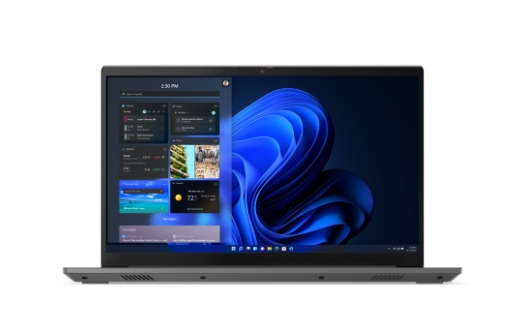

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 45% NTSC
Touchscreen
None
Keyboard
Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 70 x 105 mm (2.76 x 4.13 inches)
Case Color
Mineral Grey
Surface Treatment
Anodizing Sandblasting
Case Material
Aluminium (Top), PC-ABS (Bottom)
Dimensions (WxDxH)

357 x 235 x 18.9 mm (14.1 x 9.25 x 0.74 inches)
Weight

Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
Office Trial
CONNECTIVITY
Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth

Wi-Fi® 6E, 11ax 2x2 + BT5.3

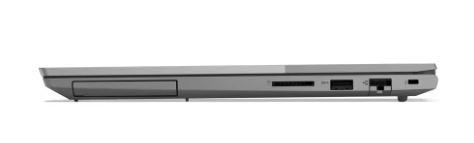

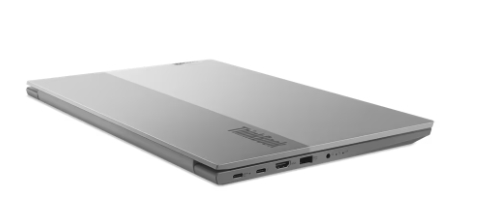

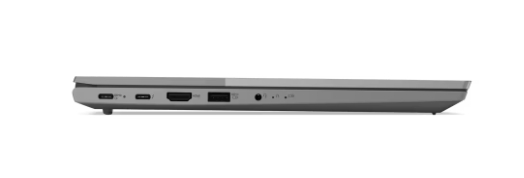

Standard Ports
1x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook 15 G5 IRL
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Integrated in Power Button
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security
Camera privacy shutter
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories

None
CERTIFICATIONS
Green Certifications

ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 6
ErP Lot 26
RoHS compliant
Other Certifications
TÜV Rheinland® Low Blue Light (Software Solution)
Mil-Spec Test
MIL-STD-810H military test passed

(125060)

SKU 125060
Model # 21JD006MAU
Barcode # 197528656069
Brand LENOVO
Shipping Weight 2.6200kg
Shipping Width 0.310m
Shipping Height 0.080m
Shipping Length 0.500m
