Simplecom SE530 NVMe / SATA M.2 SSD to USB-C Enclosure with SMART LED Screen USB 3.2 Gen 2 10Gbps

• Built-in smart LED screen to display all crucial information of the SSD
• Check the SSD status instantly without connecting to a computer
• Real-time monitoring of SMART information for SSD health status
• Touch button to switch display between info pages
• Dual Protocol support for both NVMe and SATA M.2 SSD
• USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
• Aluminium case for durability and excellent heat dissipation
• Tool-free design, quick and easy installation of SSDs without any tools
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life

Simplecom SE530 NVMe / SATA M.2 SSD to USB-C Enclosure with SMART LED Screen USB 3.2 Gen 2 10Gbps

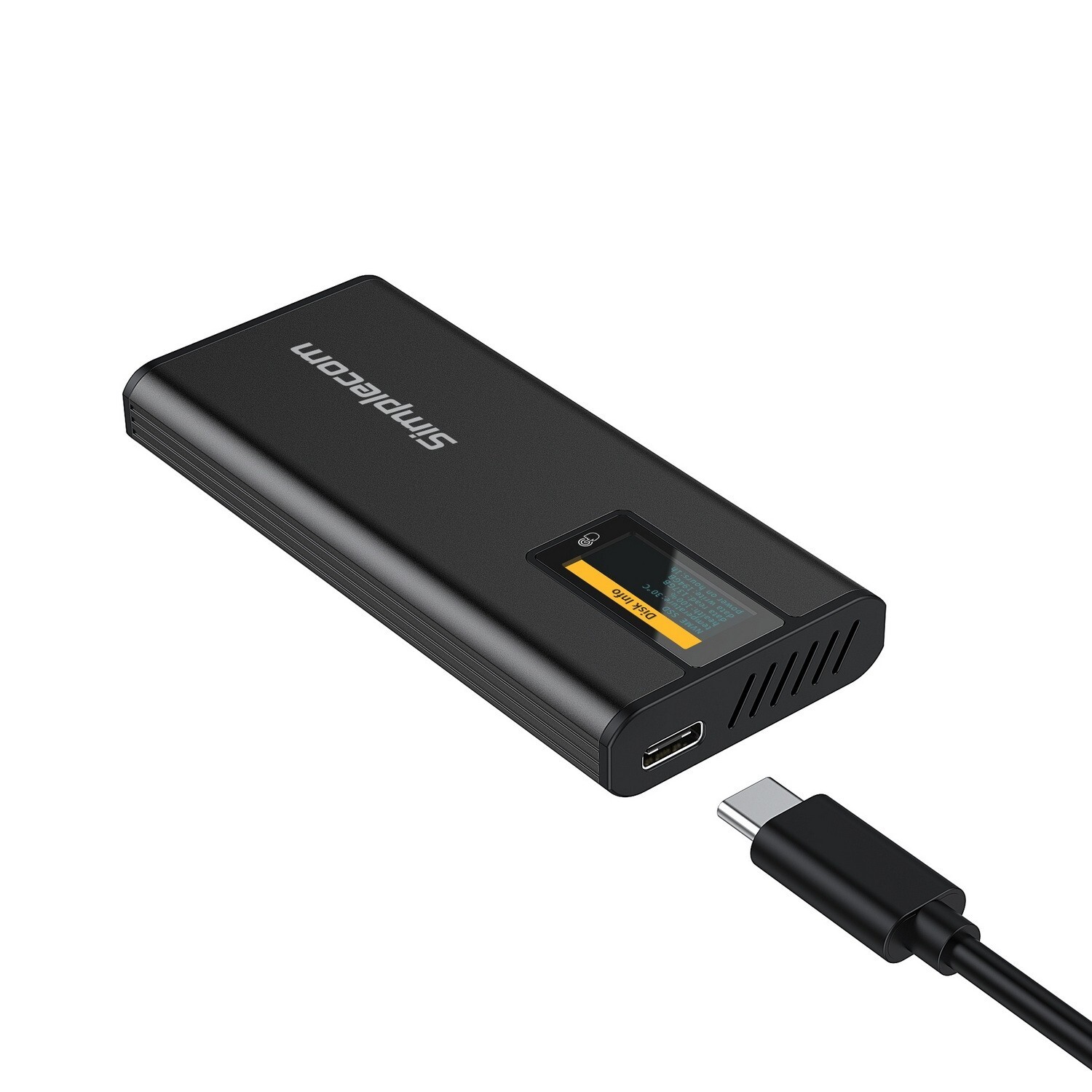

SE530 is a portable M.2 SSD enclosure with visual smart screen that can display the status of the M.2 SSD. This elegant design features an innovative LED screen to monitor your SSD status in real-time, with a touch buttons and user-friendly interface. You can view and check the SSD status instantly without connecting to a computer.

It can detect and display all crucial information of your SSD, such as link speed, capacity, partition type and detail. You can also monitor the S.M.A.R.T. information on the screen, and check the health status of the M.2 SSD, such as temperature, remaining lifetime, power cycles and more. All SSD information can be viewed on screen with a touch button to switch display between info pages.

This enclosure supports both NVMe and SATA protocol-based M.2 SSDs, and allows tool-free installation of M.2 SSDs in just a few seconds. Faster file backup and transfer with USB 3.2 Gen 2 interface, supports data transfer speed up to 10Gbps, to ensure quick access to files and save time.

This enclosure features aluminium housing for better heat dissipation. It's compact and portable, so you can easily put the enclosure into your pocket or laptop bag.

Features

• Built-in smart LED screen to display all crucial information of the SSD
• Check the SSD status instantly without connecting to a computer
• Real-time monitoring of SMART information for SSD health status
• Touch button to switch display between info pages
• Dual Protocol support for both NVMe and SATA M.2 SSD
• USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
• Aluminium case for durability and excellent heat dissipation
• Tool-free design, quick and easy installation of SSDs without any tools
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• Plug and play, no additional drivers required

Specifications

• Model: SE530
• Interface: USB-C (USB 3.2 Gen 2)
• Housing Material: Aluminium, ABS Plastic
• Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
• Compatible M.2 Protocol: NVMe M.2, SATA M.2
• Compatible M.2 Size: 2242, 2260, 2280

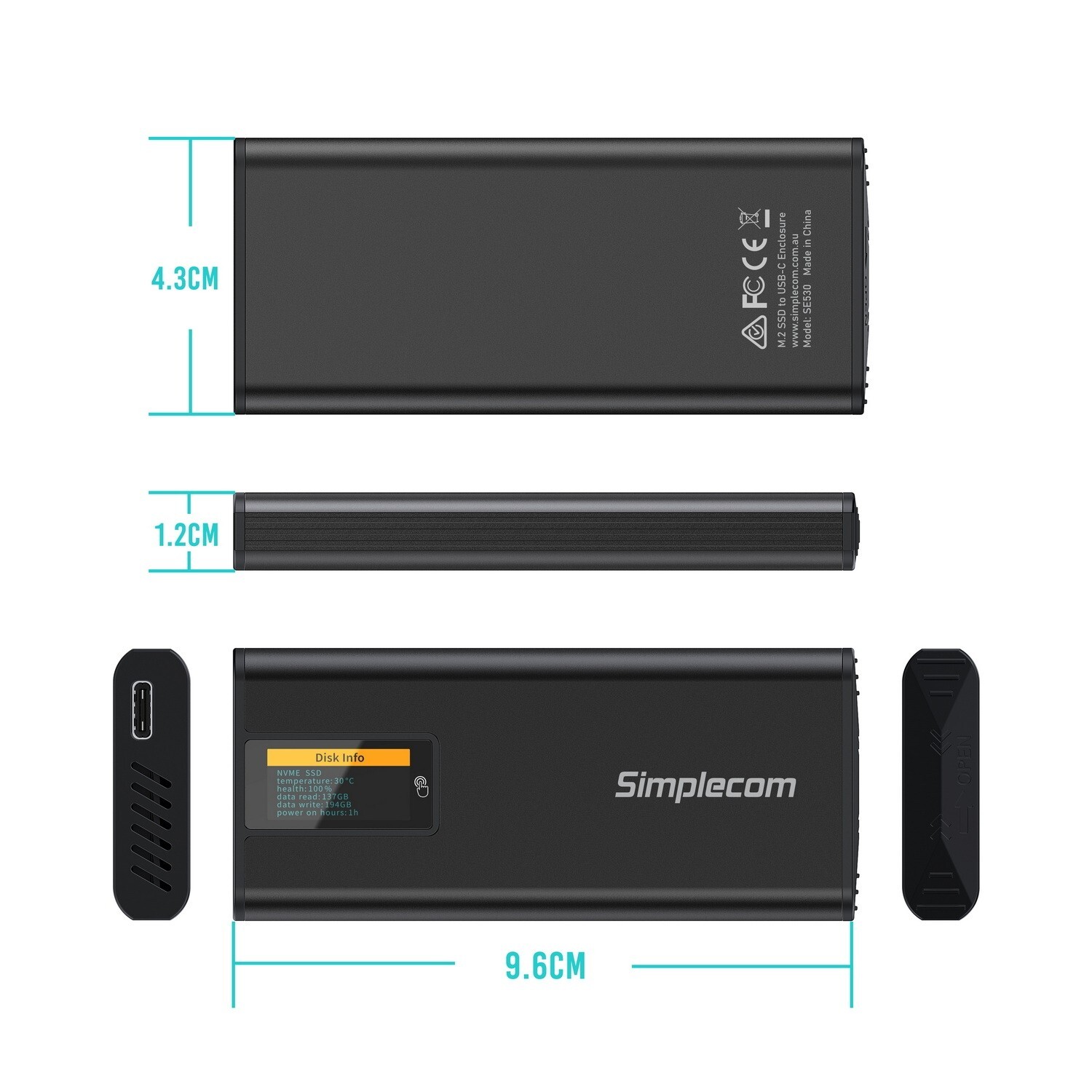

• Dimension: 96x43x12mm (LxWxH)
• Operating System Support: Windows 7 and above, MacOS 10.8 and above

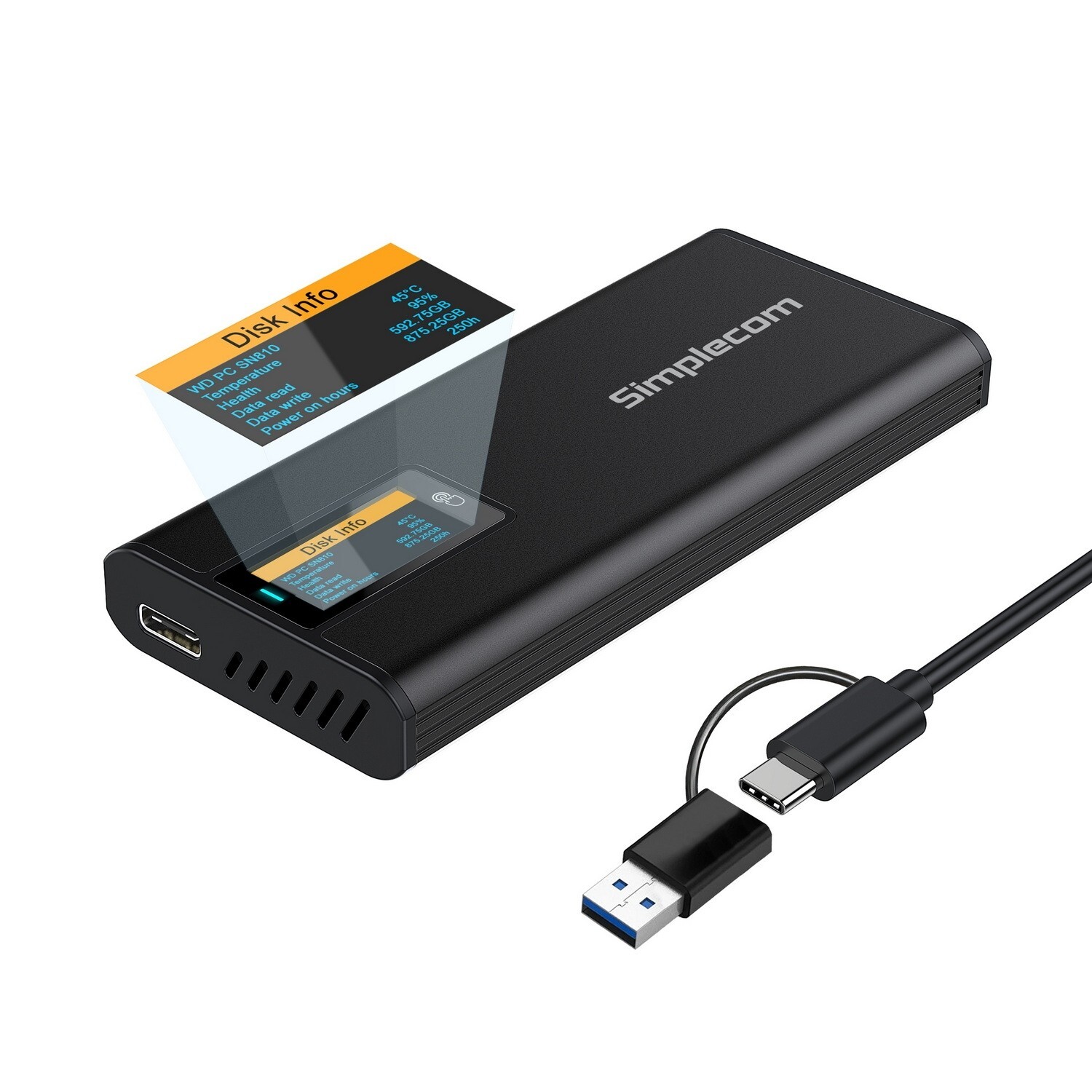

• LED Screen Information:
  Read/Write/Sleep status
  SSD type and capacity
  USB link speed
  Partition detail and type
  Temperature
  Health percentage
  Data read/written size
  Power on hours
  Power cycles
  Unsafe shutdown times

Package Contents

• 1x SE530 M.2 SSD Enclosure
• 1x USB-C + USB-A combo cable

Important Note

• SE530 supports both NVMe and SATA protocol based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps
