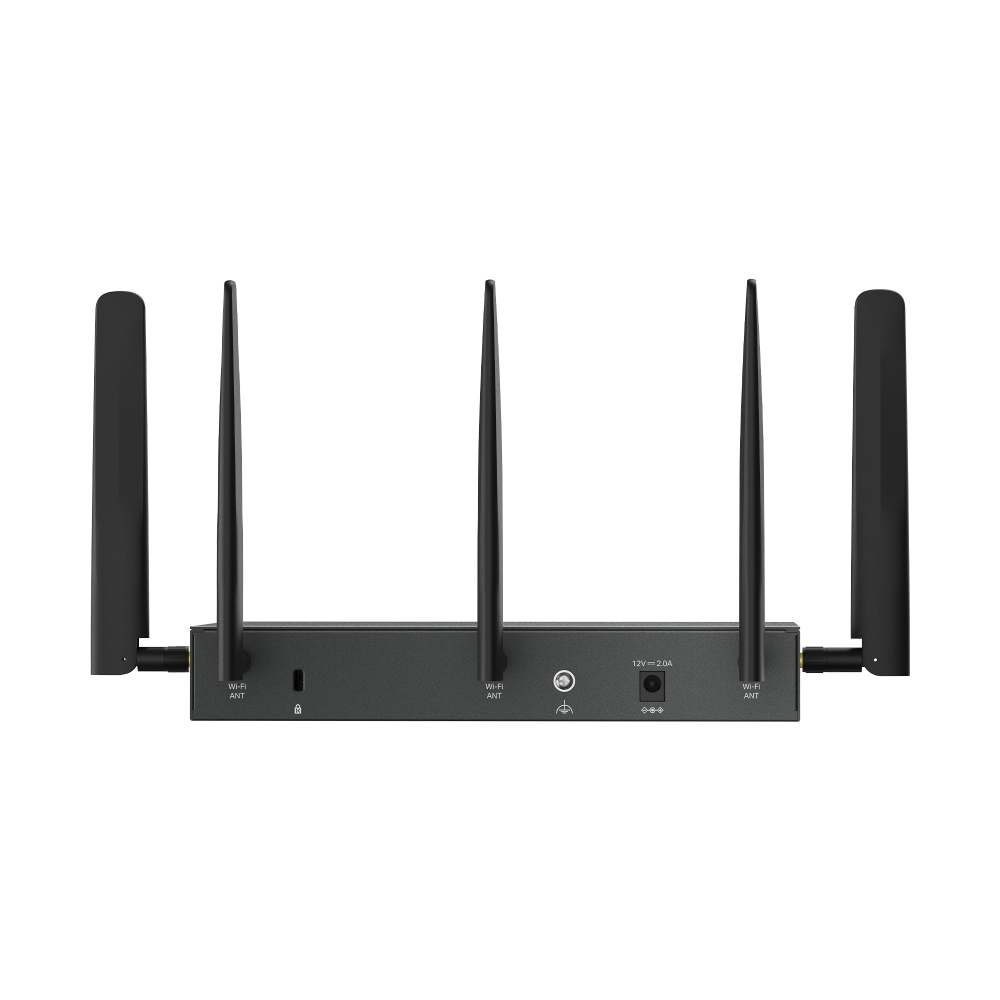

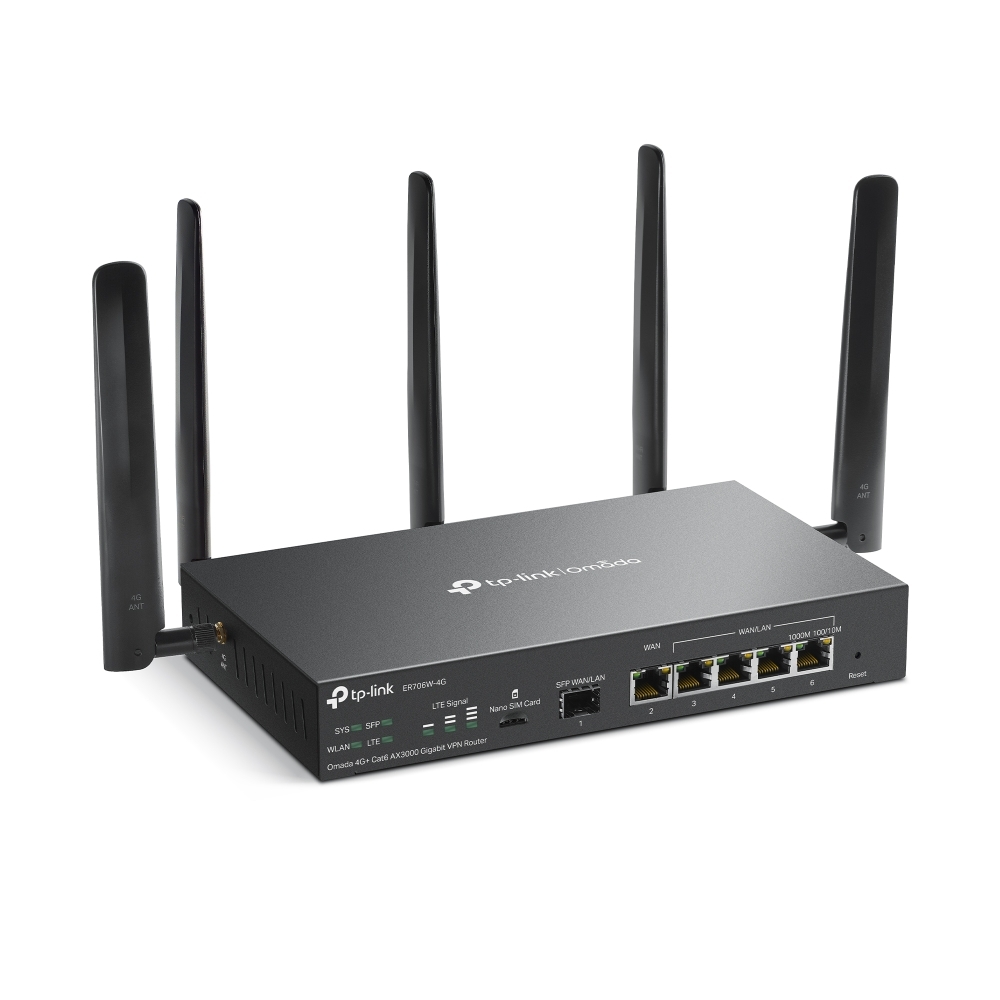

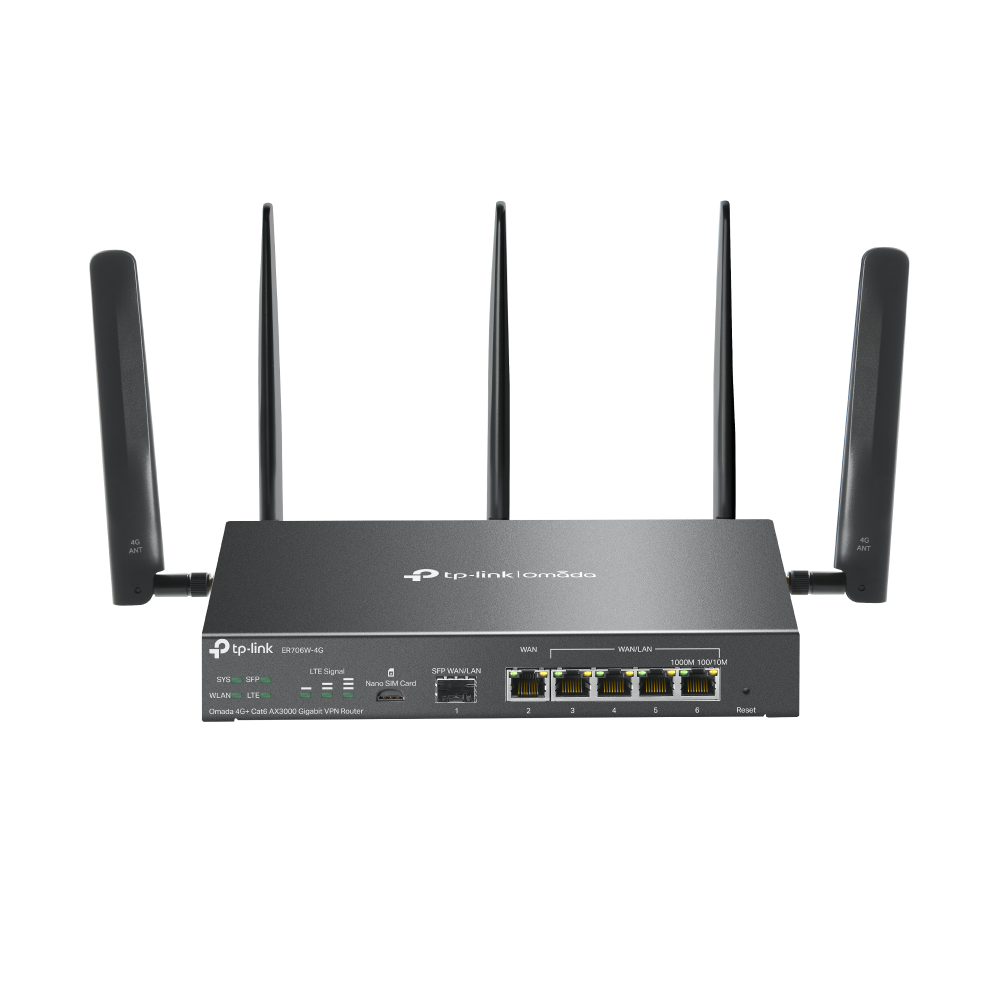

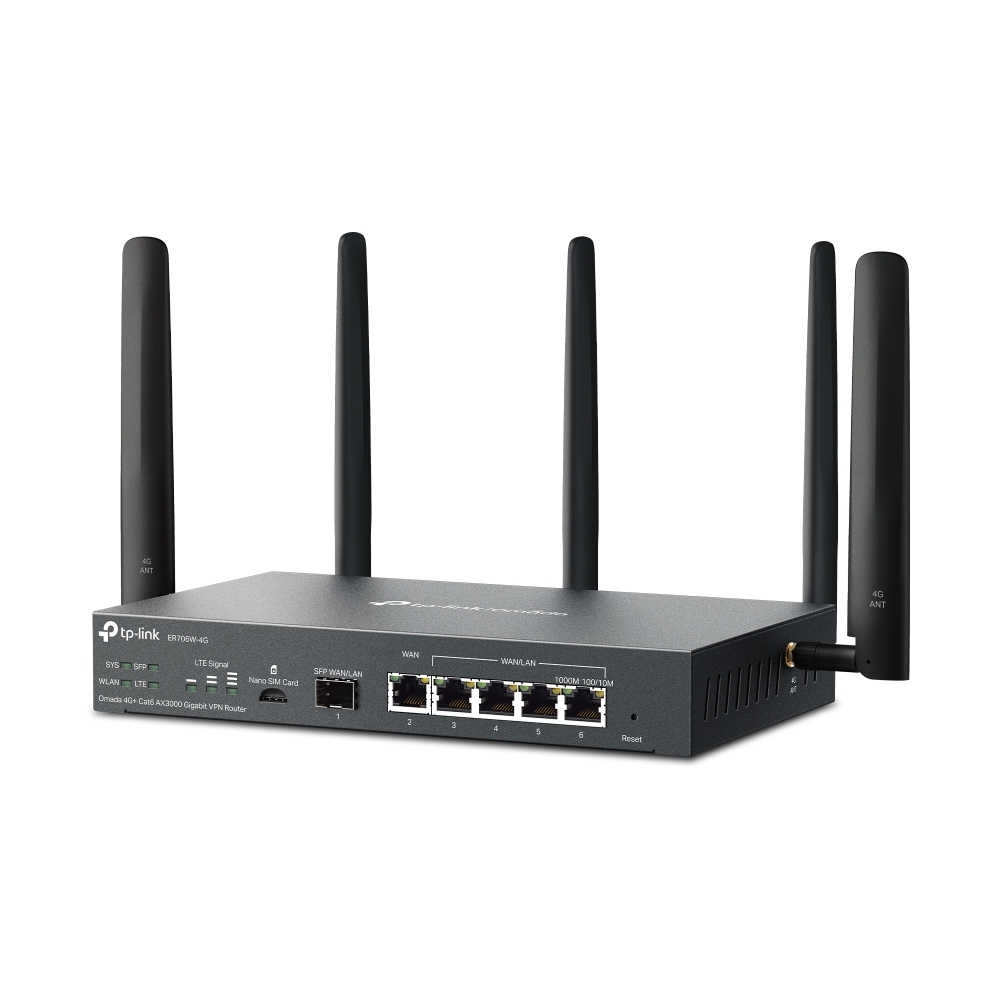

TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router
SKU: 124709
TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router
SKU: 124709
$399.00
0
Sold Out
- Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.**
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
- 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralized Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*△
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.△
(124709)
| 4G | |
| Network Type | LTE Band of EU: |
| • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) | |
| • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) | |
| • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 | |
| (2100/1800/850/900 MHz) | |
| Carrier Aggregation: | |
| B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 | |
| B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 | |
| B5+B5/B7/B38/B40/B41 | |
| B7+B7/B8/B20/B28/B32 | |
| B8+B32/B38/B40/B41 | |
| B20+B32/B38/B40 | |
| B28+B32/B38/B40/B41 | |
| B38+B38 | |
| B40+B40 | |
| B41+B41 | |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps; |
| • Uplink: 50 Mbps | |
|
SECURITY
|
|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† |
| • URL Filtering | |
| • Web Security† | |
| ARP Inspection | • Sending GARP Packets |
| • ARP Scanning† | |
| • IP-MAC Binding | |
| Attack Defense | • TCP/UDP/ICMP Flood Defense |
| • Block TCP Scan (Stealth FIN/Xmas/Null) | |
| • Block Ping from WAN | |
|
HARDWARE FEATURES
|
|
| Interface | • 1 Gigabit SFP WAN/LAN Port |
| • 1 Gigabit WAN Port | |
| • 4 Gigabit LAN/WAN Ports | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) | |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps |
| • 5 GHz: 2402 Mbps (HE160) | |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not |
| included) | |
| Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas |
| • LTE: Two 4.0dBi omnidirectional detachable antennas | |
| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 17.3W |
|
PERFORMANCE
|
|
| GRE | • Unencrypted: 545.3Mbps |
| • Encrypted: 282.6Mbps | |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
| NAT(DHCP) | 949.2Mbps / 941.1Mbps |
| NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps |
| • ESP-SHA256-AES256: 654.4Mbps | |
| • ESP-SHA384-AES256: 646.5Mbps | |
| • ESP-SHA512-AES256: 670.5 Mbps | |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0Mbps |
| • Encrypted: 475.0Mbps | |
| PPTP VPN Throughput | • Unencrypted: 1177.9Mbps |
| • Encrypted: 177.4Mbps | |
| SSL VPN Throughput | 122.5Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
|
WIRELESS FEATURES
|
|
| Advanced Functions | • Seamless Roaming |
| • Mesh (with EAP that supports Mesh) | |
| • OFDMA | |
| • Beamforming | |
| • MU-MIMO | |
| • Rate Limit: Based on SSID/Client | |
| • Airtime Fairness | |
| • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise | |
| • Multiple SSIDs: 16 in total (8 per radio) | |
| Guest Network | Support |
|
BASIC FUNCTIONS
|
|
| WAN Connection Type | • Static IP |
| • Dynamic IP | |
| • PPPoE (supports MRU Configuration) | |
| • PPTP | |
| • L2TP | |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server |
| • DHCPv6 PD Server (only in Standalone Mode) | |
| • DHCP Options Customization | |
| • DHCP Address Reservation | |
| • Multi-IP Interfaces | |
| • Multi-Net DHCP | |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
|
ADVANCED FUNCTIONS
|
|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing |
| • Policy Routing | |
| • RIP† | |
| • OSPF† | |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance |
| • Application Optimized Routing | |
| • Link Backup(Timing, Failover) | |
| • Online Detection | |
| NAT | • One-to-One NAT |
| • Multi-Net NAT | |
| • Virtual Server | |
| • Port Triggering† | |
| • NAT-DMZ | |
| • FTP/H.323/SIP/IPSec/PPTP ALG | |
| • UPnP | |
| Session Limit | IP-Based Session Limit |
|
VPN
|
|
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels |
| • LAN-to-LAN, Client-to-LAN | |
| • Main, Aggressive Negotiation Mode | |
| • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm | |
| • IPsec Failover | |
| • IKE v1/v2 | |
| • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm | |
| • NAT Traversal (NAT-T) | |
| • Dead Peer Detection (DPD) | |
| • Perfect Forward Secrecy (PFS) | |
| PPTP VPN | • PPTP VPN Server |
| • PPTP VPN Client (10)△ | |
| • 50 Tunnels | |
| • PPTP with MPPE Encryption | |
| L2TP VPN | • L2TP VPN Server |
| • L2TP VPN Client (10)△ | |
| • 50 Tunnels | |
| • L2TP over IPSec | |
| OpenVPN | • OpenVPN Server |
| • OpenVPN Client (5)△ | |
| • 55 OpenVPN Tunnels | |
| • "Certificate + Account" Mode | |
| • Full Mode | |
|
AUTHENTICATION
|
|
| Web Authentication | • No Authentication |
| • Simple Password§ | |
| • Hotspot (Local User / Voucher§ / SMS§ / Radius§) | |
| • External Radius Sever | |
| • External Portal Sever§ | |
| • LDAP | |
|
MANAGEMENT
|
|
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface |
| • Remote Management | |
| • Export & Import Configuration | |
| • SNMP v1/v2c/v3 | |
| • Diagnostics (Ping & Traceroute)† | |
| • NTP Synchronize† | |
| • Port Mirroring | |
| • CLI (only in Standalone Mode) | |
| • Syslog Support | |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| • Captive Portal Configuration | |
|
OTHERS
|
|
| Certification | CE, FCC, RoHS |
| Package Contents | • ER706W-4G |
| • Power Adapter | |
| • Quick Installation Guide | |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 |
| • MAC OS, NetWare, UNIX or Linux | |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) | |
| • Operating Humidity: 10% to 90% non-condensing | |
| • Storage Humidity: 5% to 90% non-condensing | |
| SKU | 124709 |
| Model # | ER706W-4G |
| Barcode # | 4895252500714 |
| Brand | TP-LINK |
| Shipping Weight | 1.6100kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.080m |
| Shipping Length | 0.370m |
