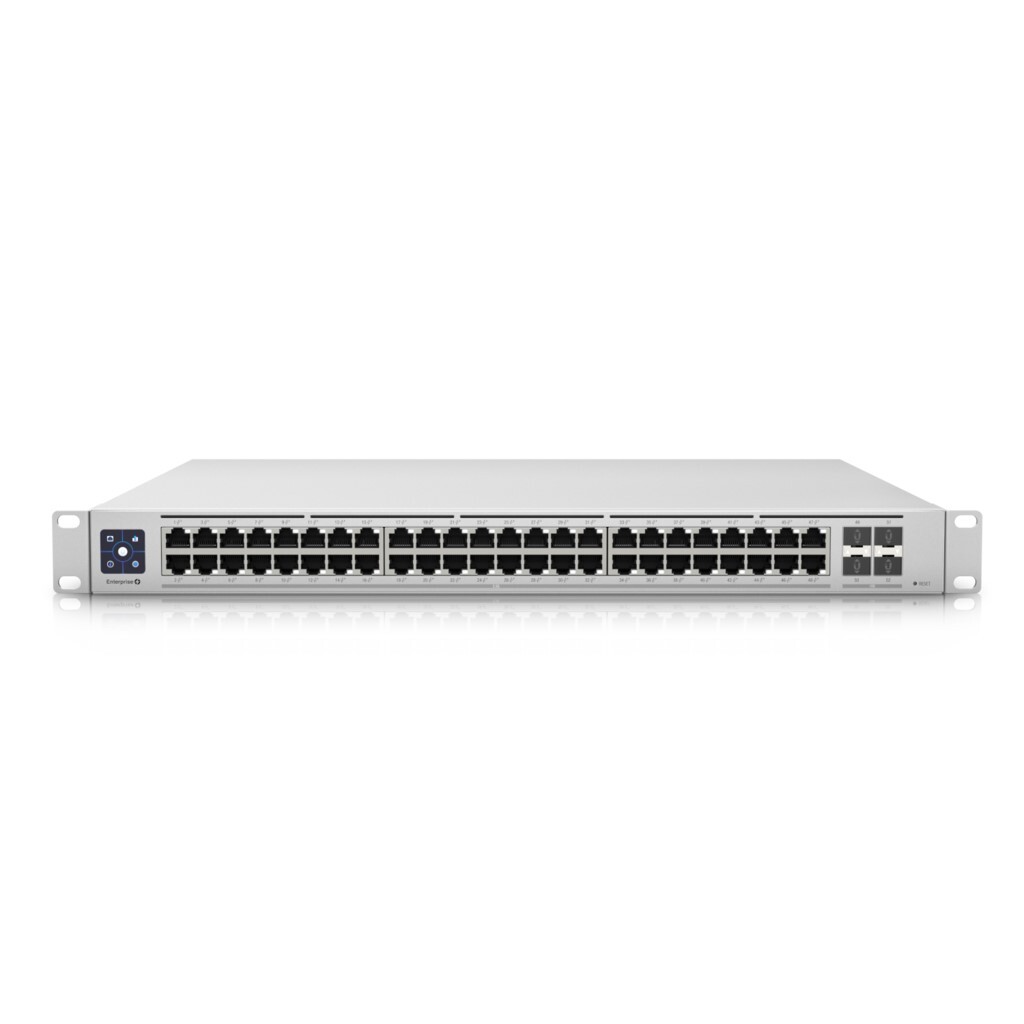

Ubiquiti Switch Enterprise 48-port PoE+ 48x2.5GbE Ports, Ideal For Wi-Fi 6 AP, 4x 10g SFP+ Ports For Uplinks, Managed Layer 3 Switch (720W)

SKU: 124594

DESCRIPTION

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Features:
(48) 2.5 GbE PoE+ ports

(4) 10G SFP+ ports

720W total PoE availability

DC power backup-ready

Layer 3 switching

(124594)

Mechanical
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
Weight Without mounting brackets: 6.2 kg (13.67 lb)
With mounting brackets: 6.3 kg (13.89 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) 2.5 GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 160 Gbps
Switching capacity 320 Gbps
Forwarding rate 238.095 Mpps
Power method (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply AC/DC, internal, 100—240V, 10A Max.
Supported voltage range 100—240V AC
Max. power consumption 150W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE+: 34.2W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE Switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 6.2.26 and later
SKU 124594
Barcode # 810010074867
Brand UBIQUITI
Shipping Weight 8.2600kg
Shipping Width 0.520m
Shipping Height 0.120m
Shipping Length 0.540m

DESCRIPTION

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Features:
(48) 2.5 GbE PoE+ ports

(4) 10G SFP+ ports

720W total PoE availability

DC power backup-ready

Layer 3 switching

Mechanical
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
Weight Without mounting brackets: 6.2 kg (13.67 lb)
With mounting brackets: 6.3 kg (13.89 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) 2.5 GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 160 Gbps
Switching capacity 320 Gbps
Forwarding rate 238.095 Mpps
Power method (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply AC/DC, internal, 100—240V, 10A Max.
Supported voltage range 100—240V AC
Max. power consumption 150W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE+: 34.2W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE Switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 6.2.26 and later
SKU 124594
Barcode # 810010074867
Brand UBIQUITI
