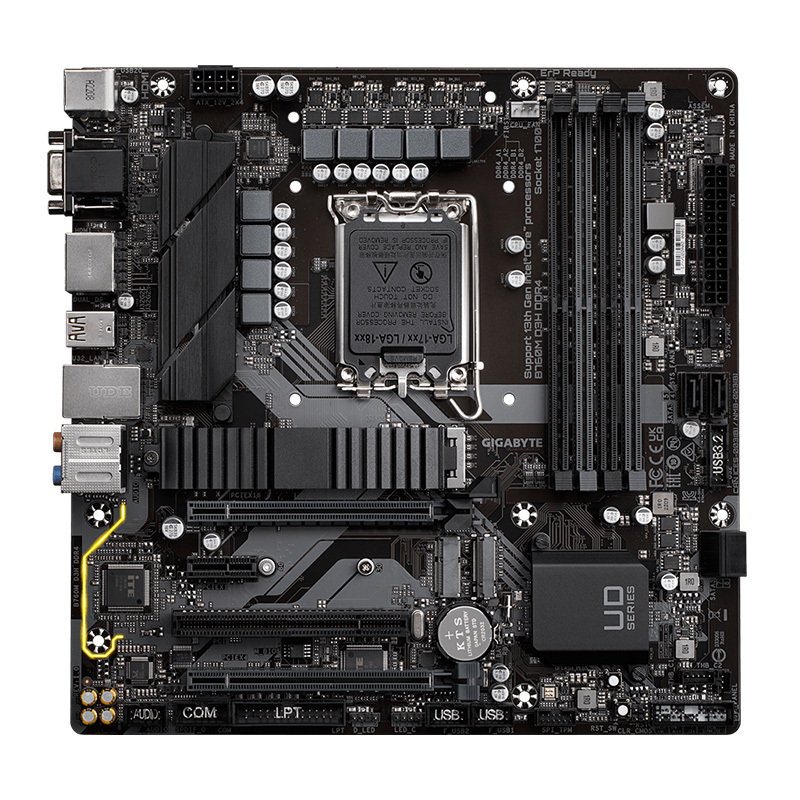

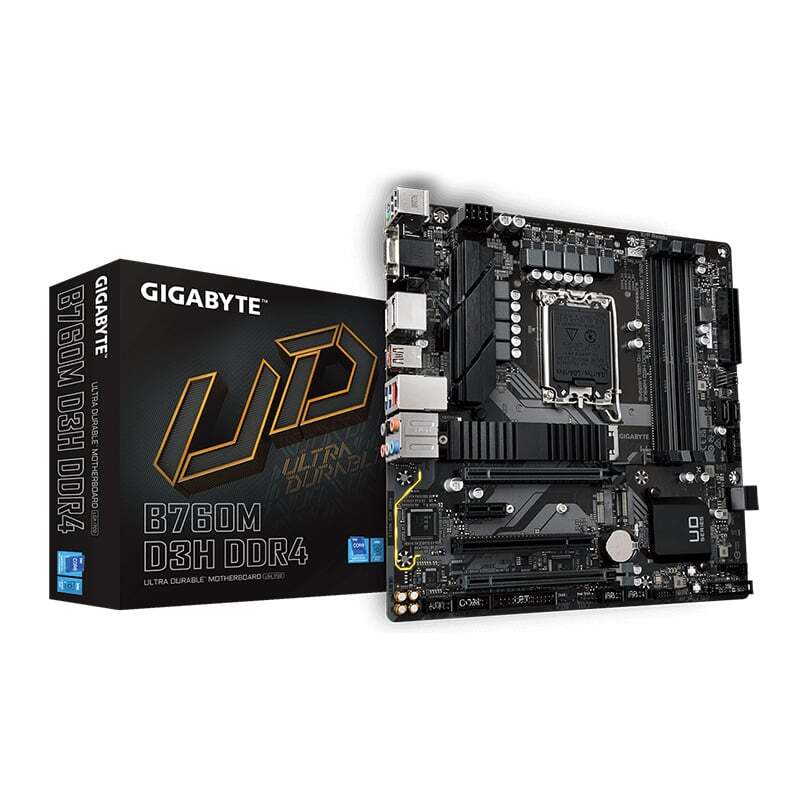

Gigabyte B760M Ultra Durable D3H DDR4 mATX Motherboard

· Intel Socket LGA 1700

· Unparalleled Performance

· Dual Channel DDR4

· Next Generation Storage

· EZ-Latch

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices.

Performance

1 -  8 Solid Pin CPU Power Connector

2 - Full PCIe 4.0 Design
1x PCIe 4.0 x16 slot
2x PCIe 4.0 x4 M.2 Connectors

3 - Audio Solution
8-ch HD Audio
Audio Noise Guard
High-End Audio Capacitors

4 - 6+2+1 Hybrid Digital VRM Design

5 - Support 13th and 12th Gen. Intel Core Processors

6 - Dual Channel DDR4, 4 DIMMs

7 - PCIe EZ-Latch

---

Unparalleled Performance

6+2+1 Phases Hybrid Digital VRM Design

- 6+2+1 Phases Low RDS(on) MOSFETs

- Premium Choke and Capacitors to improve transient response and minimise oscillation

---

Thermal

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

---

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

First adopter on 2.5GbE LAN onboard

- 2X Faster than ever

- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.

- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

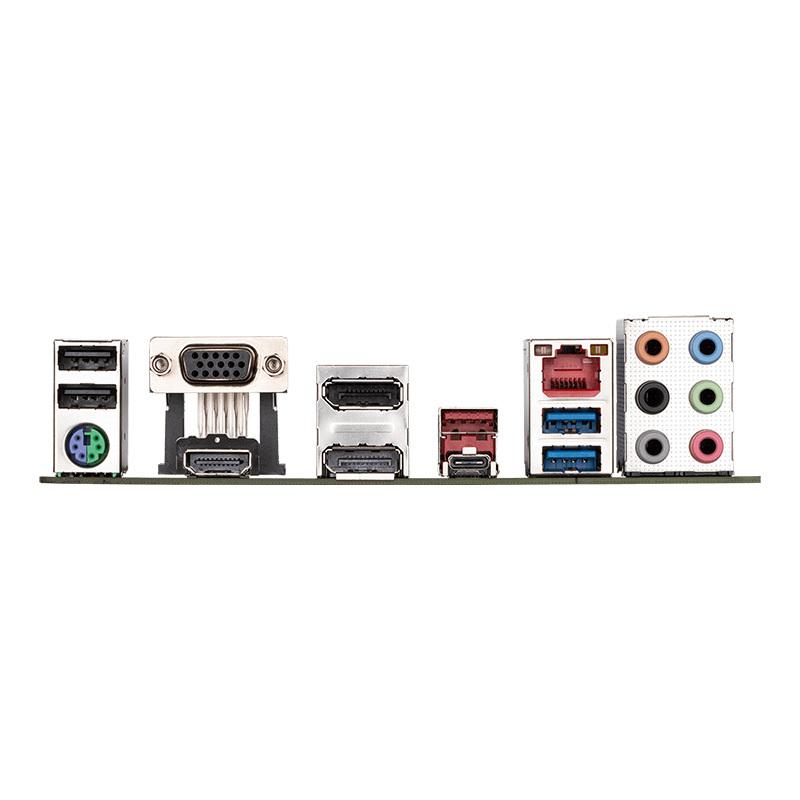

Rear USB-C 10Gb/s

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backward compatibility with USB 2.0 and USB 3.2 Gen1, the much-improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

---

Personalisation

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customisable lighting effect with outstanding aesthetics to fit your unique personality.

---

Ultra Durable

GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

---
