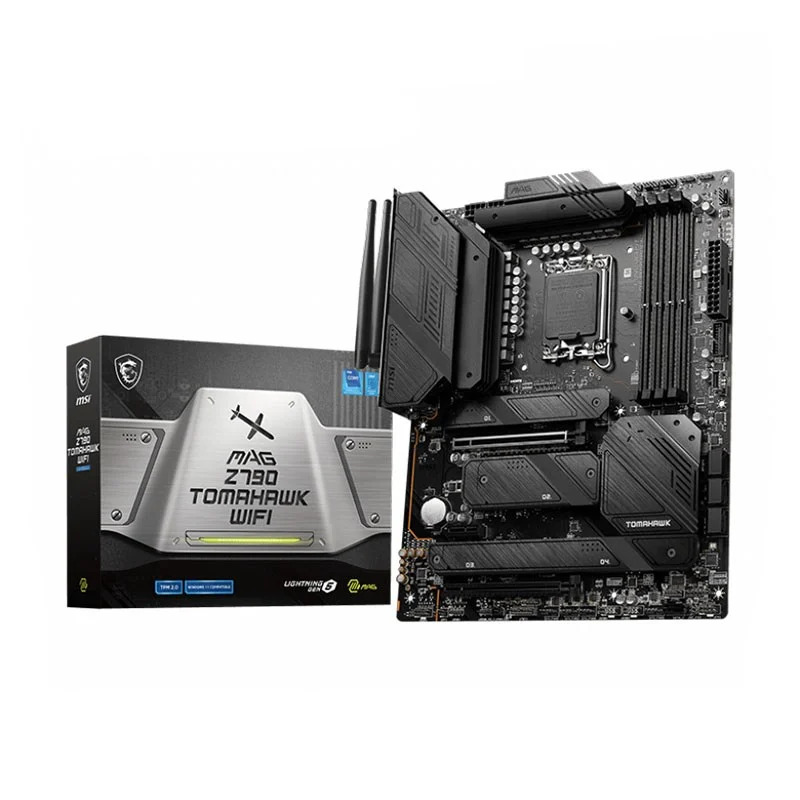

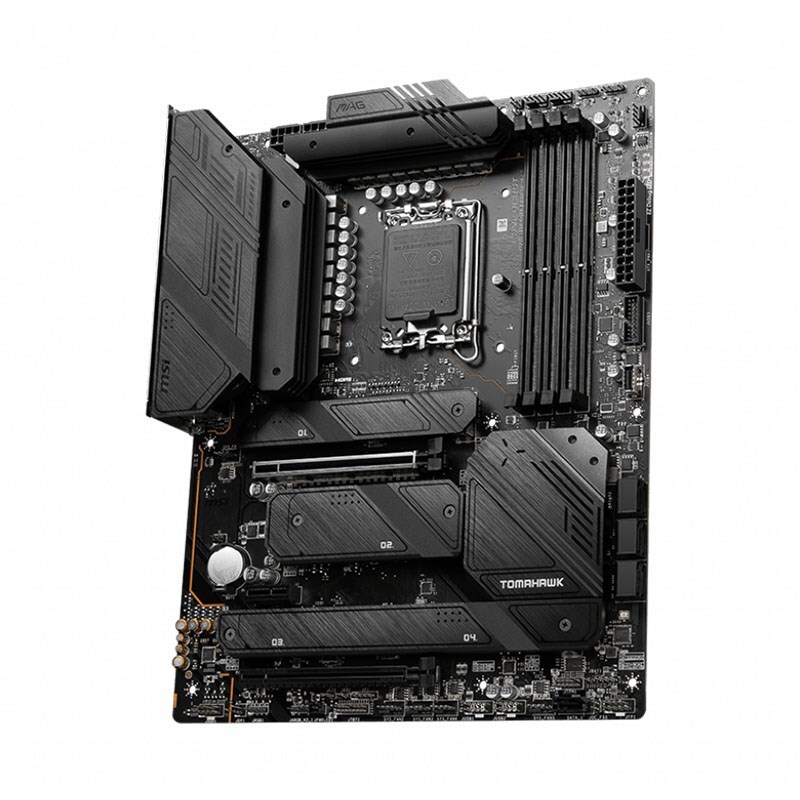

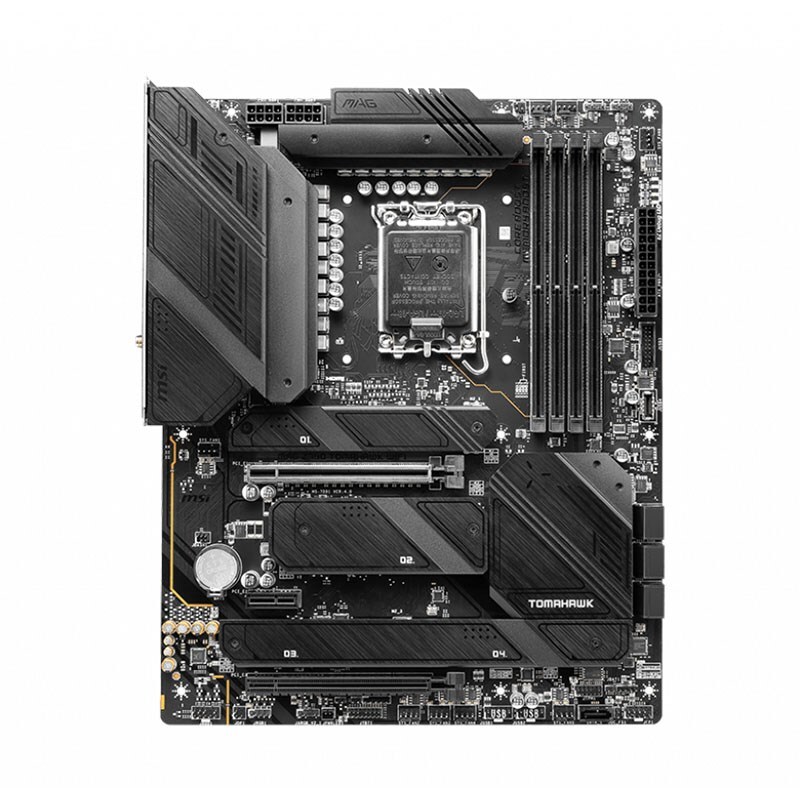

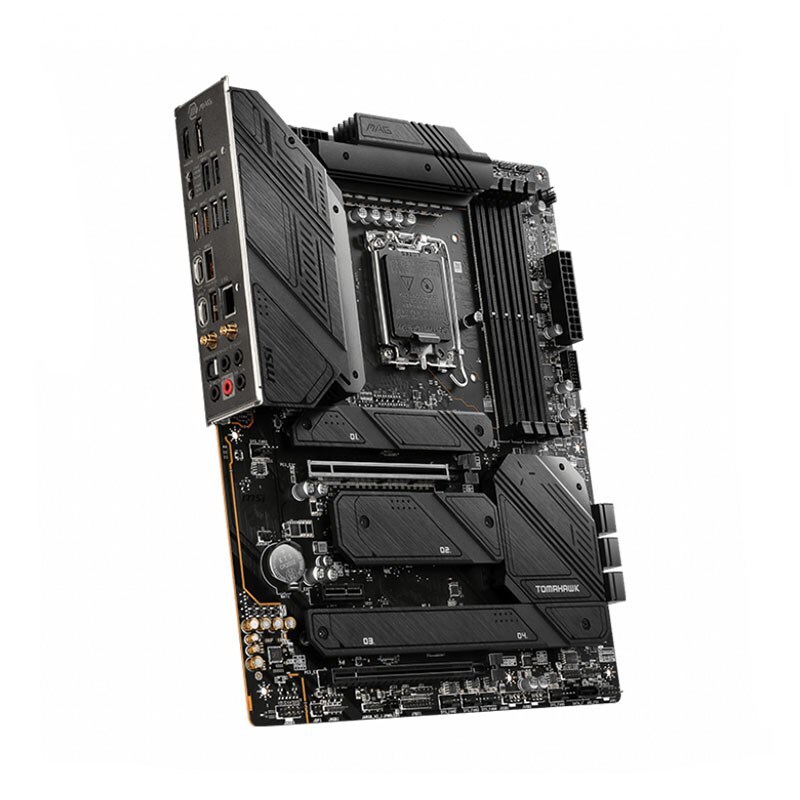

MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard

· Supports 12th/ 13th Gen Intel Core

· Supports DDR5 Memory, up to 7200+ (OC) MHz

· Enhanced Power Design

· Lightning Fast Game Experience

· Premium Thermal Solution

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MAG UNITE AS ONE

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

---

COOLING OVERVIEW

1 - Extended Heatsink: Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

2 - M.2 Shield Frozr: Keeps M.2 SSDs safe while preventing throttling, making them run faster.

3 - Heavy Plated VRM Heatsink: The VRM heatsink covers the upperMOS and helps dissipate the heat.

4 - 7W/mK Thermal Pad &Additional Choke Pad: High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

---

POWER SOLUTION

16+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MAG Z790 TOMAHAWK WIFI DDR4 is ready for the challenge of high-end processors.

DOUBLE POWER CONNECTORS

Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

DIGITAL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

CORE BOOST

Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

---

MSI DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.

---

SYSTEM SAVER

Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.

Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.

---

EXPANSION

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOUR

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

---

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MEG X670E ACE is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

---

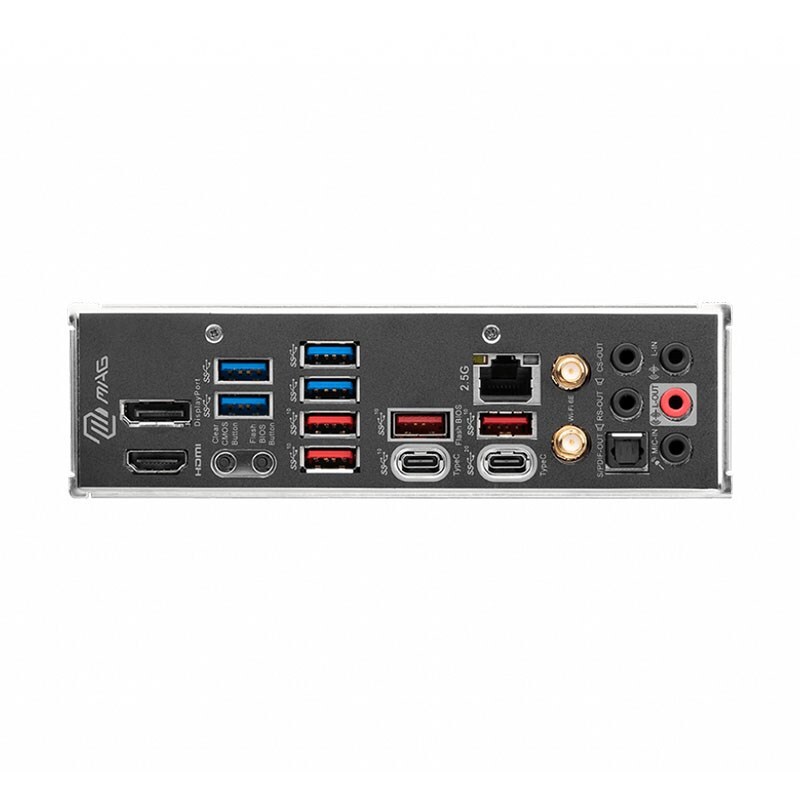

CONNECTIVITY

NETWORKING

- WiFi 6E
- Bluetooth 5.2
- 2.5G LAN

---
