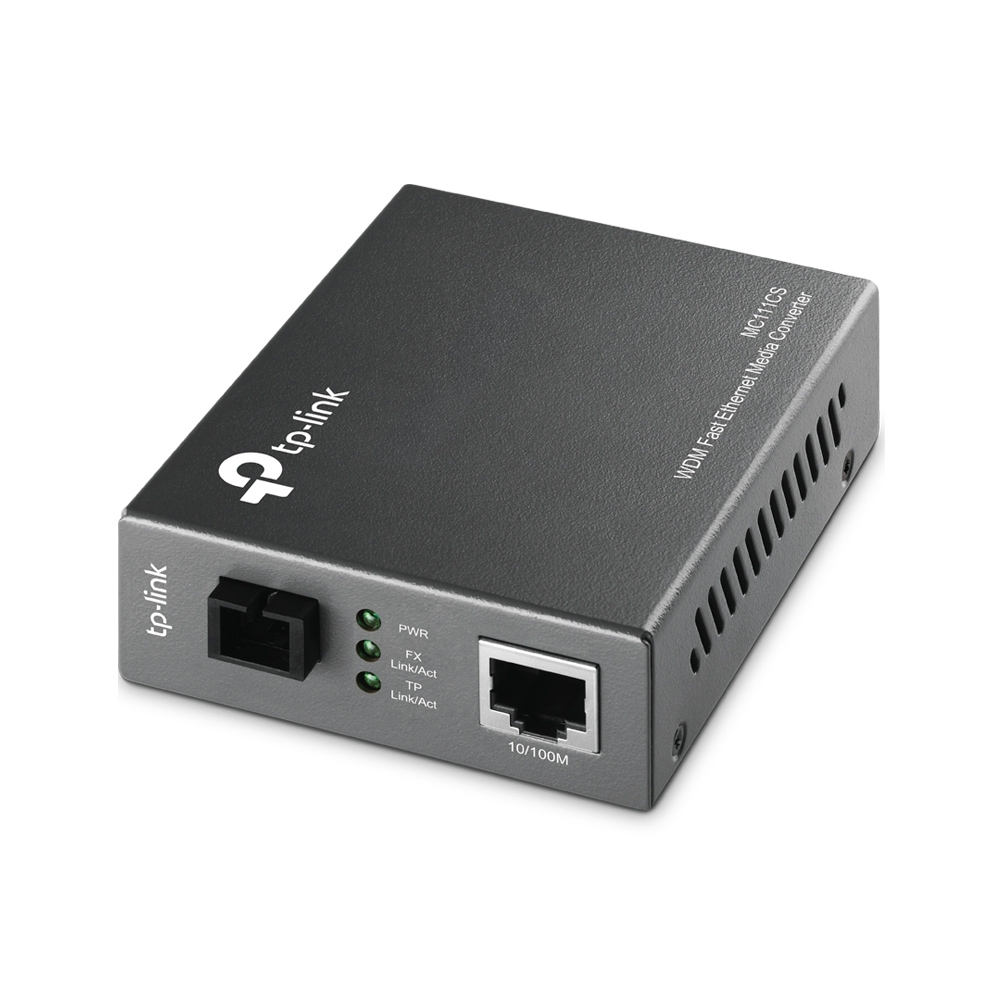

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-Link´s media converter MC112CS is just one of the examples to cooperate with MC111CS.
Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
(122669)
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | Adopts WDM technology |
| Half/Full-Duplex transfer mode for FX port | |
| Extends fiber distance up to 20km | |
| Ports | 1 100M SC/UPC port |
| 1 10/100M RJ45 port (Auto MDI/MDIX) | |
| Wave Length | 1550nm Tx/1310nm Rx |
| WDM TX | 1550nm |
| WDM RX | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.23W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC111CS |
| • Power Adapter | |
| • Installation Guide | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| SKU | 122669 |
| Model # | MC111CS |
| Barcode # | 6935364030414 |
| Brand | TP-LINK |
| Shipping Weight | 0.4700kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.070m |
| Shipping Length | 0.200m |
