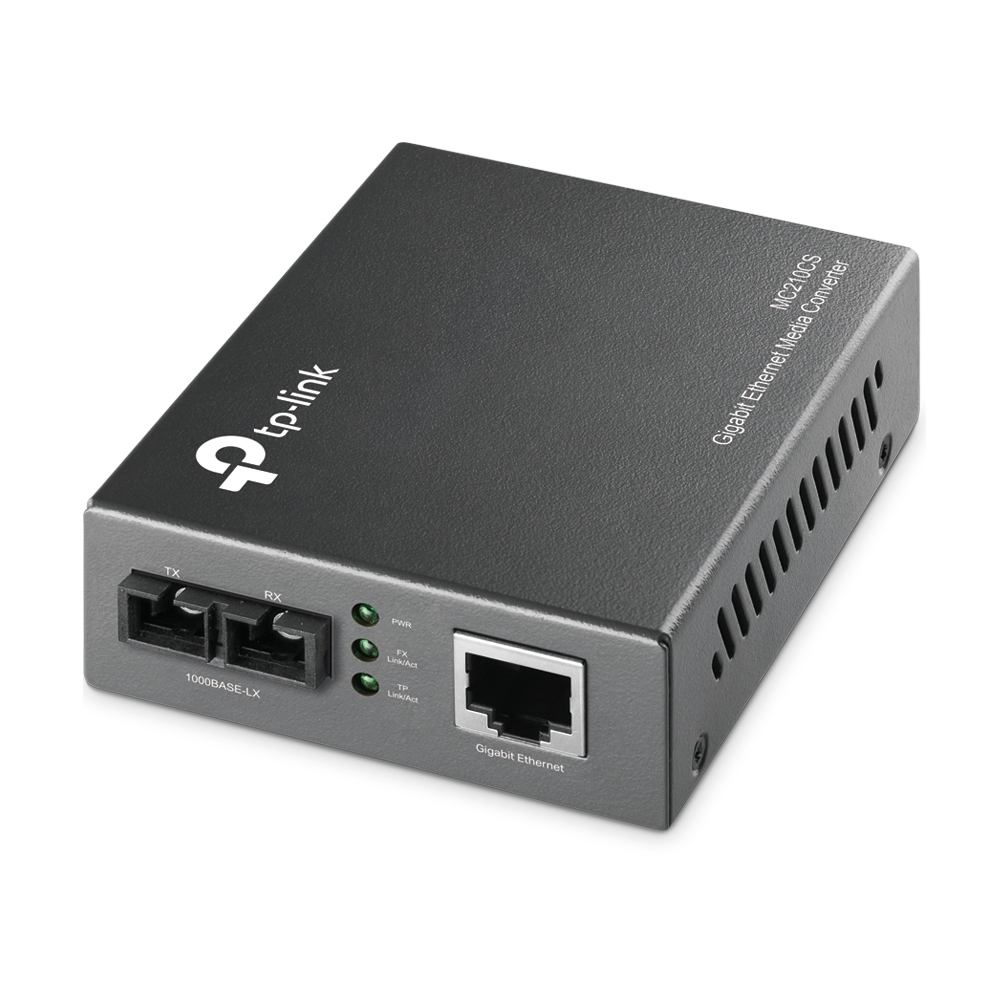

TP-Link MC210CS Gigabit Single-Mode Media Converter
SKU: 122666
TP-Link MC210CS Gigabit Single-Mode Media Converter
SKU: 122666
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 15km
What This Product Does
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
(122666)
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
| Extends fibre distance up to 20km | |
| Ports | 1× 1000M SC/UPC port |
| 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) | |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC210CS |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) |
| • Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| • Operating Humidity: 10%~90% non-condensing | |
| • Storage Humidity: 5%~90% non-condensing | |
| SKU | 122666 |
| Model # | MC210CS |
| Barcode # | 6935364030445 |
| Brand | TP-LINK |
| Shipping Weight | 0.3600kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.070m |
| Shipping Length | 0.210m |
