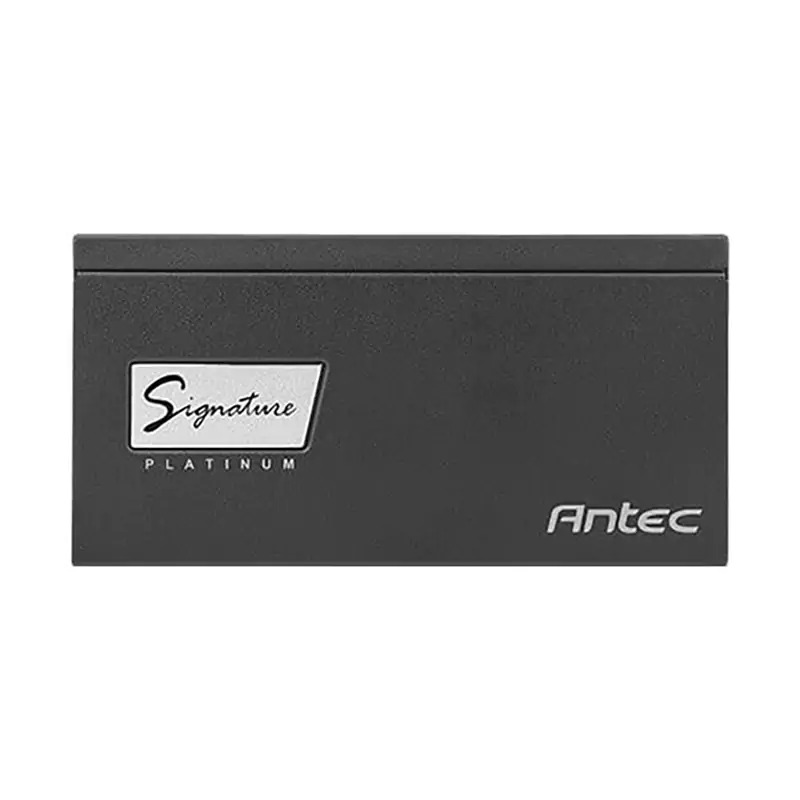

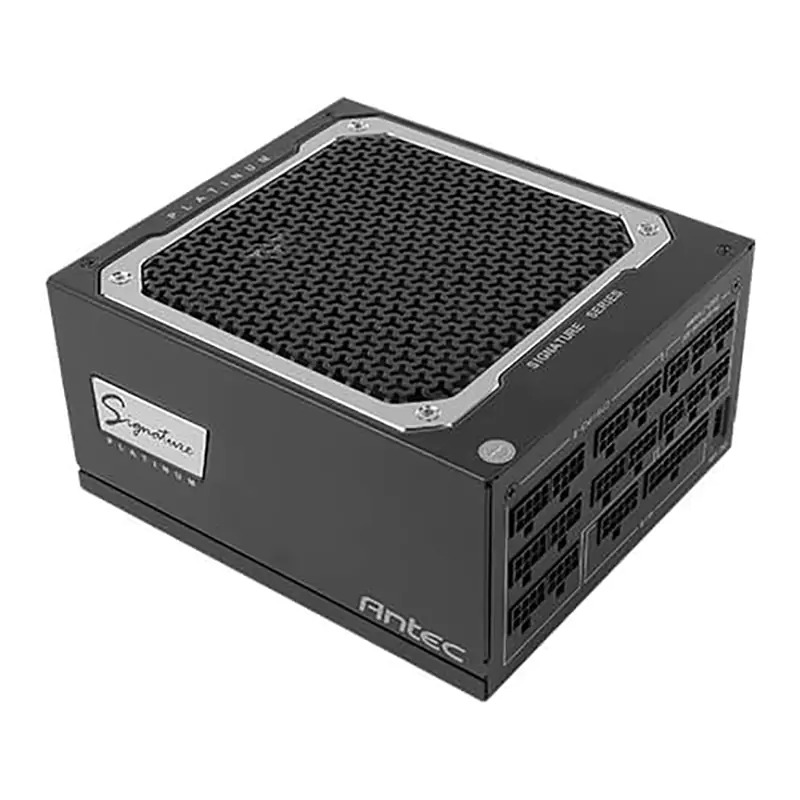

Antec 1300W Signature 80+ Platinum Fully Modular Power Supply

SKU: 122635



1623371357912424







SPECIFICATIONS:

Model

X8000A506-18

Type

ATX

Modular

Fully

Dimension (W x L x H)

150 x 170 x 86mm

Warranty

10 years

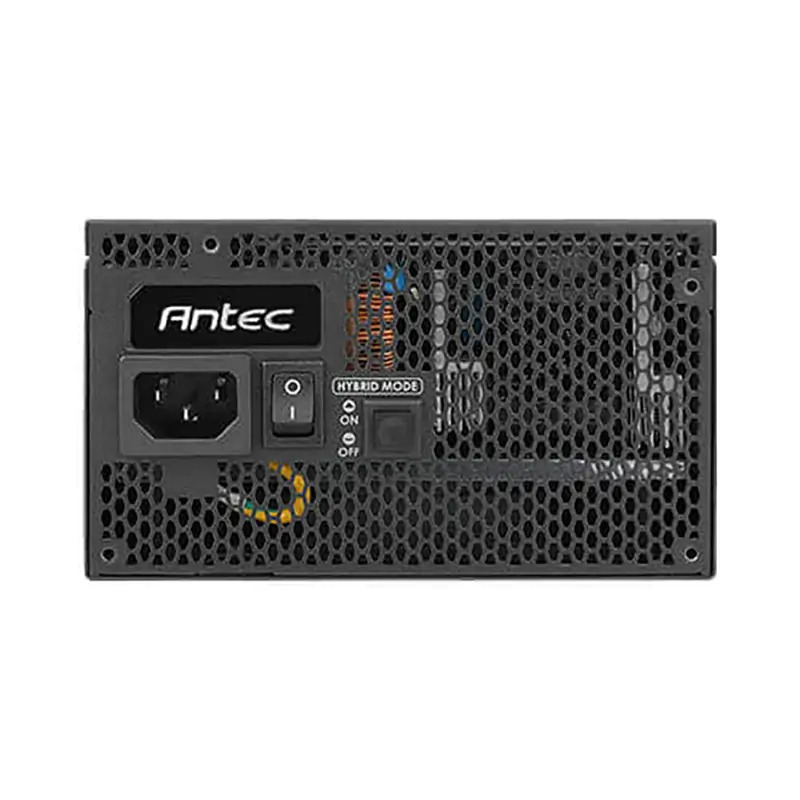

Input Voltage

100-240

Input Current

15A ~ 7.5A

Input Frequency Range

47Hz ~ 63Hz

PFC

APFC
  PFC at half / full load:
  >0.95 at AC 110v 60Hz(typical)
  >0.90 at AC 230v 50Hz(typical)

Power Good Signal

100 ~ 500mS

Efficiency

At 20% / 50% / 100% load   AC 115V internal,
  the power efficiency should be at least 90% / 92% / 89%.

Protection

OCP / OVP / UVP / SCP /   OPP / OTP / SIP / NLO

Output Capacity

1300W

Operation Temperature

0 ~ 40°C

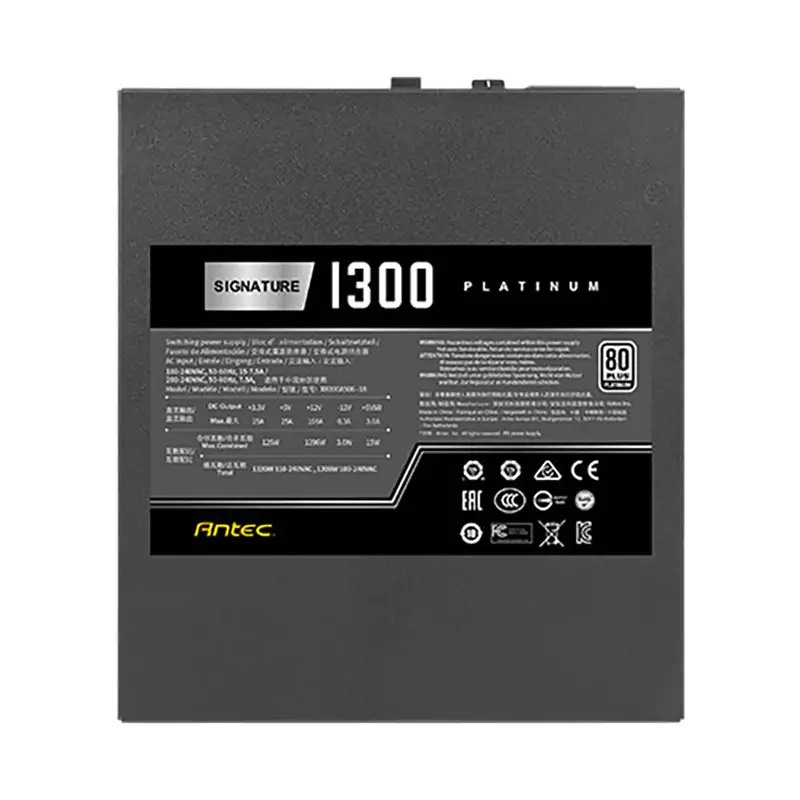

Regulatory

cTUVus / TUV / CB   [IEC62368 Compliant] / CE /
  FCC / BSMI / 3C / KC / RCM

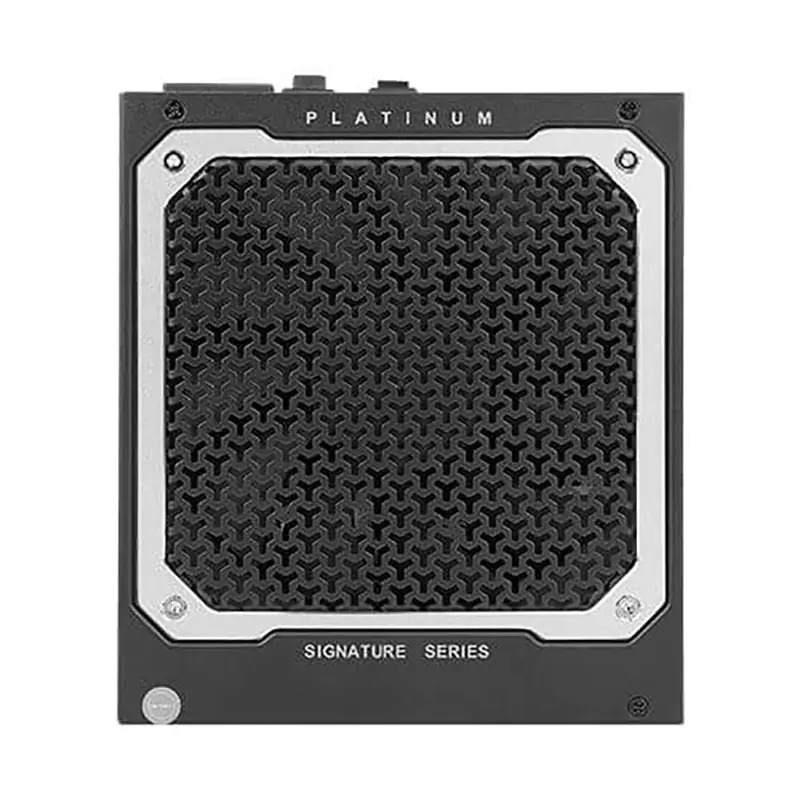

Fan

135 x 135 x 25(mm) FDB   Silent Fan

Certifications

80 Plus Platinum

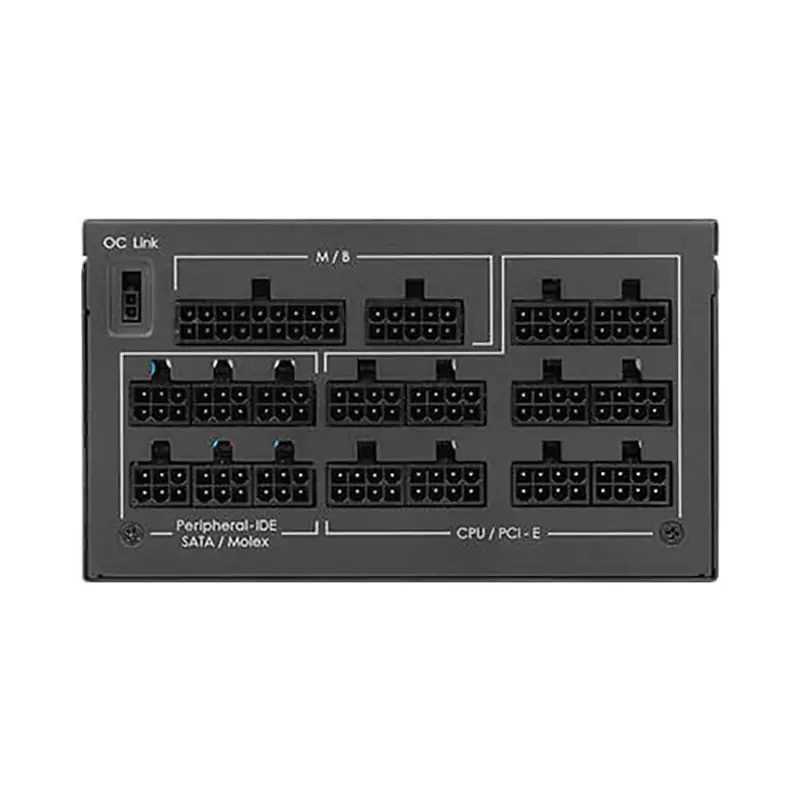

Connector

1 x MB 24(20+4) Pin

2 x 8(4+4) Pin EPS 12V

12 x 8(6+2) Pin PCI-E

14 x SATA

5 x Molex

1 x FDD

UPC#

0-761345-11705-0 SP1300
  0-761345-11706-7 SP1300 AU
  0-761345-11707-4 SP1300 EC
  0-761345-11708-1 SP1300 GB
  0-761345-11709-8 SP1300 JP

Net Weight

2.12 Kgs

Gross Weight

4.05 Kgs

(122635)

SKU 122635
Model # SP1300-PLUS
Brand ANTEC
Shipping Weight 4.0000kg
Shipping Width 0.200m
Shipping Height 0.140m
Shipping Length 0.340m
