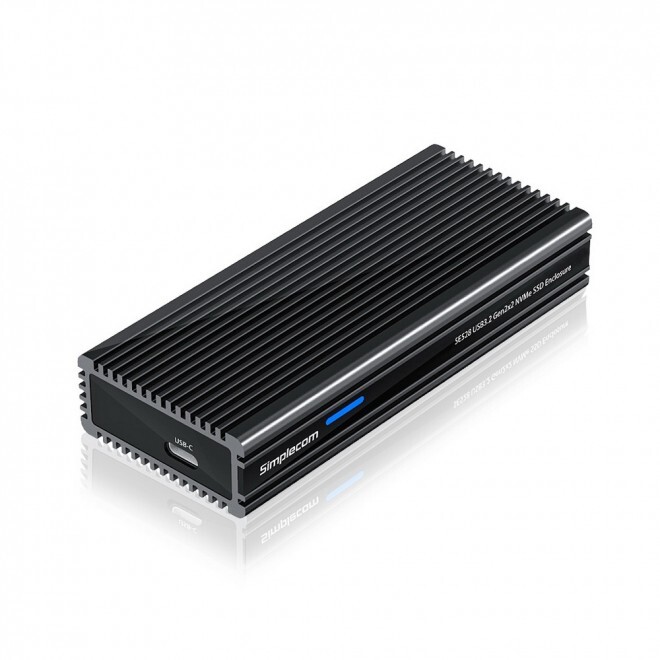

Simplecom SE528 NVMe M.2 SSD to USB 3.2 Gen 2x2 USB-C Enclosure 20Gbps

SKU: 121735

SE528 is a portable and durable NVMe M.2 enclosure with fastest version USB 3.2 Gen 2x2 interface and support data transfer rate up to 20Gbps, to unleash the full potential of high performance NVMe M.2.

The robust design features innovative heat sink style aluminium housing for effective heat dissipation to protect the SSD inside. It also features an internal thermal pad that transfers heat away from the SSD to case for maximum heat dissipation, ensuring your SSD operates at lower temperature for optimal performance.The enclosure is USB powered and no external power required. It also features an eye-catching LED indicator for power and activity status.

Features

  • Designed for M Key NVMe M.2 2280 SSD only (20x80mm)
  • Convert an NVMe M.2 SSD to a USB-C portable drive
  • USB 3.2 Gen 2x2 interface support data transfer rate up to 20Gbps
  • Heat sink style aluminium case for durability and excellent heat dissipation
  • Internal thermal pad and copper heat sink for effective heat transfer
  • Plug and play, no drivers required
  • LED indicator for power and activity status

Specifications

  • Model: SE528
  • Interface: USB-C (USB 3.2 Gen 2x2)
  • Transfer Rate: up to 20Gbps
  • Material: Aluminium
  • Compatible M.2: NVMe M.2 SSD
  • Compatible M.2 Size: 2280 (20x80mm)
  • Dimension: 104x36x14.5mm (LxWxH)
  • Operating System Support: Windows 7 and above, Mac OS 10.8 and above

Package Contents

  • 1x SE528 NVMe M.2 SSD Enclosure
  • 1x USB C to USB C Cable
  • 1x Screw driver
  • 1x Screw set
  • 1x Acrylic side cover
  • 1x Copper heat sink
  • 1x Silicone thermal pad
  • 1x User manual

Important Note

  • SE528 only support NVMe based M.2 2280 SSD (20x80mm), doesn't support SATA based M.2 SSD (B Key or B+M Key) and AHCI PCIe based M.2 SSD (M Key)
  • SE528 only can reach data transfer rate up to 20Gbps when a high performance NVMe M.2 SSD installed and connecting to PC with USB 3.2 Gen 2x2 host port. Otherwise, speed will be limited to 5Gbps or 10Gbps according max speed support of SSD and USB port on PC. You can add a USB 3.2 Gen 2x2 PCI-E expansion card if your PC doesn't support USB 3.2 Gen 2x2.



(121735)

SKU 121735
Model # SE528
Barcode # 9350414002154
Brand SIMPLECOM
Shipping Weight 0.2200kg
Shipping Width 0.160m
Shipping Height 0.090m
Shipping Length 0.050m
