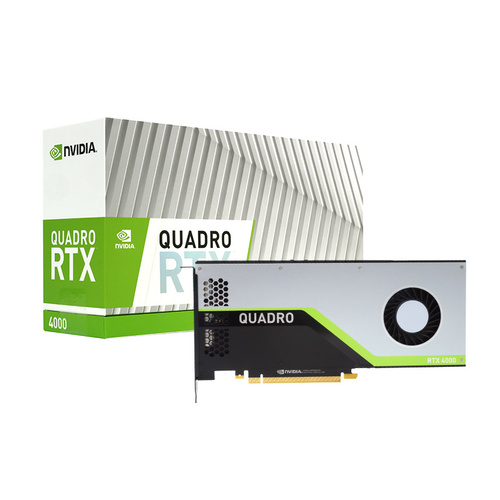

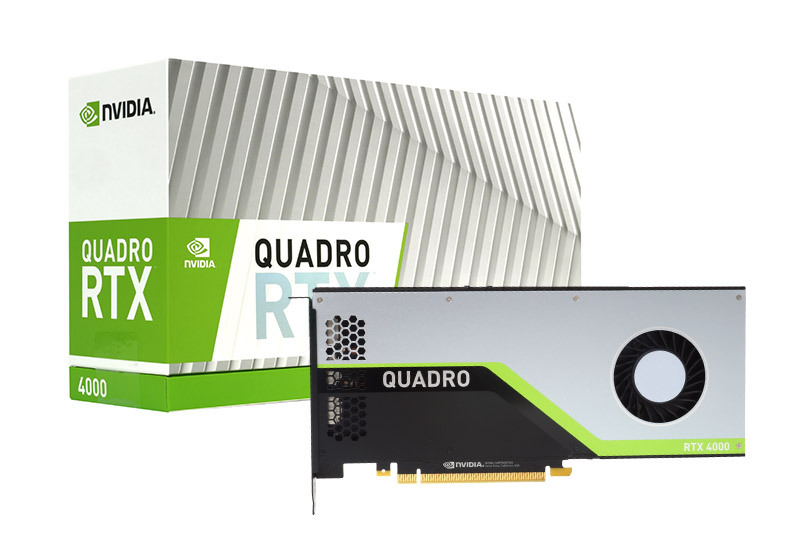

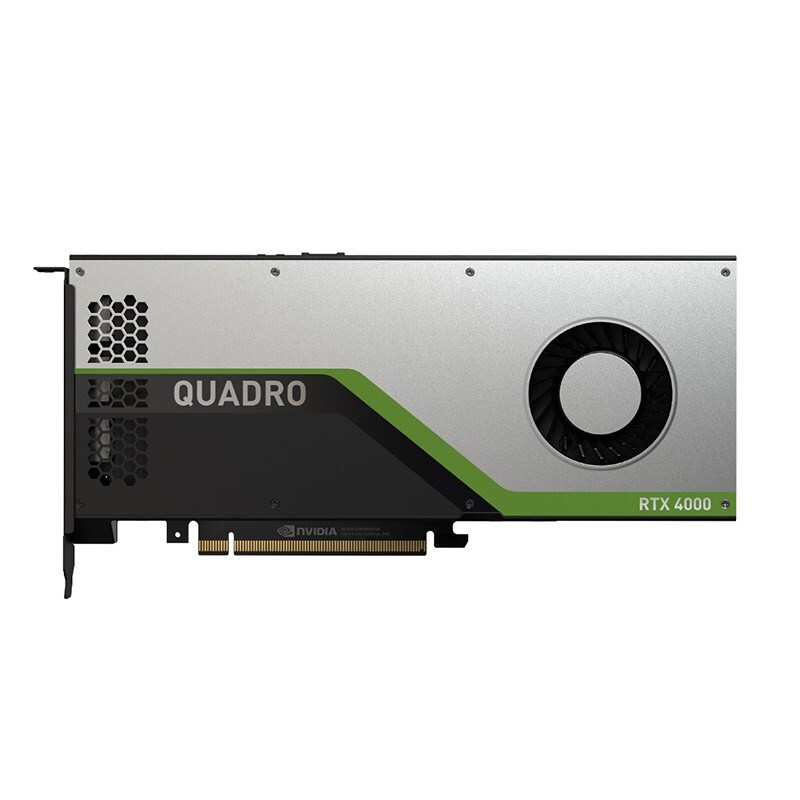

NVidia Quadro RTX4000 8GB GDDR6 3xDP1.4 5K 4x4096x2160@120Hz 1xVirtualLink 256-Bit 416GB/s 2304 Cuda 288 Tensor 36 RT PCIe Workstation Card

NVidia RTX4000 PCIe Workstation Card 8GB GDDR6 3xDP1.4 5K 4x4096x2160@120Hz 1xVirtualLink 256-Bit 416GB/s 2304 Cuda 288 Tensor 36 RT. Replaces Quadro P4000

Meet today’s demanding professional workflows with GPU accelerated ray tracing, deep learning, and advanced shading. The NVIDIA® Quadro RTX™ 4000, powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, delivers best in-class performance and features in a single-slot PCI-e form factor. Design and create like never before with faster time to insight and faster time to solution.

Performance Features
Turing GPU Architecture
RT Cores
Enhanced Tensor Cores
Advanced Shading Technologies
High Performance GDDR6 Memory
Single Instruction, Multiple Thread (SIMT)
Advanced Streaming Multiprocessor (SM) Architecture
Mixed-Precision Computing
Error Correcting Code (ECC) on Graphics Memory
Graphics Preemption
Compute Preemption
H.264 and HEVC Encode/Decode Engines
NVIDIA GPU BOOST 4.0

Image Quality
Full-Scene Antialiasing (FSAA)
32K Texture and Render Processing

Specifications
CUDA Parallel Processing cores 2304
NVIDIA Tensor Cores 288
NVIDIA RT Cores 36
Frame Buffer Memory 8 GB GDDR6
RTX-OPS 43T
Rays Cast 8 Giga Rays/Sec
Peak Single Precision (FP32) Performance 7.1 TFLOPS
Peak Half Precision (FP16) Performance 14.2 TFLOPS
Peak Integer Operation (INT8) Performance 28.5 TOPS
Deep Learning TeraFLOPS 57.0 TFLOPS
Memory Interface 256-bit
Memory Bandwidth Up to 416 GB/s
Max Power Consumption 160 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (3) + VirtualLink (1)
Form Factor 4.4” H x 9.5” L
Product Weight 479 g
Thermal Solution Active
NVIDIA® 3D Vision®and 3D Vision Pro Support via 3 pin mini DIN
Frame Lock Compatible (with Quadro Sync II)
NVLink Interconnect N/A
Power Connector 8-pin PCIe

(120753)
