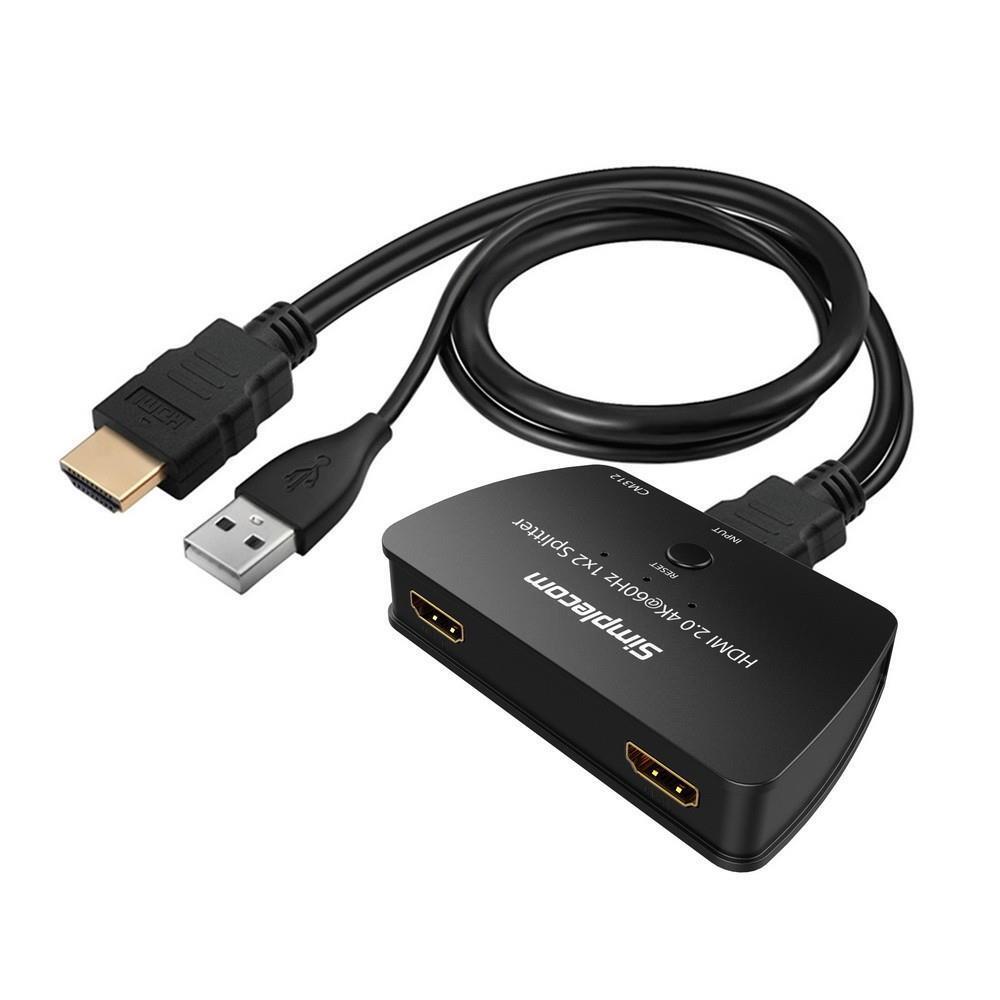

Simplecom CM312 2 Port 4K HDMI 2.0 Splitter

Simplecom CM312 HDMI 2.0 1x2 Splitter 1 In 2 Out 4K@60Hz UHD 3D 2 Port HDMI Duplicator

CM312 2 Port HDMI 2.0 1x2 splitter allows to duplicate one HDMI signal source device to two display terminal devices without loss quality. Widely compatible HDMI devices with HDMI 2.0 support, ideal for latest online streaming box and game console with 4K UHD HDMI output.

Features

• Support HDMI 2.0, bandwidth up to 18Gpbs
• Backward compatible with HDMI 1.4 and HDMI 1.3
• Duplicate one HDMI input signal to two identical HDMI outputs
• Support resolution up to 4K@60Hz (3840X2160)
• Support HDCP 1.4
• Support 3D
• Support YUV420, 8/10/12 bit deep colour
• Powered by USB
• Compatible with Fetch TV, Apple TV, Blu-ray, Xbox, PS3, PS4 and PS4 Pro, Chromecast and more.

Specifications

• HDMI version: HDMI 2.0a
• HDMI resolution: 480i/480p/576i/576p/720p/1080i/1080p/2160p@ 60Hz
• Input Ports: 1 x HDMI (Female type)
• Output Ports: 2 x HDMI (Female type)
• Support video format: 8/10/12 bit deep color
• Support audio format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD
• Max bandwidth: 320MHz / 18Gbps
• Max Input cable distance: 1080p<15m, 4K<12m (AWG26 HDMI cable)
• Max Output cable distance: 1080p<25m, 4K<15m (AWG26 HDMI cable)
• Max current: 500mA
• Power requirement: USB DC5V 1A
• Operating Temperature: (-15 to +55°C)
• Dimension (L x W x H):  9x5.5x20mm
• Weight: 153g

Package Contents

• 1 x HDMI 2.0 1x2 4K Splitter
• 1 x HDMI cable with USB
• 1 x User Manual

(119108)
