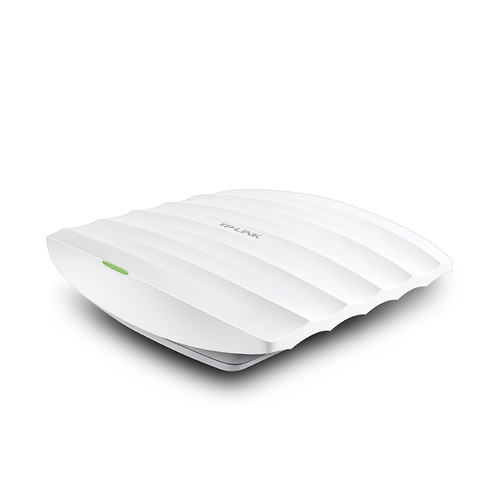

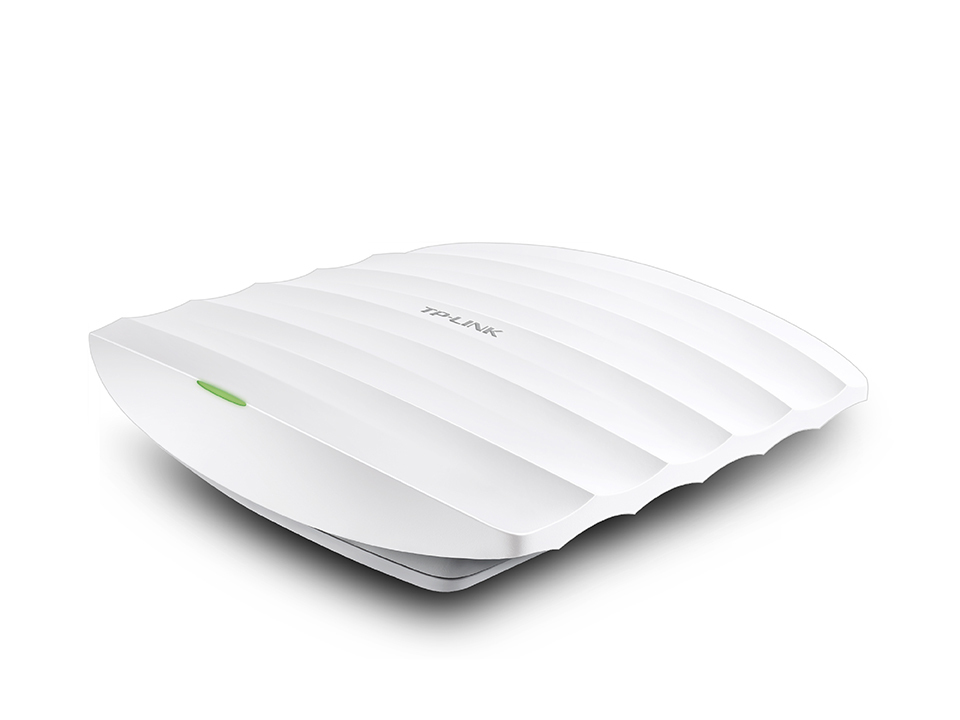

TP-Link EAP330 AC1900 Wireless Dual Band Gigabit Ceiling Mount PoE Access Point

SKU: 116418

AC1900 Wireless Dual Band Gigabit Ceiling Mount Access PointEAP330

  •  Speeds of up to 1.9Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
  •  Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
  •  Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity
  •  Free EAP Controller Software lets administrators easily manage hundreds of EAPs
  •  Captive portal provides a convenient method for guest authentication
  •  Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

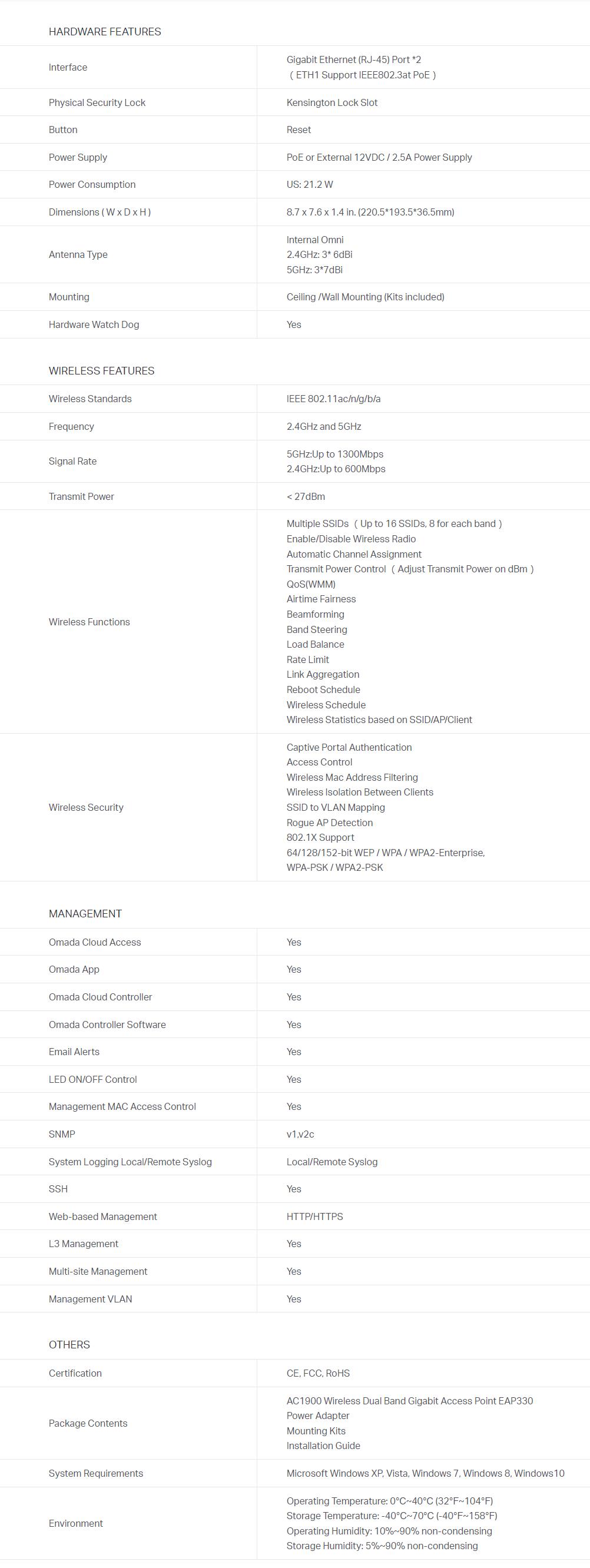

HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *2
(ETH1 Support IEEE802.3at PoE)
Button Reset
Power Supply PoE or External 12VDC / 2.5A Power Supply
Power Consumption US: 21.2 W
Dimensions ( W x D x H ) 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)
Antenna Type Internal Omni
2.4GHz: 3* 6dBi
5GHz: 3*7dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mbps
Transmit Power < 27dBm
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Link Aggregation
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1900 Wireless Dual Band Gigabit Access Point EAP330
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

(116418)

SKU 116418
Model # EAP330
Barcode # 6935364094225
Brand TP-LINK
Shipping Weight 1.6600kg
Shipping Width 0.240m
Shipping Height 0.450m
Shipping Length 0.070m
